Process Metrics
Process Metrics tab displays details such as Filter Criteria, Return Fields, Context Analytics, and so on for the related tables and business views of the selected enterprise process template. The Process Metrics is used to analyze and measure the overall performance of the process.
Click the Process Metrics icon. You can review the settings in the read-only mode.

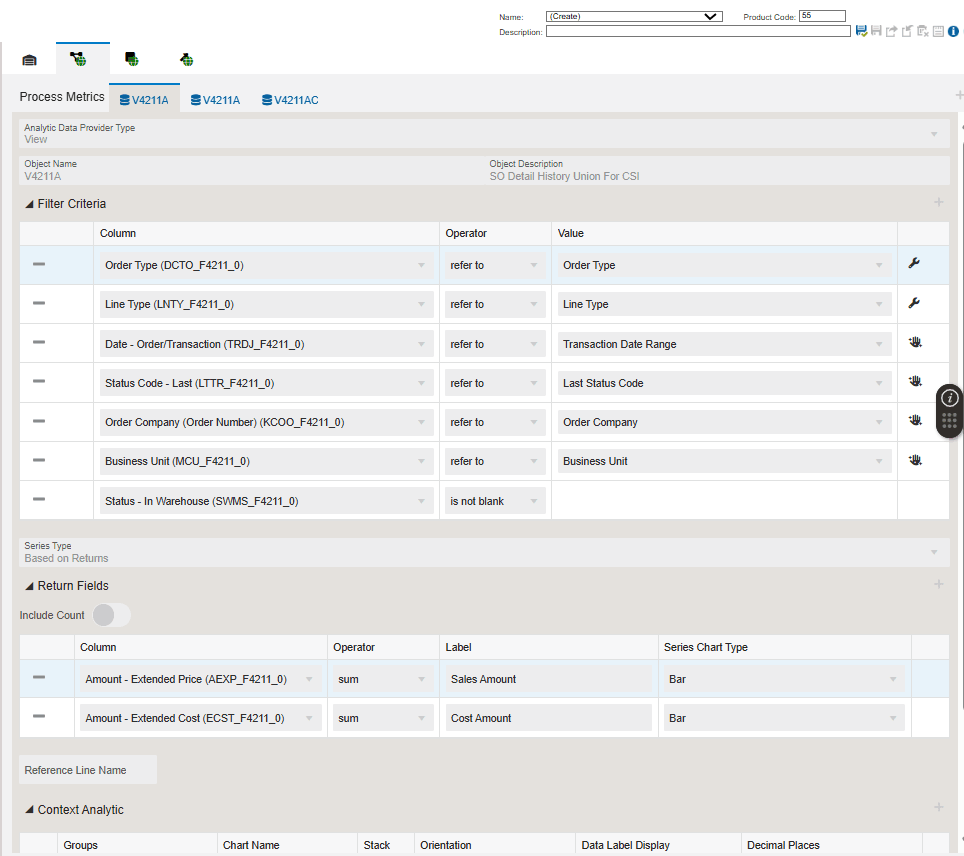

For the Order to Cash with Warehouse process model, the process metrics displays the following information:
By default the V4211A tab is displayed.
-
Object Type: View
-
Object Name: V4211A
-
Object Description: SO Detail History Union For CSI
-
The Filter Criteria displays the list of columns that are considered for filtering and the value each column is referring to. These filter options are displayed when you click the Show Filter Options icon to analyze the enterprise process. See "Using the Show Filter Options".
-
The Series Type selected is Based on Returns. This criteria returns standard aggregated values from View to display the values on charts in preview mode.
-
The Return Fields section lists the column that returns values. In the Order to Cash with Warehouse process model, the sum of Extended Price and Extended Cost are returned as values.
-
The system uses the data in Context Analytic section to generate charts. For every row in this section, a unique chart is generated.
Charts
Based on the details in the Context Analytic section, the data is grouped by Address Number , Business Unit, and Sales Catalog in the Process Metrics tab. In Enterprise Process Modeler, five charts are generated for Business Unit, Address Number, Sales Catalog, and Item Number with the chart names Total Sales vs Cost Amount By Customer, Total Sales vs Cost Amount By Business Unit, Total Sales vs Cost Amount By Sales Catalog Section, Total Ordered Quantities By Items, and On Time Shipping Percentage By Business Unit.
This table lists and describes the charts that are available on the Process Metrics tab:
|
Component Title |
Description |
|---|---|
|
Total Sales vs Cost Amount By Customer |
Use this chart to compare the total sales amount and cost amount, grouped by customer. |
|
Total Sales vs Cost Amount By Business Unit |
Use this chart to compare the total sales amount and cost amount, grouped by business unit. |
|
Total Sales vs Cost Amount By Sales Catalog Section |
Use this chart to compare the total sales amount and cost amount, grouped by sales catalog section. |
|
Total Ordered Quantities By Items |
Use this chart to view the total ordered quantities by items, grouped by item number. |
|
On Time Shipping Percentage By Business Unit |
Use this chart to view the On Time Shipping Percentage grouped by business unit. This KPI measures the percentage of orders in warehouse that are prepared and ready to ship on or before the promised ship date within a specified period. On Time Shipping Percentage = (number of sales order lines shipped on time / total sales order lines shipped over selected period) × 100 |
