Before You Begin

This 15-minute tutorial shows you how to create an action chain to retrieve the order detail information and populate the variables.

Creating an Action Chain for Price Information

To create an action chain to retrieve the order detail information and populate the variables:

1. On the Actions section of the customer_search_product_price_availability-customer_price page, create a new action chain with this value:
   • ID = GetPriceInfo
2. Drag and drop the Assign Variables action below Start.
3. Rename ID as FinishGetPriceFalse.
4. Click Assign next to Variables. On the Assign Variables: FinishGetPriceFalse dialog box, select FinishGetPrice on the right pane. Enter false in the text area and select Static Content.

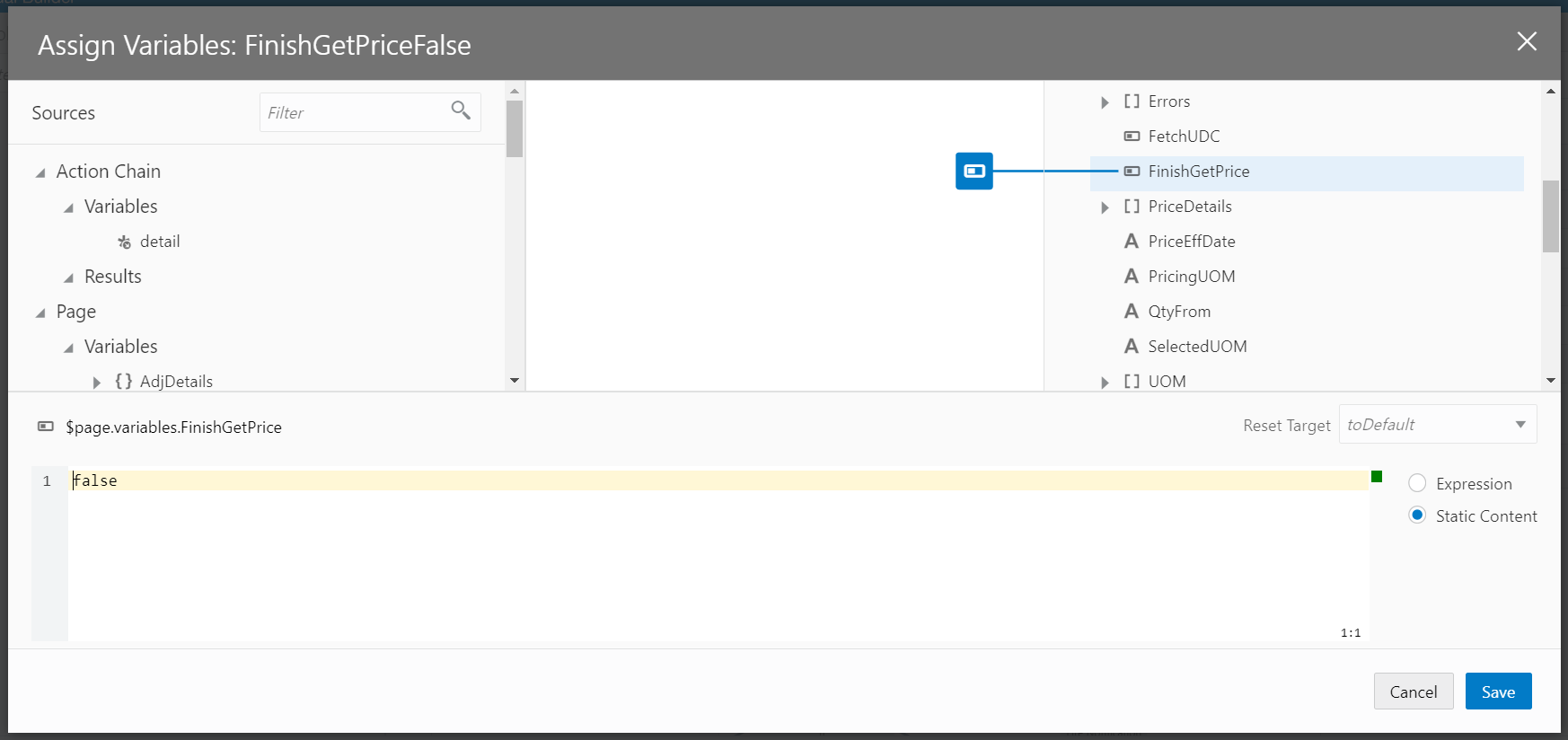

   The Assign Variables dialog box should look like this:



5. Drag and drop the Call REST Endpoint action below Assign Variables. Set ID as callGetPriceInfoORCH, select jderestV3Orchestrator, and then select JDE_ORCH_CustomerSearch_GetCustomerPrice as the endpoint.
6. Select Assign next to Parameters. In the Call REST Endpoint: callGetPriceInfoORCH dialog box, select Parameters and then body in the right pane and provide the following input parameters of the orchestration:

{
 "Item_Number": $flow.variables.Flow_Item,
 "Address_Number": $page.variables.CustNo,
 "Branch_Plant": $page.variables.BU,
 "Adjustment_Schedule": $page.variables.AdjSchd,
 "Quantity_From": $page.variables.QtyFrom,
 "Pricing_UOM": $page.variables.PricingUOM,
 "Price_Effective": $page.variables.PriceEffDate,
 "token" : $application.variables.aisToken,
 "deviceName":"MyDevice"
}



   The Call REST Endpoint: callGetPriceInfoORCH dialog box should look like this:



7. Drag and drop the Assign Variables action in the success path of Call REST Endpoint. Set ID as assignPriceDetails.
8. Click Assign and Action Chain, Results, callGetPriceInfoORCH, body, ServiceRequest1, fs_P4074_W4074D, data, gridData, rowset, on the left pane and AdjDetails variables on the right pane.

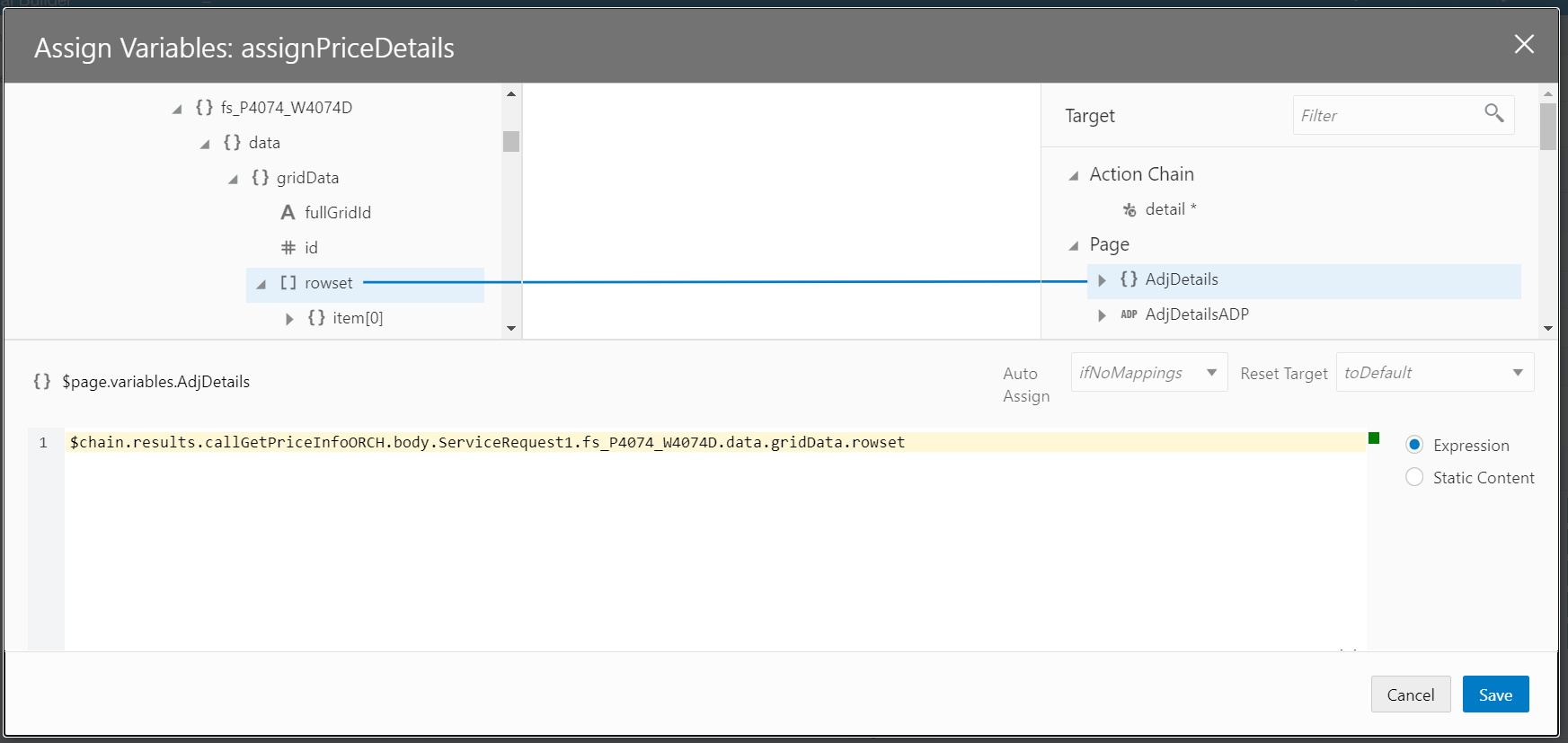

   The Assign Variables dialog box should look like this:



9. Again click Assign and select the PriceDetails variable on the right pane and paste the following code:
{
 "data": {
  "z_ASN_38": "{{ $chain.results.callGetPriceInfoORCH.body.ServiceRequest1.fs_P4074_W4074D.data.z_ASN_38 }}",
  "z_CRCD_17": "{{ $chain.results.callGetPriceInfoORCH.body.ServiceRequest1.fs_P4074_W4074D.data.z_CRCD_17 }}",
  "z_CRR_30": "{{ $chain.results.callGetPriceInfoORCH.body.ServiceRequest1.fs_P4074_W4074D.data.z_CRR_30 }}",
  "z_CRRM_14": "{{ $chain.results.callGetPriceInfoORCH.body.ServiceRequest1.fs_P4074_W4074D.data.z_CRRM_14 }}",
  "z_PEFJ_36": "{{ $chain.results.callGetPriceInfoORCH.body.ServiceRequest1.fs_P4074_W4074D.data.z_PEFJ_36 }}",
  "z_UNCS_48": "{{ $chain.results.callGetPriceInfoORCH.body.ServiceRequest1.fs_P4074_W4074D.data.z_UNCS_48 }}",
  "z_UPRC_44": "{{ $chain.results.callGetPriceInfoORCH.body.ServiceRequest1.fs_P4074_W4074D.data.z_UPRC_44 }}",
  "z_UOM4_40": "{{ $chain.results.callGetPriceInfoORCH.body.ServiceRequest1.fs_P4074_W4074D.data.z_UOM4_40 }}"
 }
}



   The Assign Variables dialog box should look like this:



10. Drag and drop the Assign Variables action under this Assign Variables action.
11.  Rename the ID as FinishGetPriceTrue.
12. Click Assign next to Variables. In the Assign Variables: FinishGetPriceTrue dialog box, select FinishGetPrice on the right pane. Enter true in the text area and select Static Content.

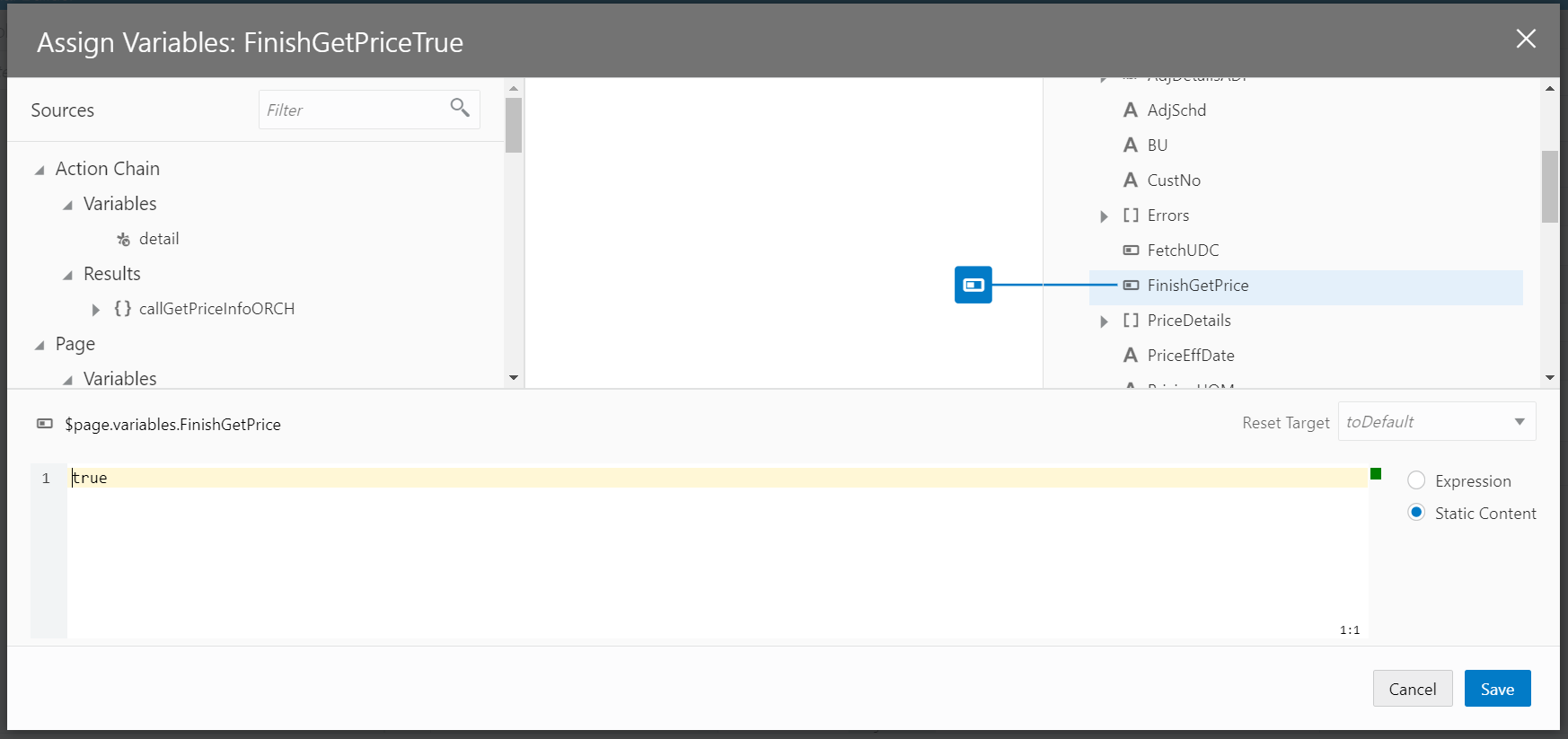

    The Assign Variables: FinishGetPriceTrue dialog box should look like this:

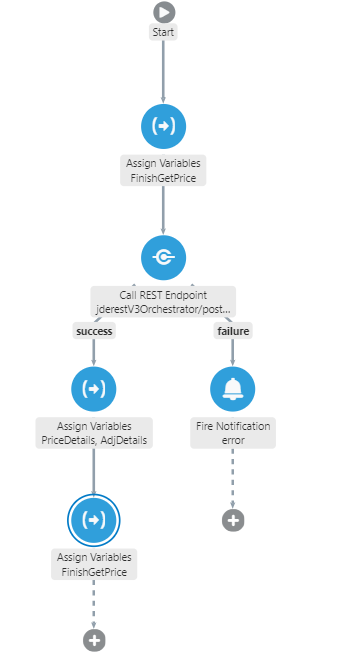

    Part of your action chain should look like this:



    To create the rest of the variables and action chains required for this page, follow these steps:

13. Select customer_search_product_price_availability-customer_price from the navigator section.

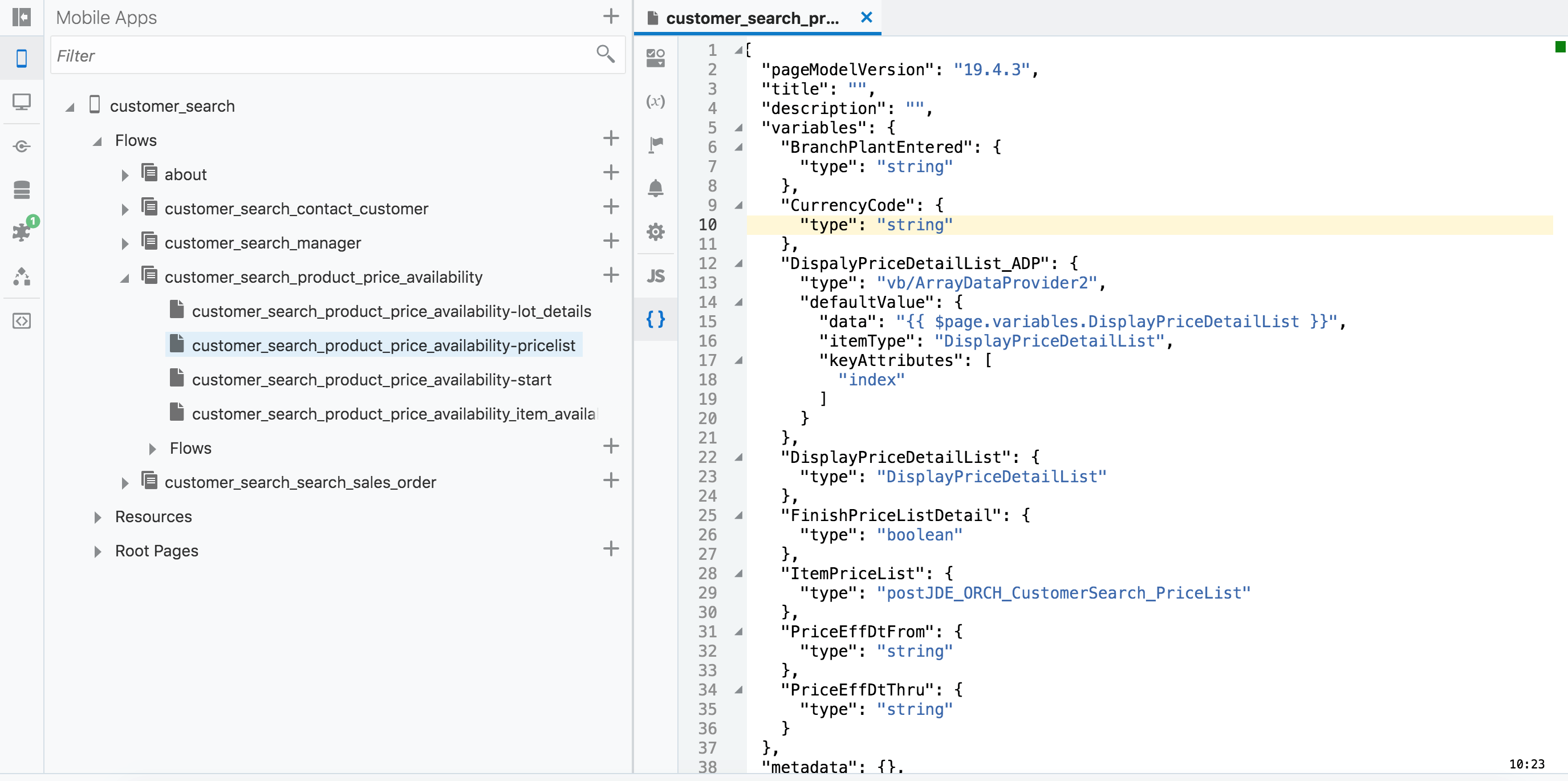

14. Select the Metadata or JSON icon for customer_search_product_price_availability-customer_price.



15. Click here to copy and replace the given code in the Metadata or JSON section.
