Describing the SOAP Input Message: SCC_SUBMIT_USERPREF_REQ

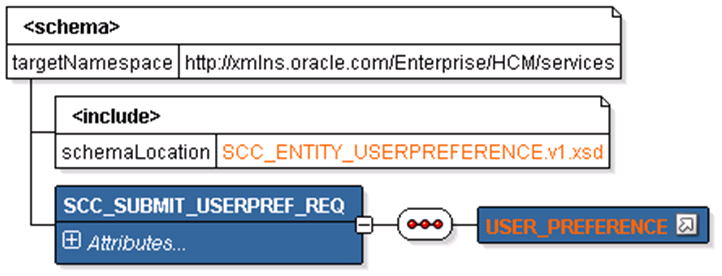

The following diagram shows the input message structure:
This example illustrates the fields and controls on the SCC_SUBMIT_USERPREF_REQ Message Structure. You can find definitions for the fields and controls later on this page.
<?xml version="1.0"?>
<SCC_SUBMIT_USERPREF_REQ xmlns="http://xmlns.oracle.com/Enterprise/services">
<USER_PREFERENCE>
<EMPLID/>
<NAME_DISPLAY/>
<OPERATOR_DEFAULT>
<OPRID>PS</OPRID>
<INSTITUTION>PSUNV</INSTITUTION>
<INSTITUTION_LOVDescr>PeopleSoft University</INSTITUTION_LOVDescr>
<STRM>0505</STRM>
<STRM_LOVDescr>2003 Fall</STRM_LOVDescr>
<AID_YEAR>2004</AID_YEAR>
<AID_YEAR_LOVDescr>Financial Aid Year 2003-2004</AID_YEAR_LOVDescr>
<ACAD_CAREER>UGRD</ACAD_CAREER>
<ACAD_CAREER_LOVDescr>Undergraduate</ACAD_CAREER_LOVDescr>
</OPERATOR_DEFAULT>
<COMM_PREFERENCE>
<EMPLID>KU0007</EMPLID>
<LANG_CD>ENG</LANG_CD>
<LANG_CD_LOVDescr>English</LANG_CD_LOVDescr>
<COMM_METHOD>E</COMM_METHOD>
<COMM_METHOD_LOVDescr>E-Mail</COMM_METHOD_LOVDescr>
</COMM_PREFERENCE>
<NOTIFICATION_PREFERENCE>
<EMPLID>KU0007</EMPLID>
<SCC_EMAIL_NTF_IND>Y</SCC_EMAIL_NTF_IND>
<SCC_SMS_NTF_IND>Y</SCC_SMS_NTF_IND>
<E_ADDR_TYPE>HOME</E_ADDR_TYPE>
<PHONE_TYPE>HOME</PHONE_TYPE>
<SCC_NTF_LANG/>
<PHONE>555/123-4567</PHONE>
<EMAIL_ADDR>GENUser1@ap6023fems.us.oracle.com</EMAIL_ADDR>
</NOTIFICATION_PREFERENCE>
<USER_PERSONALIZATIONS>
<USER_PERSONALIZATION>
<OPRID>PS</OPRID>
<OPTN_CATEGORY>GENERAL</OPTN_CATEGORY>
<DESCR>General Options</DESCR>
<DESCR254>Personalize General Options</DESCR254>
<USER_PERS_CATEGORIES>
<USER_PERSONALIZATION_CATEGORY>
<OPTN_CATEGORY_LVL>PPTL</OPTN_CATEGORY_LVL>
<OPTN_CATEGORY_LVL_LOVDescr>PeopleTools</OPTN_CATEGORY_LVL_LOVDescr>
<USEROPTN>ACCESS</USEROPTN>
<USEROPTN_LOVDescr>Accessibility Features</USEROPTN_LOVDescr>
<OPTN_CATEGORY>GENERAL</OPTN_CATEGORY>
<OPTN_CATEGORY_GRP>PIA</OPTN_CATEGORY_GRP>
<DEFAULT_VALUE>N</DEFAULT_VALUE>
<DEFAULT_VALUE_DESCR>Accessibility features off</DEFAULT_VALUE_DESCR>
<OVERRIDE_VALUE>N</OVERRIDE_VALUE>
<OVERRIDE_VALUE_DESCR>Accessibility features off</OVERRIDE_VALUE_DESCR>
<EXPLANATION>Provides better support for assistive technologies.
Use accessible mode layout - This option is for use with screen readers.
Page elements (fields, links, buttons, etc.) are presented linearly to
assistive software.
Use standard mode layout - This option supports assistive technologies
without altering the page design.
Accessibility Features disabled - This option is the default.</EXPLANATION>
<OVERRIDE__VALUES>
<OVERRIDE__VALUE>
<FIELDVALUE>A</FIELDVALUE>
<DESCR>Use accessible layout mode</DESCR>
</OVERRIDE__VALUE>
<OVERRIDE__VALUE>
<FIELDVALUE>N</FIELDVALUE>
<DESCR>Accessibility features off</DESCR>
</OVERRIDE__VALUE>
<OVERRIDE__VALUE>
<FIELDVALUE>S</FIELDVALUE>
<DESCR>Use standard layout mode</DESCR>
</OVERRIDE__VALUE>
</OVERRIDE__VALUES>
</USER_PERSONALIZATION_CATEGORY>
</USER_PERS_CATEGORIES>
</USER_PERSONALIZATION>
<USER_PERSONALIZATION>
<OPRID>PS</OPRID>
<OPTN_CATEGORY>LOCALE</OPTN_CATEGORY>
<DESCR>Regional Settings</DESCR>
<DESCR254>Personalize Regional Settings</DESCR254>
<USER_PERS_CATEGORIES>
<USER_PERSONALIZATION_CATEGORY>
<OPTN_CATEGORY_LVL>PPTL</OPTN_CATEGORY_LVL>
<OPTN_CATEGORY_LVL_LOVDescr>PeopleTools</OPTN_CATEGORY_LVL_LOVDescr>
<USEROPTN>DCSP</USEROPTN>
<USEROPTN_LOVDescr>Decimal Separator</USEROPTN_LOVDescr>
<OPTN_CATEGORY>LOCALE</OPTN_CATEGORY>
<OPTN_CATEGORY_GRP>PIA</OPTN_CATEGORY_GRP>
<DEFAULT_VALUE>.</DEFAULT_VALUE>
<DEFAULT_VALUE_DESCR>.</DEFAULT_VALUE_DESCR>
<OVERRIDE_VALUE/>
<OVERRIDE_VALUE_DESCR/>
<EXPLANATION>Any single character, commonly either '.' or ','.
Determines if 1.00 is displayed as 1.00 or 1,00.</EXPLANATION>
<OVERRIDE__VALUES>
<OVERRIDE__VALUE>
<FIELDVALUE/>
<DESCR/>
</OVERRIDE__VALUE>
</OVERRIDE__VALUES>
</USER_PERSONALIZATION_CATEGORY>
<USER_PERSONALIZATION_CATEGORY>
<OPTN_CATEGORY_LVL>PPTL</OPTN_CATEGORY_LVL>
<OPTN_CATEGORY_LVL_LOVDescr>PeopleTools</OPTN_CATEGORY_LVL_LOVDescr>
<USEROPTN>DFRMT</USEROPTN>
<USEROPTN_LOVDescr>Date Format</USEROPTN_LOVDescr>
<OPTN_CATEGORY>LOCALE</OPTN_CATEGORY>
<OPTN_CATEGORY_GRP>PIA</OPTN_CATEGORY_GRP>
<DEFAULT_VALUE>M</DEFAULT_VALUE>
<DEFAULT_VALUE_DESCR>MMDDYY</DEFAULT_VALUE_DESCR>
<OVERRIDE_VALUE>M</OVERRIDE_VALUE>
<OVERRIDE_VALUE_DESCR>MMDDYY</OVERRIDE_VALUE_DESCR>
<EXPLANATION>Determines whether date will be displayed with the day first,
month first, or year first. The century (YYYY or YY) is controlled as a
page field property, not a personalization.</EXPLANATION>
<OVERRIDE__VALUES>
<OVERRIDE__VALUE>
<FIELDVALUE>D</FIELDVALUE>
<DESCR>DDMMYY</DESCR>
</OVERRIDE__VALUE>
<OVERRIDE__VALUE>
<FIELDVALUE>M</FIELDVALUE>
<DESCR>MMDDYY</DESCR>
</OVERRIDE__VALUE>
<OVERRIDE__VALUE>
<FIELDVALUE>Y</FIELDVALUE>
<DESCR>YYMMDD</DESCR>
</OVERRIDE__VALUE>
</OVERRIDE__VALUES>
</USER_PERSONALIZATION_CATEGORY>
<USER_PERSONALIZATION_CATEGORY>
<OPTN_CATEGORY_LVL>PPTL</OPTN_CATEGORY_LVL>
<OPTN_CATEGORY_LVL_LOVDescr>PeopleTools</OPTN_CATEGORY_LVL_LOVDescr>
<USEROPTN>DTSP</USEROPTN>
<USEROPTN_LOVDescr>Date Separator</USEROPTN_LOVDescr>
<OPTN_CATEGORY>LOCALE</OPTN_CATEGORY>
<OPTN_CATEGORY_GRP>PIA</OPTN_CATEGORY_GRP>
<DEFAULT_VALUE>/</DEFAULT_VALUE>
<DEFAULT_VALUE_DESCR>/</DEFAULT_VALUE_DESCR>
<OVERRIDE_VALUE/>
<OVERRIDE_VALUE_DESCR/>
<EXPLANATION>Any single character, common values are ' /', '-' or '.'.
This determines whether the date will be shown as DD/MM/YY or DD-MM-YY
for example.</EXPLANATION>
<OVERRIDE__VALUES>
<OVERRIDE__VALUE>
<FIELDVALUE/>
<DESCR/>
</OVERRIDE__VALUE>
</OVERRIDE__VALUES>
</USER_PERSONALIZATION_CATEGORY>
<USER_PERSONALIZATION_CATEGORY>
<OPTN_CATEGORY_LVL>PPTL</OPTN_CATEGORY_LVL>
<OPTN_CATEGORY_LVL_LOVDescr>PeopleTools</OPTN_CATEGORY_LVL_LOVDescr>
<USEROPTN>TFRMT</USEROPTN>
<USEROPTN_LOVDescr>Time Format</USEROPTN_LOVDescr>
<OPTN_CATEGORY>LOCALE</OPTN_CATEGORY>
<OPTN_CATEGORY_GRP>PIA</OPTN_CATEGORY_GRP>
<DEFAULT_VALUE>C</DEFAULT_VALUE>
<DEFAULT_VALUE_DESCR>12 hour clock</DEFAULT_VALUE_DESCR>
<OVERRIDE_VALUE/>
<OVERRIDE_VALUE_DESCR/>
<EXPLANATION>Determines whether time will be displayed in civilian (8:05:00 PM)
or military (20:05:00) time format. The determination of whether seconds and
microseconds are displayed is made at the field level, and is not a
personalization.</EXPLANATION>
<OVERRIDE__VALUES>
<OVERRIDE__VALUE>
<FIELDVALUE>C</FIELDVALUE>
<DESCR>12 hour clock</DESCR>
</OVERRIDE__VALUE>
<OVERRIDE__VALUE>
<FIELDVALUE>M</FIELDVALUE>
<DESCR>24 hour clock</DESCR>
</OVERRIDE__VALUE>
</OVERRIDE__VALUES>
</USER_PERSONALIZATION_CATEGORY>
<USER_PERSONALIZATION_CATEGORY>
<OPTN_CATEGORY_LVL>PPTL</OPTN_CATEGORY_LVL>
<OPTN_CATEGORY_LVL_LOVDescr>PeopleTools</OPTN_CATEGORY_LVL_LOVDescr>
<USEROPTN>TSEP</USEROPTN>
<USEROPTN_LOVDescr>Digit Group Separator</USEROPTN_LOVDescr>
<OPTN_CATEGORY>LOCALE</OPTN_CATEGORY>
<OPTN_CATEGORY_GRP>PIA</OPTN_CATEGORY_GRP>
<DEFAULT_VALUE>,</DEFAULT_VALUE>
<DEFAULT_VALUE_DESCR>,</DEFAULT_VALUE_DESCR>
<OVERRIDE_VALUE/>
<OVERRIDE_VALUE_DESCR/>
<EXPLANATION>Any single character, commonly either ',' or '.'.
Determines whether 1000 shows as 1,000 or 1.000.</EXPLANATION>
<OVERRIDE__VALUES>
<OVERRIDE__VALUE>
<FIELDVALUE/>
<DESCR/>
</OVERRIDE__VALUE>
</OVERRIDE__VALUES>
</USER_PERSONALIZATION_CATEGORY>
</USER_PERS_CATEGORIES>
</USER_PERSONALIZATION>
</USER_PERSONALIZATIONS>
</USER_PREFERENCE>
</SCC_SUBMIT_USERPREF_REQ>
