Describing the SOAP Output Message: SCC_SUBMITCONST_RESP

When the Integration Broker receives the SCC_SUBMITCONST_REQ message, it responds with the SCC_SUBMITCONST_RESP message the structure of which a portion is shown below:

This example illustrates the fields and controls on the SCC_SUBMITCONST_RESP Message Parameters (1 of 2). You can find definitions for the fields and controls later on this page.

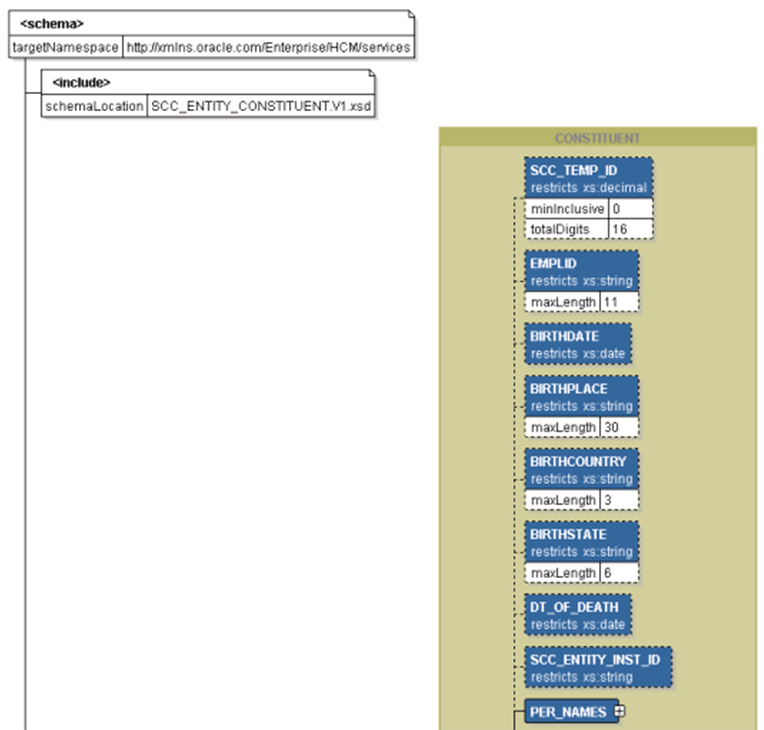

SCC_SUBMITCONST_RESP Message Parameters (1 of 2)

This example illustrates the fields and controls on the SCC_SUBMITCONST_RESP Message Parameters (2 of 2). You can find definitions for the fields and controls later on this page.

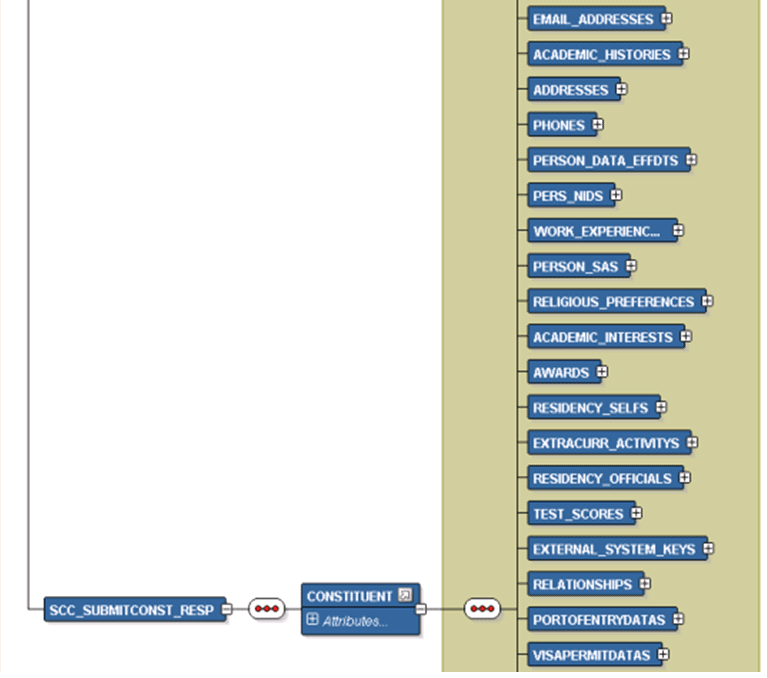

SCC_SUBMITCONST_RESP Message Parameters (2 of 2)

The following is an example of the SCC_GETCONST_RESP message that the SCC_GETCONST service operation transmits to the UI:

<?xml version="1.0"?>
<SCC_GETCONST_RESP xmlns="http://xmlns.oracle.com/Enterprise/services">
  <CONSTITUENT>
    <EMPLID>CCSCE0001</EMPLID>
    <BIRTHDATE/>
    <BIRTHPLACE/>
    <BIRTHCOUNTRY/>
    <BIRTHSTATE/>
    <DT_OF_DEATH/>
    <PER_NAMES>
      <PER_NAME>
        <EMPLID>CCSCE0001</EMPLID>
        <NAME_TYPE>PRF</NAME_TYPE>
        <NAME_TYPE_LOVDescr>Preferred</NAME_TYPE_LOVDescr>
        <COUNTRY_NM_FORMAT>001</COUNTRY_NM_FORMAT>
        <EFFDT>2013-08-20</EFFDT>
        <NAME>Anderson Jr.,Kevin</NAME>
        <EFF_STATUS>A</EFF_STATUS>
        <NAME_INITIALS/>
        <NAME_PREFIX>Mr</NAME_PREFIX>
        <NAME_SUFFIX>Jr.</NAME_SUFFIX>
        <NAME_ROYAL_PREFIX/>
        <NAME_ROYAL_SUFFIX/>
        <NAME_TITLE/>
        <LAST_NAME_SRCH>ANDERSON</LAST_NAME_SRCH>
        <FIRST_NAME_SRCH>KEVIN</FIRST_NAME_SRCH>
        <LAST_NAME>Anderson</LAST_NAME>
        <FIRST_NAME>Kevin</FIRST_NAME>
        <MIDDLE_NAME/>
        <SECOND_LAST_NAME/>
        <SECOND_LAST_SRCH/>
        <NAME_AC/>
        <PREF_FIRST_NAME/>
        <PARTNER_LAST_NAME/>
        <PARTNER_ROY_PREFIX/>
        <LAST_NAME_PREF_NLD>1</LAST_NAME_PREF_NLD>
        <NAME_DISPLAY>Kevin Anderson</NAME_DISPLAY>
        <NAME_FORMAL>Mr Kevin Anderson</NAME_FORMAL>
        <NAME_DISPLAY_SRCH/>
        <EffectiveDate>2013-10-04</EffectiveDate>
      </PER_NAME>
      <PER_NAME isDeletable="N">
        <EMPLID>CCSCE0001</EMPLID>
        <NAME_TYPE>PRI</NAME_TYPE>
        <NAME_TYPE_LOVDescr>Primary</NAME_TYPE_LOVDescr>
        <COUNTRY_NM_FORMAT>001</COUNTRY_NM_FORMAT>
        <EFFDT>2013-08-20</EFFDT>
        <NAME>Anderson Jr.,Kevin</NAME>
        <EFF_STATUS>A</EFF_STATUS>
        <NAME_INITIALS/>
        <NAME_PREFIX>Mr</NAME_PREFIX>
        <NAME_SUFFIX>Jr.</NAME_SUFFIX>
        <NAME_ROYAL_PREFIX/>
        <NAME_ROYAL_SUFFIX/>
        <NAME_TITLE/>
        <LAST_NAME_SRCH>ANDERSON</LAST_NAME_SRCH>
        <FIRST_NAME_SRCH>KEVIN</FIRST_NAME_SRCH>
        <LAST_NAME>Anderson</LAST_NAME>
        <FIRST_NAME>Kevin</FIRST_NAME>
        <MIDDLE_NAME/>
        <SECOND_LAST_NAME/>
        <SECOND_LAST_SRCH/>
        <NAME_AC/>
        <PREF_FIRST_NAME/>
        <PARTNER_LAST_NAME/>
        <PARTNER_ROY_PREFIX/>
        <LAST_NAME_PREF_NLD>1</LAST_NAME_PREF_NLD>
        <NAME_DISPLAY>Kevin Anderson</NAME_DISPLAY>
        <NAME_FORMAL>Mr Kevin Anderson</NAME_FORMAL>
        <NAME_DISPLAY_SRCH/>
        <EffectiveDate>2013-10-04</EffectiveDate>
      </PER_NAME>
    </PER_NAMES>
    <EMAIL_ADDRESSES>
      <EMAIL_ADDRESS>
        <EMPLID>CCSCE0001</EMPLID>
        <E_ADDR_TYPE>CAMP</E_ADDR_TYPE>
        <E_ADDR_TYPE_LOVDescr>Campus</E_ADDR_TYPE_LOVDescr>
        <EMAIL_ADDR>Kevin.Anderson@Campus.edu</EMAIL_ADDR>
        <PREF_EMAIL_FLAG>Y</PREF_EMAIL_FLAG>
      </EMAIL_ADDRESS>
    </EMAIL_ADDRESSES>
    <ADDRESSES>
      <ADDRESS>
        <EMPLID>CCSCE0001</EMPLID>
        <ADDRESS_TYPE>CAMP</ADDRESS_TYPE>
        <ADDRESS_TYPE_LOVDescr>Campus</ADDRESS_TYPE_LOVDescr>
        <EFFDT>2013-08-20</EFFDT>
        <EFF_STATUS>A</EFF_STATUS>
        <COUNTRY>USA</COUNTRY>
        <ADDRESS1>14000 University Drive</ADDRESS1>
        <ADDRESS2>Davidson Dorms</ADDRESS2>
        <ADDRESS3>Dorm 204 B</ADDRESS3>
        <ADDRESS4/>
        <CITY>Princeton</CITY>
        <NUM1/>
        <NUM2/>
        <HOUSE_TYPE/>
        <ADDR_FIELD1/>
        <ADDR_FIELD2/>
        <ADDR_FIELD3/>
        <COUNTY/>
        <STATE>NJ</STATE>
        <POSTAL>08540</POSTAL>
        <GEO_CODE/>
        <IN_CITY_LIMIT/>
        <ADDRESS1_AC/>
        <ADDRESS2_AC/>
        <ADDRESS3_AC/>
        <CITY_AC/>
        <REG_REGION/>
        <EffectiveDate>2013-10-04</EffectiveDate>
      </ADDRESS>
      <ADDRESS isDeletable="N">
        <EMPLID>CCSCE0001</EMPLID>
        <ADDRESS_TYPE>HOME</ADDRESS_TYPE>
        <ADDRESS_TYPE_LOVDescr>Home</ADDRESS_TYPE_LOVDescr>
        <EFFDT>2013-08-20</EFFDT>
        <EFF_STATUS>A</EFF_STATUS>
        <COUNTRY>USA</COUNTRY>
        <ADDRESS1>184 Chestnut Ave</ADDRESS1>
        <ADDRESS2/>
        <ADDRESS3/>
        <ADDRESS4/>
        <CITY>Hackensack</CITY>
        <NUM1/>
        <NUM2/>
        <HOUSE_TYPE/>
        <ADDR_FIELD1/>
        <ADDR_FIELD2/>
        <ADDR_FIELD3/>
        <COUNTY/>
        <STATE>NJ</STATE>
        <POSTAL>07612</POSTAL>
        <GEO_CODE/>
        <IN_CITY_LIMIT/>
        <ADDRESS1_AC/>
        <ADDRESS2_AC/>
        <ADDRESS3_AC/>
        <CITY_AC/>
        <REG_REGION/>
        <EffectiveDate>2013-10-04</EffectiveDate>
      </ADDRESS>
    </ADDRESSES>
    <PHONES>
      <PERPHONE>
        <EMPLID>CCSCE0001</EMPLID>
        <PHONE_TYPE>CAMP</PHONE_TYPE>
        <PHONE_TYPE_LOVDescr>Campus</PHONE_TYPE_LOVDescr>
        <COUNTRY_CODE>001</COUNTRY_CODE>
        <PHONE>617/982-7832</PHONE>
        <EXTENSION>29</EXTENSION>
        <PREF_PHONE_FLAG>Y</PREF_PHONE_FLAG>
      </PERPHONE>
      <PERPHONE>
        <EMPLID>CCSCE0001</EMPLID>
        <PHONE_TYPE>DORM</PHONE_TYPE>
        <PHONE_TYPE_LOVDescr>Dormitory</PHONE_TYPE_LOVDescr>
        <COUNTRY_CODE>345</COUNTRY_CODE>
        <PHONE>234-2345</PHONE>
        <EXTENSION/>
        <PREF_PHONE_FLAG>N</PREF_PHONE_FLAG>
      </PERPHONE>
    </PHONES>
    <PERSON_DATA_EFFDTS>
      <PERS_DATA_EFFDT>
        <EMPLID>CCSCE0001</EMPLID>
        <MAR_STATUS>U</MAR_STATUS>
        <EFFDT>2013-08-20</EFFDT>
        <MAR_STATUS_DT>2013-08-20</MAR_STATUS_DT>
        <SEX>M</SEX>
        <SEX_LOVDescr>Male</SEX_LOVDescr>
        <HIGHEST_EDUC_LVL>A</HIGHEST_EDUC_LVL>
        <FT_STUDENT>N</FT_STUDENT>
        <LANG_CD/>
        <ALTER_EMPLID/>
        <LASTUPDDTTM/>
        <LASTUPDOPRID/>
      </PERS_DATA_EFFDT>
    </PERSON_DATA_EFFDTS>
  </CONSTITUENT>
</SCC_GETCONST_RESP>
