Integration with Other Campus Solutions Components

AAWS interacts with the following Campus Solutions components:

  • User Account Manager

  • Constituent Transaction Manager

  • Admissions API

  • Student Financials Hosted Payment

This section discusses the application packages and classes for these components. If you want to customize AAWS, you may need to modify some of these classes and packages. For instance, if you want to integrate a non PeopleSoft user management system with AAWS, a new application class should be created that implements SCC_IDENTITY_MGR:INTFC:IIdentityManager. The application class must then be added to the table SCC_IDM_INST.

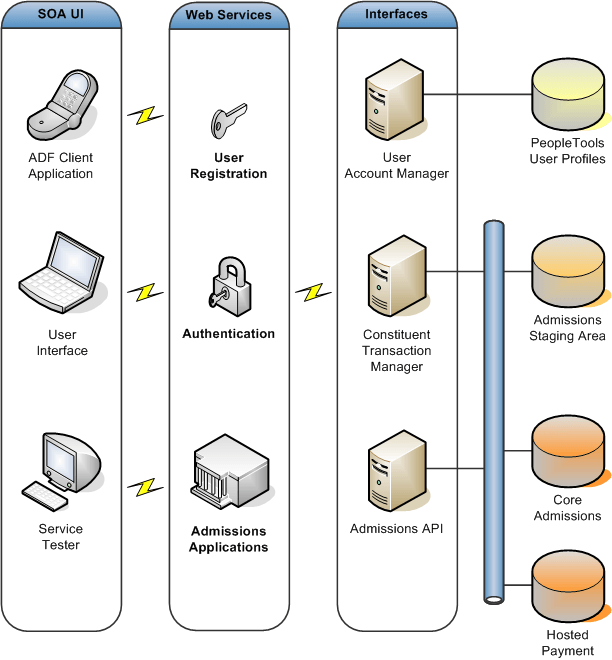

This diagram illustrates that AAWS architecture is composed of SOA UI, web services for user registration, authentication and admission applications, and the User Account Manager, Constituent Transaction Manager and Admissions API interfaces.

AAWS Architecture
