Integration Broker Setup for Research Administrator Profile Affiliations

Complete the following Integration Broker steps to ensure that Research Supervisor functionality works as expected.

Note:

This setup is a requirement for the Student Academic Projects feature.

Integration Broker Message:

PeopleTools, and then Integration Broker, and then Integration Setup, and then Messages, and then Message Definition

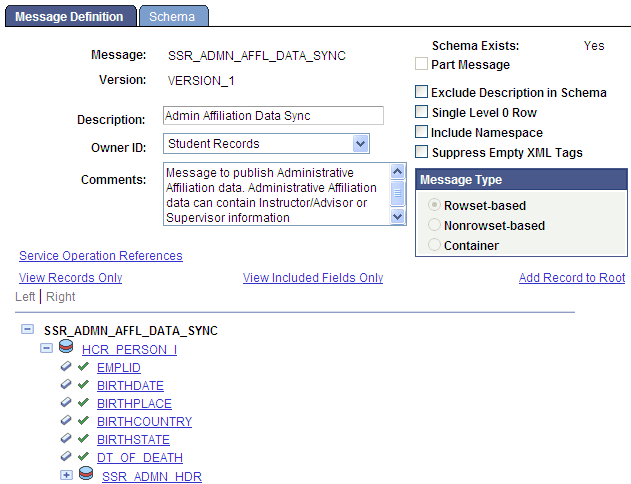

A Message Definition is delivered for processing affiliations created through the Administrative Profile Management component. This is a rowset-based message. Verify that the message SSR_ADMN_AFFL_DATA_SYNC is available in your database and that schema exists for the message. Refer to the following example:

Note:

If the Schema does not exist, generate the schema using the Message Schema Builder.
Integration Broker Service:

PeopleTools, and then Integration Broker, and then Integration Setup, and then Services

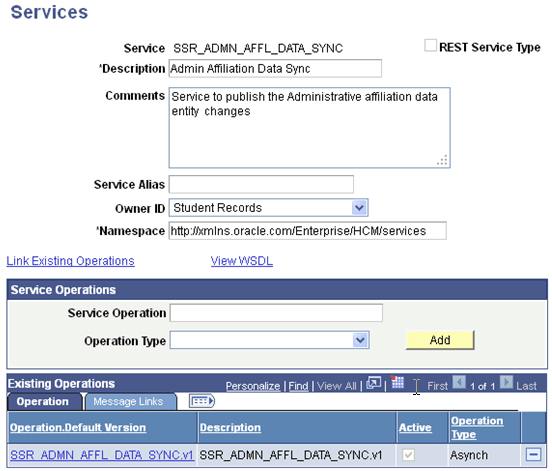

An Integration Broker Service definition is created to communicate with the Affiliation framework. Verify that the Service definition SSR_ADMN_AFFL_DATA_SYNC is available in your database.
Integration Broker Service Operation:

PeopleTools, and then Integration Broker, and then Integration Setup, and then Service Operations, and then General

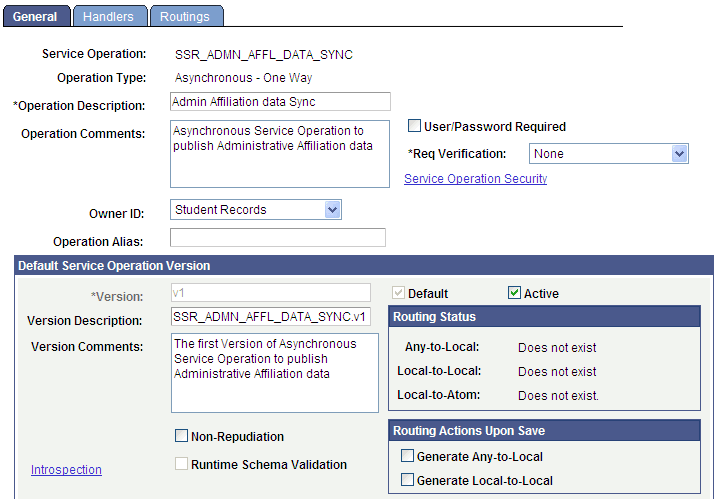

An Integration Broker Service Operation is created to communicate with the Affiliation framework. Verify that the Service Operation definition SSR_ADMN_AFFL_DATA_SYNC is available in your database. Select the Active check box.

After the Service Operation is Active, perform the following steps:

1. Generate Local-to-Local routing.

When you select the Generate Local-to-Local check box the Local-to-Local value appears. Additionally, system generated Routing information is populated on the Routings page.

2. Set up Security.

Click the Service Operation Security link to access the Web Service Access page and assign one or more permission lists to the service operation.

This example illustrates the Web Service Access page as explained above.

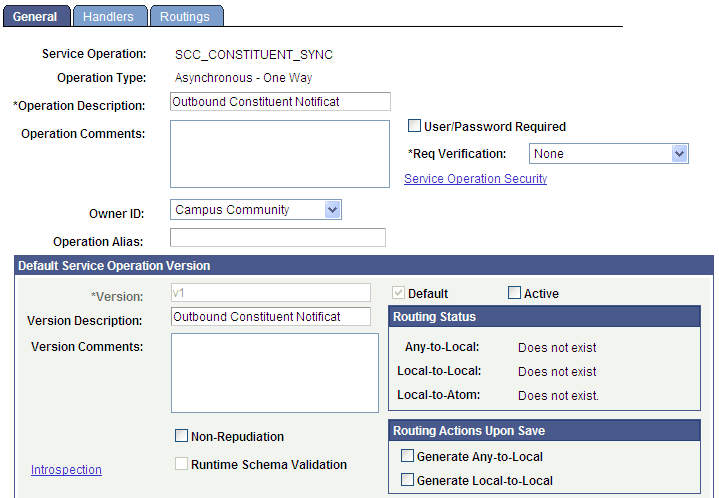

Additionally, ensure that the following Service Operation which is available in your database (SCC_CONSTITUENT_SYNC) is also Active and Service Operation Security has been set up.
Integration Broker Service Operation Handler

PeopleTools, and then Integration Broker, and then Integration Setup, and then Service Operations, and then Handlers

An Integration Broker Service Operation Handler is delivered to support integration with the Affiliation framework. Verify that the following handler definition is available in your database. Set the status to Active.

Additionally, set the following Integration Broker Service Operation Handler to Active:
Service Operation Routing

Review the Service operation routing and note the local routing that was automatically generated when you saved the operation.

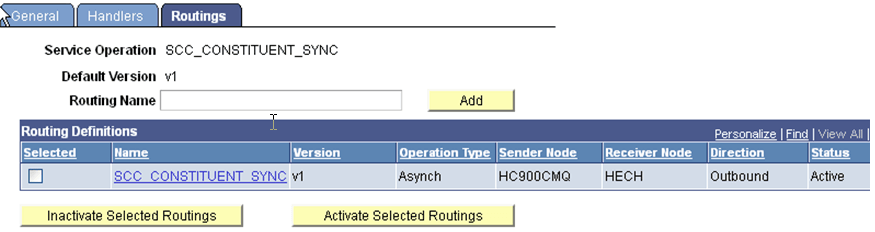

Additionally, review the Service operation routing and note the local routing that was automatically generated when you saved the operation for SCC_CONSTITUENT_SYNC.
Service Operation Queue Definition

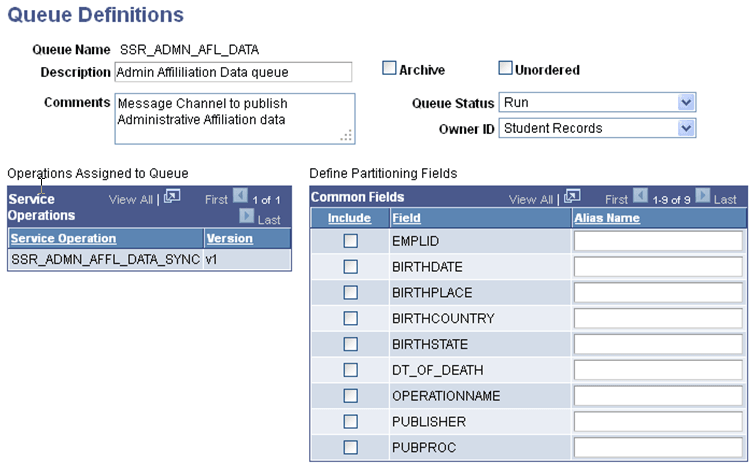

A queue definition is delivered to support integration with the Affiliation framework. Verify that the following handler definition is available in your database. Set the Queue Status to Run.

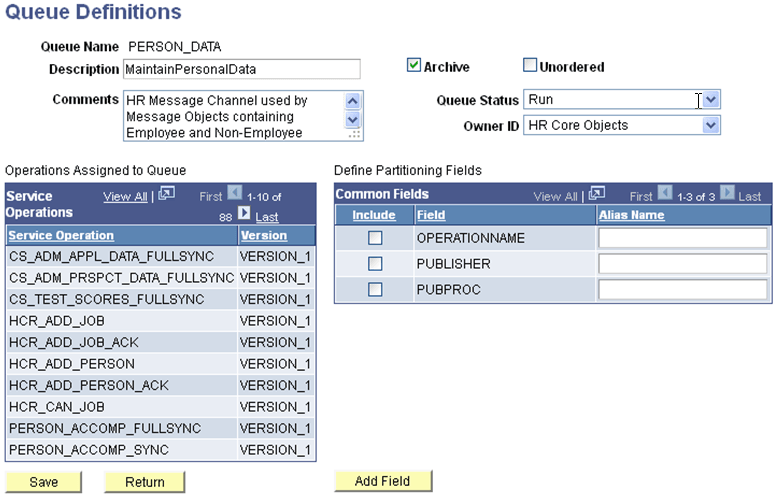

Additionally, set the Queue Status to Run for the following queue definition (PERSON_DATA):
Constituent Event Registry

Setup SACR, and then System Administration, and then Utilities, and then Constituent Management, and then Constituent Event Registration

A Constituent Event (SSR_ADMN_AFFL_DATA_SYNC) is registered to support integration with the Affiliation framework. Verify that following entry is available in your database.
SOA Framework Event Registry

Setup SACR, and then System Administration, and then Integrations, and then Event Register

An event is registered in Campus Solutions SOA Framework to support integration with the Affiliation framework. Verify that following entry is available in your database and is Active.
