Specifying Log Message Actions

Use this type of action to write a message to the message log. The message log refers to the PeopleTools table (PS_MESSAGE_LOG) where execution messages reside. Any substitution parameters are written to PS_MESSAGE_LOGPARM.

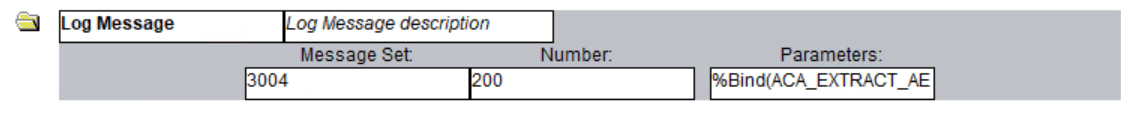

This example illustrates the fields and controls on the Example of a Log Message action. You can find definitions for the fields and controls later on this page.

You can use the Log Message action to insert any type of message. Typically, a Log Message action writes error messages to the message log, but you can also write informational or status messages.

Note:

You can also use MessageBox PeopleCode to populate PS_MESSAGE_LOG instead of using the Log Message action. Using MessageBox PeopleCode enables you to record errors encountered within Application Engine PeopleCode programs easily.

Field or Control	Description
Message Set and Number	Select a message defined in the message catalog.
Parameters	Enter values to insert in the log message. This field should be a comma-delimited list of values to substitute for the message variables (%1, %2, and so on) in the message text. These parameters can be hard-coded values or %Bind references. The specified information is inserted into the PS_MESSAGE_LOG at runtime, and any %Bind values are replaced by the current state record field values. Then you can view the logged messages from the Process Monitor page.

For example, using message set 1012, number 10, the message reads "The total number of %1 rows exceeds the control count value, %2,” and you need the following parameters:

Invoice, %Bind(CONTROL_CNT)

Suppose you run this program with the CONTROL_CNT field value of 120. When the process ends, the following message would be included on the Process Details dialog box in Process Monitor: “The total number of Invoice rows exceeds the control count value, 120.”
