Viewing WSDL Documents Generated for Services

Click the View WSDL link to display the WSDL Repository page (IB_SERVICEDEFN_SEC). This page provides a summary of all the WSDL documents that are generated for the service, as well as the service operations, request messages, response messages, and fault messages that are contained in each.

Note:

Service operations must exist for a service to view WSDL documents for the service.

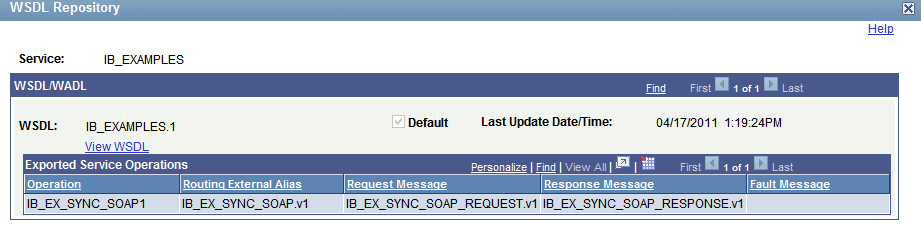

This example illustrates the WSDL Repository page. The example shows the WSDL in the repository of the IB_EXAMPLE service. The example shows that WSDL has been exported for one service operation in the service.

Click the View WSDL link on the WSDL Repository page to view the WSDL document in the WSDL Viewer page (IB_SERVICEWSDL_SEC).

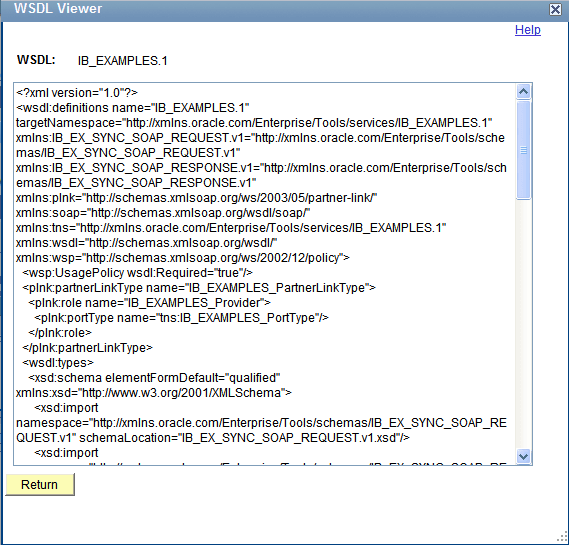

This example illustrates the WSDL Viewer page. The example shows the WSDL document for the IB_EXAMPLES.1.

To view a WSDL document generated for a service:

1. Access the service definition. (PeopleTools, and then Integration Broker, and then Integration Setup, and then Service Definitions.)

2. Click the View WSDL link.

   The WSDL Repository page appears.

3. Click the View WSDL link.

   The document appears in the WSDL Viewer page.

4. Click the Return button to return to the WSDL Repository page.

5. Click the Return button again to return to the Services page.
