Understanding JSMCAPI Classes

This sections gives an overview of all the JSMCAPI classes.

The following class diagrams explain all the classes, fields, and the methods.

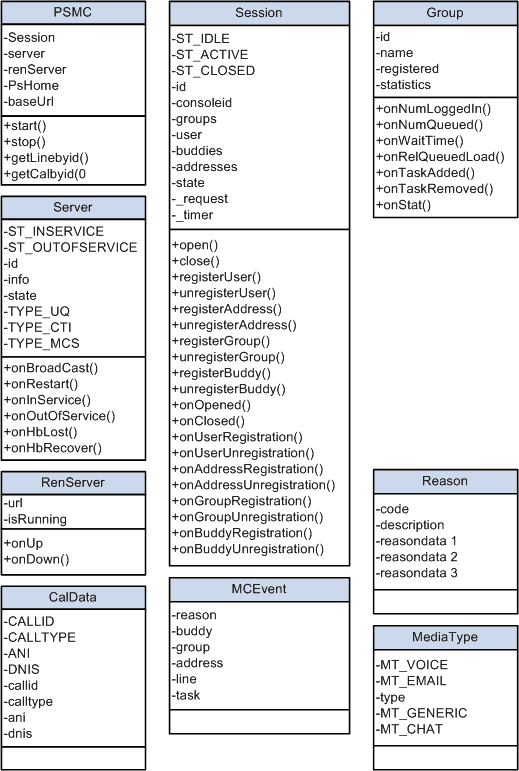

The following class diagram explains the classes, fields, and methods of JSMCAPI (diagram 1 of 4).

Class diagram part 1

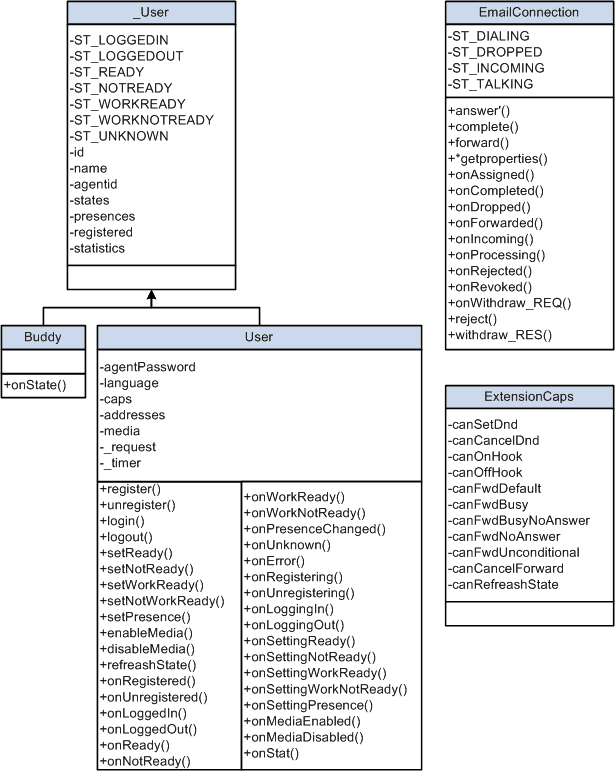

The following class diagram explains the classes, fields, and methods of JSMCAPI (diagram 2of 4).

Class diagram part 2

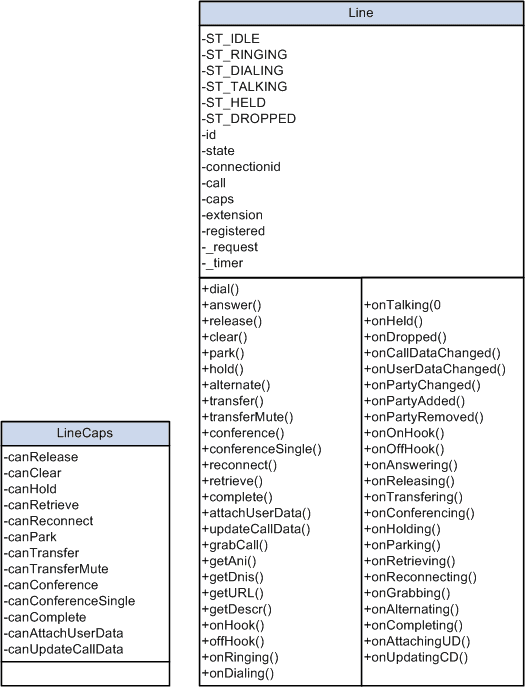

The following class diagram explains the classes, fields, and methods of JSMCAPI (diagram 3 of 4).

Class diagram part 3

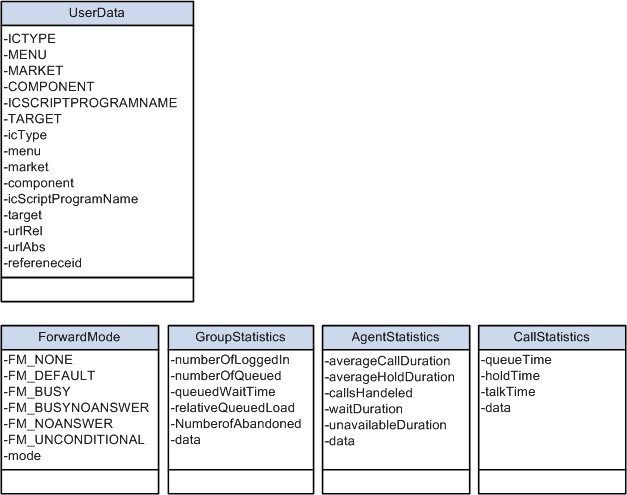

The following class diagram explains the classes, fields, and methods of JSMCAPI (diagram 4 of 4).

Class diagram part 4
