Performance Monitor Architecture

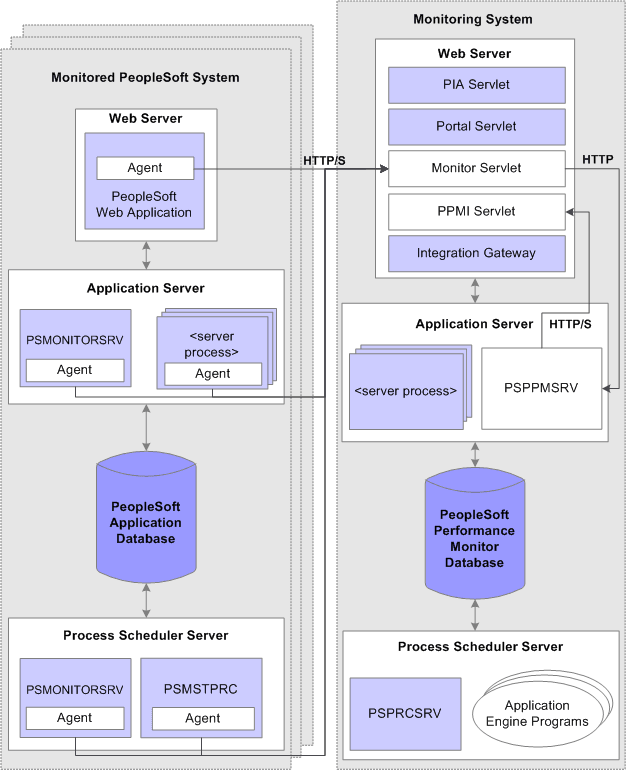

The following diagram illustrates the main elements of Performance Monitor.

A logical distinction must be made between a monitored system and the monitoring system.

A monitoring system can monitor one or more PeopleSoft application systems. However, the monitored system can be monitored by just one monitoring system.

You can configure a self-monitoring system for development and testing.
