Constructing Homepages

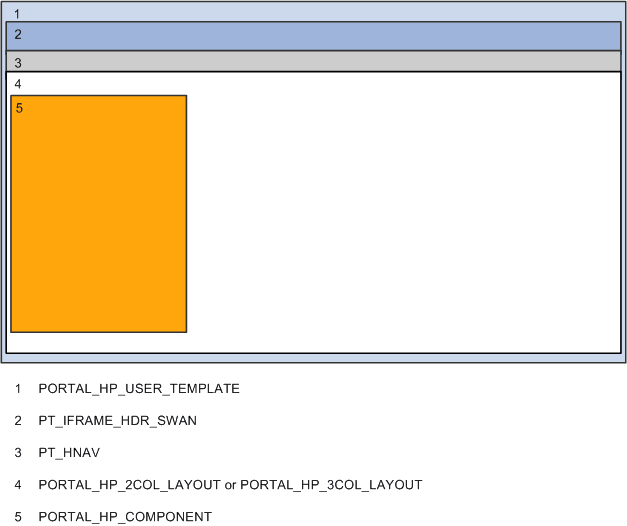

This example shows the layout that is used for displaying a homepage with a header and pagelets. The PORTAL_HP_USER_TEMPLATE object serves as a container for the other HTML definitions found on the homepage.

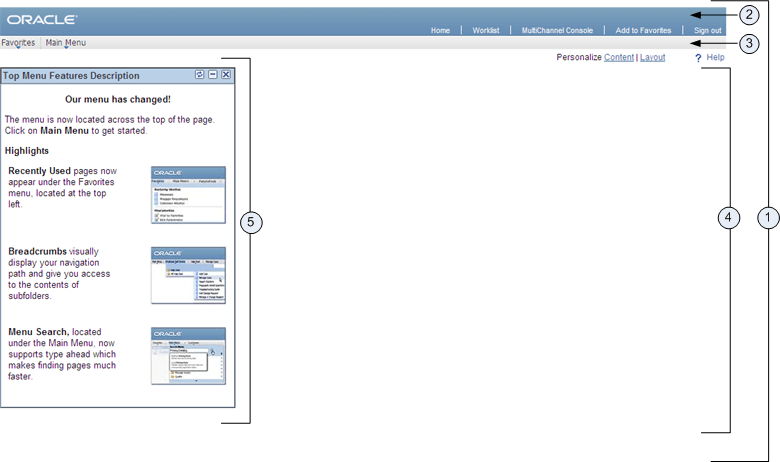

This example shows an actual PeopleSoft homepage with numbers specifying these HTML definitions:

1. PORTAL_HP_USER_TEMPLATE
2. PORTAL_UNI_HEADER_NEW
3. PT_HNAV
4. PORTAL_HP_2COL_LAYOUT or PORTAL_HP_3COL_LAYOUT
5. PORTAL_HP_COMPONENT

This table describes the HTML definitions that the system uses to construct homepages:

HTML Definition	Description
PORTAL_HP_USER_TEMPLATE	This is the HTML definition for the homepage tab. This definition contains the iScript reference to the universal header, a bind variable for the two-column or three-column layout HTML, and binds for the Oracle image.
PORTAL_UNI_HEADER_NEW	This HTML definition contains all the HTML for the header portion of a homepage tab. The HTML definition is set up in WEBLIB_PORTAL.PORTAL_HEADER.FieldFormula.GetUniHeaderHTML.
PT_IFRAME_HDR	This HTML definition contains all of the HTML for the iframe header.
PT_HNAV	This HTML definition contains the HTML for the drop-down navigation header.
PORTAL_HP_2COL_LAYOUT	This HTML definition contains all the pagelet HTML for the two-column layout (columns 1 and 2).
PORTAL_HP_2COL_LAYOUT_ACCESS	This HTML definition contains all the pagelet HTML for the two-column layout (columns 1 and 2) when the homepage is viewed in screen reader mode.
PORTAL_HP_3COL_LAYOUT	This HTML definition contains all the pagelet HTML for the three-column layout (columns 1, 2 , and 3).
PORTAL_HP_3COL_LAYOUT_ACCESS	This HTML definition contains all the pagelet HTML for the three-column layout (columns 1, 2 , and 3 when the homepage is viewed in screen reader mode.
PORTAL_HP_COMPONENT	This is the HTML definition for pagelets.
