Find the IP Address or Host Name of Your Oracle Analytics Cloud Instance

You can find the hostname and IP address information for your Oracle Analytics Cloud deployment on the Instance Details tab in Oracle Cloud Infrastructure Console.

You'll find this information useful for several scenarios.

  • Gateway IP Address: Some data sources use an allowlist to control access to their data. To include your Oracle Analytics Cloud instance in an allowlist, copy the Gateway IP Address that is displayed on the Additional Details tab and add it to the allowlist so that Oracle Analytics Cloud can connect and access the data.
  • IP Address: If you set up a vanity URL, you must add a DNS entry that maps the custom domain name you want to use to the IP Address of your Oracle Analytics Cloud instance.
  • Egress IP Addresses: If you set up a private access channel for Oracle Analytics Cloud, you can also find the egress IP addresses that Oracle Analytics Cloud uses to access private data sources. You copy the Egress IP Address information and add it to the allowlist for the private data source so that Oracle Analytics Cloud can connect and access the data.
  1. In Oracle Cloud Infrastructure Console, click Navigation menu icon in the top left corner.
  2. Click Analytics & AI. Under Analytics, click Analytics Cloud.
  3. Select the compartment that contains the Oracle Analytics Cloud instance you're looking for.
  4. Click the name of the instance.
  5. Click Additional Details.

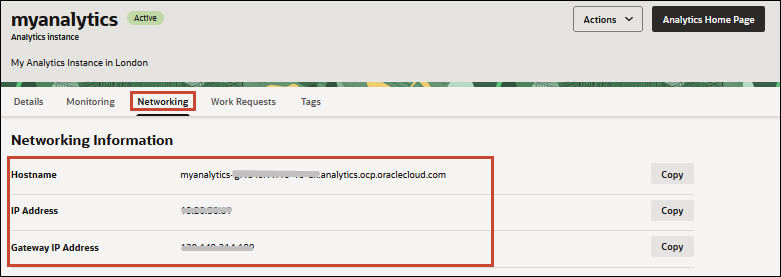

    The Hostname, IP Address and Gateway IP Address of your instance is displayed in the Network section.

    Description of oac_console_ip.jpg follows
    Description of the illustration oac_console_ip.jpg

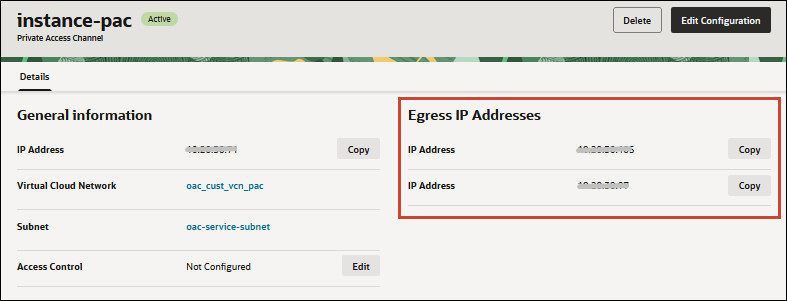

  6. To find the egress IP addresses that Oracle Analytics Cloud uses to access private data sources over a private access channel.
    1. On the Instance Details page, navigate to the Resources section, click Private Access Channel, and then click the name of the private access channel.
    2. In the Private Access Details section, note down the Egress IP Addresses.
