Tips on Editing a Visualization

These tips can help you become more productive when you work with visualizations.

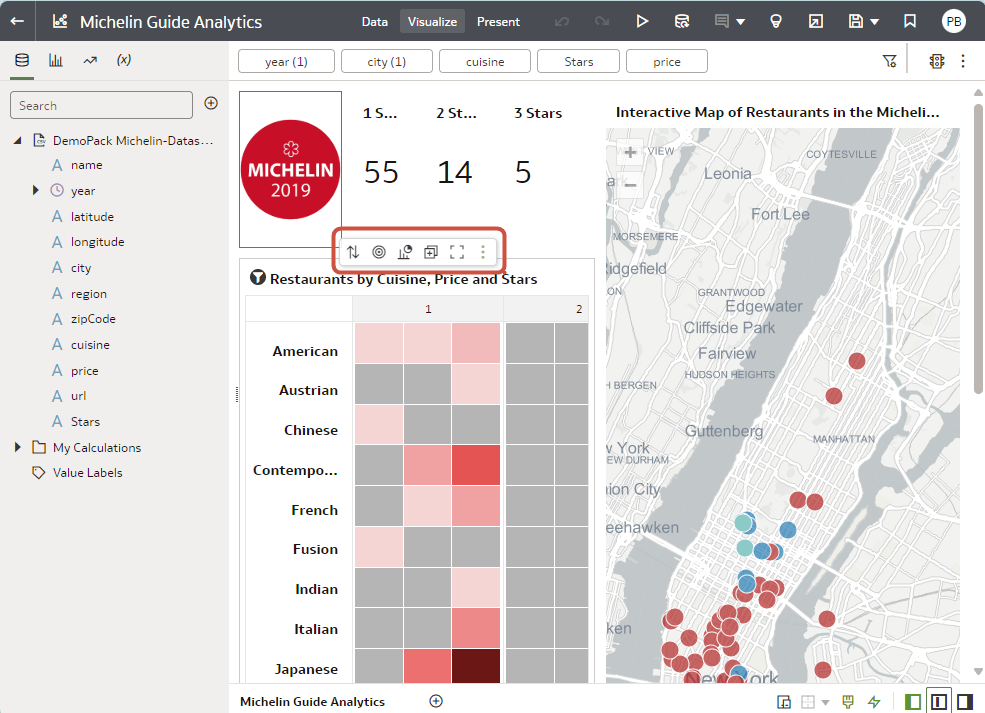

Access visualization options

The visualization toolbars provide quick access to formatting and editing options, and a menu (Ellipsis icon for Menu) with additional options.
Description of viz_options.png follows
Description of the illustration viz_options.png

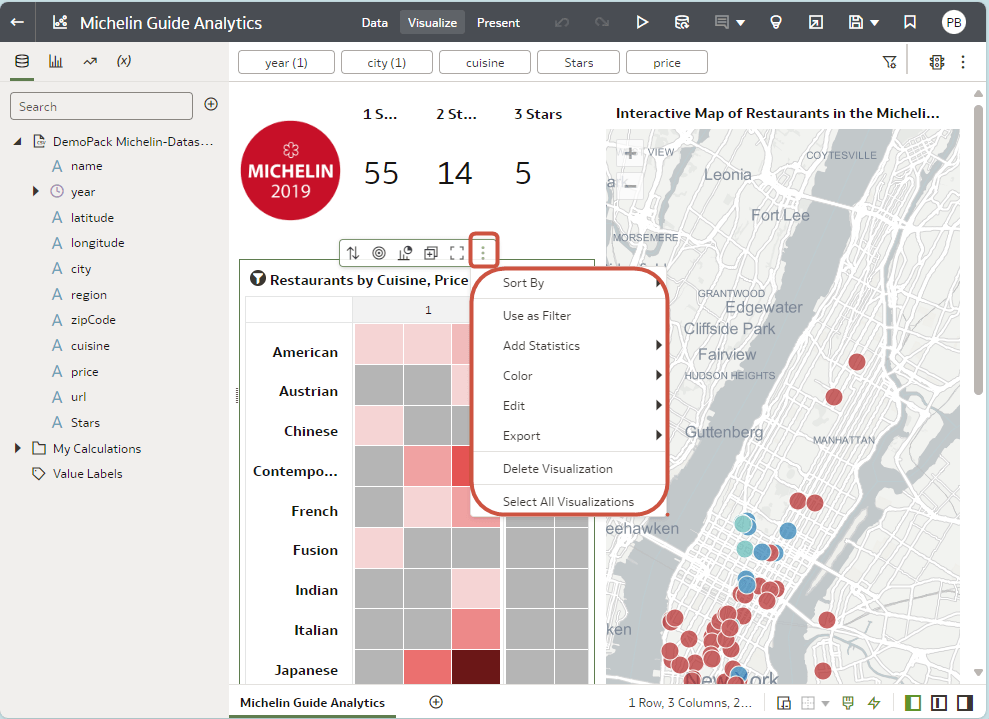

Access the visualization menu

Hover over a visualization, and click Menu (Ellipsis icon for Menu) to access editing options.
Description of viz_menu.png follows
Description of the illustration viz_menu.png

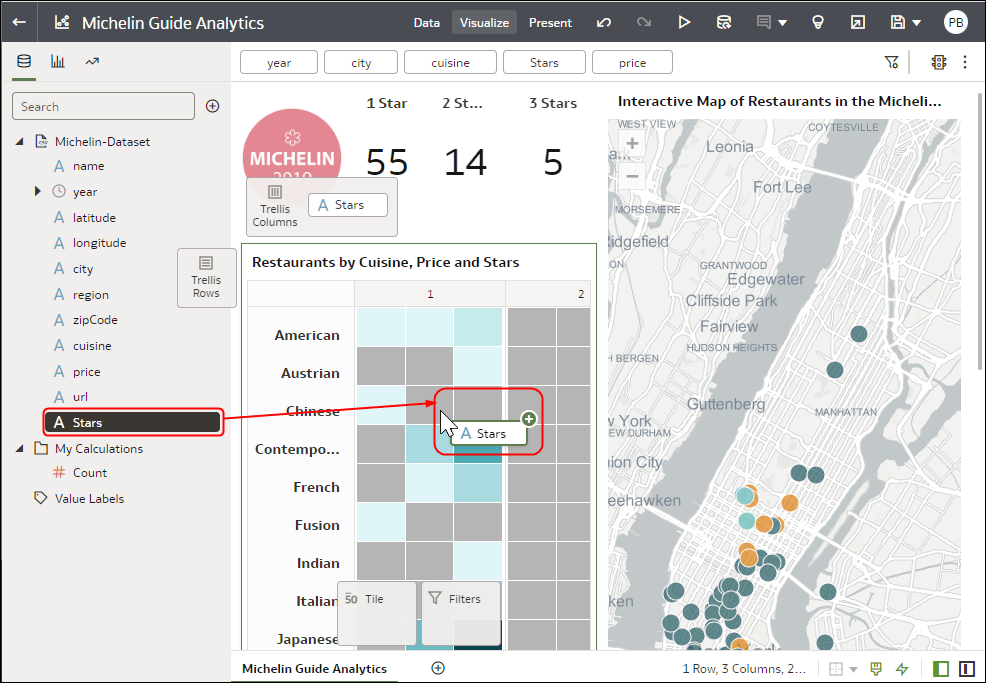

Add a data element to a visualization

Drag the data element from the Data pane over the visualization until the cursor displays a green cross, indicating a valid drop zone.
Description of viz_drag1.png follows
Description of the illustration viz_drag1.png

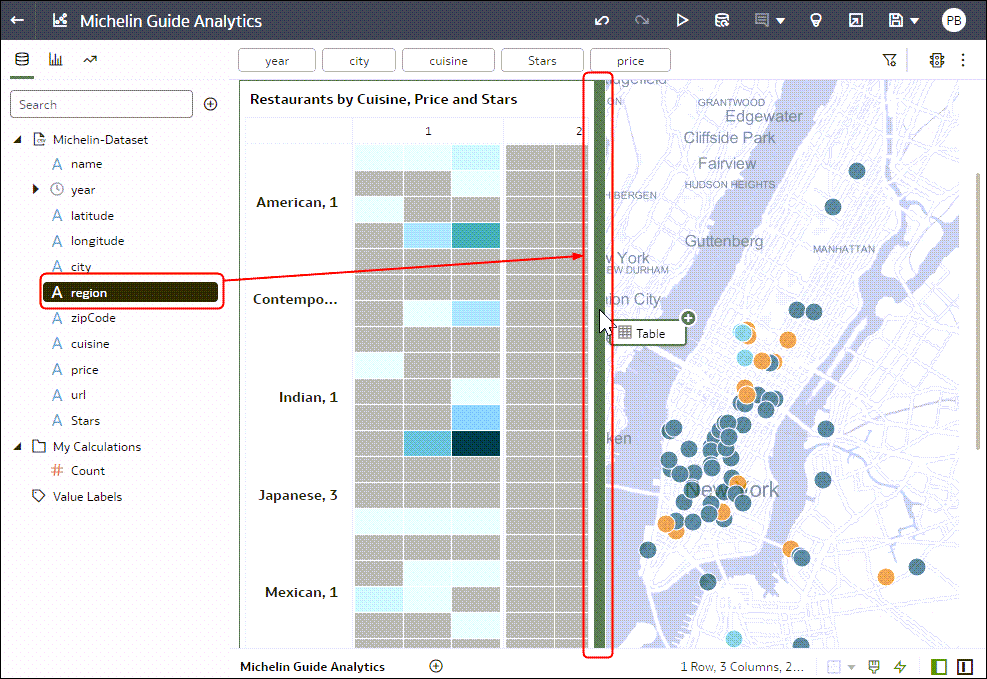

Add a data element to a new visualization

Drag the data element from the Data pane over the visualization until the cursor displays a green bar, indicating a valid drop zone.
Description of guid-a1728b5c-6804-4e31-bbc7-f6ac9ccff685.png follows
Description of the illustration guid-a1728b5c-6804-4e31-bbc7-f6ac9ccff685.png

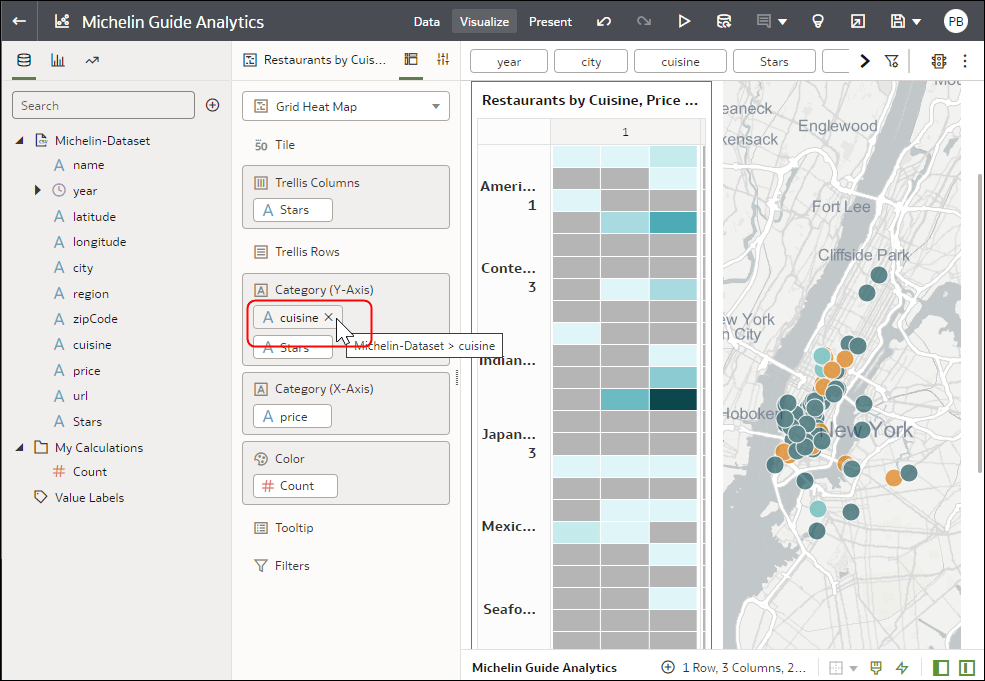

Delete a data element from a visualization

In the Grammar pane, hover over the data element, and click X to delete.
Description of viz_field_del.png follows
Description of the illustration viz_field_del.png
