Assign a Business Identifier for Tracking

Perform the following steps to track payload fields in messages during runtime:

  1. In the "PROCESS PO" integration canvas, click Business Identifiers Business identifiers icon.

    The Business Identifiers panel appears.

  2. From the Source section, expand the XmlGateway_Input node, then the PROCESS_PO_007 node, then the DATAAREA node, then the PROCESS_PO node, and then the POORDERHDR node.

    Drag and drop the POID element to the Primary Business Identifiers as the primary key. A checkmark to the left of the POID element indicates that this is the primary business identifier.

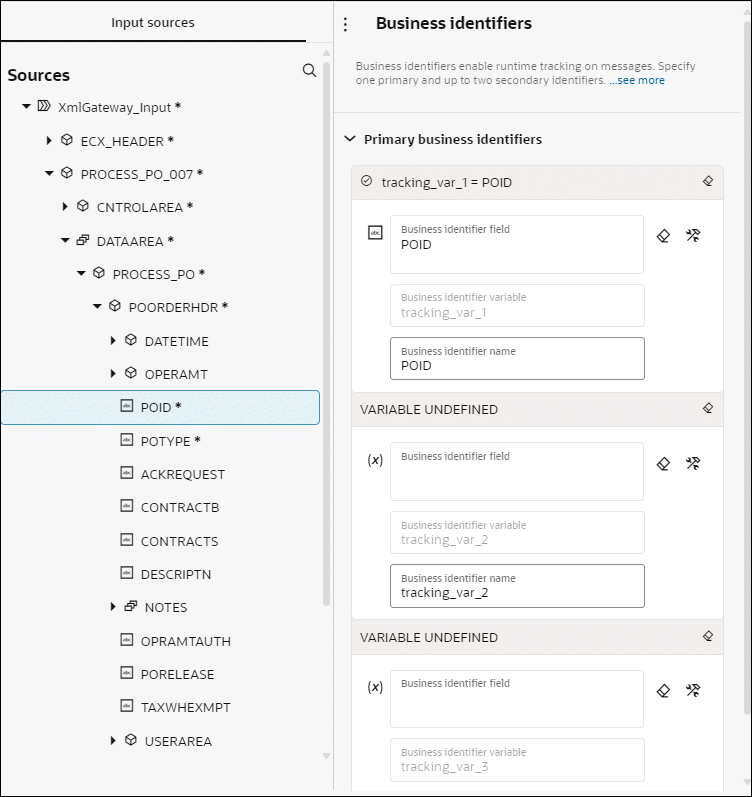

    This image shows the Business Identifiers panel. The Input Sources tree is displayed on the left side. On the right side, the Primary Business Identifiers fileds are shown. In this example, a field called “POID” from the Sources tree is being dragged to the Business Identifiers Field on the right side. Hence, a checkmark is displayed to the left of the POID element.

  3. Save your work.
