Create a Template

You can create custom templates that you can use in your notebook to quicky format your graph visualization.

The following are the steps to create a template:

1. Click Templates on the left navigation menu and navigate to the Templates page.
2. Click Create.

   The New Template window opens.

3. Enter the Name of the template.
4. Click Create.
   This creates a new template and the new template name gets listed on the left pane.

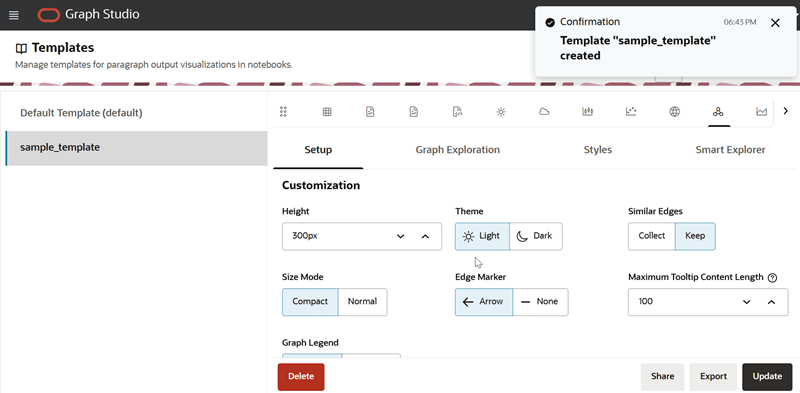

   Graph Studio displays the default settings for the template on the right pane. The right pane is again divided into two sections. The left section lists the menu options for the various components that can be configured in a template and the right section displays the corresponding parameter settings for the selected menu item as shown:


   Description of the illustration graph_template.png
5. Select the component to be formatted from the menu and configure the required settings.
6. Click Update at the bottom-right of the page.
   The template gets saved with the custom settings.

   You can also import and export settings using the Import and Export buttons.

   Note:

   Templates are imported and exported using the JSON file format only.
