Query Visualization Settings

You can configure settings for you graph visualization by clicking the Settings gear icon in the Query Visualization tab.

The Visualization Settings slider contains the following four tabs:

General Tab

The General tab contains the following configurations:

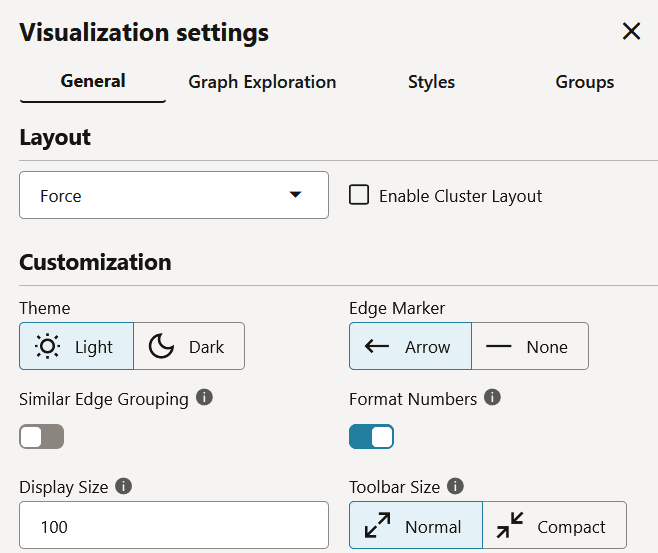

Description of the illustration explorer_general_tab.png

Table 1 General Tab Attributes

Attribute	Description
Layout	Supported layouts are: Circle, Concentric, Force (default), Grid, Hierarchical, Preset, Radial, Random, and Geographical. The Force layout also supports a clustering option, which allows you to visualize a graph with clustered vertices.
Theme	Supported themes are: Light (default) Dark
Edge Marker	Supported edge markers are: Arrow (default) None
Similar Edge Grouping	When this option is enabled, multiple edges between the same source and target vertices are grouped in the graph. Grouped edges appear as a single edge labeled with a number indicating how many edges were grouped.
Format Numbers	By default, this option is enabled so that numbers are displayed according to your regional or language settings, such as decimal and grouping separators.
Display Size	Determines the number of graph elements to be visualized on a page from the result set.
Toolbar Size	Determines the size of the buttons and search box placed in the toolbar.

Graph Exploration Tab

Description of the illustration explorer_exploration_tab.png

The Graph Exploration tab supports the following configurations:

• You can configure the hop count when expanding one or more selected vertices using the Maximum Number of Hops drop-down in the Expand section.

• You can enable and configure Network Evolution in the Graph Exploration tab in Visualization Settings.

Styles Tab

You can configure and manage vertex and edge styles to customize the appearance of vertices and edges in the graph. The Styles tab in Visualization Settings displays both the default and custom vertex and edge styles.

You can perform the following actions in this tab:

• Add a new custom vertex style.

• Add a new custom edge style.

• Edit the default styling of a vertex or an edge element.

• Edit or delete the custom styling of a vertex or an edge element.

• Restore the default style settings.

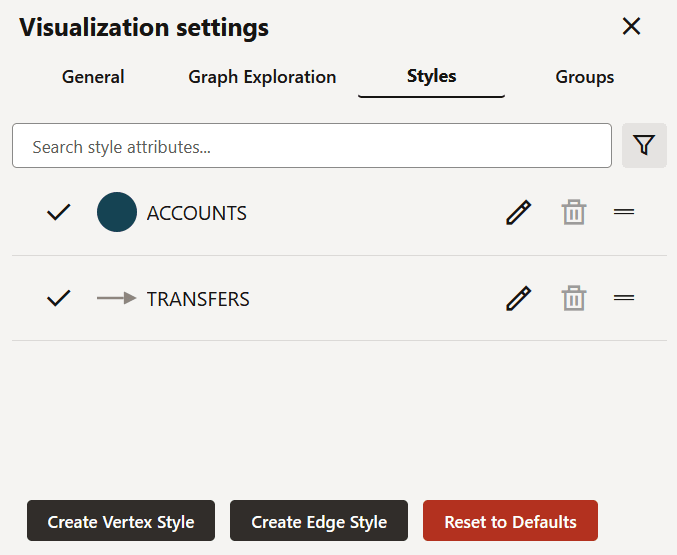

Description of the illustration explorer_styles_tab.png

Adding a new custom style for a vertex or an edge

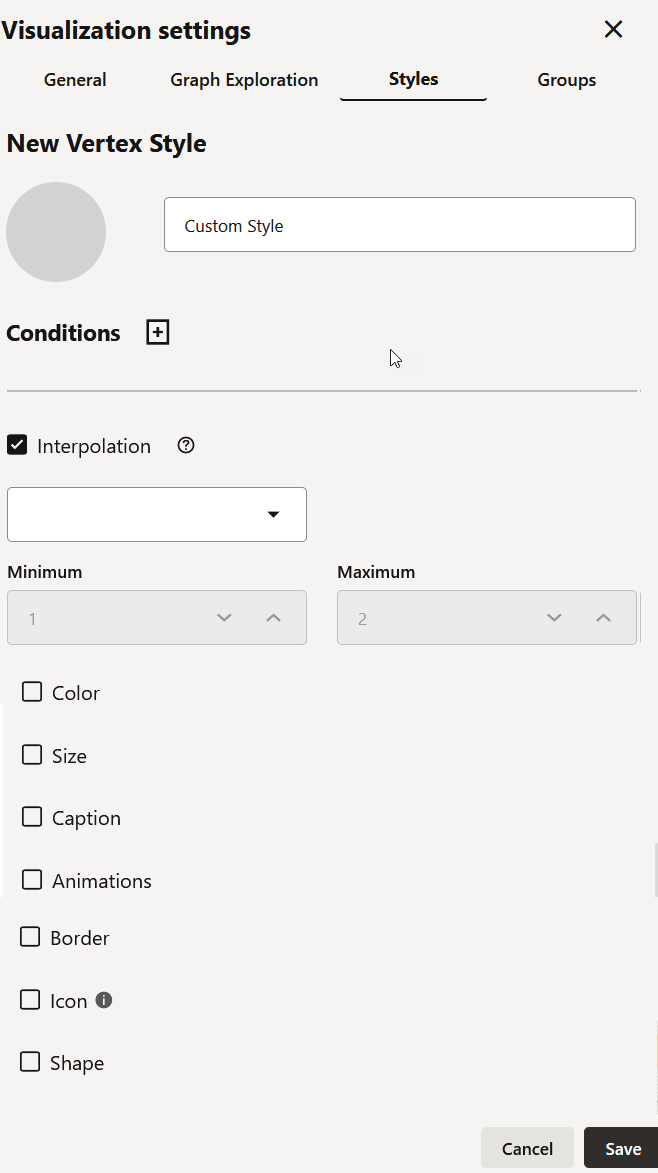

To add a new vertex or an edge style, click Create Vertex Style or Create Edge Style as required. The following shows the screenshot for configuring a new vertex style.

Description of the illustration custom_vertex_style.png

You can configure the following values as appropriate:

• Name: Name of the style

• Conditions: Click + to add a condition for an element (vertex or edge) and provide the following values:

  • Property of the vertex or edge element.

  • Operator to be applied. The following operators are supported:

    • = (equal to)

    • < (less than)

    • <= (less than or equal to)

    • > (greater than)

    • >= (greater than or equal to)

    • != (not equal to)

    • ~ (filter is a regular expression)

    • CONTAINS (applies for labels only)

    • CONTAINS_REGEX (applies for labels only)

    Also, note the changes in the behavior of the following operator groups:

    • Equality operators (=, !=):

      • When applied on a property that holds a string array value and a condition that holds a simple string, text matching will be performed based on equality instead of contains. CONTAINS operator can be used for checking if the simple string is a substring of the property string value.

      • When applied on a property that holds a number value and a condition that holds a non-numeric string, text matching will yield an empty result.

      • When applied on a property that holds a boolean value and a condition that holds a non-boolean string, text matching will yield an empty result.

      • Comparison operators (>, >=, <, <=): When applied on a property that holds a string array value and a condition that holds a simple string, text comparison will yield an empty result.

    • Regex operator (~):

      • When applied on a property that holds a string array value and a condition that holds a simple string, text matching will yield an empty result. Instead, you can use the CONTAINS_REGEX operator.

      • When applied on a property that holds a number value and a condition that holds a simple string, text matching will yield an empty result.

      • When applied on a property that holds a boolean value and a condition that holds a simple string, text matching will yield an empty result.

  • Value that needs to be fulfilled for the property and the operator

  You can add as many conditions as required. For all elements that meet the conditions, you can configure any of the following styling highlights:

  • Interpolation: Configure interpolation based on the size or color of the vertices or edges. Interpolation will be applied proportionally, between the Minimum and Maximum values. The following figure shows linear color interpolation based on the AMOUNT property between the minimum (4000) and maximum (10000) values.

  • Color: Specify the color of the vertex or edge.

  • Size: Specify the size of the vertex or edge.

  • Caption: Specify the caption for the vertex or edge. You can also configure the caption font size, color, orientation, and maximum length.

  • Animations: Specify the animation type, such as Pulsating or Flashing, and the duration of the animation cycle.

  • Border: Specify the border color and width of the displayed vertex. This option does not apply for edges.

  • Icon: Specify an image for the vertex. This option does not apply for edges. Click the information icon to get the link to the icon library.

  • Shape: Specify the shape of the vertex. Supported values are Circle, Ellipse Square, Rectangle, Triangle, Diamond, Pentagon, Hexagon, and Octagon. This option does not apply to edges.

Groups Tab

You can configure rule-based groups in the Groups tab to organize vertices and edges according to specific conditions. You can also include aggregated data within these groups.

Description of the illustration explorer_groups_tab.png

To add a new vertex or edge group, click New Vertex Group or New Edge Group as required and configure the following values:

• Name: Name of the group.

• Property to group by (optional): Property to group elements by. If specified, then one group per each available value of the specified property from all vertices or edges fulfilling the given conditions is created. Otherwise, the grouping results in just one group containing all allowable vertices or edges.

• Apply group on load: Switch ON this toggle if you wish the grouping to be automatically applied each time the graph is loaded.

• Conditions: Click + Add more to define one or more conditions that determine which vertices or edges are included in the group. For each condition, specify:

  • Property of the vertex or edge element.

  • Operator to be applied. The following operators are supported:

    • = (equal to)

    • < (less than)

    • <= (less than or equal to)

    • > (greater than)

    • >= (greater than or equal to)

    • != (not equal to)

    • ~ (filter is a regular expression)

  • Value that needs to be fulfilled for the property and the operator

• Aggregations: Click + Add aggregation to define aggregated properties for the group. For each aggregation, specify:

  • Property: The property to aggregate.

  • Aggregation: The aggregation function to apply. Supported values are: average, min, max, sum, count and distinctCount.

• Click Save.

The following example shows the configuration of a vertex group. The configuration creates one vertex group for each vertex label.

If the grouping is configured to be automatically applied during graph loading, then the conditional grouping is applied on the whole graph displayed in the visualization panel.

Otherwise, you can apply the predefined group as shown:

1. Click the Select Group Option list in the graph visualization toolbar.

2. Select the group name.

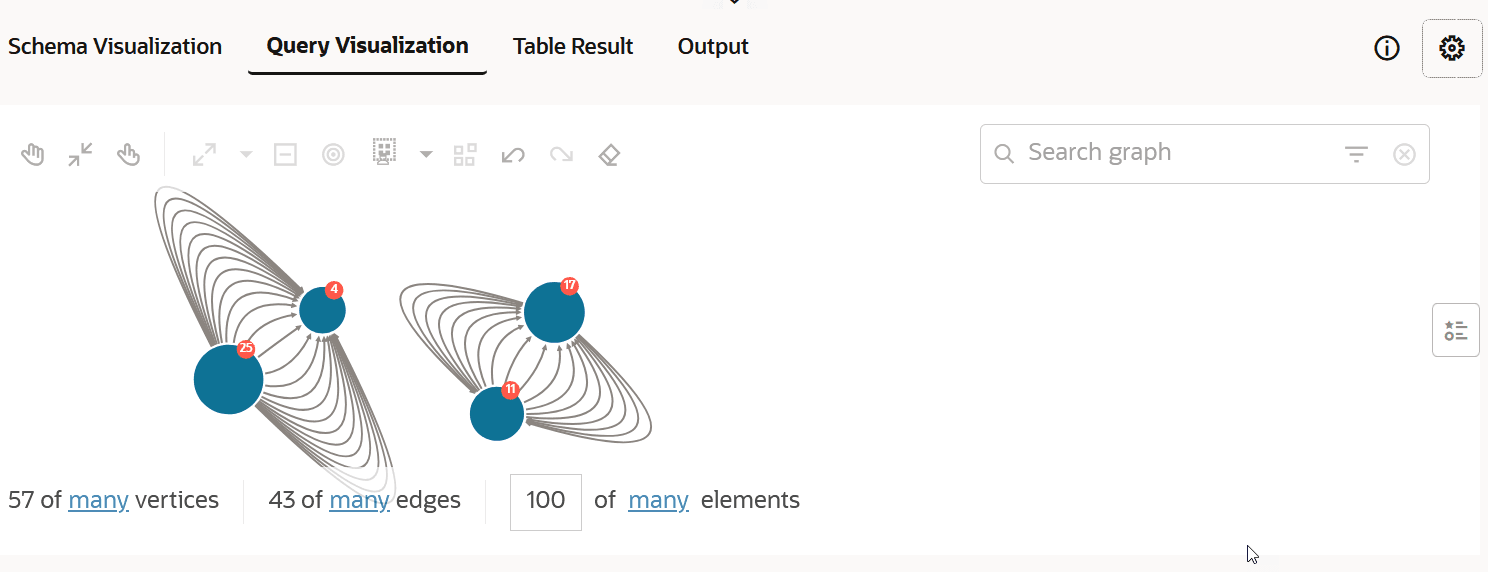

   Description of the illustration explorer_rule_based_groups.png
