Configuring Custom API in Oracle Mobile Cloud Service

Before You Begin

This tutorial shows you how to create, implement, and publish a custom API in Oracle Mobile Cloud Service. Your custom API module can connect with Oracle Application Container Cloud and retrieve information about devices. This tutorial takes approximately 20 minutes to complete.

Background

The following image illustrates the integration of Oracle IoT Cloud Service and Oracle Mobile Cloud Service by using Oracle Application Container Cloud. This tutorial covers the bordered area.

What Do You Need?

• Access to an instance of Oracle IoT Cloud Service and an instance of Oracle Mobile Cloud Service
• The URL that you recorded when you created a Node.js JavaScript application in Oracle Application Container Cloud
• Familiarity with Custom APIs and Custom Code in Oracle Mobile Cloud Service

Configure a Connector

In this section, configure a connector for the Node.js JavaScript application.

1. Sign in to your Oracle Mobile Cloud Service instance.
2. In the menu bar, select Applications, and then Connectors.
3. On the Connectors page, click New Connector, and then click REST.

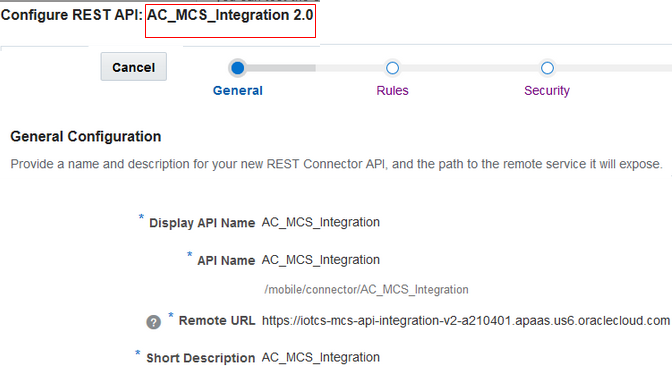

4. In the New REST Connector API dialog box, enter the following values, and then click Create:
   • Display API Name: AC_MCS_Integration
   • API Name: AC_MCS_Integration
   • Remote URL: https://iotcs-mcs-api-integration-v2-a210401.apaas.us6.oraclecloud.com/

     Note: Enter the URL that you recorded for your application in Oracle Application Container Cloud.

   • Short Description: AC_MCS_Integration



5. Record the name and version of the connector. You'll need that information when you implement the API.



6. On the Applications page, select AC_MCS_Integration, and click Publish.

Define a Custom API

In this section, use the Express API to define a custom API in your instance of Oracle Mobile Cloud Service.

1. On the Applications page, select APIs, select Express API, and click New. Enter IOTCS_AC_Integration 1.1 for the name and click Next.
2. On the Resources page of the IOTCS_AC_Integration 1.1 wizard, click the Endpoints tab and enter or select the values in the following table:

   Path	Method	Method Name	Description
   /IOTCS_AC_integration\devices	GET	List devices	Returns a collection of devices
   /IOTCS_AC_integration\devices\{id}	GET	Find devices	Returns a single device
   /IOTCS_AC_integration\devices\ {id}history	GET	List history	Returns a collection of history
   /IOTCS_AC_integration\devices\{id history\{id}	GET	Find history	Returns a single history

3. Click the Resources tab and select devices. Click the Fields tab and, for your active device, enter the JavaScript Object Notation (JSON) structure shown in the following table:

   Type	Display Label	Name
   String	id	id
   String	name	name
   Number	humidity	humidity
   Number	temperature	temperature
   GeoLocation	location	location

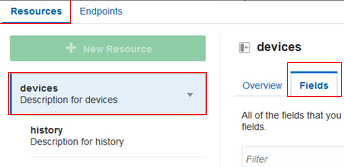

   The following illustration shows the Resources tab, the devices and history options, and the Overview and Fields tabs for the devices option.



4. Select history and click the Fields tab. Enter the following JSON structure as an array of subresources according to the values shown in the following table:

   Type	Display Label	Name
   String	id	id
   Number	humidity	humidity
   Number	temperature	temperature
   Number	time	time
   String	timeAsString	timeAsString

Implement the Custom API

In this section, implement the custom API in Node.js JavaScript by using the Oracle Application Container Cloud connector.

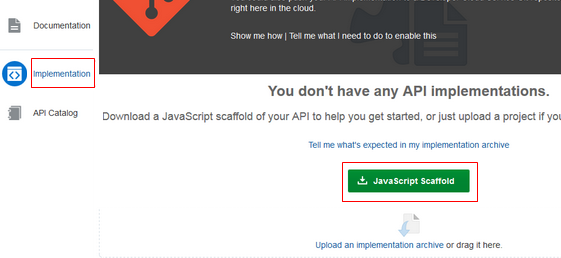

1. In your instance of Oracle Mobile Cloud Service, go to your IOTCS_AC_Integration custom API, click Implementation, and then click JavaScript Scaffold. The downloaded scaffold zip file provides stubs and sample code for the functions that you need to implement for each endpoint.



2. Extract the scaffold zip file, replace iotcs_ac_integration.js with this updated iotcs_ac_integration.js file.
3. In a text editor, open iotcs_ac_integration.js, read the comments on line numbers 19, 49, and 75, and examine the code sections after the comments.
4. In the scaffold archive, replace package.json with the updated package.json file, which has the API's configuration information. Ensure that the values of name, version, and connectors match your custom API and connector.
5. Compress the files into a zip file and name it iotcs_ac_integration_3.3.zip.

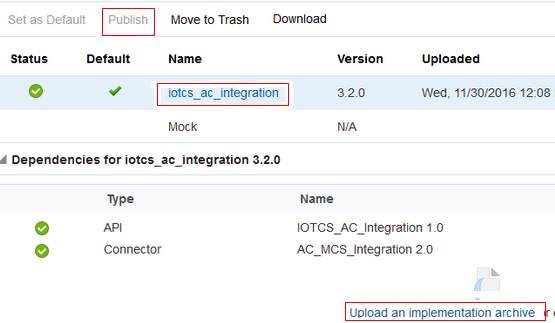

6. Click Upload an implementation archive and select the iotcs_ac_integration_3.3.zip archive file. Oracle Mobile Cloud Service will ensure that the dependencies are satisfied. After the upload is finished, click Publish.




7. On the Applications page, select APIS, select iotcs_ac_integration3.2.0 (your implemented custom API), and click Publish.



Want to Learn More?

REST Connector APIs and Calling MCS API from Custom Code in Using Oracle Mobile Cloud Service
