Use Macros in an Integrated Excel Workbook

You can configure macros that Oracle Visual Builder Add-in for Excel runs at specific points in the lifecycle of an integrated Excel workbook.

Use of this functionality requires you to use the Excel macro-enabled workbook type (.XLSM) and create your macros in a macro module. For more information about creating macros, see Microsoft documentation; describing how to create macros in an Excel workbook is outside the scope of this guide.

Some companies block the usage of Excel macros because they do not think macros are sufficiently secure. Consider your intended audience before you add a macro. You are also responsible for the security risks involved in using macros. So research the risks thoroughly before you deliver an integrated workbook to your customers. After creating a macro, take steps to protect the macro both from malicious and accidental alterations that might produce unexpected or harmful results. If a macro results in changes that are incompatible with the add-in or results in undesirable behavior, change the macro to avoid this behavior.

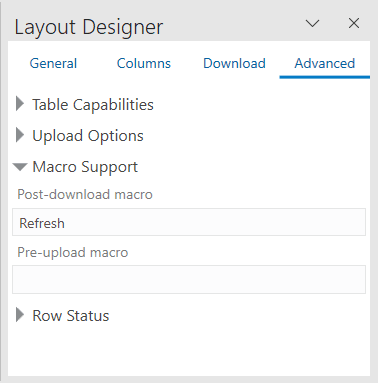

The Layout Designer’s Advanced tab provides two properties in the Macro Support section where you can specify macros: Post-download macro to run after download completes and Pre-upload macro to run before an upload begins. Provide your macro names as the values of these properties. For example, when you’ve created a Refresh macro that you want to run after download, enter Refresh as the value of the Post-download macro property.

Description of excel-add-macros.png follows

Description of the illustration excel-add-macros.png

Tip: Do not include the parentheses when specifying the name of the macro.

The macro that you specify for the Post-download macro property is not used if the user cancels download or in the event of an unexpected error. For Form-over-Table layouts, the post-download macro is not used if no form row is found, because the child table download is not run. The macro that you specify for the Pre-upload macro property is used just before an upload. If the macro returns any value other than true, the upload operation quits and a notification appears in the Status Viewer. If the macro returns true, upload proceeds normally. To return a true or false value from a macro, define a Boolean Function. See Microsoft documentation for details.

Here’s example logic of an IsUploadReady function for a Pre-Upload Macro:

Function IsUploadReady() As Boolean
       Dim returnVal As Boolean

       On Error GoTo ErrHandler:

       Dim table As Range
       Set table = Sheets("Sheet1").Range("TBL349543489")
       ' The named range, TBL349543489, is managed automatically by the add-in

       returnVal = True

       Dim cRows As Long
       cRows = table.Rows.Count
       Dim currentTableRow As Long
       Dim amount As Long
       For currentTableRow = 2 To cRows ' start with 2 to skip header row
           amount = table(currentTableRow, 10) ' Amount is the tenth column in the table
           If amount < 0 Then
               returnVal = False
               Debug.Print "Found negative amount = "; amount
           End If
       Next

       IsUploadReady = returnVal
       Exit Function

    ErrHandler:
       Dim failureMessage As String
       failureMessage = Err.Description
       MsgBox failureMessage
       IsUploadReady = False
       Exit Function
    End Function

When an error occurs during the execution of a macro, Excel displays a Microsoft Visual Basic window to the user. We recommend that you implement a robust error handling strategy so that the window displays a useful message to the user who encounters an error during macro execution. The following is a simplistic example. The appropriate error handling strategy for a given macro depends on the logic in the macro.

Sub Refresh()

        On Error GoTo ErrHandler:

        ActiveWorkbook.RefreshAll
        Exit Sub

    ErrHandler:
        Dim failureMessage As String
        failureMessage = Err.Description
        MsgBox "Unable to refresh. Details: " & failureMessage
        Exit Sub
    End Sub

Tip: The add-in creates and maintains named ranges for the data table. Your macros should never modify these named ranges. However, your macros can access the named range to locate the data table on a dynamic basis.

Notes on Macros
