Load Data from Oracle Analytics Publisher into Fusion Data Intelligence

As a service administrator, you can use the Fusion Data Intelligence extract service to acquire data from the Oracle Analytics Publisher reports and use it to create data augmentations for various use cases.

Currently, the Oracle BI Publisher connector only supports:
  • The Oracle Analytics Publisher in Oracle Fusion Cloud Applications for data augmentation.
  • Only those reports that complete within the Oracle Analytics Publisher report execution timeout limit that's typically 300 seconds.
  • The connector only supports CSV file formats with a comma-separated delimiter. Other delimiters aren't currently supported.

The Oracle BI Publisher connector workflow must observe the security rules of Oracle Fusion Cloud Applications. You must ensure that the password rotation and update are done on time before executing the Oracle BI Publisher connector pipeline. Otherwise, those pipeline refreshes hang and eventually get deleted, and the data source is disabled until you update the password and resubmit the refresh request.

Ensure that Oracle BI Publisher is enabled on the Enable Features page prior to creating this connection. See Enable Generally Available Features.

  1. In Oracle Analytics Publisher, build a comma separated values (CSV) report for the targeted tables. See Create Reports and Generate CSV Output.
  2. In Fusion Data Intelligence, create the data connection to the Oracle Analytics Publisher reports using these instructions:
    1. In Fusion Data Intelligence Console, click Data Configuration under Application Administration.
    2. On the Data Configuration page, click Manage Connections.
    3. On the Manage Connections page, click Create and then click Connection.
    4. In Create Connection, select Data Extraction in Usage Type and then select BI Publisher as the connection type.

      BI Publisher connection option

    5. In the dialog for the BI Publisher connection, provide these details in Source Connection and then click Save and Next:
      • Host name of the Oracle Analytics Publisher instance in Host Name.
      • Credentials to access your Oracle Analytics Publisher instance in User Name and Password

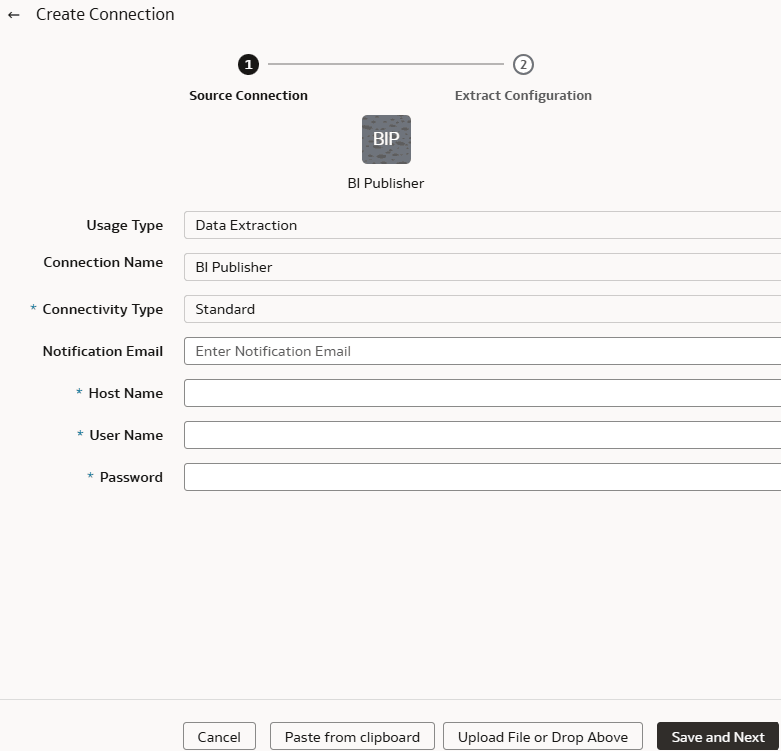

      Source Connection tab in the Create Connection dialog for the BI Publisher connector

    6. In the dialog for the BI Publisher connection, provide these details in Extract Configuration and then click Save:
      • In Reports Configuration, provide the path of the report in Oracle Analytics Publisher using the https://<server:port>/xmlpserver/<ReportDirectory>/<ReportName>.xdo format and:
        • Select Run Asynchronously if the report takes a long time to execute.
        • Select Run In Chunk Mode if the report has huge data and can potentially time out. With this option, you can specify chunk filters such as “chunk days” to prevent timeouts for the Oracle Analytics Publisher reports with large data sets.

          Note:

          You must ensure that the Oracle Analytics Publisher reports have the appropriate "where" clause filter to apply the chunking filter. Also, ensure that the startDate and endDate parameters are defined for the report with value as __fromrangedate__ and __torangedate__.
        • Select Download in Chunk Mode if the report has a large volume of data (more than 7 MB in size). This option enables you to download the report in chunks of data.
        • If the report has parameters defined, then click Add to provide the name and value of the parameter. For reports with list of values (LOV) parameters, you can enter comma-separated parameter values to return data from various categories.

          Note:

          "ALL" isn't a supported value for the parameter.

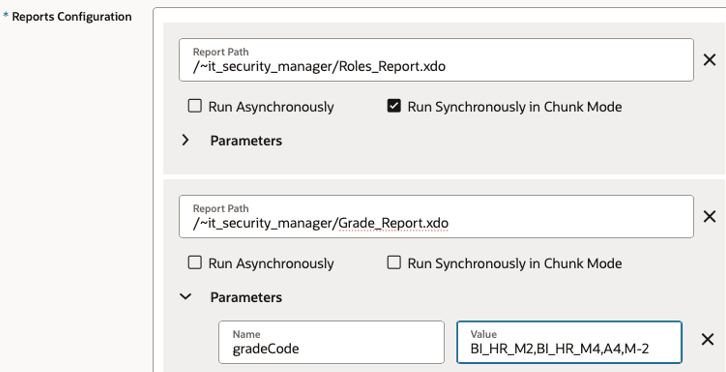

        Reports configuration details

      • For CSV Date Format and CSV Timestamp Format, see About Date and Timestamp Formatting for CSV File-based Extractors.

        Note:

        Ensure that the date format used in Oracle Analytics Publisher and Fusion Data Intelligence match.
    7. Verify that the Refresh Metadata toggle is enabled to ensure that the metadata is refreshed when you save the connection.
      You can later refresh the metadata from the Actions menu on the Manage Connections page, if required.

      Note:

      You can’t create augmentations for the Oracle Analytics Publisher reports unless you perform a metadata extract.
    8. Click Save.
  3. On the Manage Connections page, select Actions for the BI Publisher connection and then select Test Connection.
  4. To delete a connection, on the Manage Connections page, click Actions for the applicable connection and select Delete.

    Note:

    Ensure that you delete the data augmentations and custom data configurations related to the data connection before deleting it. You can't update or load data from deleted data connections to the warehouse.
  5. After the connections are successfully established, navigate to the Data Configuration page, select the connection in Data Source, then click the Data Augmentation tile, and create a data augmentation using the Oracle Analytics Publisher reports data. Select the applicable Oracle Analytics Publisherr source tables. See Augment Your Data.
