Segmentable Activity Hint

Similar to regular activities, segmentable activities also show a hint when you click them. Hints appear on the bar of a scheduled activity segment, or on the bar of a non-scheduled segmentable activity.

Typically, the segmentable activity hint content is defined in the Visible hint columns for activities context layout. At the same time, hints of segmentable activities or their segments always contain the segmentable status property regardless of the context layout settings. This property has different formats depending on the activity status. This table describes how hints are displayed for segmentable activities:
Segmentable Activity Status and Hint
Scheduled pending, complete, and not done activities: The hint contains the activity status, the total duration of the segmentable activity and the total number of segments into which the segmentable activity is split. The Duration field shows the duration of the selected segment.

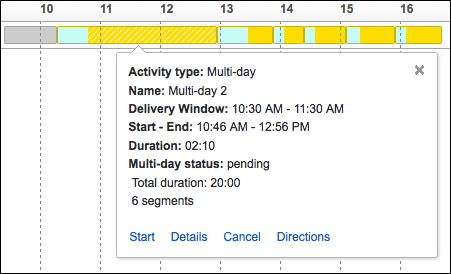

This screenshot shows the hint dialog for a pending segmentable activity:


This screenshot shows the hint dialog for a pending segmentable activity. You can configure the information that is displayed in this dialog through the Activity hint context layout.
Canceled activity: The hint contains the activity status (cancelled).

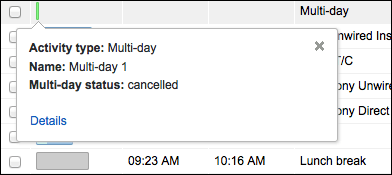

This screenshot shows the hint dialog for a canceled segmentable activity:


This screenshot shows the hint dialog for a canceled segmentable activity. You can configure the information that is displayed in this dialog through the Activity hint context layout.
Segments of started activities: The hint contains the activity status, the total duration of the segmentable activity, the percentage of activity progress, the number of segments in a final status in the total number of segments. The Duration field shows the duration of the selected segment. The progress value is calculated as the combined duration of all finished segments divided by the total duration of the segmentable activity. In this case the total number of segments does not include canceled and deleted segments.

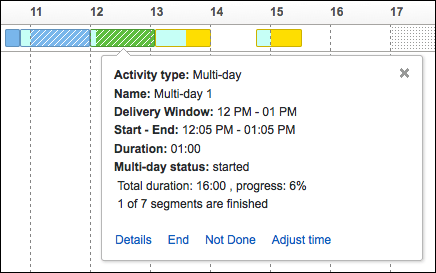

This screenshot shows the hint dialog for a segmentable activity segment:


Hint for a segmentable activity segment.
Non-scheduled activity: The hint contains the activity status (pending) and the total duration of the segmentable activity with the non-scheduled duration shown separately. As opposed to scheduled activity segments, the Duration field shows the duration of the entire segmentable activity. The hint also contains the number of segments created out of the non-scheduled segmentable activity, which for fully non-scheduled activities is always 0.

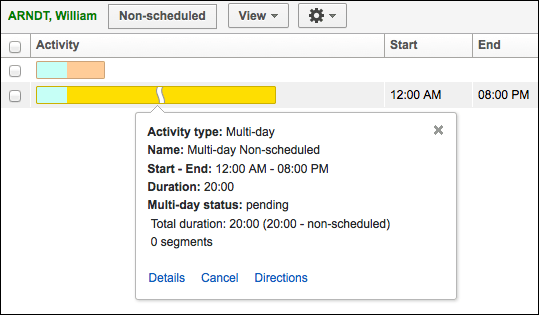

This screenshot shows the hint for a non-scheduled segmentable activity:


Hint for a non-scheduled segmentable activity
Partially-scheduled activities and their segments: When a part of a non-scheduled segmentable activity has been moved to the route(s) generating one or more segments and the rest of the segmentable activity remains in the non-scheduled pool, the hints of both the scheduled segments and the non-scheduled part of the segmentable activity contain the activity status and the total duration of the segmentable activity with the 'non-scheduled' duration shown separately. The hint also contains the number of segments created out of the non-scheduled segmentable activity. TheDuration field of a scheduled segment shows the duration of such segment, while theDuration field of the non-scheduled part of the activity shows the total activity duration.

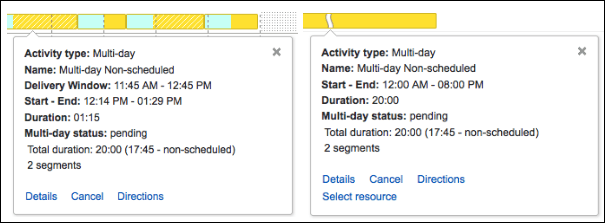

This screenshot shows the hint for a partially-scheduled activity:


Hint for a partially scheduled segmentable activity.

Segmentable activity hints appear on Time, List and Map View containing the same information.
