1. Oracle Maintenance Accelerator for Oracle Fusion Field Service
  2. ORCL-BRT-WO-OP-DFF-MAPPING Lookup

ORCL-BRT-WO-OP-DFF-MAPPING Lookup

Lookup Name: ORCL-BRT-WO-OP-DFF-MAPPING

This lookup is used to map DFF fields in Oracle Maintenance Work Order Operations against activity properties in Oracle Fusion Field Service.

Three columns are provided here:
  • FLEXFIELD_CONTEXT : This value represents the context for which the current FLEXFIELD_SEGMENT is active. When populated with the value "__GLOBAL__" it implies that the segment is available globally.
  • FLEXFIELD_SEGMENT : This value represents the API Name of the flexfield segment in Oracle Maintenance.
  • ACTIVITY_PROPERTY_LABEL : This value represents the API Name of the property associated with the DFF field in Oracle Fusion Field Service.

You can also set the Flex Context from Oracle Fusion Field Service, if it's not already set from Oracle Maintenance. Use these steps:

  1. Leave the FLEXFIELD_SEGMENT blank.
  2. Set the value of FLEXFIELD_CONTEXT as "__FLEX_Context".
  3. Set ACTIVITY_PROPERTY_LABEL as the property that must contain the flex context value from Oracle Fusion Field Service.
Sample Mapping:

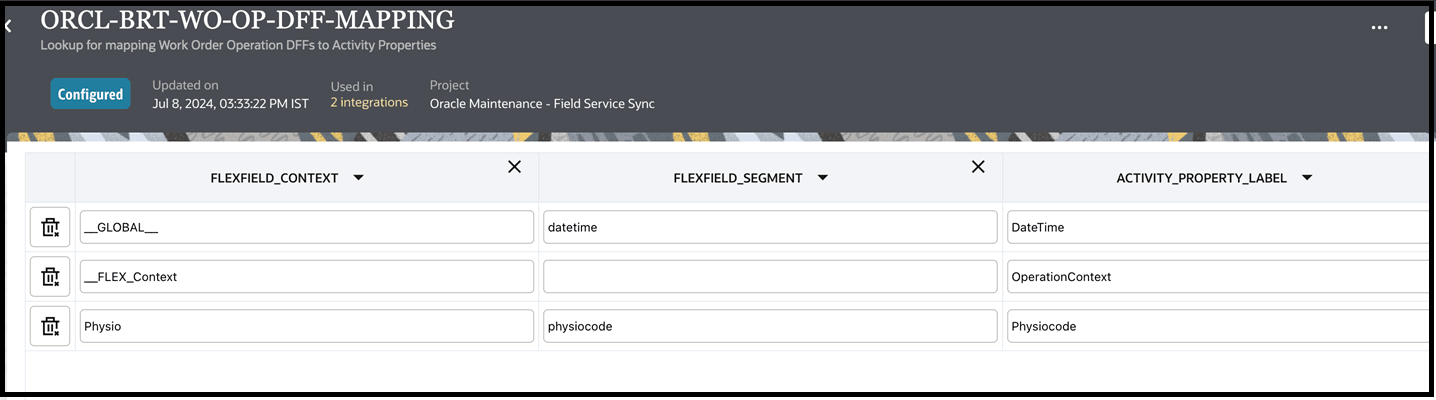

The screenshot shows the Sample Mapping for ORCL-BRT-WO-OP-DFF-MAPPING lookup.
