To use the Plugin API in a custom plugin, you must include the Oracle Fusion Field Service connector file in your plugin.
-
Create the ofsc-connector.js file in the Resources >
js folder in Visual Builder.
-
Copy the following example code into the ofsc-connector.js file:
/**
* @licence
* Copyright (c) 2025, Oracle and/or its affiliates. All rights reserved.
* Oracle Technology Network Developer License Terms (https://www.oracle.com/downloads/licenses/production-modify-license.html)
*/
"use strict";
define([
], () => {
const OFSC_API_VERSION = 1;
class OfscConnector extends EventTarget {
constructor() {
super();
window.addEventListener("message", this.onPostMessage.bind(this), false);
this._currentCommunicationCallback = null;
this._currentCommunicationPromise = null;
}
/**
* @param {Object} dataToSend
* @returns {Promise.<*>}
*/
sendMessage(dataToSend) {
if (this._currentCommunicationPromise) {
return Promise.reject(new Error('Communication channel is busy'));
}
this._currentCommunicationPromise = new Promise((resolve, reject) => {
const originUrl = this.constructor._getOriginUrl();
const origin = originUrl ? this.constructor._getOrigin(originUrl) : '*';
this._currentCommunicationCallback = (receivedData) => {
this._currentCommunicationCallback = null;
this._currentCommunicationPromise = null;
if (receivedData instanceof Error) {
return reject(receivedData);
}
if (receivedData.method && receivedData.method === 'error') {
return reject(receivedData);
}
return resolve(receivedData);
};
dataToSend.apiVersion = OFSC_API_VERSION;
parent.postMessage(dataToSend, origin);
this.dispatchEvent(new CustomEvent('debugMessageSent', { detail: dataToSend }));
});
return this._currentCommunicationPromise;
}
onPostMessage(event) {
// Ignore internal JET messages
if (event.source === window) {
return;
}
if (typeof event.data === 'undefined') {
this.dispatchEvent(new CustomEvent('debugIncorrectMessageReceived', { detail: "No data" }));
if (this._currentCommunicationCallback) {
this._currentCommunicationCallback(new Error('No data'));
return;
}
return false;
}
const data = this.constructor.parseJSON(event.data, null);
if (data === null) {
if (this._currentCommunicationCallback) {
this._currentCommunicationCallback(new Error('Incorrect JSON'));
return;
}
this.dispatchEvent(new CustomEvent('debugIncorrectMessageReceived', { detail: event.data }));
return false;
}
this.dispatchEvent(new CustomEvent('debugMessageReceived', { detail: data }));
if (this._currentCommunicationCallback) {
this._currentCommunicationCallback(data);
} else {
this.dispatchEvent(new CustomEvent('messageFromOfs', { detail: data }));
}
}
static generateCallId() {
return window.btoa(String.fromCharCode.apply(null, window.crypto.getRandomValues(new Uint8Array(16))));
}
static _getOrigin(url) {
if (typeof url === 'string' && url !== '') {
if (url.indexOf("://") > -1) {
return (window.location.protocol || 'https:') + url.split('/')[2];
} else {
return (window.location.protocol || 'https:') + url.split('/')[0];
}
}
return '';
}
static _getOriginUrl() {
if (document.referrer) {
return document.referrer;
}
if (document.location.ancestorOrigins && document.location.ancestorOrigins[0]) {
return document.location.ancestorOrigins[0];
}
return null;
}
static parseJSON(text, defaultValue = null) {
try {
return JSON.parse(text);
} catch (err) {
return defaultValue;
}
}
}
return OfscConnector;
});
-
Include a new file in the plugin.

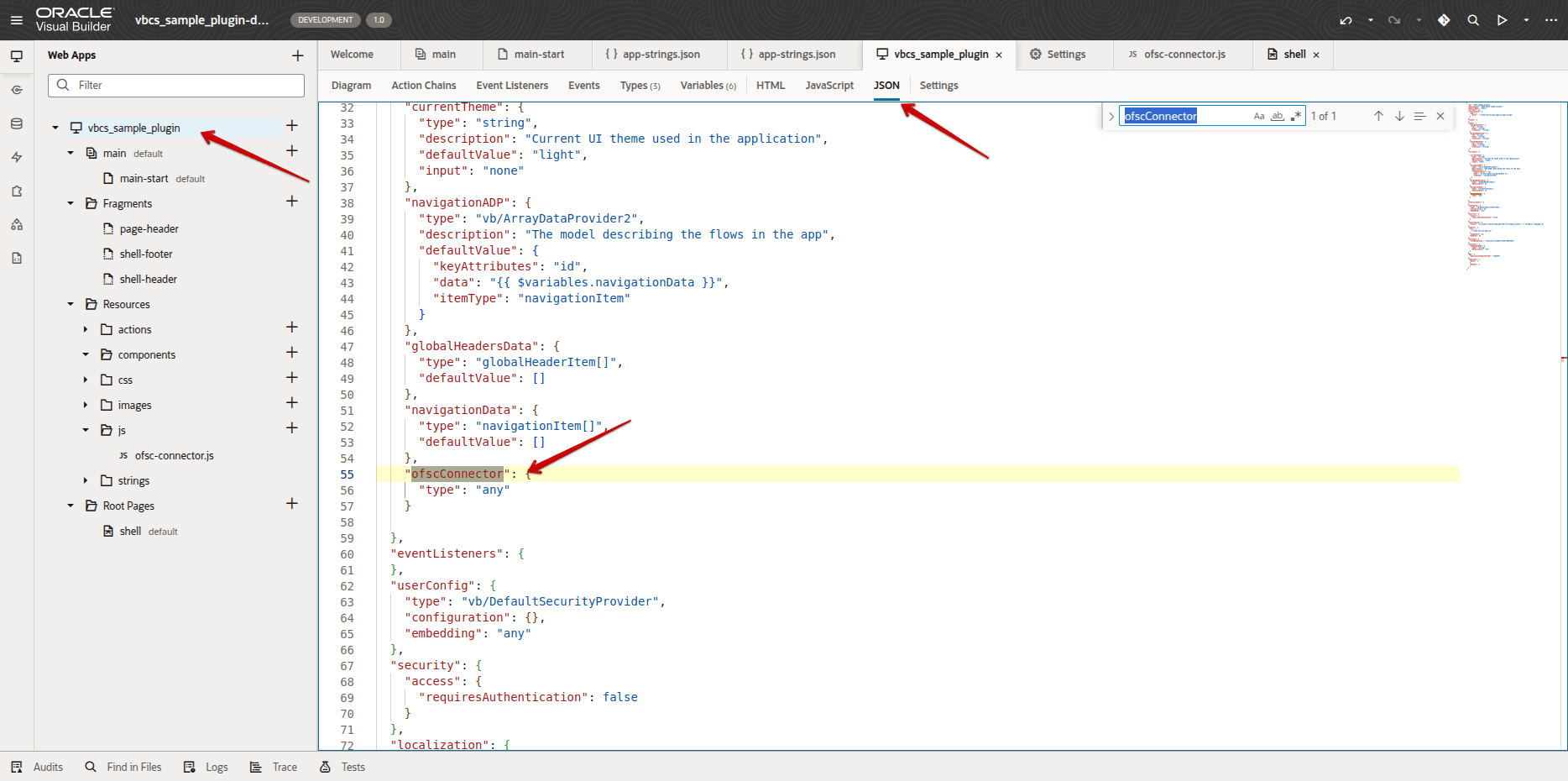

This screenshot shows the JSON tab in Visual Builder, where a new file is
added:
-
Create a new Action Chain with the name
initOFSConnector.

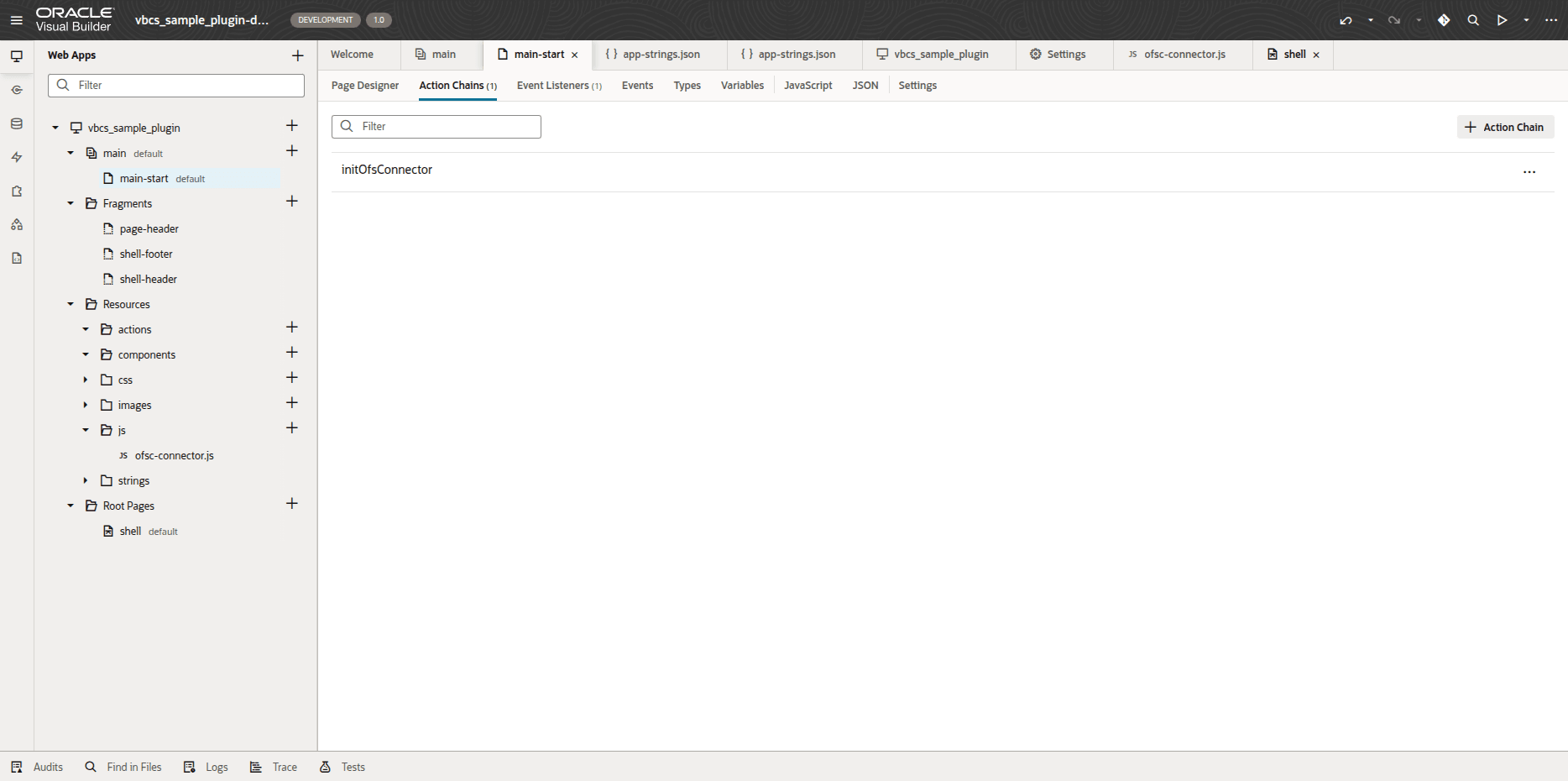

This screenshot shows the new Action Chain, initOFSConnector:
-
Add the following chain using the UI or Code tab:

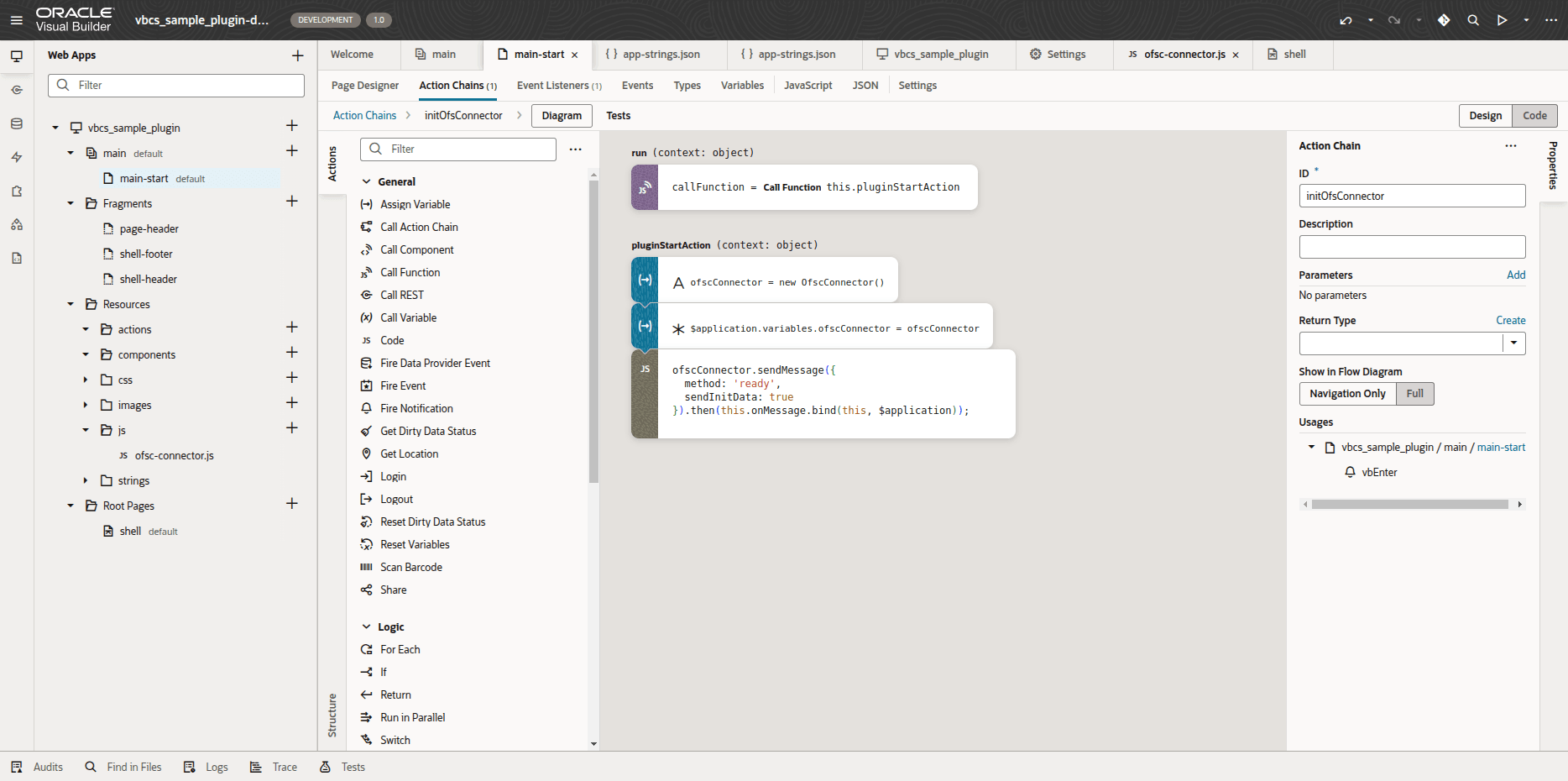

- UI tab: This screenshot shows the new Action Chain added to the plugin
using the UI:
- Code tab:
define([
'vb/action/actionChain',
'resources/js/ofsc-connector'
], (
ActionChain,
OfscConnector
) => {
'use strict';
class initOfsConnector extends ActionChain {
/**
* @param {Object} context
*/
async run(context) {
const { $page, $flow, $application, $constants, $variables } = context;
const callFunction = await this.pluginStartAction(context);
}
/**
* @private
* @param {Object} context
*/
async pluginStartAction(context) {
const { $page, $flow, $application, $constants, $variables } = context;
const ofscConnector = new OfscConnector();
$application.variables.ofscConnector = ofscConnector;
ofscConnector.sendMessage({
method: 'ready',
sendInitData: true
}).then(this.onMessage.bind(this, $application));
}
/**
* @private
*/
onMessage($application, messageData) {
if (!messageData) {
return;
}
switch (messageData.method) {
case 'init':
this.initPlugin($application, messageData);
break;
case 'open':
this.openPlugin($application, messageData);
break;
// default:
// console.log('method', messageData.method, 'data', messageData);
}
}
/**
* @private
*/
initPlugin($application, jsonData) {
this.sendInitEnd($application.variables.ofscConnector);
}
/**
* @private
*/
sendInitEnd(ofscConnector) {
ofscConnector.sendMessage({ method: 'initEnd' });
}
/**
* @private
*/
openPlugin($application, jsonData) {
this.setUserLocale(jsonData.user);
}
/**
* @private
*/
setUserLocale(user) {
const currentLocale = window.localStorage.getItem('ofs_plugin_locale');
const locale = user.locale || user.languageCode || window.navigator.language;
if (currentLocale !== locale) {
window.localStorage.setItem('ofs_plugin_locale', locale);
window.location.href = this.getPluginUrl();
}
}
/**
* @private
*/
getPluginUrl() {
const url = window.location.href;
if (url.endsWith('/')) {
return url + 'index.html';
}
return url;
}
}
return initOfsConnector;
});
