Redwood Experience for HCM Data Loader

Enrich the user experience with the new Configure HCM Data Loader page developed using the Redwood toolset. This page is built from the ground up using Visual Builder Studio (VBS) to give you a unique experience of Oracle applications

Configure HCM Data Loader used to enable HDL functionality, override the default processing behavior, and configure which processes are submitted after business objects are uploaded. Additionally, use this page to review and configure the post processes that are automatically submitted after bulk-load processing.

The Configure HCM Data Loader page available in the Data Exchange work area consists of 4 tabs:

• HCM Data Loader Parameters
• HCM Spreadsheet Data Loader Parameters
• Business Object Post Processes
• Data Set Post Processes

HCM Data Loader Parameters

Salient Features:

You can review and configure the parameters that control feature availability, default file shape, performance, and diagnostics for HCM Data Loader and runtime behavior for both HCM Data Loader as a whole and for specific business objects.

Here, not all parameters can be overridden. Some are read-only to describe the default behavior and provide details of the file-specific instruction that can be used to change the run-time behavior for individual files.

• HCM Data Loader tab:

   Parameters that control HDL feature availability, performance and runtime behavior across all business objects.
  • Search: Search for parameter by typing in the parameter name.
  • Filter: Use the Category filter chip to retrieve applicable parameters for various categories like: Availability, Diagnostics, File Definition, Performance, and Scheduling Default.
  • Sorting: Parameters displayed by ascending category and parameter name.
  • Parameter Information: All the parameters are listed in a table with the following columns:

  • Field	Description
    Parameter Name	Name of the parameter
    Category	Category of the parameter
    Default Value	Pre-configured default for the parameter
    Override Value	Overridden value of the parameter
    Description	Description for the parameter
    Action	Record level Icons -  Edit: To set the override value  Save: To save the overridden value  Cancel: To abort the changes

HCM Data Loader Parameters - HCM Data Loader tab

• Business Objects tab:

   Parameters specific to individual business objects that control HDL processing of that object.
  • Search: Search for parameter by typing in the parameter name.
  • Filter: Use the Business Object filter chip to retrieve applicable parameters for selected business object.
  • Sorting: Parameters displayed by ascending business object and parameter name.
  • Parameter Information: All the parameters are listed in a table with the following columns:

  • Field	Description
    Business Object	Name of the business object related to the parameter
    Parameter Name	Name of the parameter
    Default Value	Pre-configured default value for the parameter
    Overridden Value	Overridden value for the parameter
    Description	Description of the parameter
    Action	Record level Icons -  Edit: To set the override value  Save: To save the overridden value  Cancel: To abort the changes

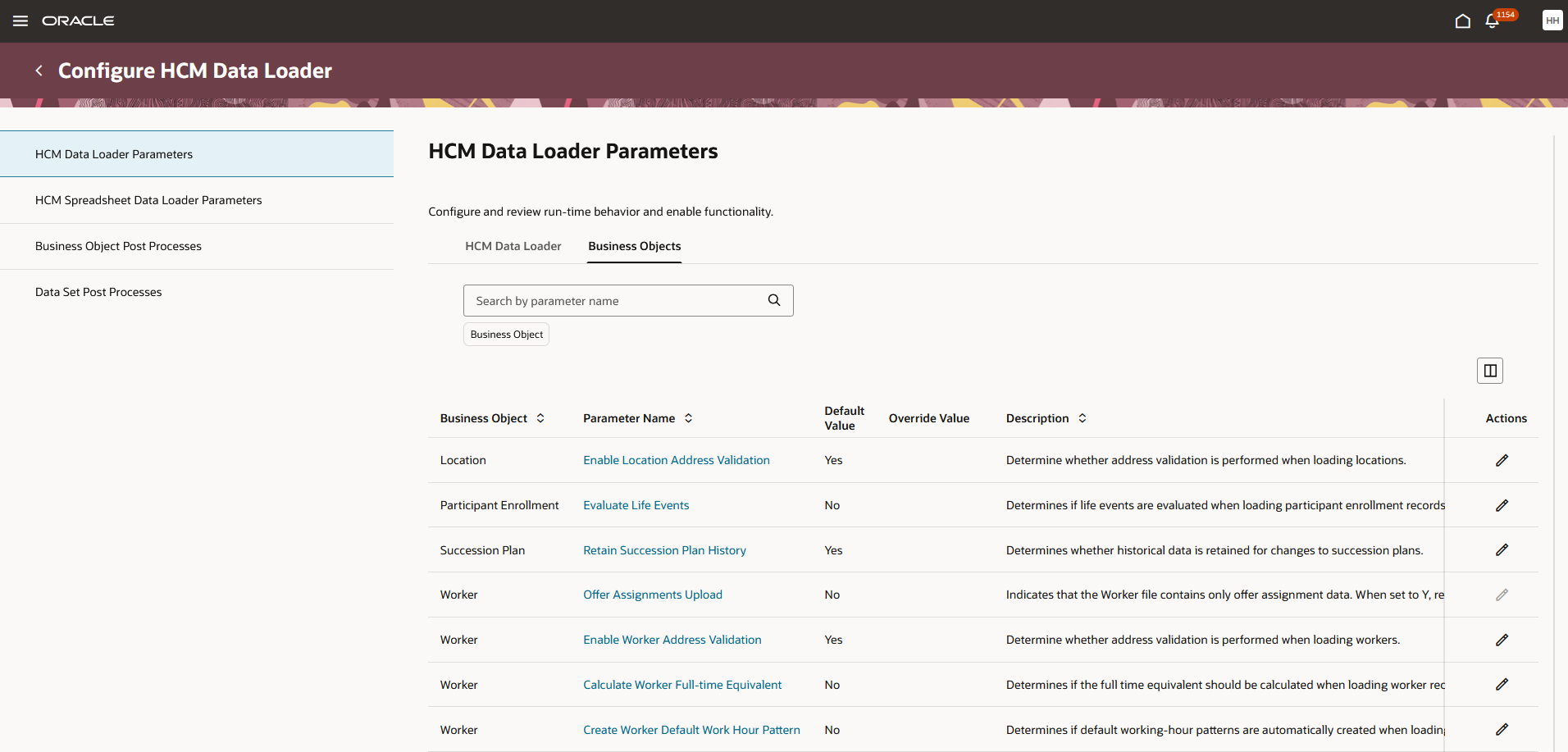

HCM Data Loader Parameters - Business Objects tab

HCM Spreadsheet Data Loader Parameters

Salient Features:

You can review and configure the parameters that control feature availability, default file shape, performance, and diagnostics for HCM Data Loader and runtime behavior for both HCM Data Loader as a whole and for specific business objects.

Here, not all parameters can be overridden. Some are read-only to describe the default behavior and provide details of the file-specific instruction that can be used to change the run-time behavior for individual files.

 Note: This allows different default behavior between the two tools. For example, participants enrolled using HSDL may evaluate life events (the volume is smaller), while this capability is disabled in HDL.

• HCM Spreadsheet Data Loader tab:

   Parameters which control HSDL performance and runtime behavior across all business objects.
  • Search: Search for parameter by typing in the parameter name.
  • Filter: Use the Category filter chip to retrieve applicable parameters for various categories like: Availability, Performance, and Scheduling Default.
  • Sorting: Parameters displayed by ascending category and parameter name.
  • Parameter Information: All the parameters are listed in a table with the following columns:

  • Field	Description
    Parameter Name	Name of the parameter
    Category	Category of the parameter
    Default Value	Pre-configured default for the parameter
    Overridden Value	Override value for the parameter
    Description	Description for the parameter
    Action	Record level Icons - Edit: To set the override value Save: To save the overridden value Cancel: To abort the changes

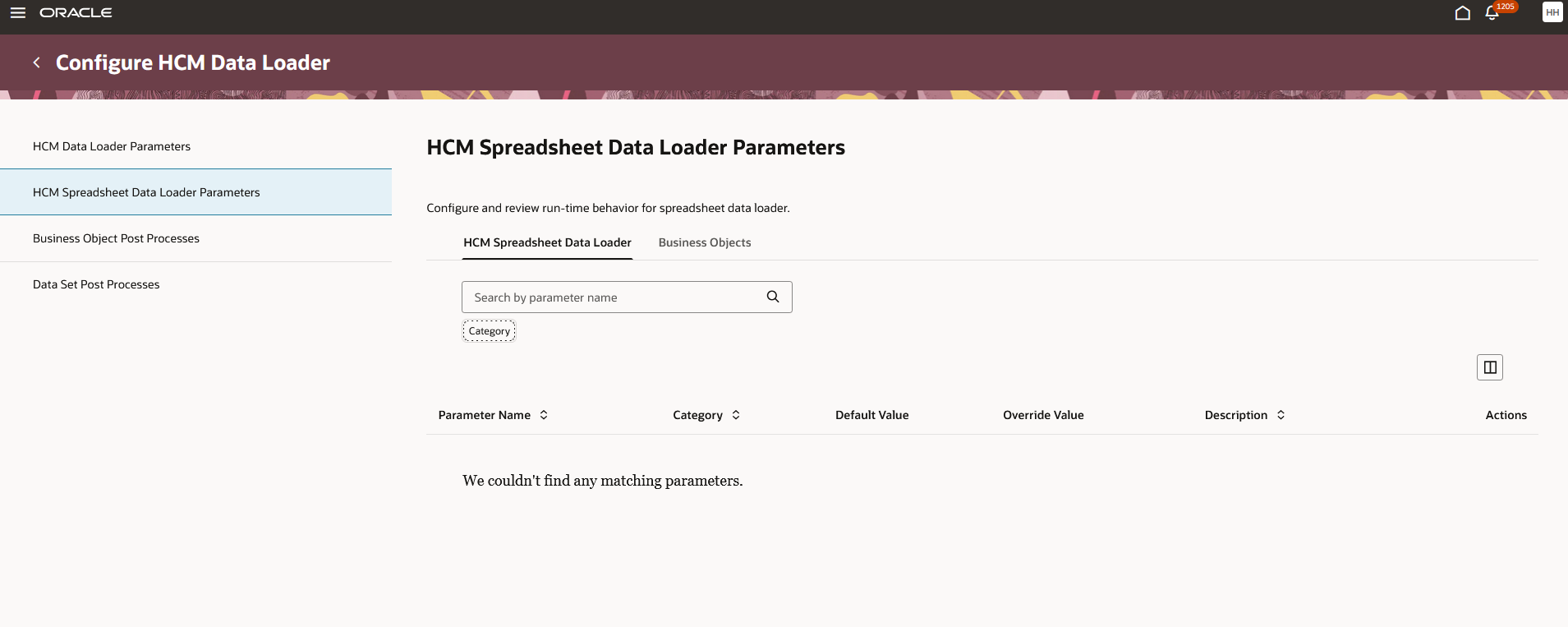

HCM Spreadsheet Data Loader - HSDLtab

• Business Objects tab:

   Parameters specific to individual business objects that control HSDL processing of that object.
  • Search: Search for parameter by typing in the parameter name.
  • Filter: Use the Business Object filter chip to retrieve applicable parameters for selected business object.
  • Sorting: Parameters displayed by ascending business object and parameter name.
  • Parameter Information: All the parameters are listed in a table with the following columns:

  • Field	Description
    Business Object	Name of the business object related to  the parameterName of the business object related to  the parameter
    Parameter	Name of the parameter
    Default Value	Default value of the parameter
    Overridden Value	Override value of the parameter
    Description	Description of the parameter
    Action	Record level Icons - Edit: To set the override value Save: To save the overridden value Cancel: To abort the changes

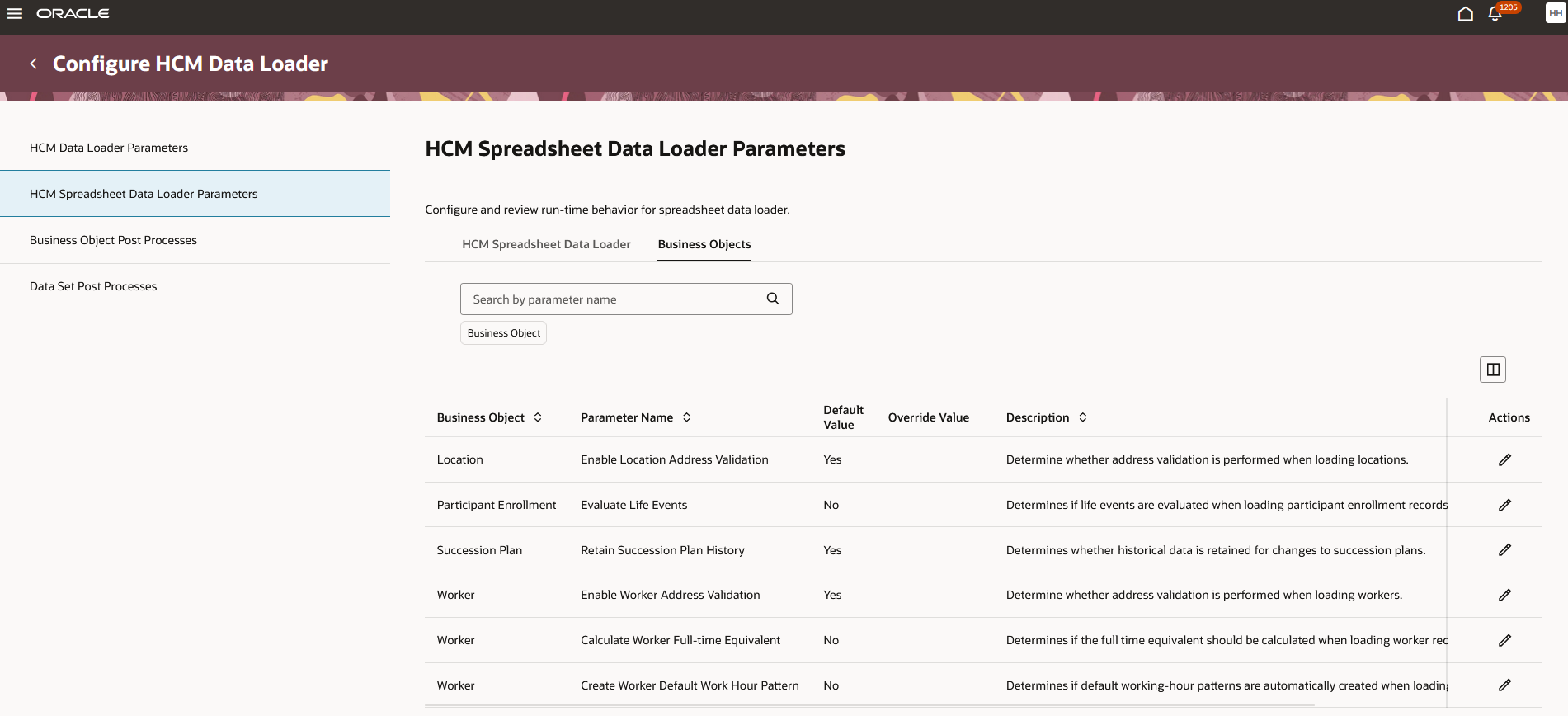

HCM Spreadsheet Data Loader - Business Object tab

Business Object Post Processes

Salient Features:

You can review and configure processes that are automatically submitted after data is loaded for a business object.

• Search: Search by post process name.
• Filter: Use the Business Object filter chip to retrieve applicable processes for various business objects.
• Sorting: Processes are sorted by business object, processing order and process name.
• Parameter Information: All the parameters are listed in a table with the following columns:

• Field	Description
  Business Object	Name of the business object for the post process
  Processing Order	The order in which the process will be submitted for a business object. If there is no dependency between processes, they have the same value and will be submitted in parallel.
  Process Name	Name of the process
  Automatic Submission	Pre-configured default value for automatic submission of post processes
  Override Automated Submission	Override value for automatic submission of post processes
  Task Name	Name of the task to supply when using a SET instruction to disable the process within  a file
  Description	Description of the process
  Actions	Record level Icons - Edit: To set the override value Save: To save the overridden value Cancel: To abort the changes

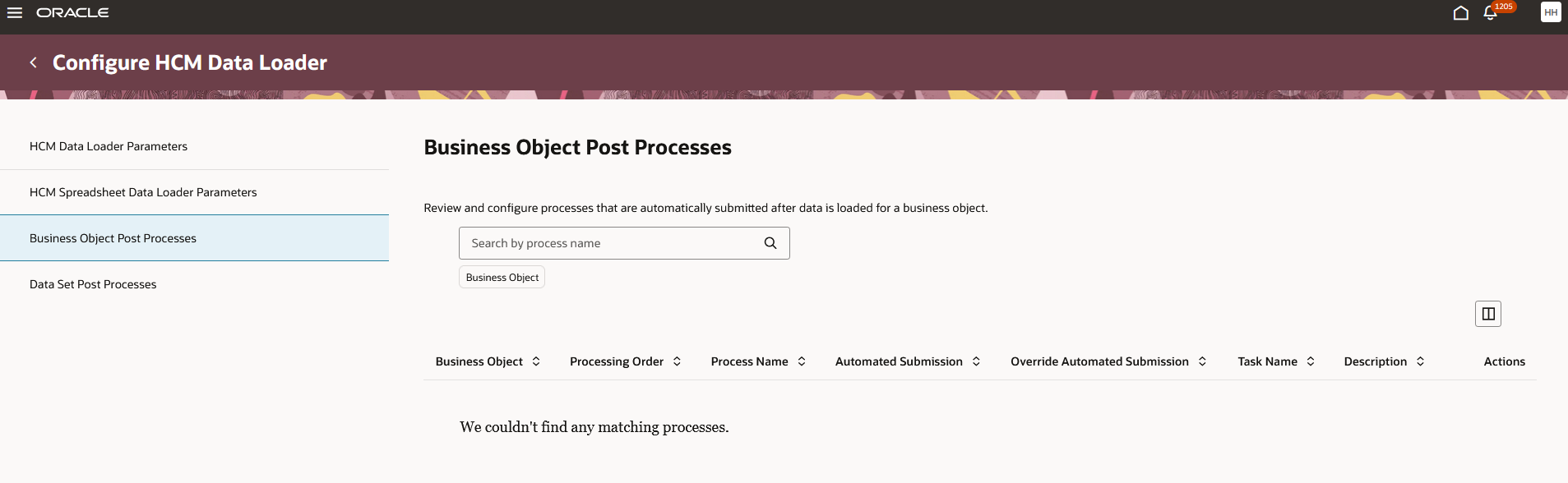

Business Object Post Processes

Data Set Post Processes

Salient Features:

You can review and configure processes that are automatically submitted after the data set has loaded.

• Sorting: Processes are sorted by business object, processing order and process name.
• Parameter Information: All the parameters are listed in a table with the following columns:

• Field	Description
  Processing Order	The order in which the process will be submitted for a business object. If there is no dependency between processes, they have the same value and will be submitted in parallel
  Process Name	Name of the process
  Automatic Submission	Pre-configured default value for automatic submission of post processes
  Override Automatic Submission	Override value for automatic submission of post processes
  Task Name	Name of the task to supply when using a SET instruction to disable the process within  a file
  Description	Description of the process
  Actions	Record level Icons - Edit: To set the override value Save: To save the overridden value Cancel: To abort the changes

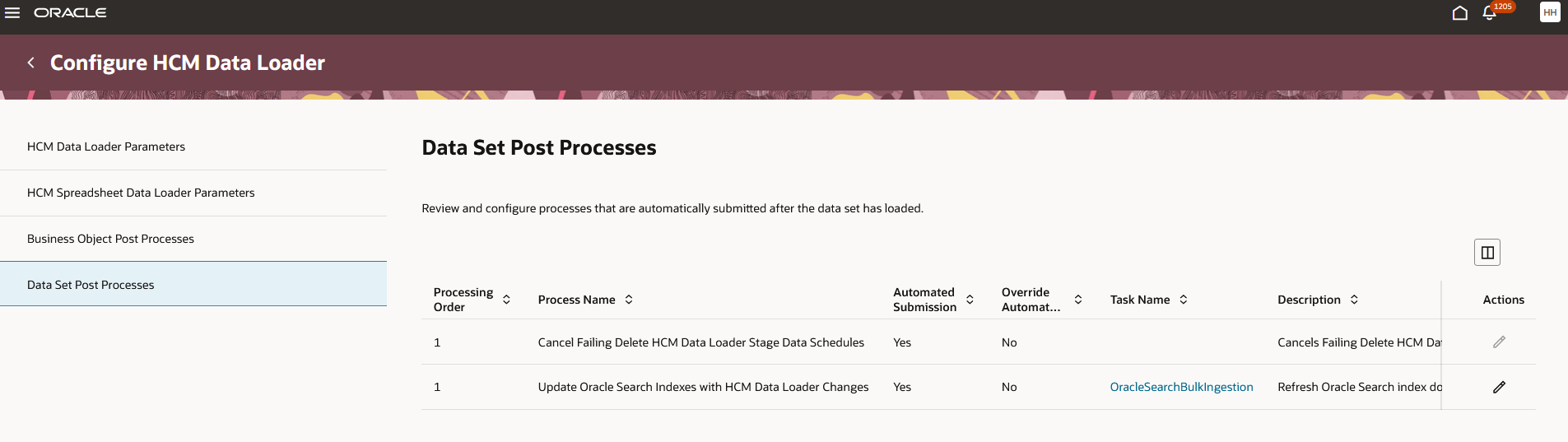

Data Set Post Processes

The new Configure HCM Data Loader page lets you experience Redwood’s high-fidelity interactions. It offers fewer clicks, better performance and increased cohesiveness.

Steps to Enable

In order to work with the new HCM Data Loader pages, you must first enable the profile option. By default, the profile option is delivered as disabled. If you want to use the new HCM Data Loader pages, you need to set the profile option to Yes.

Redwood Pages	Profile Option
Configure HCM Data Loader	ORA_HRC_HDL_CONFIG_ACCESS_REDWOOD_ENABLED

To enable the profile option, navigate to the Setup and Maintenance work area:

1. Search and click the Manage Administrator Profile Values task.
2. Search and select the profile option as indicated in the table above.
3. Select the Level as Site.
4. Enter Yes in the Profile Value field.
5. Click Save and Close.
