Extract Configuration Group User Interface

You can now create and manage configuration groups specific to extracts using the all-new Extract configuration Group task in the Data Exchange work area.

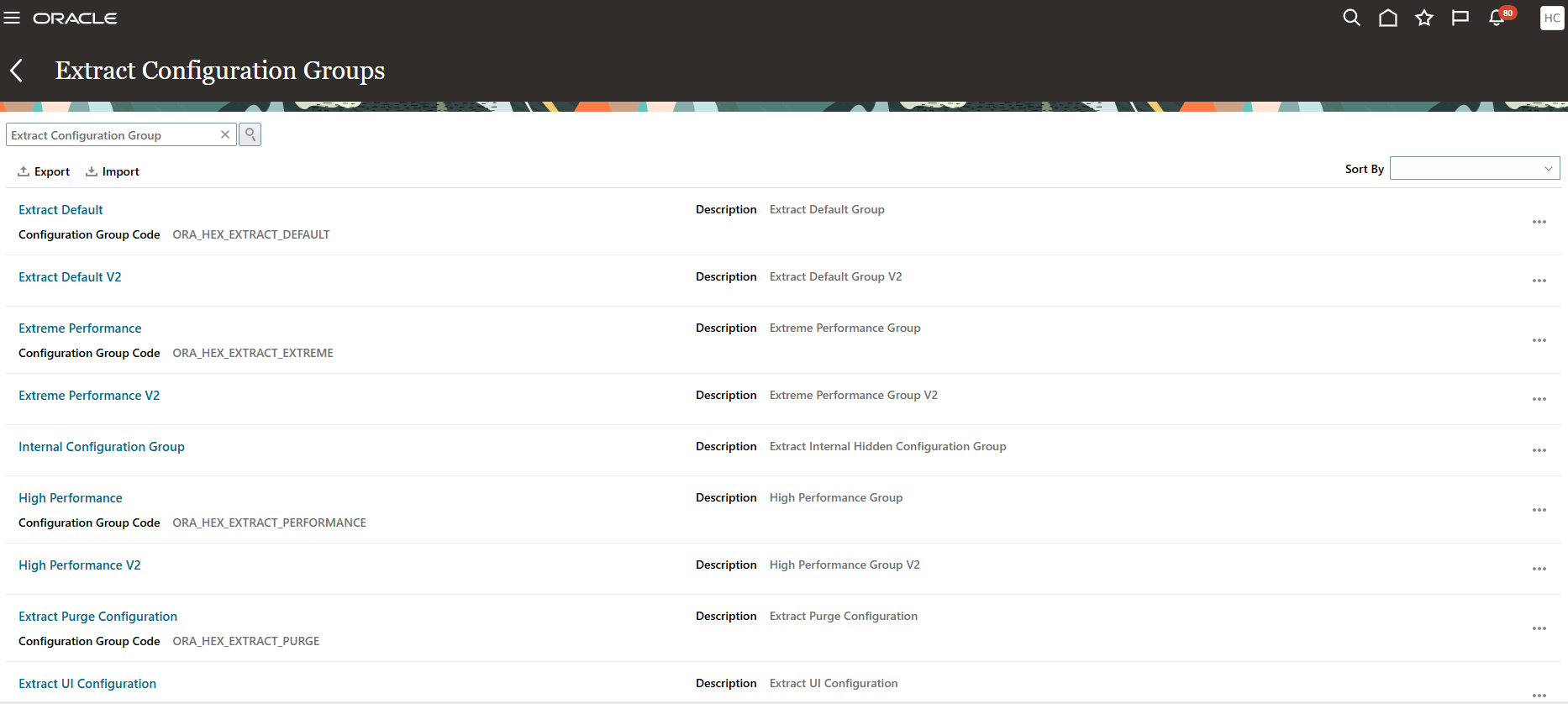

Extracts Configuration Groups

Components on this page:

• List of pre-seeded extract configuration groups with set of parameters and features
• Export button: to bulk-export all the user created extract configuration groups as an XML file
• Import button: to bulk-import user created extract configuration groups from an XML file to the page. If an existing configuration group is found you may choose to overwrite using the new XML file or keep the existing configuration. You can also download the log file to review the details of the import.
• Search: you can search for extract configuration groups by name
• Sort by: Use the following two options to sort the list of extract configuration group
  • Last Saved - ascending order
  • Name - ascending order
• Actions: consists of the following menu actions -
  • Copy - Use this to reuse the selected extract configuration group and create a new one
  • Delete - Use this to delete the selected extract configuration group

Creating a new extract configuration group:

You can create a new extract configuration group by copying from an appropriate pre-seeded extract configuration.

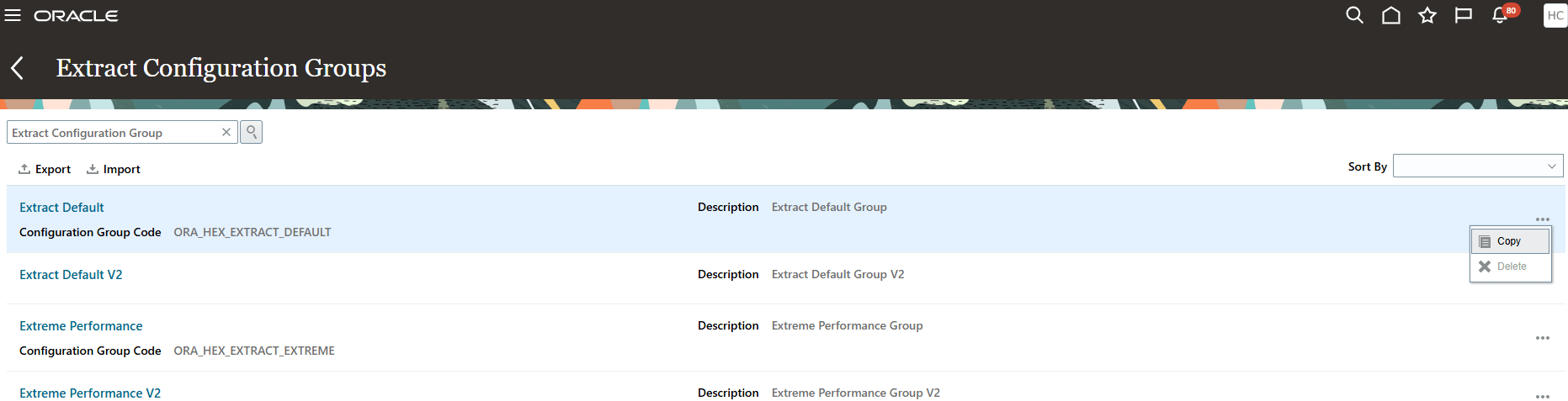

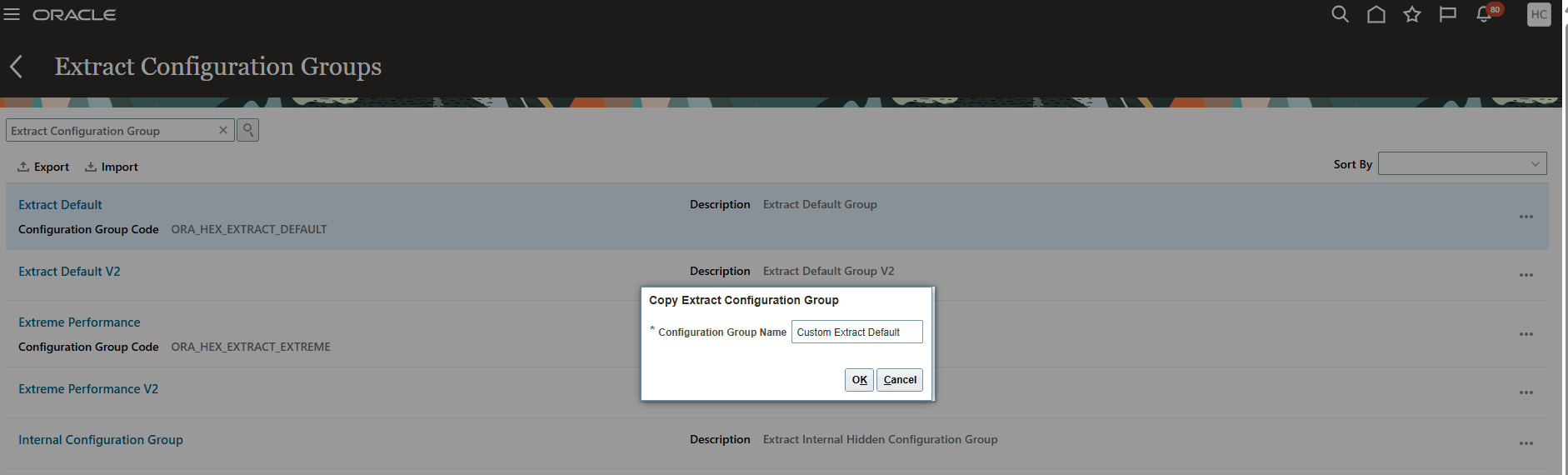

Copying Seeded Extract Configuration Group

.

Editing the newly created extract configuration group:

Click the extract configuration group you just created and use the Edit Configuration Group page to customize the parameters and features. You can review the default values and provide override values if you wish to change the default settings.

.

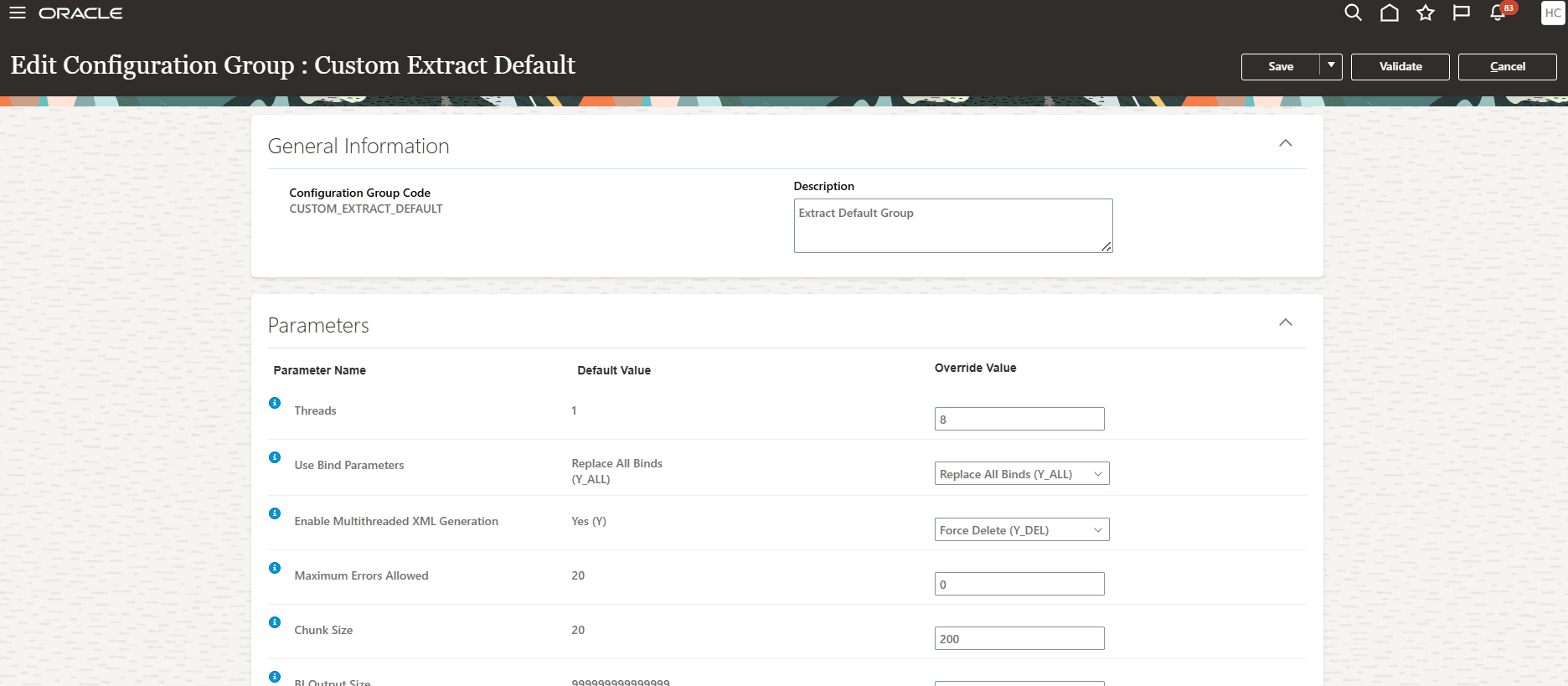

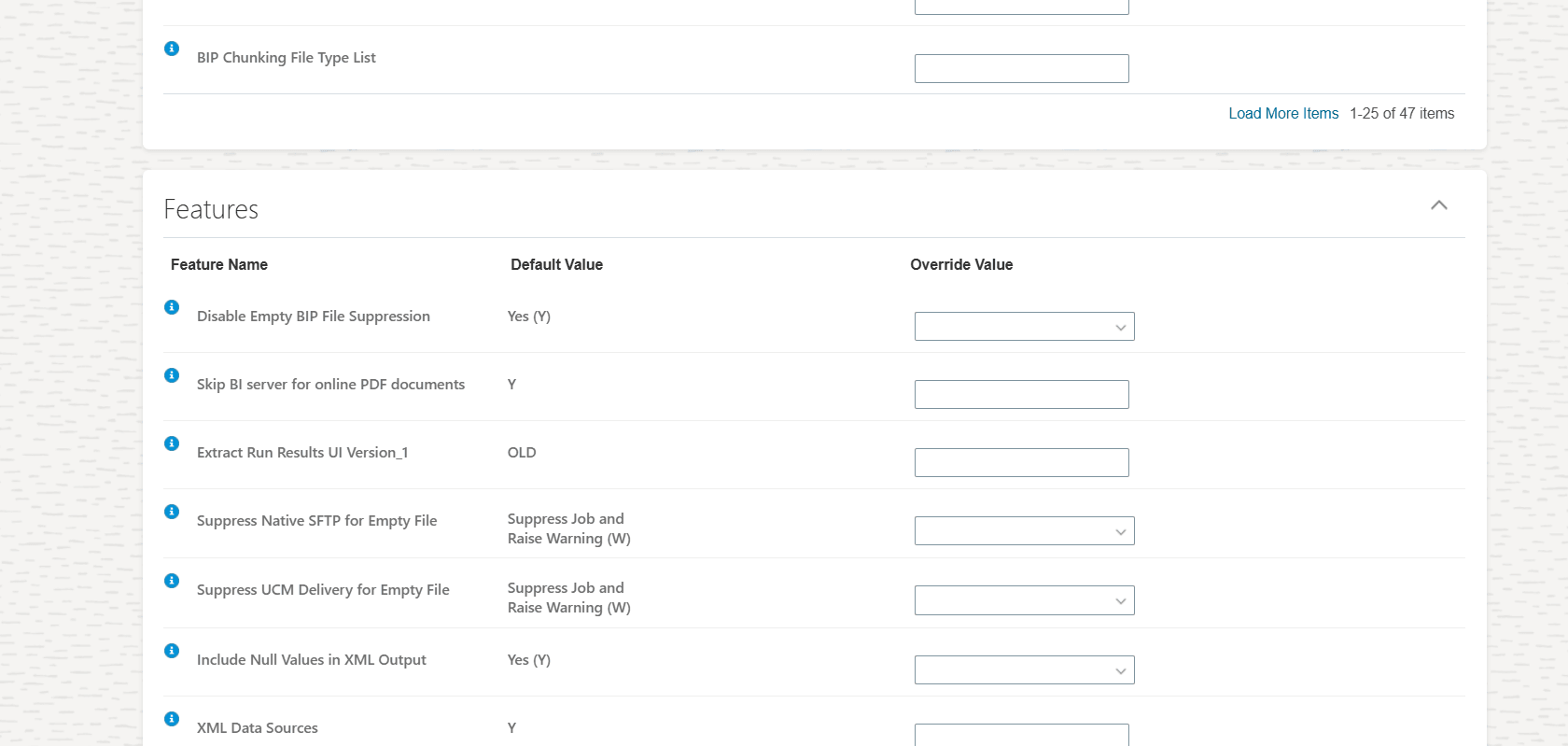

Edit Configuration Page - Parameters and Features

This enhanced user interface helps in creating unique extract configuration groups with custom parameters and features settings, making it easier to configure extract behavior based on specific needs.

Steps to Enable

For details on creating and editing extract configuration groups, see: How do I create and manage Extract Configuration Groups?

For details on importing or exporting extract configuration groups, see:

• How do I import extract configuration groups?
• How do I export extract configuration groups?

 For information on which parameters can be managed using extract configuration group, see: What parameters and features can I edit in an Extract Configuration Group?

Key Resources

To learn more about submitting an extract, see: How to Submit an Extract
