UI Logic Configuration Export Format Option

This feature provides you with two UI Logic Configuration parameter options for the EXPORT FORMAT. These parameters allow you to control the type of MS Excel output provided when exporting from Finder and Finder Results. The options are:

1. Excel: Exports results to an Excel workbook (Default). File extension of .XLSX.
2. Unformatted Excel: Exports results to a tab delimited Excel. File extension .XLS.

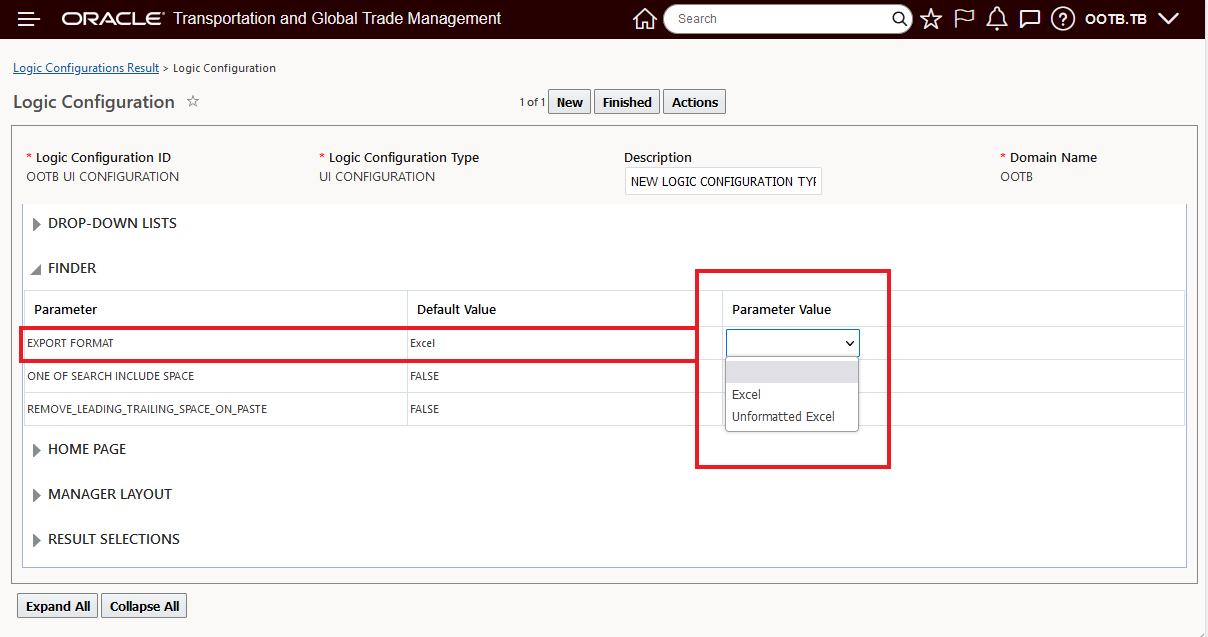

UI Logic Configuration Export Format Parameter

In the example below, the User Preference has been set with a UI Configuration Logic Config where the Export Format parameter value is set to Unformatted Excel.

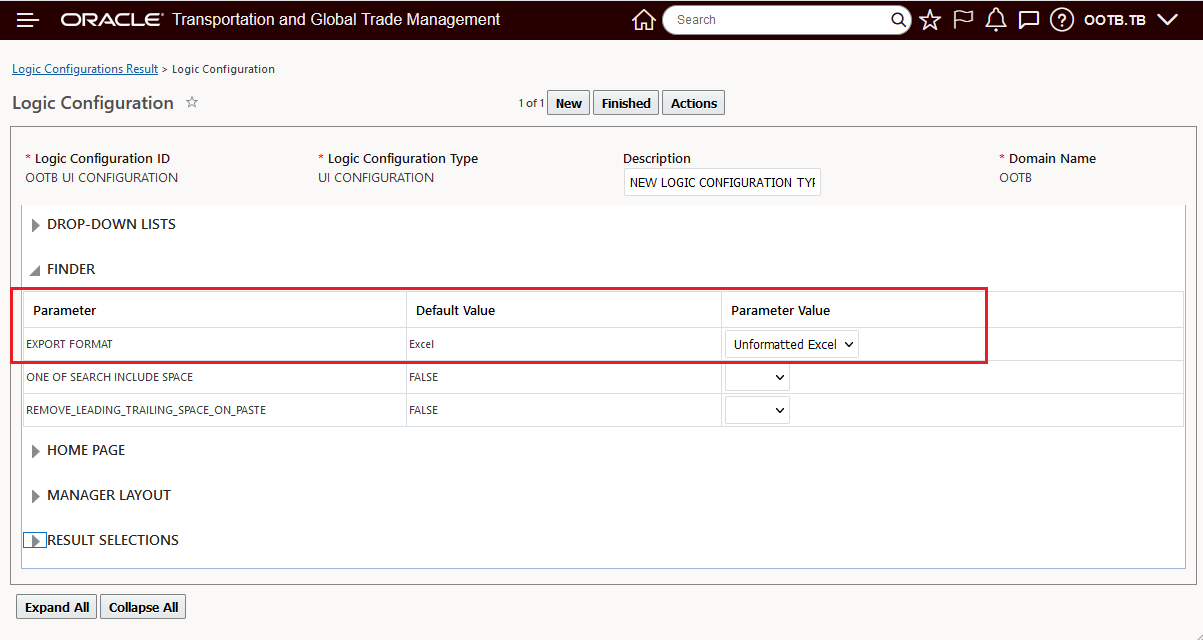

UI Configuration Export Format Set to Unformatted Excel

This User Interface Configuration Preference is assigned the UI Logic Configuration configured above.

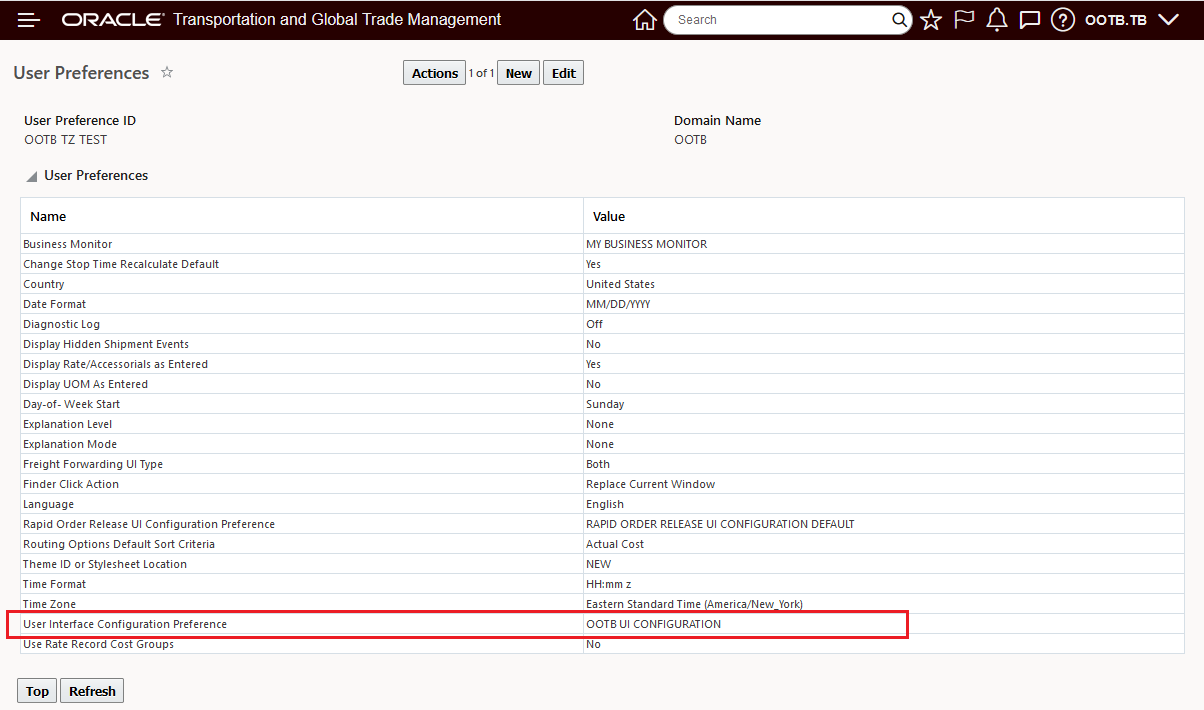

User Preference UI Configuration

When the Export is run for the Shipment Finder Result below, the .XLS Unformatted Excel format is provided - previous behavior/format.

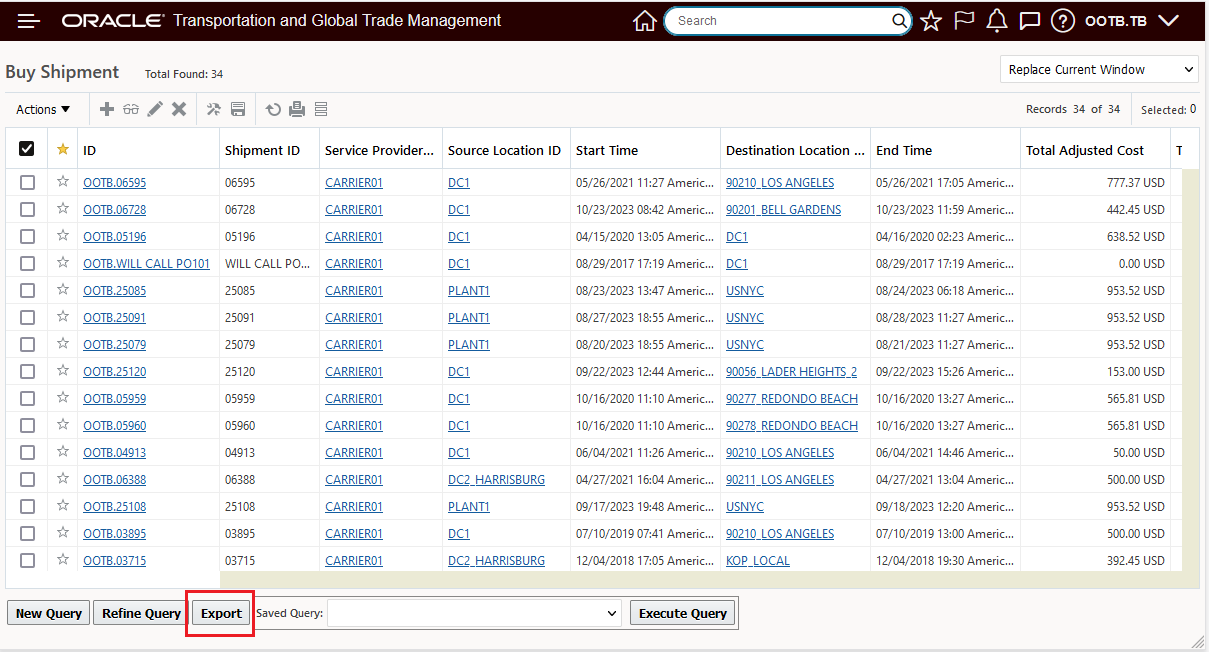

Export

The Unformatted Excel .XLS export is provided below, with first the format compatibility message then in the .XLS format.

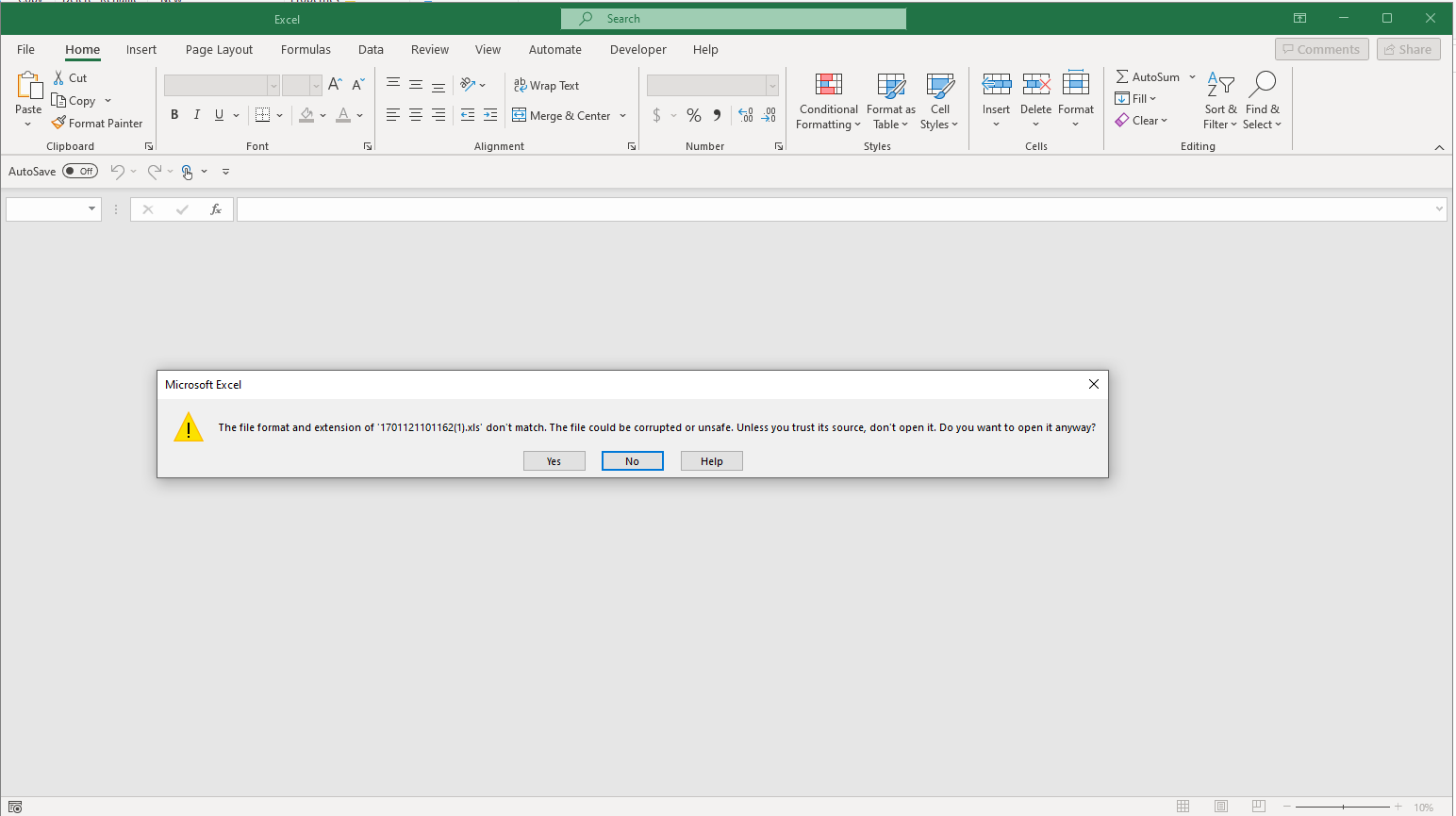

Unformatted Excel .XLS Format Extension Message

Selecting Yes above, opens the Export in .XLS format - Unformatted Excel.

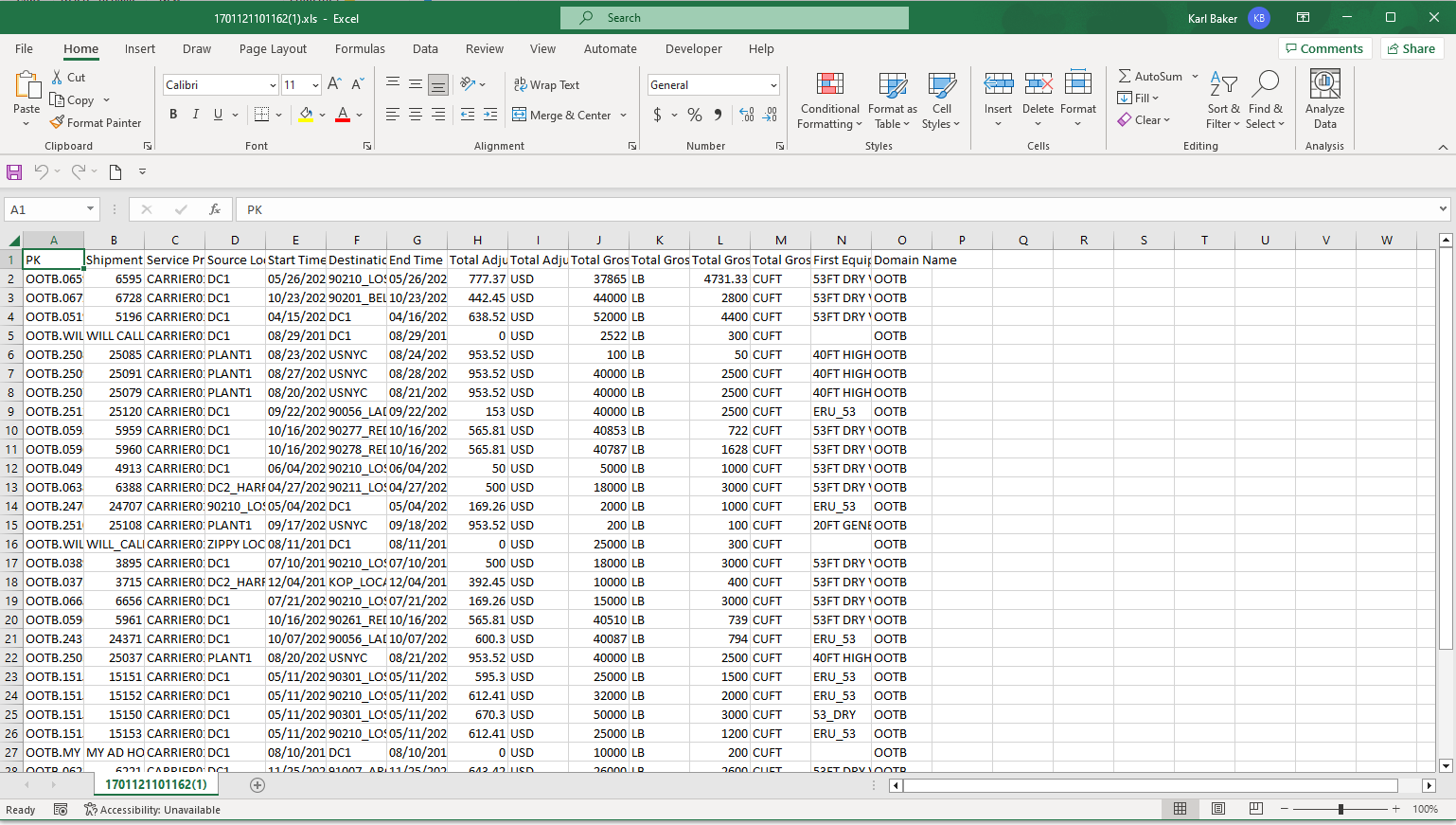

Unformatted Excel - .XLS

Now, in the example below, the same Finder Result data will be exported with the UI Configuration Logic Config where the Export Format parameter value is set to Excel, the default.

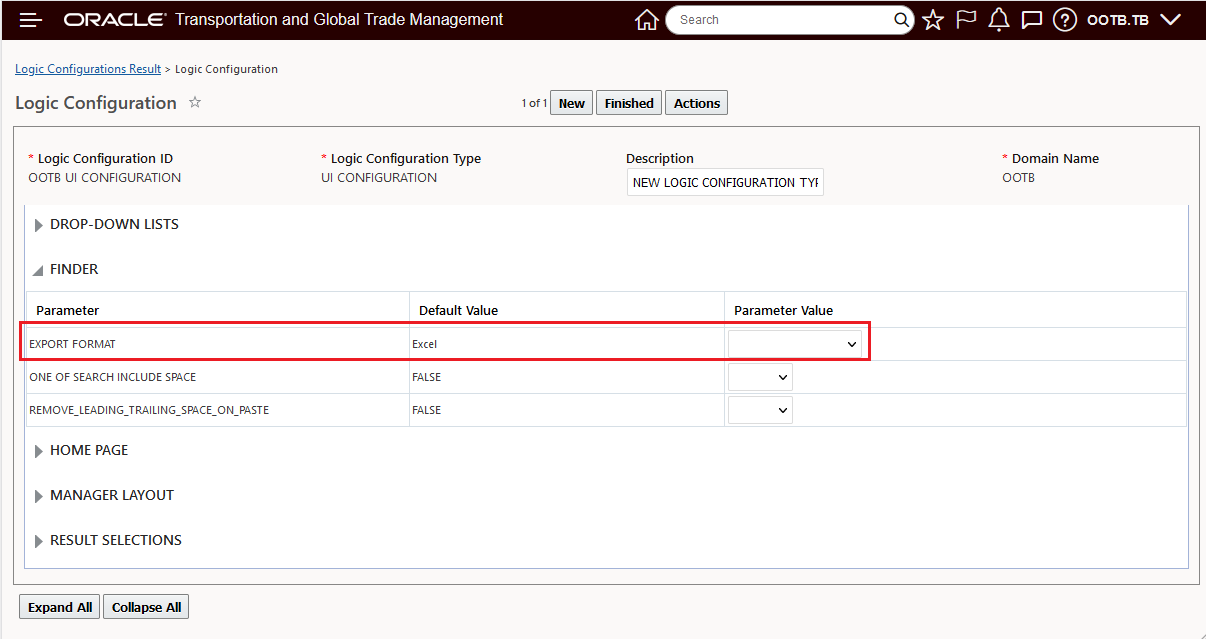

UI Logic Configuration Export Flow Set to Excel

When the Export action is run against the same Finder Results as above, the Export is done in the Excel .XLSX format - as shown below.  Note that there is no warning regarding format extension.

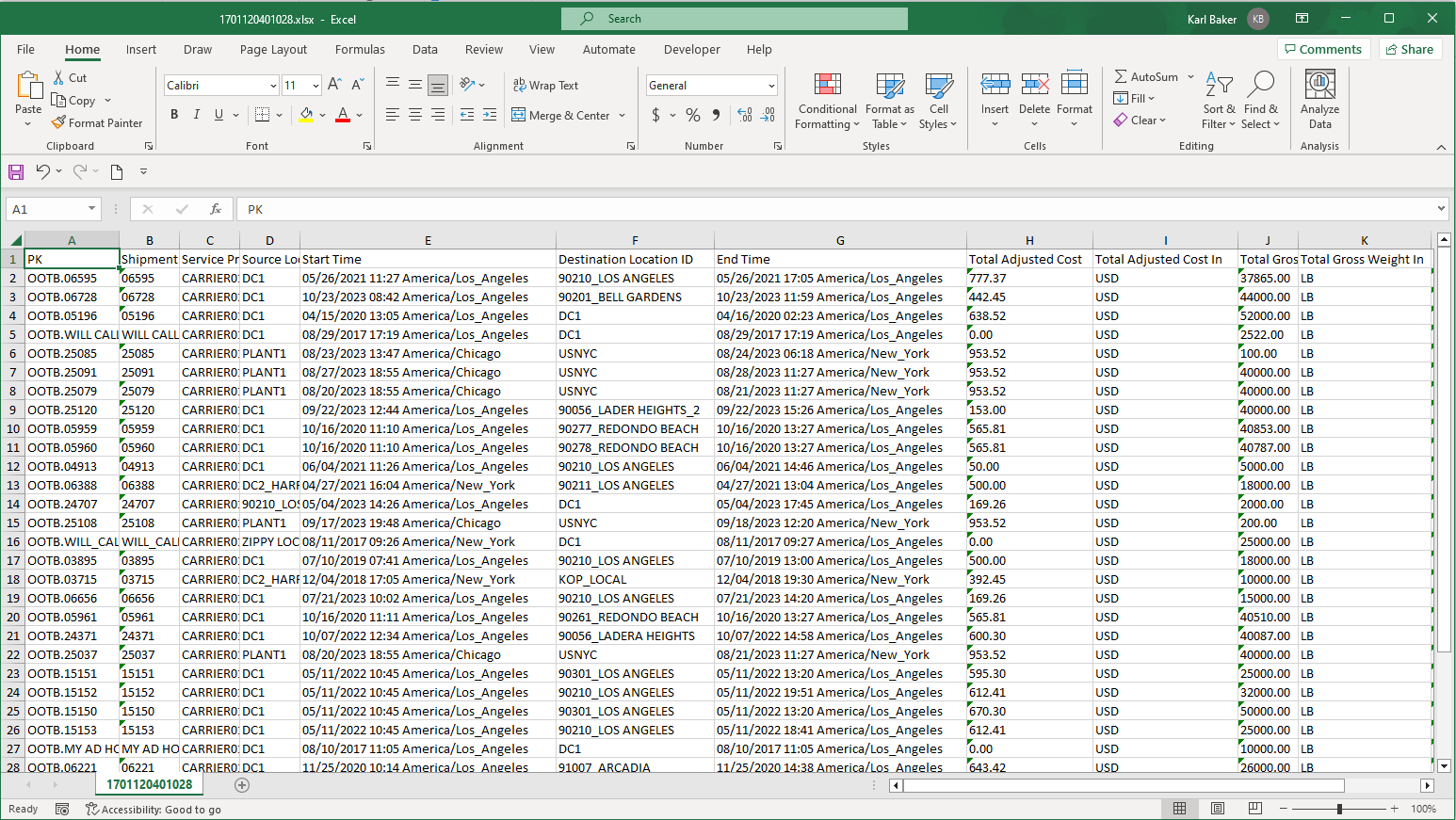

Excel .XLSX Format

Business Benefit

Provides the option to take advantage of the newer XLSX format when performing a finder result export.

Steps to Enable

You don't need to do anything to enable this feature.
