Use a Deep Link to Access Oracle Fusion Cloud Supply Chain Planning

Use deep links to create more connected analytics and a seamless user experience between external applications and Oracle Fusion Cloud Supply Chain Planning. Deep links are a type of hyperlink used to open pages without using menus or navigating through a menu structure. With this update, you can easily navigate from an application, such as Oracle Fusion Analytics Warehouse, to specific pages in Oracle Supply Chain Planning. For example, you could create a deep link to navigate from Oracle Fusion Analytics Warehouse to the plans for an item in Oracle Supply Chain Planning.

This feature is supported for the following work areas: Supply Planning, Demand Management, Demand and Supply Planning, Replenishment Planning, and Sales and Operations Planning. With this feature, you can now navigate to the page layout and table or graph in the respective work areas. Additionally, you can navigate to the Exceptions or Supplies and Demand page.

The sample deep link URL for accessing this feature consists of three parts:

https://<host>/fscmUI/faces/deeplink?objType=<OBJECT_TYPE>&objKey=<Entity;Plan;FilterContext>

Base URL                                            Object Type Path                    Object Key Values

  • Base URL: This part must include the host information with “/fscmUI/faces/deeplink?” appended after it; for example, https://<host>/fscmUI/faces/deeplink?
  • Object type path: This part should have the work area name under objTypethat that you want to open. For example, if you want to open the Supply Planning work area, objType = “MSC_SP_WORKAREA” should be passed. This path is appended to the base URL and contains details about the work area to which you are creating the link.
  • Object key values:
    • Entity: Pass the table or graph or layout option that you intend to open; for example, objkey=Entity=Material Plan or objkey=Entity=Forecast Graph or objkey=Entity=Plan Summary.
    • Plan name: Pass the plan name or plan ID of the Oracle Supply Chain Planning plan that you intend to open; for example, Plan=RTSP-Supply-Plan.
    • Filter context: The filter context contains details about the hierarchies, levels, and level members of the dimension in the table, graph, or hierarchies and level members details of the dimension in the table or graph. It allows you to filter data records based on the details of the dimension you choose to filter. This information is appended to a combination of a base URL and object type path; for example, hierarchy1=Enterprise;level1=Organization,member1=M1.

You can pass the object key values using the following parameters:

  • Parameters: Pass the parameters under the object key values; for example, hierarchy1=Product;level1=Item,member1=Laptop_1GB or hierachy1=Product;levelmember1=512342.

When using this feature to link an Oracle Analytics report from Oracle Fusion Analytics Warehouse, construct the URL using the reporting platform features that support tokens as follows:

  • Token values: Pass the column name under the object key values; for example, hierarchy1=${keyValuesForColumn:Hierarchy};level1=${keyValuesForColumn:level};member1=${keyValuesForColumn:Prd_Member_Id}; or hierachy1=${keyValuesForColumn:Hierarchy;levelmember1=${keyValuesForColumn:Prd_lvl_Member_Id}.

The ObjType parameters for the work areas are as follows:

  • Demand Management                 MSC_DM_WORKAREA
  • Supply Planning                           MSC_SP_WORKAREA
  • Demand and Supply Planning     MSC_ISD_WORKAREA
  • Replenishment Planning              MSC_REPL_WORKAREA
  • Sales and Operations Planning   MSC_SOP_WORKAREA

For example, the following URL takes you to the Material Plan table in the Supply Planning work area from the Oracle Fusion Analytics Warehouse application.

With token values:

https://host/fscmUI/faces/deeplink?objType=MSC_SP_WORKAREA&objKey=entity=MaterialPlan;plan=${keyValuesForColumn:PLAN_ID};hierarchy1=${keyValuesForColumn:HIERARCHY_ID};levelMember1=${keyValuesForColumn:ORG_LVL_MEMBER_ID};hierarchy2=${keyValuesForColumn:HIERARCHY_ID};levelMember2=${keyValuesForColumn:PRD_LVL_MEMBER_ID};hierarchy3=${keyValuesForColumn:HIERARCHY_ID};levelMember3=${keyValuesForColumn:TIM_LVL_MEMBER_ID}

With parameters:

https://host/fscmUI/faces/deeplink?objType=MSC_SP_WORKAREA&objKey=entity=Material Plan;plan=RTSP-KB-SP-PL01;hierarchy1=SP_Catalog;level1=Item;member1=KB-CSP-ALLOY;hierarchy2=APS Calendar;level2=Week;member2=1/7/30;hierarchy3=Enterprise;level3=Organization;member3=M1

Additionally, it’s possible to pass the parameters of Member Id, Hierarchy Id, and Level Id details up to 5 parameters with names like member2, level2, hierarchy2, etc. All context details are appended with the AND clause. For example, if multiple Member Id, Level Id, and Hierarchy Id details are passed, then the filter context will be represented as (Member Id1, Level Id1, Hierarchy Id1) AND (Member Id2, Level Id2, Hierarchy Id2).

Steps to Enable

Use the Opt In UI to enable this feature. For instructions, refer to the Optional Uptake of New Features section of this document.

Offering: Supply Chain Planning

Tips And Considerations

If you want to use the Use a Deep Link to Access Oracle Fusion Cloud Supply Chain Planning feature, then you must opt in to its parent feature: Replenishment Planning. If you’ve already opted in to this parent feature, then you don’t have to opt in again.

The Supplies and Demand page and the Exceptions page in their respective work areas support only the Item and Organization dimensions. However, it's important to note that this feature isn’t supported for Tiles and Tile sets within Graph sections.

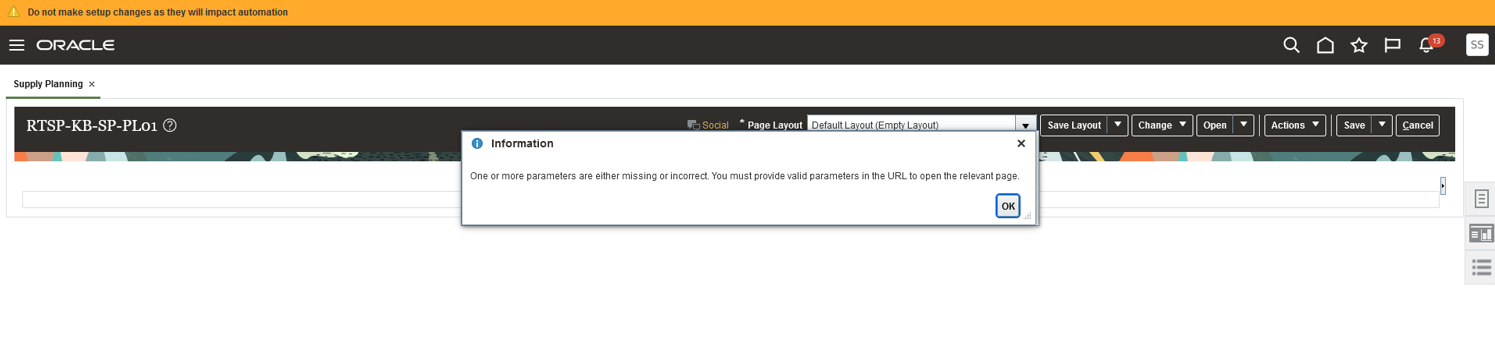

If any of the parameters are missing or incorrectly passed, the following error is displayed.

Error_Message

Key Resources

Access Requirements

Users who are assigned a configured job role that contains these privileges can access this feature:

  • Monitor Demand Management Work Area (MSC_MONITOR_DEMAND_MANAGEMENT_WORK_AREA_PRIV)
  • Monitor Demand and Supply Planning Work Area (MSC_MONITOR_DEMAND_AND_SUPPLY_PLANNING_WORK_AREA_PRIV)
  • Monitor Replenishment Planning Work Area (MSC_MONITOR_REPLENISHMENT_PLANNING_WORK_AREA_PRIV)
  • Monitor Sales and Operations Planning Work Area (MSC_MONITOR_SALES_AND_OPERATIONS_PLANNING_WORK_AREA_PRIV)
  • Monitor Supply Planning Work Area (MSC_MONITOR_SUPPLY_PLANNING_WORK_AREA_PRIV)
  • View Planning Tables (MSC_VIEW_PLANNING_TABLES_PRIV)

Users must have access to the individual pages and tables.
