Redwood: Monitor Financial Orchestration Flows Using a New User Experience

The Monitor Supply Chain Financial Orchestration page helps business users track, manage, and analyze financial transactions that occur across the supply chain. This is applicable especially in cases where there are complex business flows involving multiple legal entities such as intercompany transfers, drop shipments, or global procurement. It is a key part of the Supply Chain Financial Orchestration functionality.

You can now monitor and manage financial orchestration events using the new Redwood page. The redesigned page offers an intuitive, modern interface with enhanced usability features, including:

  • A streamlined search page to view all orchestration events along with their status and other key details.
  • View orchestration events easily through the in-app navigation, filtering out the events by your business flows.
  • Search and filter chips to quickly find financial orchestration events by status, message type and event type, date range, and more.
  • Quick actions to submit all the events for reprocessing directly from the search results.
  • Review and select an event or list of events for specific reprocessing actions directly from the search results.
  • Quick preview of the tasks completed and pending for orchestration, with focused user alerts.
  • Capture all notes and follow-up actions noted while reviewing an orchestration event using the notes component, helping you to maintain an audit trial.

Figure 1 - Monitor Financial Orchestration Execution in the Redwood UI with in-app navigation and deeplinks supported.

Redwood Page for Monitor Financial Orchestration Execution

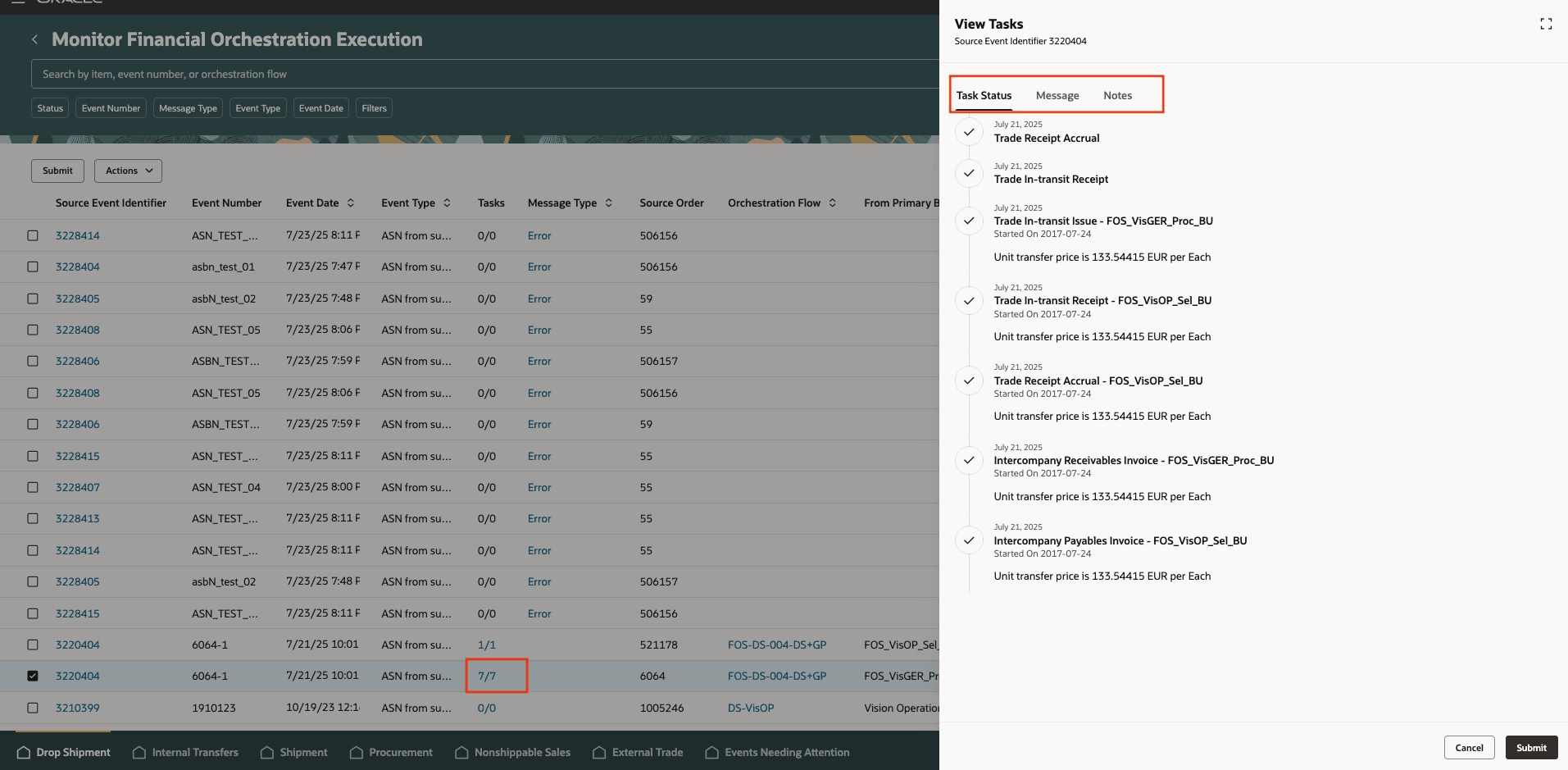

Figure 2 - Quick preview of the status of the orchestration tasks with timeline in the Redwood UI.

Quick Preview of Orchestration Task Status With the Timeline

Figure 3 - Review any errors or warnings with quick action in the Redwood UI.

Review Errors or Warnings With Quick Actions

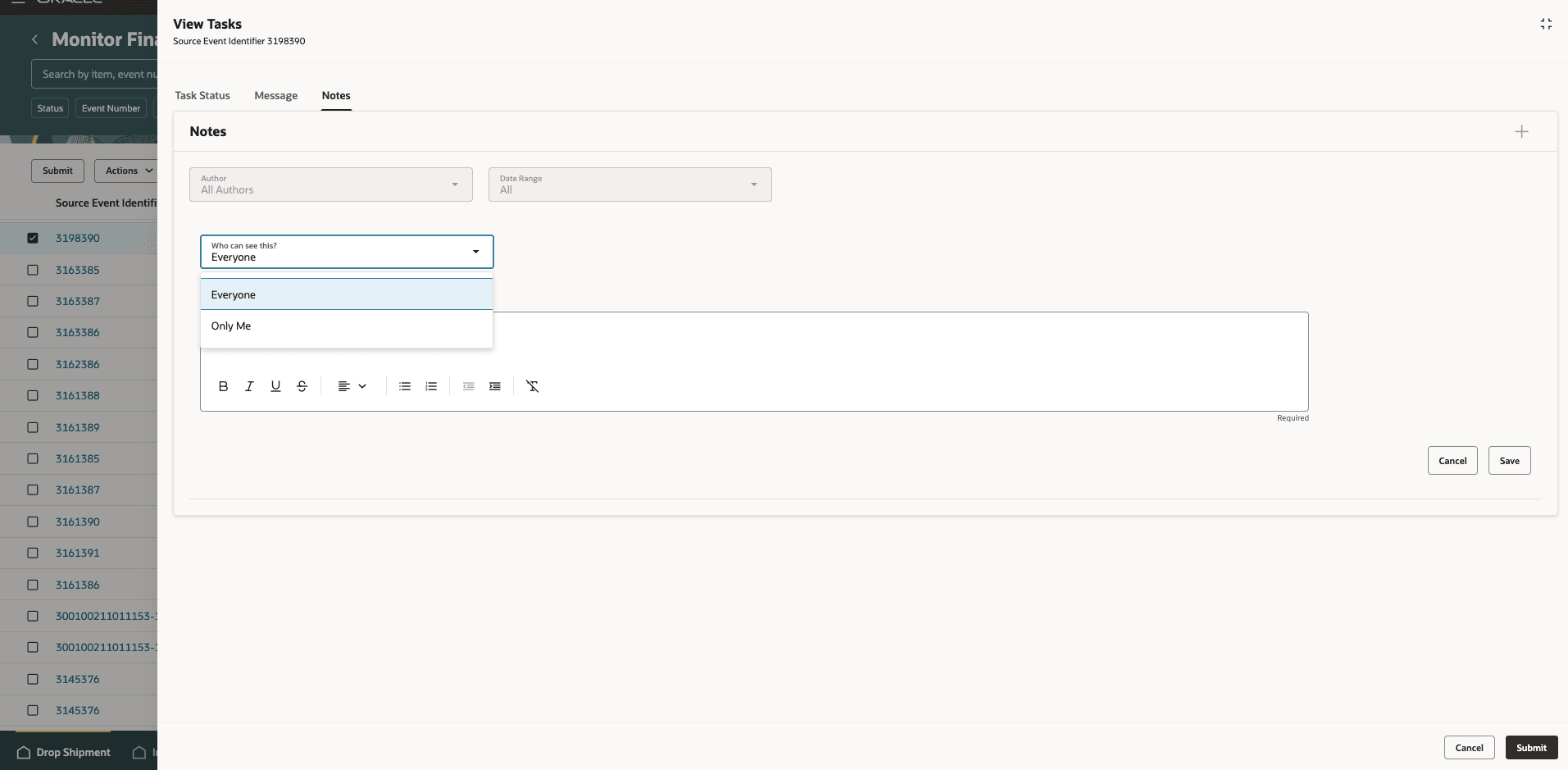

Figure 4 - Make your review notes and actionable points seamlessly now in the Redwood UI.

Make Review Notes and Actionable Points

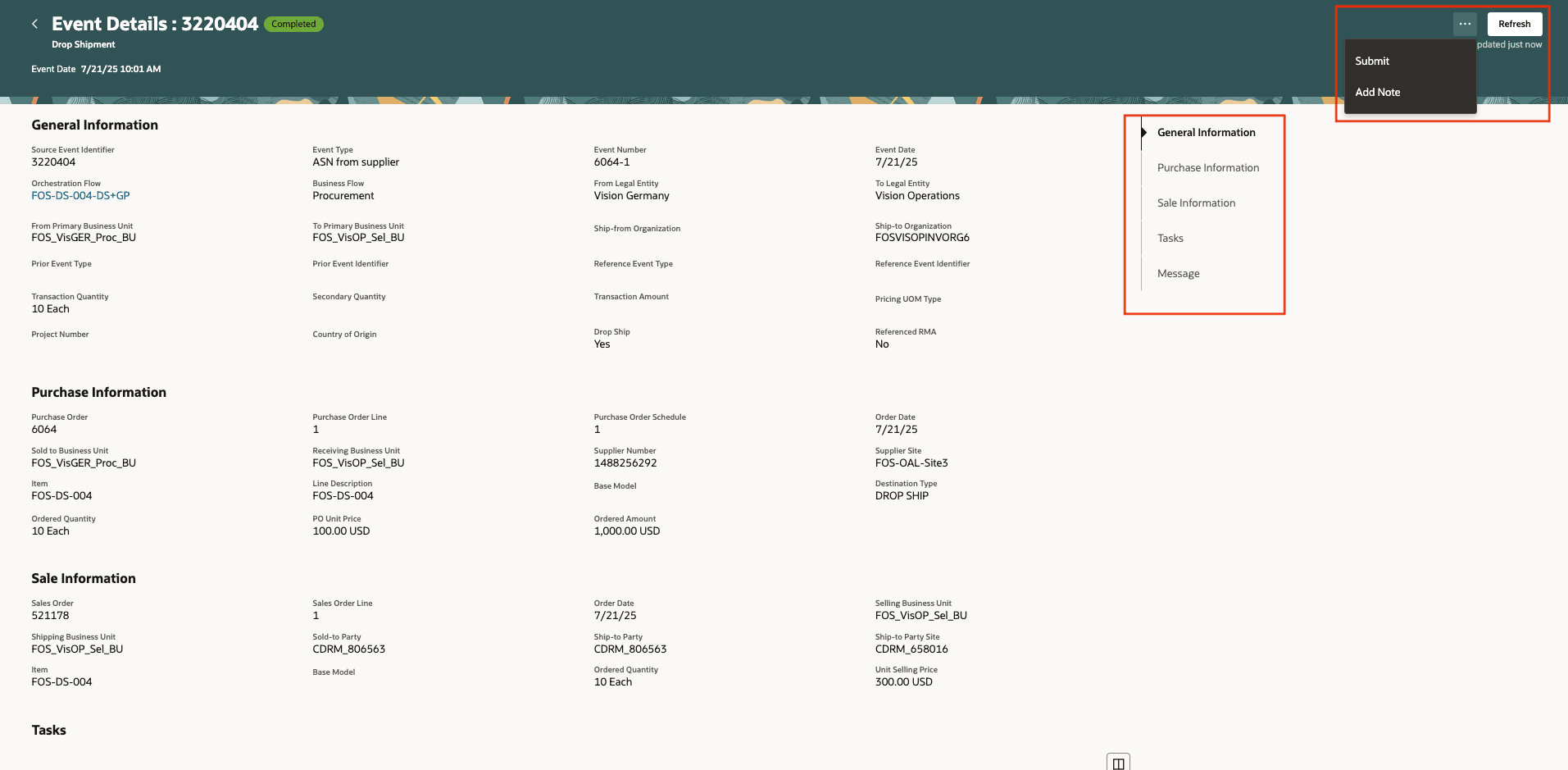

Figure 5 - Upon clicking on the event identifier in the search page, view details of the event and anchor to the relevant section for more details with single click.

View Details of the Event and Anchor With a Single Click

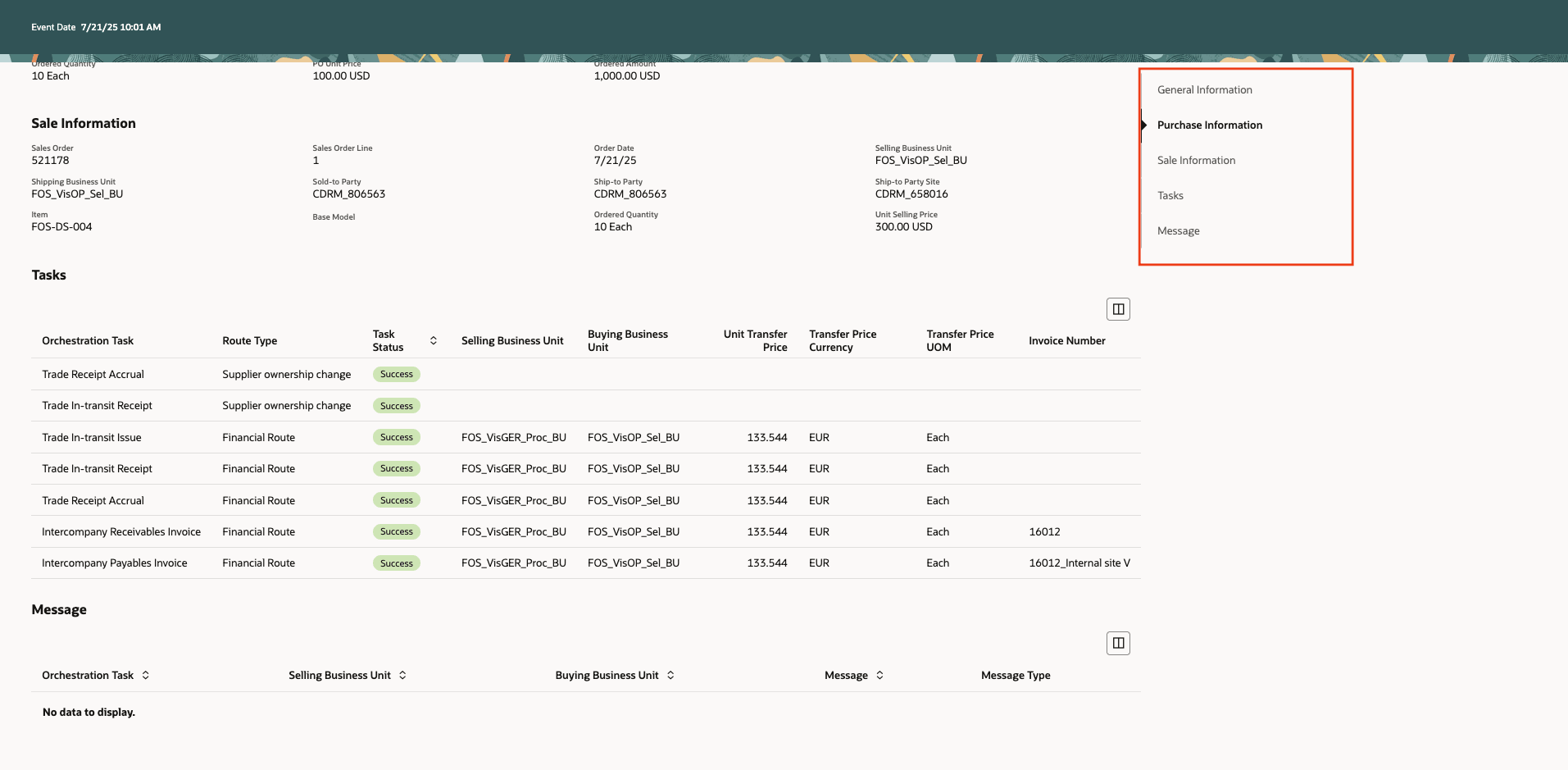

Figure 6 - View additional details of the event and anchor to the relevant section for more details with single click.

View Additional Details of the Event and Anchor With a Single Click

  • Faster flow management: Locate, review, and act on financial orchestration events that needs attention.
  • Focused grouping of events by business flow: Optimize performance and help with easier exception management.
  • Improved navigation: Switch between different connected financial orchestration pages seamlessly.

Steps to Enable

Follow these steps to enable or disable this feature:

  1. In the Setup and Maintenance work area, search for and select the Manage Administrator Profile Values task.
  2. On the Manage Administrator Profile Values page, search for and select the ORA_FOS_FINANCIAL_ORCHESTRATION_MONITOR_REDWOOD_ENABLED (Redwood Page for Monitor Financial Orchestration Execution Events Enabled) option code.
  3. In the Profile Values section, set the Site Level to Yes or No. The default value is No.
    • Yes = enables the feature
    • No = disables the feature
  4. Click Save and Close. Changes in the profile value will take effect the next time you sign in.

Tips And Considerations

  • Enable all pages in Redwood to ensure a seamless and cohesive workflow with a better user experience.
  • The page will launch showing the users relevant actionable view by default. It will also show the events that are in error and not completed in last 15 days from system date.
  • Drop Shipment will be the default in-app tab. Other tabs for business flows are logically arranged based on the most used flows by our customers.

Key Resources

  • Oracle Fusion Cloud SCM: Implementing Manufacturing and Supply Chain Materials Management Guide, available on the Oracle Help Center.
  • Oracle Fusion Cloud SCM: Using Supply Chain Cost Management guide, available on the Oracle Help Center.

Access Requirements

Users who are assigned a configured job role that contains these privileges can access this feature:

  • Manage Inbound Referenced Event Exceptions (FOS_MANAGE_INBOUND_REFERENCED_EVENT_EXCEPTIONS)
  • Manage Orchestration Exceptions (FOS_MANAGE_ORCHESTRATION_EXCEPTIONS)
  • View Financial Orchestration Execution (FOS_VIEW_ORCHESTRATION_EXCEPTIONS)
  • View Financial Orchestration Events by Web Service (FOS_VIEW_MONITOR_ORCHESTRATION_WEB_SERVICE)
  • Manage Financial Orchestration Events by Web Service (FOS_MANAGE_MONITOR_ORCHESTRATION_WEB_SERVICE)
  • Financial Orchestration Events with Exceptions by Web Service (FOS_EXCEPTION_DETAILS_WEB_SERVICE)
