Redwood: Author Configurator Rules in Product Management

Create, edit, and test configurator rules while you manage an item's structural details in the Product Information Management work area. Use an intuitive IF Then structure and numeric rules on redesigned pages to set up your rules.

Starting in update 25D, you can now use logic rules on redesigned pages in the Product Information Management work the same way that you used constraint rules on the classic pages in the Configurator Models work area. For example, use REQUIRES, IMPLIES, NEGATES, and EXCLUDES operators from the constraint definition language (CDL) just like you did on the classic pages.

Realize these benefits:

  • Improve efficiency. Manage configurator rules in a single work area. You can now create, edit, and test your rules directly in the Product Information Management work area instead of managing them separately in the Configurator Models work area.
  • Reduce training and support cost. The redesigned pages are more intuitive and usable to folks with a wider skillset.
  • Manage your configurator rules from a single location.

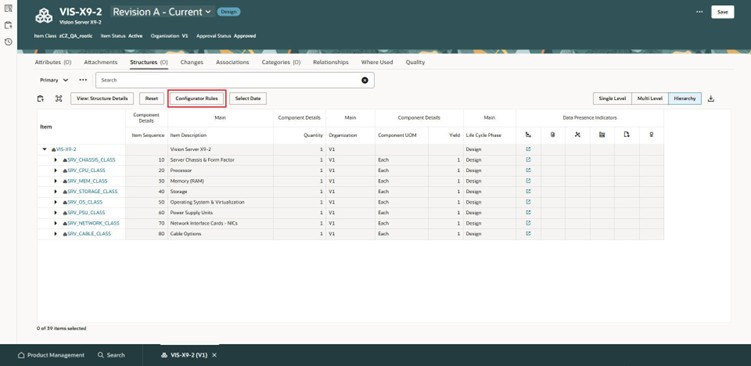

Create, edit, and test your rules directly in the Product Information Management work area:

Create, edit, and test your rules directly in the Product Information Management work area

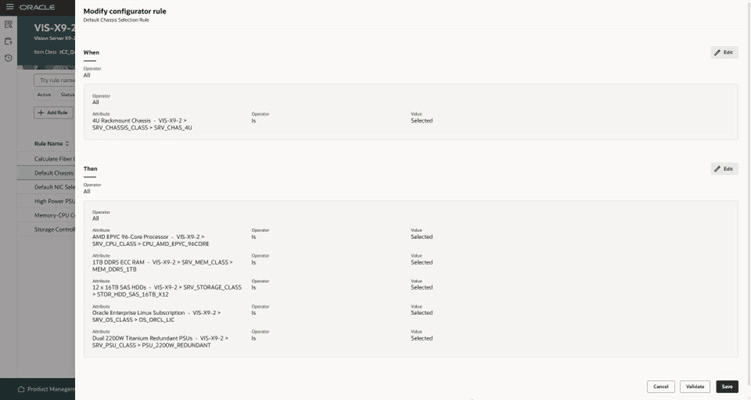

Use IF THEN logic on the workarea's redesigned pages:

Use IF THEN logic on the workarea's redesigned pages

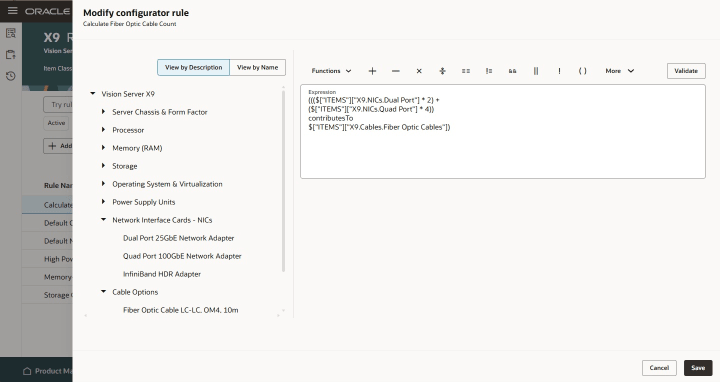

Use numeric formula rules to make your configuration more accurate. Drag and drop components directly onto your rule, then use the new contributesTo operator to replace the CDL rules that used the Add. . .To keywords. contributesTo can calculate a component's quantity in each configuration:

Drag and drop components directly onto your rule

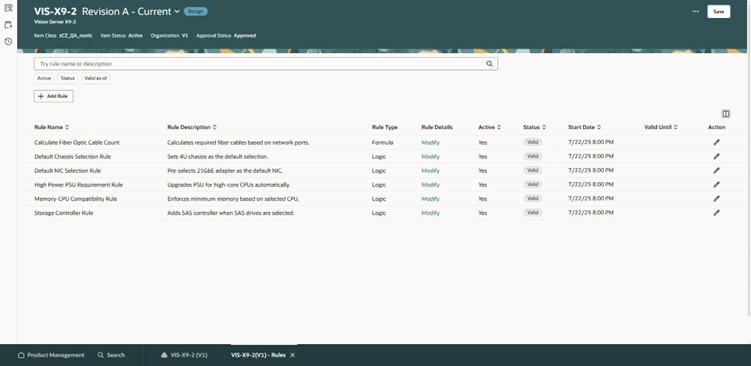

Manage all your rules in a single location:

Manage all your rules in a single location

Here's the demo of these capabilities:

Steps to Enable

Use the Opt In UI to enable this feature. For instructions, refer to the Optional Uptake of New Features section of this document.

Offering: Product Management

Tips And Considerations

Get ready for a much more intuitive interface!

Key Resources

Access Requirements

Users who are assigned a job role that contains these duty roles and privileges can access this feature.

Use these Configurator privileges:

  • Manage Configurator Rules (CZ_MANAGE_RULES_PRIV)
  • Test Configurator Model (CZ_TEST_MODEL_PRIV)
  • Access Configurator Runtime (CZ_CONFIGURATOR_RUNTIME_ACCESS_PRIV)
  • Access HCM Common Components (HRC_ACCESS_HCM_COMMON_COMPONENTS_PRIV)
  • Manage HCM Rules (HRC_MANAGE_HCM_RULES_PRIV)

Or use these duties:

  • Redwood Configurator Manager (ORA_CZ_REDWOOD_MANAGER_DUTY)
  • Redwood Configurator Manager (ORA_REDWOOD_MANAGER_DUTY_HCM) – For access to the Rule Builder details
  • Redwood Configurator Reviewing (ORA_CZ_REDWOOD_REVIEWING_DUTY) – Optional for read-only access to the Configurator Rule details
  • Redwood Configurator Reviewing (ORA_CZ_REDWOOD_REVIEWING_DUTY_HCM) – Optional for read-only access to the Rule Builder details

You'll also need these for Product Information Management:

  • View Item Redwood Items (EGP_VIEW_REDWOOD_ITEM_PRIV)
  • View Item Redwood Attachments (EGP_VIEW_REDWOOD_ITEM_ATTACHMENT_PRIV)
  • View Item Redwood Associations (EGP_VIEW_REDWOOD_ITEM_ASSOCIATION_PRIV)
  • View Item Redwood Structures (EGP_VIEW_REDWOOD_ITEM_STRUCTURE_PRIV)
  • View Item Redwood Changes (EGP_VIEW_REDWOOD_ITEM_CHANGE_PRIV)
  • View Item Redwood Item Categories (EGP_VIEW_REDWOOD_ITEM_CATEGORIES_PRIV)
  • View Item Redwood Relationships (EGP_VIEW_REDWOOD_ITEM_RELATIONSHIP_PRIV)
  • View Item Redwood Quality (EGP_VIEW_REDWOOD_ITEM_QUALITY_PRIV)
  • Supply Chain Common View Web Service (ORA_RCS_SCM_COMMON_VIEW_WEB_SERVICE_DUTY)
  • Enter Trading Community Organization Information (HZ_ENTER_TRADING_COMMUNITY_ORGANIZATION_INFORMATION_PRIV)
  • Get Failure Condition Event Codes (MNT_GET_FAILURE_CONDITION_EVENT_CODE_BY_SERVICE_PRIV)
  • Get Item Attribute Control REST (EGP_ITEM_ATTRIBUTE_CONTROL_READ_PRIV)
  • Get Item Lifecycle Phases Read Rest (EGP_ITEM_LIFECYCLE_PHASES_READ_REST_PRIV)
  • Get Item Status REST (EGP_ITEM_STATUSES_READ_PRIV)
  • Get New Item Request Rest (EGI_NEW_ITEM_REQUEST_REST_PRIV)
  • Get Template REST (EGP_TEMPLATE_READ_PRIV)
  • Manage Material Planner (MSP_MANAGE_MATERIAL_PLANNER_PRIV)
  • Manage Subscription Setup (OSS_MANAGE_SUBSCRIPTION_SETUP_PRIV)
  • Remove Trading Community Organization (HZ_REMOVE_TRADING_COMMUNITY_ORGANIZATION_PRIV)
  • Set Up Receivables Payment Terms (AR_SET_UP_RECEIVABLES_PAYMENT_TERM_PRIV)
  • Update Trading Community Organization (HZ_UPDATE_TRADING_COMMUNITY_ORGANIZATION_PRIV)
  • Verify Tax Configuration (ZX_VERIFY_TAX_CONFIGURATION_PRIV)
  • View Procurement Buyers List of Values using REST Service (PO_VIEW_BUYER_LOV_REST_SERVICE_PRIV)
  • View Purchasing Hazard Classes List of Values using REST Service (PO_VIEW_HAZARD_CLASSES_LOV_REST_SERVICE_PRIV)
  • View Purchasing UN Numbers List of Values using REST Service (PO_VIEW_UNNUMBER_LOV_REST_SERVICE_PRIV)
  • View Trading Community Organization (HZ_VIEW_TRADING_COMMUNITY_ORGANIZATION_PRIV)
  • View Trading Community Person (HZ_VIEW_TRADING_COMMUNITY_PERSON_PRIV)
  • Manage Item Redwood Items (EGP_MANAGE_REDWOOD_ITEM_PRIV)
  • Manage Item Redwood Attachments (EGP_MANAGE_REDWOOD_ITEM_ATTACHMENT_PRIV)
  • Manage Item Redwood Associations (EGP_MANAGE_REDWOOD_ITEM_ASSOCIATION_PRIV)
  • Manage Item Redwood Item Categories (EGP_MANAGE_REDWOOD_ITEM_CATEGORY_PRIV)
  • Manage Item Redwood Relationships (EGP_MANAGE_REDWOOD_ITEM_RELATIONSHIP_PRIV)
  • Manage Item Redwood Structures (EGP_MANAGE_REDWOOD_ITEM_STRUCTURE_PRIV)
  • Get New Item Request Rest (EGI_NEW_ITEM_REQUEST_REST_PRIV)
  • Manage Item Status REST (EGP_ITEM_STATUSES_PRIV)

Users must be assigned privileges to access supply locators using the Manage Inventory Organization Data Access for Users task.
