Export details of the plan status

Redwood Platform

You can now use the enhanced Plan Status Details drawer to export the plan-status information. This capability helps you identify failed or delayed steps, retain execution history, and collaborate more easily with other teams.

In the Redwood work area named Supply Chain Planning, for a plan, in the More Actions menu, select View Status Details to open the drawer with details about previously run actions on the plan. You can also open the drawer for a selected plan on the Plans page by selecting View Status Details in the menu in the Action column.

In the Plan Status Details drawer, you can expand a collapsed row to see details about the subprocesses.

You can select the Export icon to export the information in the drawer to a Microsoft Excel XML workbook file named ExportPlanExecutionStatus.xlsx.

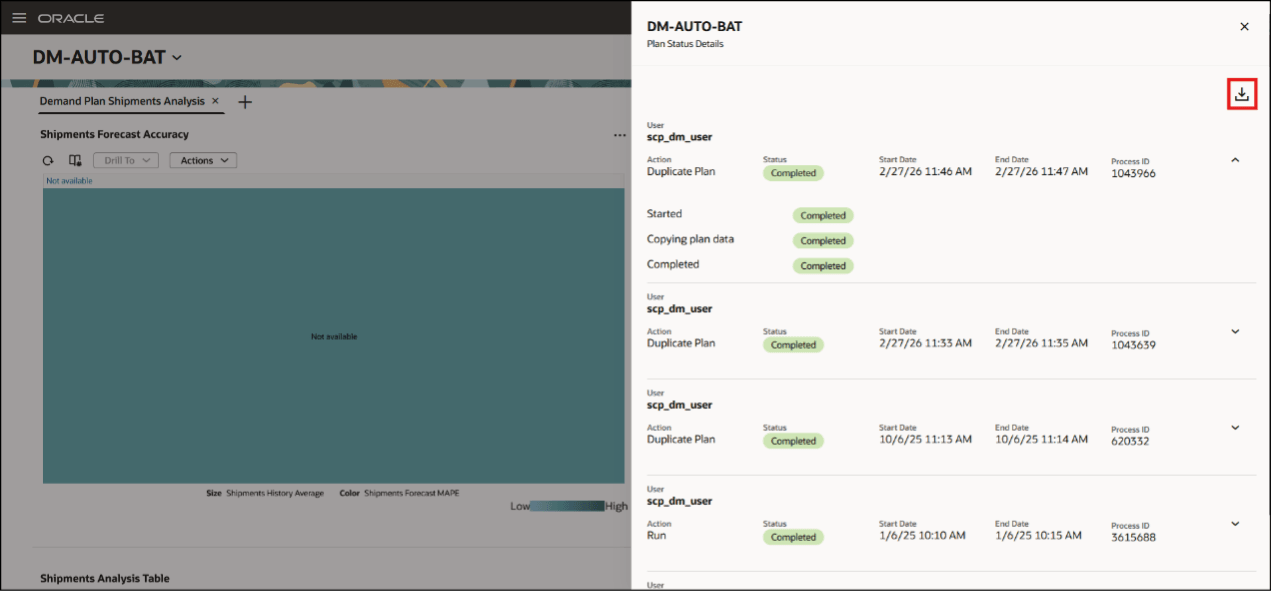

Export icon in Plan Status Details drawer

Steps to enable and configure

You don't need to do anything to enable this feature.

Key resources

Refer to the Cloud Applications Readiness content for the following:

Redwood: Manage Plans Using a New User Experience

Visit https://redwood.oracle.com/ for more information about the Redwood experience.

Access requirements

If you’re using user-defined job roles, then you need to add the privileges identified as new in this update as well as validate that you have the existing privileges that are listed.

Privilege status	Privilege name and code	Comment
Existing	Monitor Demand and Supply Planning Work Area MSC_MONITOR_DEMAND_AND_SUPPLY_PLANNING_WORK_AREA_PRIV	You need this privilege if you work with demand and supply plans.
Existing	Monitor Demand Management Work Area MSC_MONITOR_DEMAND_MANAGEMENT_WORK_AREA_PRIV	You need this privilege if you work with demand plans.
Existing	Monitor Replenishment Planning Work Area MSC_MONITOR_REPLENISHMENT_PLANNING_WORK_AREA_PRIV	You need this privilege if you work with replenishment plans.
Existing	Monitor Sales and Operations Planning Work Area MSC_MONITOR_SALES_AND_OPERATIONS_PLANNING_WORK_AREA_PRIV	You need this privilege if you work with sales and operations plans.
Existing	Monitor Supply Planning Work Area MSC_MONITOR_SUPPLY_PLANNING_WORK_AREA_PRIV	You need this privilege if you work with supply plans.
