Source Parts Using Service Logistics Parts Search

The Service Logistics parts search program locates parts needed for field service and customer support (parts-only service). It's driven by ship-to address (where) and need-by date (when) and extends Fusion SCM capabilities to support large parts supply chains.

It requires both SCM and Service Logistics setups. See the Getting Started with Service Logistics guide for details. The Service Logistics parts search also supports GOP sourcing, although GOP is generally used more for long lead-time product sales.

The Part Search is automatically executed when you create a part requirement. The Add Part page is accessed from the Service Request Parts tab, the Service Work Order Parts tab, or the Manage Part Requirements page. You'll see the source selected on the page where you launched the Add Part page. If the Parts Search didn't find the required parts in the parts supply chain, the Part Search page appears so you can change the search criteria and search for the parts again. If parts can't be found, you can create a back order.

The checkboxes control what searches are performed. Some sourcing options are available only for field service while others are available for both customer support and field service. The options that you see depend on whether you're sourcing parts for a service request or a service work order.

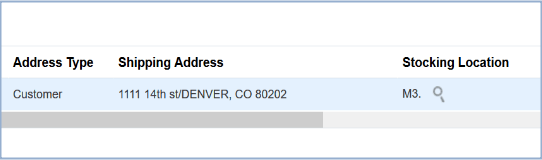

You can also access the Parts Search page with the search icon that's next to the stocking location if you want to look for other source stocking locations.

• The Parts Search page sorts the sourcing options from the lowest to the highest shipping costs as defined in the Transit Times page. The Parts Search page only lists the ship methods that meet the need-by date. Select a row or source and then save your choice, by clicking Save and Close. This updates the part requirement with a source stocking location, shipping method, and arrival date.

  When the Part Search program finds parts the following calculates the Expected Arrival:

  • Ship-to Address: Identifies the zones that decide the shipping method (transit time). For example, the shipping method could be set to 2-Day Air delivery.
  • Expected Arrival: Current Date + Transit Time

• Select a new date in the Need By field in the Add Part page. This lets you search for the part when you don't find it with the original date or if the program returns suboptimal stocking locations.

The parts search program uses shipping zones to find the stocking locations/internal locations, as defined in the Transit Times page, that can supply the required parts to the ship-to address. Geographies define shipping zones and ship-to addresses map to geographies.

Let's look at how the sourcing options work.

Sourcing options available only for field service work orders:

Sourcing Option	Details
Technician	Part is sourced from the technician's trunk stock subinventories that can supply the ship-to address zone, set up in the Manage Transit Times page. When you source and order from a technician's trunk stock subinventory, a reservation is created. It's required that you define a shipping method in the Manage Transit Times page but it's not used in this case.
Site Dedicated	Part is sourced from the site-dedicated stocking locations (subinventories) associated with the customer ship-to address in the Service Logistics Manage Stocking Locations page. When you source and order from site-dedicated locations, a reservation is created.
Unmanned	Part is sourced from unmanned warehouses that can supply to the ship-to address zone as set up in the Manage Transit Times page. When you source and order from unmanned warehouses, a reservation is created. It's required that you define a shipping method in the Manage Transit Times page but it's not used in this case.
Inventory Source	Search program uses inventory replenishment rules to find stocking locations that can resupply a field stocking location, which is usually the technician's trunk stock. The inventory sources can be defined for combinations of inventory organization, subinventory, and item. If you select this sourcing option, a transfer order is created without a shipping method or an arrival date and time, as inventory sourcing rules don't include ship methods. Inventory sources are also used to create back orders.

Sourcing options available for service requests and field service work orders:

Sourcing Option	Details
Manned	Part is sourced from manned warehouses that can supply to the ship-to address zone, as defined in the Transit Times page. The search program calculates the arrival date and time for each shipping method. It then filters out the shipping methods that can't meet the need-by date. If you're sourcing for a work order, a transfer order is created to ship the parts to the technician subinventory. If you're sourcing for a service request, a sales order is created to ship the parts directly to the customer.
Global Order Promising	Select to use the GOP sourcing process.

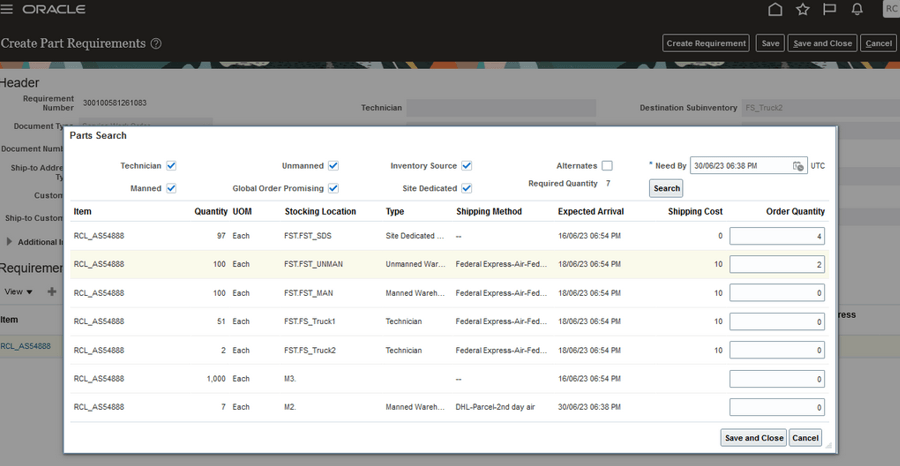

Search and order parts from multiple stocking locations

If you're adding parts from the Add Part page and the parts search programs can't find the required quantity in a single location, the Parts Search page opens. This lets you search and order parts from multiple stocking locations. In this case, the required quantity appears in the header region of the page and the ordered quantity appears in the search results table. The ordered quantity defaults from the required quantity, using parts from the lowest shipping cost locations until the sum of the ordered quantities equal the required quantity. If two stocking locations have the same shipping costs, Service Logistics uses the location with the most parts. You can also change the quantities in the results based on your preferences.

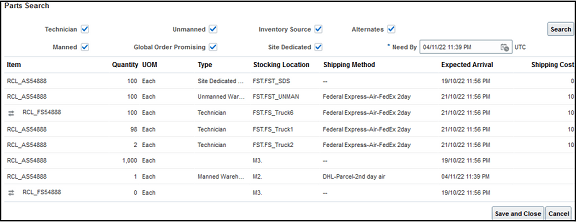

Search for alternate parts:

If the original part is available, it's always used to fulfill the part requirement. However, if the part isn't available, you can search for substitute and supersession parts using the Alternates sourcing option in the interactive Parts Search page as follows:

• Automated parts search isn't configured to search for substitute and supersession parts.

• Substitute and supersession parts must be set up for the service parts in the Manage Item Relationships page of the Product Information Management application.

• After you perform the search, the substitute and superseded parts that you can use will appear in the Parts Search page. The icons next to each item indicate whether the found part is a suppression or a substitute.

• When searching for superseded parts, the Parts Search program follows the entire link of superseded relationships. For example, if the part requirement is for part A and it's superseded by part B, which is superseded by part C, then the program searches for part A, then part B, then part C. The program uses the superseded part to completion before using supersession parts. In this example, if part B is available, it's used to fulfill the part requirement before part C.

• For substitutes, the Parts Search program looks only for direct substitutes as defined in the Manage Item Relationships page.

Additional setups:

• Interorganization relationships must be set up in the Manage Interorganization Parameters page before you can create transfer orders to ship parts to field locations.

• Shipping methods must be set up for source organizations in the Manage Carriers page before you can use them in the Manage Transit Times page.
