Override Base List Price

Set up Oracle Pricing so it uses the value from an extensible flexfield to override the base list price.

Caution:

The example in this topic describes one way to set up pricing. It is intended only as a general outline that you can use to learn about different ways to set up Pricing. You will need to use different procedures, different steps, different values, and different objects for your implementation, depending on your business requirements.

Use this procedure only with a standard item. You can't use it with a coverage item or subscription item.

In this example, you define an extensible flexfield that displays in the Order Management work area. You then use the value that the Order Entry Specialist enters in the flexfield to override the Sale Price charge.

Summary of the Set Up

1. Set up the extensible flexfield.

2. Modify the pricing algorithm.

3. Test your set up.

Set Up the Extensible Flexfield

1. Make sure you have the privileges that you need to administer Order Management.

   Don't sign in with pricing privileges. You can't use them to define an extensible flexfield.

2. Go to the Setup and Maintenance work area, then go to the task:

   • Offering: Order Management

   • Functional Area: Orders

   • Task: Manage Order Extensible Flexfields

   This example assumes you're implementing the Order Management offering. If you're using a different offering, then click it instead of Order Management.

3. Modify the extensible flexfield.

   • On the Manage Order Extensible Flexfields page, enter the values, then click Search.

     Attribute	Value
     Name	Fulfillment Line Information
     Flexfield Code	DOO_FULFILL_LINES_ADD_INFO

   • Click Actions > Edit.

   • Click Manage Contexts.

   • On the Manage Contexts page, click Actions > Create.

   • On the Create Context page, set values.

     Attribute	Value
     Display Name	LinePrcOverride
     Code	LinePrcOverride
     API Name	Lineprcoverride
     Enabled	Contains a check mark
     Behavior	Single Row

   • In the Context Usages area, click Actions > Create, set the values, then click Save.

     Attribute	Value
     Name	Additional Fulfillment Line Information
     View Privileges	None
     Edit Privileges	None

   • In the Context Sensitive Segments area, click Actions > Create.

   • On the Create Segment page, set the values, then click Save and Close.

     Attribute	Value
     Name	SalePrcOverrideVal
     Code	SalePrcOverrideVal
     API Name	saleprcoverrideval
     Enabled	Contains a check mark.
     Data Type	Number
     Table Column	Select any column that's available.
     Value Set	15 Digit Number
     Prompt	SalePrcOverrideVal

   • On the Edit Context page, click Save and Close.

   • On the Manage Contexts page, click Save and Close.

   • On the Edit Extensible Flexfield page, click Save and Close.

4. Deploy the extensible flexfield.

   • On the Manage Order Extensible Flexfields page, click Actions > Deploy Flexfield.

   • Wait for the deployment dialog to indicate that deployment successfully finished, then click OK.

   • Click Actions > Download Flexfield Archive, wait for the dialog to indicate that the archive successfully finished, then click Download.

   • Save file 10008_DOO_FULFILL_LINES_ADD_INFO.zip to your local hard drive, extract it, then navigate to this folder.

     oracle\apps\scm\doo\processOrder\flex\fulfillLineContextsB\view\

   • Open FulfillLineEffBLinePrcOverrideprivateVO.xml.

Add Extensible Flexfield to Service Mapping

You define a service mapping that maps values from the extensible flexfield into Pricing.

Add the extensible flexfield to the service mapping.

1. Sign out, then sign in with the privileges that you need to administer pricing.

2. Go to the Pricing Administration work area, then click Tasks > Manage Service Mappings.

3. On the Manage Service Mappings page, in the Name column, click Sales.

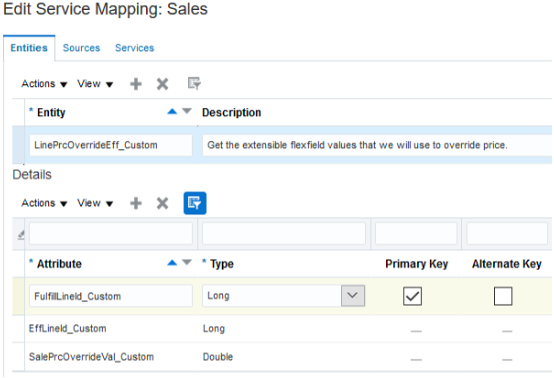

4. Define the entities.

   • On the Edit Service Mappings page, on the Entities tab, click Action > Add Row, then set the values.

     Attribute	Value
     Entity	LinePrcOverrideEff_Custom
     Description	Get the extensible flexfield values that we will use to override price.

   • In the Details area, add attributes, then click Save.

     Attribute	Type	Primary Key
     FulfillLineId_Custom	Long	Contains a check mark.
     EffLineId_Custom	Long	Does not contain a check mark.
     SalePrcOverrideVal_Custom	Decimal	Does not contain a check mark.

     For example:



   • Click Services, then click the row that contains this value.

     Attribute	Value
     Service	PriceSalesTransaction

   • In the Details area, click Actions > Add Row, then set these values.

     Entity	Read	Write
     LinePrcOverrideEff_Custom	Contains a check mark.	Does not contain a check mark.

     This step creates a relationship between Pricing and the entity that you use to send values from the extensible flexfield.

   • In the LinePrcOverrideEff_Custom Entities area, add attributes, then click Save.

     Attribute	Read	Write
     EffLineId_Custom	Contains a check mark.	Does not contain a check mark.
     FulfillLineId_Custom	Contains a check mark.	Does not contain a check mark.
     SalePrcOverrideVal_Custom	Contains a check mark.	Does not contain a check mark.

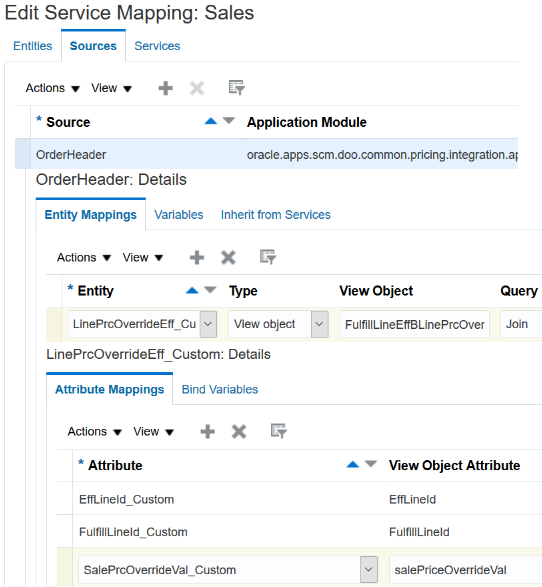

5. Set up the source for the order header.

   • Click Sources, then click the row that includes the value.

     Attribute	Value
     Source	OrderHeader

   • On the Entity Mapping tab, click View > Columns, then add a check mark to Joined Entity and Joined Entity Attribute.

   • Click Actions > Add Row, set the values, then click Save.

     Attribute	Value
     Entity	LinePrcOverrideEff_Custom
     Type	View Object
     View Object	FulfillLineEffBLinePrcOverrideprivateVO Make sure the value you enter matches exactly the value you noticed earlier in this topic when you examined the flexfield archive. Don't include the .xml extension.
     Query Type	Join
     Query Attribute	FulfillLineId
     Joined Entity	Line It might be necessary to click another row, and then return to this row to get the joined entity attributes to populate values.
     Joined Entity Attribute	LineId

   • In Details area LinePrcOverrideEff_Custom, add the attributes, then click Save.

     Attribute	View Object Attribute
     EffLineId_Custom	EffLineId
     FulfillLineId_Custom	FulfillLineId
     SalePrcOverrideVal_Custom	salePriceOverrideVal Make sure the value you enter matches exactly the value you noticed in tag ViewAttribute Name of the flexfield archive you examined earlier in this topic. For example, ViewAttribute Name="salePriceOverrideVal".

     This step sets up Pricing to read extensible flexfield values from the public view object that Order Management sends to Pricing when the Order Entry Specialist uses the Price Order action or saves the sales order.

     For example:

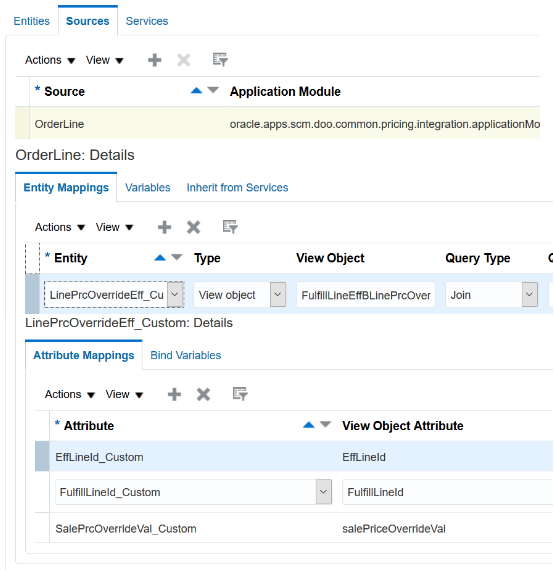

6. Set up the source for the order line.

   • In the Sources area, click the row that includes the value.

     Attribute	Value
     Source	OrderLine

   • On the Entity Mapping tab, click Actions > Add Row, set the values, then click Save.

     Attribute	Value
     Entity	LinePrcOverrideEff_Custom
     Type	View Object
     View Object	FulfillLineEffBLinePrcOverrideprivateVO Make sure the value you enter matches exactly the value you noticed earlier in this topic when you examined the flexfield archive.
     Query Type	Join
     Query Attribute	FulfillLineId
     Joined Entity	Line
     Joined Entity Attribute	LineId

     This step maps the extensible flexfield attributes in the public view object. It sets up Pricing to read extensible flexfield values from the public view object that Order Management sends to Pricing when Order Management updates the line quantity or shipping attributes on the order line.

   • In the Details area for HeaderPricingEff_Custom, add the attributes.

     Attribute	View Object Attribute
     EffLineId_Custom	EffLineId
     FulfillLineId_Custom	FulfillLineId
     SalePrcOverrideVal_Custom	salePriceOverrideVal Make sure the value you enter matches exactly the value you noticed in the ViewAttribute Name tag of the flexfield archive you examined earlier in this topic. For example, ViewAttribute Name="salePriceOverrideVal".

     This step sets up Pricing to read extensible flexfield values from the public view object that Order Management sends to Pricing when Order Management updates the quantity attribute or a shipping attribute on the order line.

     For example:



7. Click Save and Close > Done.

Modify Pricing Algorithm

1. Click Tasks > Manage Algorithms.

2. On the Manage Algorithms page, select a published version of this pricing algorithm, such as Version 1.

   Attribute	Value
   Name	Get Base List Price For Goods And Services

3. Click Actions > Create Version, then wait for the page to display your In Progress version, such as Version 2

4. Open your In Progress version for editing.

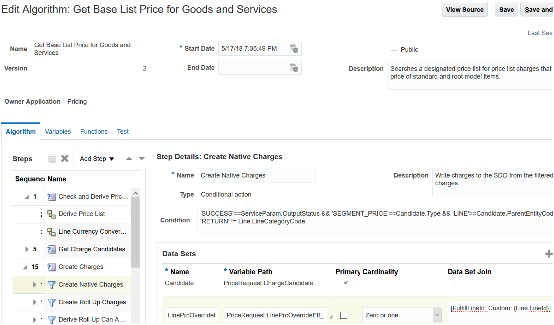

5. On the Edit Algorithm page, on the Algorithm tab, expand step Create Charges, then click step Create Native Charges.

   You will modify this step so it references the extensible flexfield that contains the override value.

6. In the Data Sets area, add this data set.

   Attribute	Value
   Name	LinePrcOverrideEff
   Variable Path	PriceRequest.LinePrcOverrideEff_Custom
   Cardinality	Zero or one
   Data Set Join	[FulfillLineId_Custom: {Line.LineId}]

   For example:



7. In the Default Action area, in the Actions window, replace the code.

   Old Code

   New Code

   Ch.CurrencyCode = Line.AppliedCurrencyCode

   //Ch.CurrencyCode = Line.AppliedCurrencyCode //Base List Price Override if (null != LinePrcOverrideEff?.SalePrcOverrideVal_Custom) { Ch.CurrencyCode = Header.AppliedCurrencyCode Line.AppliedCurrencyCode = Header.AppliedCurrencyCode Ch.NeedsCostPlus = false //clear out the tier and matrix adjustments Candidate.unset('TieredPricingHeaderId') Candidate.unset('AttributePricingMatrixId') } else { Ch.CurrencyCode = Line.AppliedCurrencyCode Ch.NeedsCostPlus = ('COST'==CalculationMethod) }

8. Comment this code.

   Old Code	New Code
   Ch.NeedsCostPlus = ('COST'==CalculationMethod)	//Ch.NeedsCostPlus = ('COST'==CalculationMethod)

   Here's the complete, revised code.

   Ch = Charge.insert([ChargeId:++ServiceParam.ChargeIdCntr, LineId:Line.LineId, ParentEntityId:Candidate.ParentEntityId, ParentEntityCode:'LINE'])
   if ( CanAdjustFlag!=null ) Ch.CanAdjustFlag = ('Y'==CanAdjustFlag)
     Ch.ChargeAppliesTo = Candidate.ChargeAppliesTo
     Ch.ChargeDefinitionCode = Candidate.ChargeDefinitionCode
     Ch.ChargeDefinitionId = ChargeDefinitionId
     Ch.ChargeSubtypeCode = ChargeSubtypeCode
     Ch.ChargeTypeCode = ChargeTypeCode
   // Set the CompSeqCntr as Long instead of Integer
   Ch.CompSeqCntr = 1000L
   //Ch.CurrencyCode = Line.AppliedCurrencyCode
   //Base List Price Override
   if (null != LinePrcOverrideEff?.SalePrcOverrideVal_Custom) {
     Ch.CurrencyCode = Header.AppliedCurrencyCode
     Line.AppliedCurrencyCode = Header.AppliedCurrencyCode
     Ch.NeedsCostPlus = false
     //clear out the tier and matrix adjustments
     Candidate.unset('TieredPricingHeaderId')
     Candidate.unset('AttributePricingMatrixId')
   }
   else {
     Ch.CurrencyCode = Line.AppliedCurrencyCode
     Ch.NeedsCostPlus = ('COST'==CalculationMethod)
   }
   Ch.EstimatedPricedQuantityFlag = ('USAGE'==PriceTypeCode || 'RECURRING_USAGE'==PriceTypeCode)
   Ch.EstimatedUnitPriceFlag = Ch.EstimatedPricedQuantityFlag
   Ch.PrimaryFlag = false
   Ch.RollupFlag = false
   //Ch.NeedsCostPlus = ('COST'==CalculationMethod)
   Ch.NeedsMargin = ('Y'==CalculateMarginFlag)
   if (PricePeriodicityCode!=null) Ch.PricePeriodicityCode = PricePeriodicityCode
     Ch.PriceTypeCode = PriceTypeCode
   if ( 'USAGE'==PriceTypeCode || 'RECURRING_USAGE'==PriceTypeCode ) {
     // PricedQty should be null if estimated usage quantity is not passed in
     PricedQty = (Ci?.EstimatedUsageQuantity!=null ? (Ci.PerUnitUsageFlag ? (Line.ExtendedQuantity?.Value ?: Line.LineQuantity.Value) : 1)*Ci?.EstimatedUsageQuantity?.Value : null)
   }
   else {
     PricedQty = Line.ExtendedQuantity?.Value ?: Line.LineQuantity.Value
   }
   if ( PricedQty != null ) {
     Ch.createDataObject('PricedQuantity')
     Ch.PricedQuantity.Value = PricedQty
     Ch.PricedQuantity.UnitCode = PricingUomCode
     Ch.PricedQuantityUOMCode = PricingUomCode
   }
   Ch.RunningUnitPrice = 0
   if (Ci?.UsagePeriodCode!=null) Ch.UsagePeriodCode = Ci.UsagePeriodCode
   if (Ch.UsagePeriodCode!=null && Candidate.UsagePeriodCode!=null) Ch.UsagePeriodCode = Candidate.UsagePeriodCode
   if (UsageUomCode!=null) Ch.UsageUOMCode = UsageUomCode

     Ch.TaxIncludedFlag = false
     finer(AlgmName+': created native charge '+Ch.ChargeId+' ('+Ch.PriceTypeCode+', '+Ch.ChargeTypeCode+', '+Ch.ChargeSubtypeCode+') for line '+Line.LineId)

   // Needed to write charge component
   Candidate.ChargeId = Ch.ChargeId

   // Initialize for tiered pricing
   if (Candidate.TieredPricingHeaderId != null) {
     TierQ.insert([TieredPricingHeaderId:Candidate.TieredPricingHeaderId, ChargeId:Ch.ChargeId, OriginId:Line.LineId, OriginType:'LINE'])
   }

   // Initialize for attribute-based pricing
   if (Candidate.AttributePricingMatrixId != null) {
     MatrixQ.insert([DynamicMatrixId:Candidate.AttributePricingMatrixId, ParentEntityId:Ch.ChargeId, FromCurrencyCode:Ch.CurrencyCode, ParentEntityCode:'CHARGE'])
   }

   // Coverage Duration being calculated if its a Phantom Line
   if ('COVERED_STANDARD' == Line.ItemType && Line.PhantomFlag)
   {
     if (CoverageAssociation != null)
     {
     Ch.createDataObject('CoverageDuration')
     Ch.CoverageDuration.Value = CoverageAssociation.CoverageDuration.Value
     Ch.CoverageDuration.UnitCode = CoverageAssociation.CoverageDuration.UnitCode
     Ch.CoverageDurationUOMCode = CoverageAssociation.CoverageDurationUOMCode
     }
     Ch.LineId = CoverageLine.LineId
   }


9. Click the Create Charge Components step.

   You will modify this step so it references the extensible flexfield that contains the override value, then use this value to calculate the unit price.

10. In the Data Sets area, add this data set.

    Attribute	Value
    Name	LinePrcOverrideEff
    Variable Path	PriceRequest.LinePrcOverrideEff_Custom
    Cardinality	Zero or one
    Data Set Join	[FulfillLineId_Custom: {Line.LineId}]

11. In the Default Action area, locate this code.

    Comp.createDataObject('UnitPrice')

12. Add this code immediately under the code you just located.

    //Base List Price Override
    if(Candidate.CalculationMethod == 'COVERED_ITEM_PRICE_PERCENT') {
      fine({'UnitPrice Calc - Cand.CalculationAmount: '+Candidate.CalculationAmount+' CoverageBasis: '+Candidate.CoverageBasisValue})
      Comp.UnitPrice.Value = Candidate.CalculationAmount * Candidate.CoverageBasisValue/ 100
      Ch.HasPercentPriceFlag = true
    }
    else {
     //Base List Price Override
      if (LinePrcOverrideEff?.SalePrcOverrideVal_Custom != null)
        Comp.UnitPrice.Value = LinePrcOverrideEff.SalePrcOverrideVal_Custom
      else
        Comp.UnitPrice.Value = Candidate.BasePrice
    }
    Comp.UnitPrice.CurrencyCode = Line.AppliedCurrencyCode
    Comp.CurrencyCode = Line.AppliedCurrencyCode

    // convert currency if needed
    if ( Line.FromCurrencyCode!=null && Line.FromCurrencyCode!=Line.AppliedCurrencyCode ) {
      if (ConvRate?.MessageTypeCode == 'ERROR') {
        finest('creating line message')
        Line.MessageTypeCode = 'ERROR'
        Ch.MessageTypeCode = 'ERROR'
        def messageMap = [ParentEntityCode:'LINE', ParentEntityId:Line.LineId, HeaderId:Header.HeaderId, MessageText:ConvRate.PrcErrorMessage]
        msg = Message.locate(messageMap)
        if ( msg==null ) {
          // create new error message for Line
          msg = Message.insert(messageMap)
          msg.PricingMessageId = getNextId()
          msg.MessageName = ConvRate.PrcMessageName
          msg.MessageTypeCode = Line.MessageTypeCode
        }
      }
      else {
          Ch.CurrencyCode = Line.AppliedCurrencyCode
          Comp.UnitPrice.Value *= ConvRate.ConversionRate?:1
      }
    }
    //end base price override


    Here's the complete, revised code.

    Comp = ChargeComponent.insert([ChargeComponentId:++ServiceParam.ChargeComponentIdCntr, ChargeId: Ch.ChargeId])

    Comp.PriceElementCode = ElementParam
    Comp.PriceValidFrom = Line.PricingDate
    if ( EndDate!=null ) Comp.PriceValidUntil = EndDate
    Comp.SequenceNumber = (Long) Ch.CompSeqCntr++
    Comp.SourceId = Candidate.PriceListChargeId
    Comp.SourceTypeCode = 'PRICE_LIST_CHARGE'

    fine({'Before UnitPrice Calc - CalcMethod: '+Candidate.CalculationMethod})
    Comp.createDataObject('UnitPrice')
    //Base List Price Override
    if(Candidate.CalculationMethod == 'COVERED_ITEM_PRICE_PERCENT') {
      fine({'UnitPrice Calc - Cand.CalculationAmount: '+Candidate.CalculationAmount+' CoverageBasis: '+Candidate.CoverageBasisValue})
      Comp.UnitPrice.Value = Candidate.CalculationAmount * Candidate.CoverageBasisValue/ 100
      Ch.HasPercentPriceFlag = true
    }
    else {
     //Base List Price Override
      if (LinePrcOverrideEff?.SalePrcOverrideVal_Custom != null)
        Comp.UnitPrice.Value = LinePrcOverrideEff.SalePrcOverrideVal_Custom
      else
        Comp.UnitPrice.Value = Candidate.BasePrice
    }
    Comp.UnitPrice.CurrencyCode = Line.AppliedCurrencyCode
    Comp.CurrencyCode = Line.AppliedCurrencyCode

    // convert currency if needed
    if ( Line.FromCurrencyCode!=null && Line.FromCurrencyCode!=Line.AppliedCurrencyCode ) {
      if (ConvRate?.MessageTypeCode == 'ERROR') {
        finest('creating line message')
        Line.MessageTypeCode = 'ERROR'
        Ch.MessageTypeCode = 'ERROR'
        def messageMap = [ParentEntityCode:'LINE', ParentEntityId:Line.LineId, HeaderId:Header.HeaderId, MessageText:ConvRate.PrcErrorMessage]
        msg = Message.locate(messageMap)
        if ( msg==null ) {
          // create new error message for Line
          msg = Message.insert(messageMap)
          msg.PricingMessageId = getNextId()
          msg.MessageName = ConvRate.PrcMessageName
          msg.MessageTypeCode = Line.MessageTypeCode
          }
      }
      else {
        Ch.CurrencyCode = Line.AppliedCurrencyCode
        Comp.UnitPrice.Value *= ConvRate.ConversionRate?:1
      }
    }
    //end base price override

    Ch.RunningUnitPrice+=Comp.UnitPrice.Value
    if ( Ch.PricedQuantity!=null ) {
      Comp.createDataObject('ExtendedAmount')
      Comp.ExtendedAmount.Value = Comp.UnitPrice.Value*Ch.PricedQuantity.Value
      Comp.ExtendedAmount.CurrencyCode = Comp.UnitPrice.CurrencyCode
      def fromUomCode = null
      def fromUomValue = null
      if ( 'COVERED_STANDARD' == Line.ItemType && Line.PhantomFlag ){
        fromUomCode = Ch.CoverageDurationUOMCode
        fromUomValue = Ch.CoverageDuration.Value
      }else if ( Line.ItemType in ['STANDARD', 'COMPONENT', 'ROOT'] && null != Line.ServiceDuration?.Value  && null != Line.ServiceDurationPeriodCode ) {
        fromUomCode = Line.ServiceDurationPeriodCode
        fromUomValue = Line.ServiceDuration?.Value
      }
      if (null != fromUomCode &&  null != fromUomValue)  {
        Comp.createDataObject('CoverageExtendedAmount')
        if ('ONE_TIME' == Ch.PriceTypeCode) {
          Comp.CoverageExtendedAmount.Value =  Comp.ExtendedAmount.Value
        }else if ('RECURRING' == Ch.PriceTypeCode) {
          if (Ch.PricePeriodicityCode != fromUomCode) {
            def   fromUom = getOKCUomMappings(fromUomCode)
            def   toUom = getOKCUomMappings(Ch.PricePeriodicityCode)

            if(null == fromUom || null == toUom){
              Line.MessageTypeCode = 'ERROR'
                Ch.MessageTypeCode = Line.MessageTypeCode
                def uomMsg = Message.insert([
                MessageName:'QP_PDP_PARTIAL_PERIOD_UOM_NA',
                MessageTypeCode: 'ERROR',
                ErrorType:(Ch.HasPercentPriceFlag?'PERCENTAGE':'AMOUNT'),
                PricingMessageId: getNextId(),
                ParentEntityCode: 'LINE',
                ParentEntityId: Line.LineId,
                HeaderId: Header.HeaderId])
              def chargeName = getChargeDefinitionName(Ch.ChargeDefinitionId)
              if(null == fromUom){
                def fromUomTranslation = getUomTranslation(fromUomCode)
                uomMsg.MessageText = getFndMessage('QP', 'QP_PDP_PARTIAL_PERIOD_UOM_NA', ['CHARGE_DEF_NAME':chargeName?.Name , 'UOM_CODE':fromUomTranslation?.UnitOfMeasure])
                }

              if(null == toUom){
                def toUomTranslation = getUomTranslation(Ch.PricePeriodicityCode)
                uomMsg.MessageText = getFndMessage('QP', 'QP_PDP_PARTIAL_PERIOD_UOM_NA', ['CHARGE_DEF_NAME':chargeName?.Name , 'UOM_CODE':toUomTranslation?.UnitOfMeasure])
                }
              }

              if(null != fromUom && null != toUom){
                durationConvRate = getDurationConversionRate(fromUom, toUom, CoverageAssociation, Line)
                if(null == durationConvRate){
                def fromUomTranslation = getUomTranslation(fromUomCode)
                def toUomTranslation = getUomTranslation(Ch.PricePeriodicityCode)
                Line.MessageTypeCode = 'ERROR'
                Ch.MessageTypeCode = 'ERROR'
                Message.insert([
                  MessageName:'QP_PDP_PARTIAL_PERIOD_CONVERS',
                  MessageText: getFndMessage('QP', 'QP_PDP_PARTIAL_PERIOD_CONVERS',
                    ['UOM': toUomTranslation?.UnitOfMeasure, 'COV_UOM': fromUomTranslation?.UnitOfMeasure]),
                  MessageTypeCode: Line.MessageTypeCode,
                  ErrorType:(Ch.HasPercentPriceFlag?'PERCENTAGE':'AMOUNT'),
                  PricingMessageId: getNextId(),
                  ParentEntityCode: 'LINE',
                  ParentEntityId: Line.LineId,
                  HeaderId: Header.HeaderId])
              } else {
                if( RollupCh != null )
                  RollupCh.PartialPeriodDurationConversionRate = durationConvRate
                  Ch.PartialPeriodDurationConversionRate = durationConvRate
                  Comp.CoverageExtendedAmount.Value =  Comp.ExtendedAmount?.Value * durationConvRate
                  }
                }
              } else
                Comp.CoverageExtendedAmount.Value =  Comp.ExtendedAmount.Value * fromUomValue
             }
        Comp.CoverageExtendedAmount.CurrencyCode =  Comp.ExtendedAmount.CurrencyCode
      }
    }

    finer(AlgmName+': created '+Comp.PriceElementCode+' charge component '+Comp.ChargeComponentId+' with unit price '+Comp.UnitPrice.Value+' '+Comp.UnitPrice.CurrencyCode+', extended amount '+(Comp.ExtendedAmount!=null ? Comp.ExtendedAmount.Value+' '+Comp.ExtendedAmount.CurrencyCode : null))


13. Click Save and Close.

14. On the Manage Algorithms page, click Actions > Publish.

Test Your Set Up

1. On the Manage Algorithms page, open Price Sales Transaction for editing.

2. On the Edit Algorithm page, click Test.

3. Click Actions > Add Row, then set the value.

   Attribute	Value
   Test Case Name	Test Base Price Override

4. In the Test Input area, in the row that contains PriceRequest in column Variable Name, click the pencil in the Variable Value column.

5. In the Edit Variable dialog, delete all the code, then add this code:

   <?xml version="1.0" encoding="UTF-8"?>
   <PriceRequestInternal:PriceRequestInternalType xmlns:ns0="http://xmlns.oracle.com/adf/svc/types/"xmlns:PriceRequestInternal="http://xmlns.oracle.com/apps/scm/pricing/priceExecution/pricingProcesses/pricingInternal/PricingInternal"
   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:type="PriceRequestInternal:PriceRequestInternalType">
   <PriceRequestInternal:Header>
     <PriceRequestInternal:CustomerId>1028144</PriceRequestInternal:CustomerId>
     <PriceRequestInternal:HeaderId>101</PriceRequestInternal:HeaderId>
     <PriceRequestInternal:CalculatePricingChargesFlag>true</PriceRequestInternal:CalculatePricingChargesFlag>   <PriceRequestInternal:CalculateShippingChargesFlag>false</PriceRequestInternal:CalculateShippingChargesFlag>
   <PriceRequestInternal:CalculateTaxFlag>false</PriceRequestInternal:CalculateTaxFlag>  <PriceRequestInternal:SellingBusinessUnitId>103</PriceRequestInternal:SellingBusinessUnitId>
     <PriceRequestInternal:SellingLegalEntityId>204</PriceRequestInternal:SellingLegalEntityId>
     <PriceRequestInternal:TransactionTypeCode>ORDER</PriceRequestInternal:TransactionTypeCode>
   </PriceRequestInternal:Header>
   <PriceRequestInternal:PricingServiceParameter>
     <PriceRequestInternal:PricingContext>SALES</PriceRequestInternal:PricingContext>
   </PriceRequestInternal:PricingServiceParameter>
   <PriceRequestInternal:Line>
     <PriceRequestInternal:HeaderId>101</PriceRequestInternal:HeaderId>
     <PriceRequestInternal:InventoryItemId>100000017351102</PriceRequestInternal:InventoryItemId>
     <PriceRequestInternal:InventoryOrganizationId>204</PriceRequestInternal:InventoryOrganizationId>
     <PriceRequestInternal:LineId>1001</PriceRequestInternal:LineId>
     <PriceRequestInternal:LineCategoryCode>ORDER</PriceRequestInternal:LineCategoryCode>
     <PriceRequestInternal:LineQuantity unitCode="Ea" xmlns:tns="http://xmlns.oracle.com/adf/svc/errors/">2</PriceRequestInternal:LineQuantity>
     <PriceRequestInternal:LineQuantityUOMCode>Ea</PriceRequestInternal:LineQuantityUOMCode>
     <PriceRequestInternal:LineTypeCode>ORA_BUY</PriceRequestInternal:LineTypeCode>
   </PriceRequestInternal:Line>
   <PriceRequestInternal:LinePrcOverrideEff_Custom>
     <PriceRequestInternal:SalePrcOverrideVal_Custom>1000</PriceRequestInternal:SalePrcOverrideVal_Custom>
     <PriceRequestInternal:FulfillLineId_Custom>1001</PriceRequestInternal:FulfillLineId_Custom>
     <PriceRequestInternal:EffLineId_Custom>123</PriceRequestInternal:EffLineId_Custom>
   </PriceRequestInternal:LinePrcOverrideEff_Custom>

   <PriceRequestInternal:ChangeSummary logging="false" xmlns:sdo="commonj.sdo"/>
   </PriceRequestInternal:PriceRequestInternalType>


   where

   Value	Is An Example For
   1028144	CustomerId
   103	SellingBusinessUnitId
   204	SellingLegalEntityId
   100000017351102	InventoryItemId
   204	InventoryOrganizationId
   Ea	unitCode
   Ea	LineQuantityUOMCode
   <PriceRequestInternal:SalePrcOverrideVal_Custom>1000</PriceRequestInternal:SalePrcOverrideVal_Custom>	Specifies to override the net price to $1000. Modify this value for your test, as necessary.

   To get the values that you must use in your environment, see section Getting Identifiers for Test Payloads, below in this topic.

6. Click Run Test > Test Output, then make sure the output payload includes the details you expect.

7. Verify that Last Execution Status displays Succeeded, or a similar success indication.

   If it displays Failure, then click Show Exception Details to examine and troubleshoot.

   If you receive this error, then use an XML editor to validate that your code uses the correct XML format.

   Error: Unable to parse the variable[PriceRequest] using the service
   definition [Sales.PriceRequestInternal]. Please check the variable value or service schema


8. Click Save and Close.

9. On the Manage Algorithms page, click Actions > Publish.

Create a Test Sales Order

1. Sign out, then sign in with the privileges that you need to manage sales orders.

2. Click Create Order, enter values for the order header, add an order line, then add a value in your extensible flexfield, such as 199.

3. Save the sales order, or click Actions > Reprice Order.

4. Verify that the price of the item includes the price you entered in the extensible flexfield and SalePrcOverrideVal.

Get Identifiers for Test Payloads

1. Make sure you have the privileges that you need to manage sales orders.

   Go to the Order Management work area, then create a sales order.

   • Set attributes to values you must test.

     Attribute	Example Value
     Customer	Fantastic Laptops
     Business Unit	Vision Operations

   • Add an order line that includes the item you're testing. For this example, add AS54888.

   • Click Submit, then notice the sales order number that Order Management creates, such as 12345.

2. Get values for the sales order header. Run a SQL query on the database you use to store the sales order that you created in step 1.

   select header_id, sold_to_party_id as CustomerId, org_id as SellingBusinessUnitId, legal_entity_id as SellingLegalEntityId
   from doo_headers_all where Order_Number = $12345;


   where

   • 12345 is the order number you noted in step 1.

   • The query returns values that you can use in your payload for these header attributes.

     Value in SQL	Provides Value for Attribute in Test Payload	Example Values
     sold_to_party_id	Header.CustomerId	Header_id equals 100413 and CustomerId equals 1006.
     org_id	Header.SellingBusinessUnitId	SellingBusinessUnitId equals 204.
     legal_entity_id	Header.SellingLegalEntityId	SellinglegalEntityId equals 204.

3. Get values for the order line. Run this SQL query.

   select inventory_item_id as InventoryItemId, inventory_organization_id as InventoryOrganizationId, ordered_uom as LineQuantityUOMCode from doo_fulfill_lines_all where header_id = $56789;

   where

   • 56789 is the header Id in the query result from step 2.

   • The query returns values that you can use in your payload for these order line attributes.

     Value in SQL	Provides Value for Attribute in Test Payload	Example Values
     inventory_item_id	Line.InventoryItemId	Header_id equals 100413 and InventoryItemId equals 149.
     inventory_organization_id	Line.InventoryOrganizationId	InventoryOrganizationId equals 204.
     ordered_uom	Line.LineQuantity.UOMCode Note that you must replace UOMCode in two different locations in the payload. In this example, the value is Ea.	LineQuantityUOMCode equals USD.
