Oracle-1-0-B2B-Invoice-In

The data mapping and sample payload for the Oracle-1-0-B2B-Invoice-In message definition are outlined in this section.

Data Mapping

Figure 1

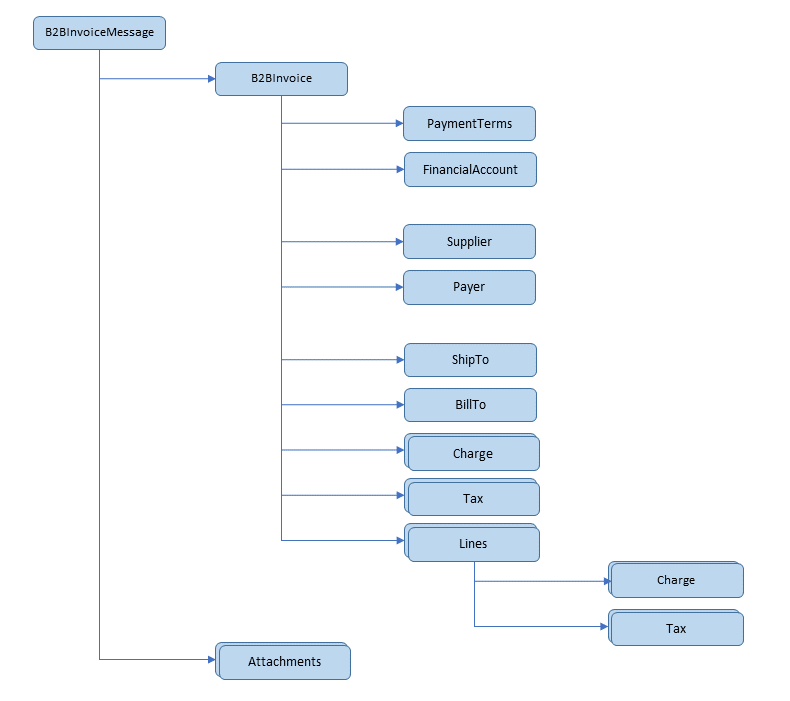

Figure 1 shows the structure of the inbound payload that's received for the Oracle-1-0-B2B-Invoice-In message:

B2B Invoice Inbound Payload Structure

Figure 2

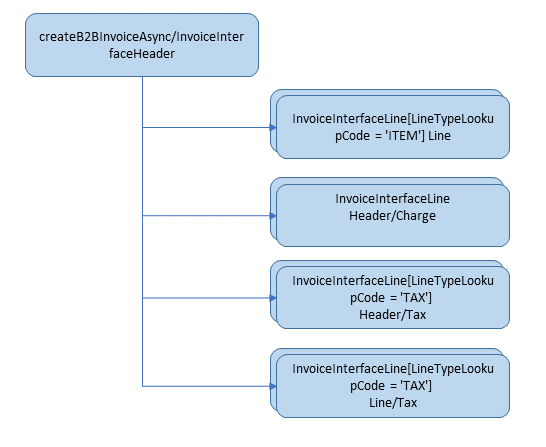

Figure 2 shows the structure of the transformed payload that's passed onto the application:

B2B Invoice Transfer Payload Structure

This table shows the mapping of the inbound B2B invoice message to the application:

Source: B2BInvoiceMessage/B2BInvoice	Target: createB2BInvoiceAsync/InvoiceInterfaceHeader
	Source Set to B2B XML INVOICE.
../ProcessingConfiguration/PartnerKey1	VendorId
../ProcessingConfiguration/PartnerKey2	VendorSiteId
Supplier/Name	VendorName
TaxTotalAmount or Tax[Amount != '']/Amount	ControlAmount If expressTaxInControl is true() and there is a value for TaxTotalAmount, it is mapped. If the sum(Tax[Amount != '']/Amount) is not equal to zero, it is mapped. Otherwise, this is set to 0.
Description	Description
DocumentReferenceNumber	ExternalDocumentReference
TotalAmount	InvoiceAmount InvoiceTypeLookupCode is populated as follows: If InvoiceTypeLookupCode is STANDARD, then the TotalAmount is mapped. If InvoiceTypeLookupCode is CREDIT and TotalAmount is positive, then a negative of TotalAmount is mapped. Otherwise, TotalAmount is mapped.
CurrencyCode	InvoiceCurrencyCode DVM CURRENCY_CODE is associated with this field.
InvoiceDate	InvoiceDate
InvoiceNumber	InvoiceNumber
TypeCode	InvoiceTypeLookupCode Set this to CREDIT if the TotalAmount is a negative value or if TypeCode is CREDIT or 'Credit' or '381'. Set this to STANDARD if TypeCode is STANDARD or '380' or '388'. If the TypeCode is not blank, the DVM is used to populate this value. DVM INVOICE_TYPE_CODE is associated with this field.
PaymentMethodCode	PaymentMethodCode DVM PAYMENT_METHOD is associated with this field.
OrderNumber	PONumber OrderNumber is mapped when it contains a value and there is no order number on the lines.
PaymentTermsName	TermsName DVM PAYMENT_TERMS is associated with this field.
Supplier/EMailAddress	VendorEmailAddress
	B2BProgramName Set to AP_INV_B2B_SOA
Lines	InvoiceInterfaceLine An InvoiceInterfaceLine[LineTypeLookupCode = 'ITEM'] is created for each line.
LineExtensionAmount	Amount If InvoiceTypeLookupCode is STANDARD, then LineExtensionAmount is mapped. If InvoiceTypeLookupCode is CREDIT and LineExtensionAmount is positive then concat('-', LineExtensionAmount) is mapped. If LineExtensionAmount is negative, then LineExtensionAmount is mapped.
Description	Description
ItemDescription	ItemDescription
	LineGroupNumber Instance of the line.
	LineTypeLookupCode Set to ITEM.
OrderNumber	PONumber OrderNumber is mapped. If it is blank, then the OrderNumber from B2BInvoiceMessage/B2BInvoice Header is mapped.
OrderLineNumber	POLineNumber
OrderScheduleLineNumber	POShipmentNumber
Quantity	InvoicedQuantity If InvoiceTypeLookupCode is STANDARD, then Quantity is mapped. If InvoiceTypeLookupCode is CREDIT and Quantity is positive, then a negative Quantity is mapped. If Quantity is negative, then Quantity is mapped.
UnitOfMeasureCode	UnitOfMeasLookupCode DVM UOM_CODE is associated with this field.
UnitPriceAmount	UnitPrice
SupplierItemNumber	VendorItemNumber
Charge	InvoiceInterfaceLine
Amount	Amount If InvoiceTypeLookupCode is STANDARD, then Amount is mapped. If InvoiceTypeLookupCode is CREDIT and Amount is positive, then a negative Amount is mapped. If Amount is negative, it is mapped.
Description	Description
TypeCode	LineTypeLookupCode DVM is applied if there is a value, but if TypeCode is blank, LineTypeLookupCode is set to MISCELLANEOUS. DVM CHARGE_REASON_CODE is associated with this field.
Tax	InvoiceInterfaceLine It is mapped if expressTaxInControl is false().
Amount	Amount If InvoiceTypeLookupCode is STANDARD, then Amount is mapped. If InvoiceTypeLookupCode is CREDIT and Amount is positive, then a negative Amount is mapped. If Amount is negative, it is mapped.
	LineTypeLookupCode Set to TAX.
Tax	InvoiceInterfaceLine It is mapped if expressTaxInControl is false().
Amount	Amount If InvoiceTypeLookupCode is STANDARD, then Amount is mapped. If InvoiceTypeLookupCode is CREDIT and Amount is positive, then a negative Amount is mapped. If Amount is negative, it is mapped.
	LineGroupNumber Set to the position() of Lines.
	LineTypeLookupCode Set to TAX.

Sample Payload

Here's a sample payload of the message:

<n1:B2BInvoiceMessage
xmlns:n1="http://xmlns.oracle.com/apps/scm/cmk/b2b">
   <n1:B2BInvoice>
      <n1:InvoiceNumber>2810005248</n1:InvoiceNumber>
      <n1:InvoiceDate>2020-09-07</n1:InvoiceDate>
      <n1:TypeCode>CREDIT</n1:TypeCode> <!-- INVOICE_TYPE_CODE -->
  <n1:Description>Header Description</n1:Description>
      <n1:PaymentTermsName>30 days</n1:PaymentTermsName> <!--
PAYMENT_TERMS -->
      <n1:PaymentMethodCode>PayCode</n1:PaymentMethodCode> <!--
PAYMENT_METHOD -->
      <n1:CurrencyCode>EUR</n1:CurrencyCode> <!-- CURRENCY_CODE -->
      <n1:TaxTotalAmount>420</n1:TaxTotalAmount>
      <n1:TotalAmount>528</n1:TotalAmount>

<n1:DocumentReferenceNumber>999222</n1:DocumentReferenceNumber>
      <n1:OrderNumber>1004571</n1:OrderNumber>
      <n1:Supplier>
     <n1:Name>Supplier Name</n1:Name>
 <n1:EMailAddress>supplier@email.com</n1:EMailAddress>
      </n1:Supplier>
      <n1:Charge>
         <n1:TypeCode>FREIGHT</n1:TypeCode> <!-- CHARGE_REASON_CODE -->
     <n1:Description>Charge1 Description</n1:Description>
         <n1:Amount>10.00</n1:Amount>
      </n1:Charge>
  <n1:Charge>
         <n1:TypeCode>FREIGHT</n1:TypeCode> <!-- CHARGE_REASON_CODE -->
     <n1:Description>Charge2 Description</n1:Description>
         <n1:Amount>15.00</n1:Amount>
      </n1:Charge>
      <n1:Tax>
         <n1:Amount>280</n1:Amount>
      </n1:Tax>
      <n1:Tax>
         <n1:Amount>0</n1:Amount>
      </n1:Tax>
      <n1:Lines>
         <n1:LineNumber>1</n1:LineNumber>
         <n1:Description>Description-Line 1</n1:Description>
         <n1:SupplierItemNumber>Supplier Item#</n1:SupplierItemNumber>
         <n1:ItemDescription>Item Description</n1:ItemDescription>
         <n1:Quantity>1</n1:Quantity>
         <n1:UnitOfMeasureCode>EA</n1:UnitOfMeasureCode> <!-- UOM_CODE --
>
         <n1:UnitPriceAmount>2000</n1:UnitPriceAmount>
         <n1:LineExtensionAmount>1800</n1:LineExtensionAmount>
         <n1:OrderNumber>1004570</n1:OrderNumber>
         <n1:OrderLineNumber>1</n1:OrderLineNumber>
         <n1:OrderScheduleLineNumber>1</n1:OrderScheduleLineNumber>
         <n1:Tax>
            <n1:Amount>240</n1:Amount>
         </n1:Tax>
      </n1:Lines>
   </n1:B2BInvoice>
</n1:B2BInvoiceMessage>
