Importing X_LANE Data for Rates

This section provides an example for loading X_LANE data in CSV format. Typically, the X_LANE tables are loaded prior to the loading of the RATE_GEO and RATE_GEO_COST tables.

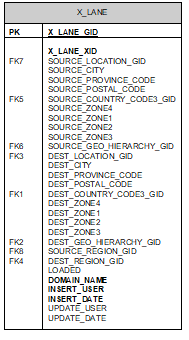

Simplified Entity Relationship Diagram (ERD) for X_LANE Data

The following example illustrates how you specify GEO_HIERARCHY and X_LANE data in CSV format.

GEO_HIERARCHY
GEO_HIERARCHY_GID,GEO_HIERARCHY_XID,RANK,DOMAIN_NAME
EXEC SQL ALTER SESSION SET NLS_DATE_FORMAT = 'YYYYMMDDHH24MISS'
MYDOMAIN.USZIP4,USZIP4,4,MYDOMAIN

X_LANE
X_LANE_GID,X_LANE_XID,SOURCE_POSTAL_CODE,SOURCE_COUNTRY_CODE3_GID,SOURCE_GEO_HIERARCHY_GID,DEST_POSTAL_CODE,DEST_COUNTRY_CODE3_GID,DEST_GEO_HIERARCHY_GID,DOMAIN_NAME
EXEC SQL ALTER SESSION SET NLS_DATE_FORMAT = 'YYYYMMDDHH24MISS'
MYDOMAIN.194-064,194-064,194,USA,MYDOMAIN.USZIP4,64,USA,MYDOMAIN.USZIP4,MYDOMAIN
MYDOMAIN.194-065,194-065,194,USA,MYDOMAIN.USZIP4,65,USA,MYDOMAIN.USZIP4,MYDOMAIN
MYDOMAIN.MY LANE,MY LANE,194,,POSTAL_CODE,64,,POSTAL_CODE,MYDOMAIN
