Importing LTL Rates

This section describes how to specify LTL rates and gives sample CSV files for several scenarios.

The following tables must be loaded (in order):

  • RATE_OFFERING (setup manually on Oracle Transportation Management web pages)
  • X_LANE (see the Importing X_LANE Data for Rates section.)
  • RATE_GEO
  • ACCESSORIAL_CODE
  • ACCESSORIAL_COST
  • RATE_GEO_ACCESSORIAL (*)
  • RATE_GEO_COST_GROUP
  • RATE_GEO_COST
  • RATE_UNIT_BREAK_PROFILE
  • RATE_UNIT_BREAK
  • RATE_GEO_COST_UNIT_BREAK
    Note: (*) RATE_GEO_ ACCESSORIAL must come after RATE_GEO, but is not required before the remaining tables.

Assumptions:

  • You have loaded the rate offering table using Oracle Transportation Management web pages
  • You have loaded the X_Lane table (see the Importing X_LANE Data for Rates section.)

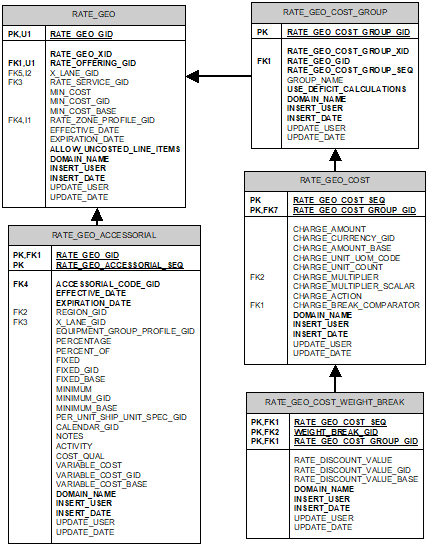

Simplified ERD for LTL Rates

Simplified Entity Relationship Diagram (ERD) for LTL Rate Data

Simplified Entity Relationship Diagram (ERD) for LTL Rate Data

Table Notes:

  • RATE_GEO Table

    Allow_uncosted_line_items in Y/N (defaults to “N”)

  • RATE_GEO_ACCESSORIAL
    • Left_Operand1 – Basis options define what variable you want to base your conditional charge on.
    • Oper1_gid – The operand you compare with.
    • Low_value1 – Depending on the operand you use, you might need only the low_value1 or additionally the high_value1.
  • RATE_GEO_COST_GROUP Table

    Use_deficit_calculations in Y/N (defaults to “N”)

  • RATE_GEO_COST Table
    • charge_unit_uom_code - unit of measure (e.g. “LB” for pounds, or “MI” for miles)
    • charge_unit_count - hundredweight, etc.
    • charge_action – add (A), setmin (M), setmax (X), multiply/discount (D)
    • charge_break_comparator -identifies data element used to access the break

Scenario 1: Based on Simple Unit Breaks

This first scenario assumes that rates are defined as simple unit breaks.

  1. Import RATE_GEO table.
    RATE_GEO
RATE_GEO_GID,RATE_GEO_XID,RATE_OFFERING_GID,MIN_COST,MIN_COST_GID,MIN_COST_BASE,X_LANE_GID,DOMAIN_NAME
"MYDOMAIN.194-064","194-064","MYDOMAIN.YELLOW",1.0,"USD",1.0,"MYDOMAIN.194-064","MYDOMAIN"
"MYDOMAIN.194-065","194-065","MYDOMAIN.YELLOW",1.0,"USD",1.0,"MYDOMAIN.194-065","MYDOMAIN"
  2. Import RATE_GEO_COST_GROUP table.
    RATE_GEO_COST_GROUP
RATE_GEO_COST_GROUP_GID,RATE_GEO_COST_GROUP_XID,RATE_GEO_GID,RATE_GEO_COST_GROUP_SEQ,GROUP_NAME,DOMAIN_NAME
"MYDOMAIN.194-064","194-064","MYDOMAIN.194-064",1,"MY_GROUP_NAME","MYDOMAIN"
"MYDOMAIN.194-065","194-065","MYDOMAIN.194-065",1,"MY_GROUP_NAME","MYDOMAIN"
  3. Import RATE_GEO_COST table.
    RATE_GEO_COST
RATE_GEO_COST_SEQ,RATE_GEO_COST_GROUP_GID,CHARGE_UNIT_UOM_CODE,CHARGE_UNIT_COUNT,CHARGE_BREAK_COMPARATOR,DOMAIN_NAME
1,"MYDOMAIN.194-064","LB",100,"SHIPMENT.WEIGHT","MYDOMAIN"
1,"MYDOMAIN.194-065","LB",100,"SHIPMENT.WEIGHT","MYDOMAIN"
  4. Import RATE_UNIT_BREAK_PROFILE table.
    RATE_UNIT_BREAK_PROFILE
RATE_UNIT_BREAK_PROFILE_GID,RATE_UNIT_BREAK_PROFILE_XID,DATA_TYPE,LOOKUP_TYPE,UOM_TYPE,DOMAIN_NAME
EXEC SQL ALTER SESSION SET NLS_DATE_FORMAT = 'YYYYMMDDHH24MISS'
MYDOMAIN.LT 1000,LT 1000,U,M,WEIGHT,MYDOMAIN
  5. Import RATE_UNIT_BREAK table.
    RATE_UNIT_BREAK
RATE_UNIT_BREAK_GID,RATE_UNIT_BREAK_XID,RATE_UNIT_BREAK_PROFILE_GID,RATE_UNIT_BREAK_MAX,DOMAIN_NAME
EXEC SQL ALTER SESSION SET NLS_DATE_FORMAT = 'YYYYMMDDHH24MISS'
MYDOMAIN.1000,0-1000,MYDOMAIN.LT 1000,1000 LB,MYDOMAIN
MYDOMAIN.1000-3000,1000-3000,MYDOMAIN.LT 1000,3000 LB,MYDOMAIN
  6. Import RATE_GEO_COST_UNIT_BREAK table.
    RATE_GEO_COST_UNIT_BREAK
RATE_GEO_COST_GROUP_GID,RATE_GEO_COST_SEQ,RATE_UNIT_BREAK_GID,CHARGE_AMOUNT,CHARGE_AMOUNT_GID,CHARGE_AMOUNT_BASE,DOMAIN_NAME
EXEC SQL ALTER SESSION SET NLS_DATE_FORMAT = 'YYYYMMDDHH24MISS'
MYDOMAIN.194-064,1,MYDOMAIN.1000,48.53,USD,48.53,MYDOMAIN
MYDOMAIN.194-064,1,MYDOMAIN.1000-3000,37.56,USD,37.56,MYDOMAIN

Scenario 2: Based on Cost per Pound, Surcharge, and Discount

This scenario assumes that:

  • Freight cost is $0.07 per lb
  • Fuel Surcharge is 3% of Total Cost (Accessorial)
  • Discount is 65% of Total Cost
  • There is a $50 allowance for loading
  • The minimum charge is based on 10,000 lb
  • Total Cost = (weight * 0.07 – 50.00) * (65% Discount) * (Accessorial Surcharge of 3%)
  • Min Cost = (10,000 * 0.07 – 50.00) * (1 - 0.65) * (1.03) = 234.325
  1. Import RATE_GEO table.
    RATE_GEO
RATE_GEO_GID,RATE_GEO_XID,RATE_OFFERING_GID,MIN_COST,MIN_COST_GID,MIN_COST_BASE,X_LANE_GID,DOMAIN_NAME
"MYDOMAIN.194-064-2","194-064-2","MYDOMAIN.YELLOW",234.325,"USD",234.325,"MYDOMAIN.194-064","MYDOMAIN"
  2. Import ACCESSORIAL_COST table.
    ACCESSORIAL_COST
ACCESSORIAL_COST_GID,ACCESSORIAL_COST_XID,CHARGE_MULTIPLIER,CHARGE_MULTIPLIER_SCALAR,CHARGE_ACTION,CHARGE_TYPE,USE_DEFAULTS,CHARGE_MULTIPLIER_OPTION,USES_UNIT_BREAKS,DOMAIN_NAME,IS_FILED_AS_TARIFF
EXEC SQL ALTER SESSION SET NLS_DATE_FORMAT = 'YYYYMMDDHH24MISS'
MYDOMAIN.FS,FS,SHIPMENT.COSTS.AMOUNT,1.03,A,B,N,A,N,MYDOMAIN,N
  3. Import ACCESSORIAL_CODE table.
    ACCESSORIAL_CODE
ACCESSORIAL_CODE_GID,ACCESSORIAL_CODE_XID,ACCESSORIAL_DESC,APPLY_GLOBALLY,DOMAIN_NAME,IS_FLOW_THRU,IS_VAT_EXEMPT
EXEC SQL ALTER SESSION SET NLS_DATE_FORMAT = 'YYYYMMDDHH24MISS'
MYDOMAIN.FUEL_SURCHARGE,FUEL_SURCHARGE,FUEL SURCHARGE,Y,MYDOMAIN,N,N
  4. Import RATE_GEO_ACCESSORIAL table.
    RATE_GEO_ACCESSORIAL
ACCESSORIAL_COST_GID,RATE_GEO_GID,ACCESSORIAL_CODE_GID,DOMAIN_NAME
EXEC SQL ALTER SESSION SET NLS_DATE_FORMAT = 'YYYYMMDDHH24MISS'
MYDOMAIN.FS,MYDOMAIN.194-064-2,MYDOMAIN.FUEL_SURCHARGE,MYDOMAIN
  5. Import RATE_GEO_COST_GROUP table.
    RATE_GEO_COST_GROUP
RATE_GEO_COST_GROUP_GID,RATE_GEO_COST_GROUP_XID,RATE_GEO_GID,RATE_GEO_COST_GROUP_SEQ,GROUP_NAME,DOMAIN_NAME
MYDOMAIN.194-064-2,194-064-2,MYDOMAIN.194-064-2,1,MY_GROUP_NAME_2,MYDOMAIN
  6. Import RATE_GEO_COST table.
    RATE_GEO_COST
RATE_GEO_COST_SEQ,RATE_GEO_COST_GROUP_GID,CHARGE_AMOUNT,CHARGE_CURRENCY_GID,CHARGE_AMOUNT_BASE,CHARGE_UNIT_UOM_CODE,CHARGE_UNIT_COUNT,CHARGE_MULTIPLIER,CHARGE_MULTIPLIER_SCALAR,CHARGE_ACTION,DOMAIN_NAME
1,"MYDOMAIN.194-064-2",0.07,"USD",0.07,"LB",1,"SHIPMENT.WEIGHT",,"A","MYDOMAIN"
2,"MYDOMAIN.194-064-2",-50.0,"USD",-50.0,,1,,,"A","MYDOMAIN"
3,"MYDOMAIN.194-064-2",,,,,1,,0.35,"D","MYDOMAIN"
    Note: An alternative to using the data specified for the RATE_GEO_ACCESSORIAL table above would be to add another Sequence to this table with the following (representing a 3% surcharge of the total value):
    4,”MYDOMAIN.194-064-2”,,,,,1,,1.03,”D”,”MYDOMAIN”

Scenario 3: Based on Cost per Pound, Conditional Surcharge, Global Surcharge, and Discount

This scenario assumes that:

  • Freight cost is $0.07 per lb
  • Unload fee is $10 if the weight > 20000lb (Accessorial)
  • Fuel Surcharge is 3% of Total Cost (Accessorial)
  • Discount is 65% of Total Cost
  • There is a $50 allowance for loading
  • The minimum charge is based on 10,000 lb

Summary

  • Total Cost = ((weight * 0.07 – 50.00) * (65% Discount) + (if weight>20000lb then Accessorial Surcharge of 10)) * (1.03)
  • Min Cost = (10,000 * 0.07 – 50.00) * (1 - 0.65) * (1.03) = 234.325
  1. Import RATE_GEO table.
    RATE_GEO
RATE_GEO_GID,RATE_GEO_XID,RATE_OFFERING_GID,MIN_COST,MIN_COST_GID,MIN_COST_BASE,X_LANE_GID,DOMAIN_NAME
MYDOMAIN.194-064-3,194-064-3,MYDOMAIN.YELLOW,234.325,USD,234.325,MYDOMAIN.194-064,MYDOMAIN
  2. Import ACCESSORIAL_COST table.
    ACCESSORIAL_COST
ACCESSORIAL_COST_GID,ACCESSORIAL_COST_XID,LEFT_OPERAND1,OPER1_GID,LOW_VALUE1,AND_OR1,LEFT_OPERAND2,OPER2_GID,LOW_VALUE2,CHARGE_MULTIPLIER,CHARGE_AMOUNT,CHARGE_AMOUNT_GID,CHARGE_AMOUNT_BASE,CHARGE_UNIT_COUNT,CHARGE_MULTIPLIER_SCALAR,CHARGE_ACTION,CHARGE_TYPE,USE_DEFAULTS,CHARGE_MULTIPLIER_OPTION,USES_UNIT_BREAKS,DOMAIN_NAME,ROUNDING_TYPE,ROUNDING_FIELDS_LEVEL,ROUNDING_APPLICATION,IS_FILED_AS_TARIFF
EXEC SQL ALTER SESSION SET NLS_DATE_FORMAT = 'YYYYMMDDHH24MISS'
MYDOMAIN.FS,FS,,,,,,,,SHIPMENT.COSTS.AMOUNT,,,,,1.03,A,B,N,A,N,MYDOMAIN,N,0,A,N
MYDOMAIN.FS-2,FS-2,SHIPMENT.STOPS.SHIPUNITS.ACTIVITY,EQ,D,S,SHIPMENT.STOPS.WEIGHT,GT,20000 LB,SHIPMENT,10,USD,10,1,,A,B,N,A,N,MYDOMAIN,,,,N
  3. Import ACCESSORIAL_CODE table.
    ACCESSORIAL_CODE
ACCESSORIAL_CODE_GID,ACCESSORIAL_CODE_XID,ACCESSORIAL_DESC,APPLY_GLOBALLY,DOMAIN_NAME,IS_FLOW_THRU,IS_VAT_EXEMPT
EXEC SQL ALTER SESSION SET NLS_DATE_FORMAT = 'YYYYMMDDHH24MISS'
MYDOMAIN.FUEL_SURCHARGE,FUEL_SURCHARGE,FUEL SURCHARGE,Y,MYDOMAIN,N,N
  4. Import RATE_GEO_ACCESSORIAL table.
    RATE_GEO_ACCESSORIAL
ACCESSORIAL_COST_GID,RATE_GEO_GID,ACCESSORIAL_CODE_GID,DOMAIN_NAME
EXEC SQL ALTER SESSION SET NLS_DATE_FORMAT = 'YYYYMMDDHH24MISS'
MYDOMAIN.FS-2,MYDOMAIN.194-064-3,MYDOMAIN.FUEL_SURCHARGE,MYDOMAIN
MYDOMAIN.FS,MYDOMAIN.194-064-3,MYDOMAIN.FUEL_SURCHARGE,MYDOMAIN
  5. Import RATE_GEO_COST_GROUP table.
    RATE_GEO_COST_GROUP
RATE_GEO_COST_GROUP_GID,RATE_GEO_COST_GROUP_XID,RATE_GEO_GID,RATE_GEO_COST_GROUP_SEQ,GROUP_NAME,DOMAIN_NAME
MYDOMAIN.194-064-3,194-064-3,MYDOMAIN.194-064-3,1,MY_GROUP_NAME_3,MYDOMAIN
  6. Import RATE_GEO_COST table.
    RATE_GEO_COST
RATE_GEO_COST_SEQ,RATE_GEO_COST_GROUP_GID,CHARGE_AMOUNT,CHARGE_CURRENCY_GID,CHARGE_AMOUNT_BASE,CHARGE_UNIT_UOM_CODE,CHARGE_UNIT_COUNT,CHARGE_MULTIPLIER,CHARGE_MULTIPLIER_SCALAR,CHARGE_ACTION,DOMAIN_NAME
1,MYDOMAIN.194-064-3,0.07,USD,0.07,LB,1,SHIPMENT.WEIGHT,,A,MYDOMAIN
2,MYDOMAIN.194-064-3,-50,USD,-50,,1,,,A,MYDOMAIN
3,MYDOMAIN.194-064-3,,,,,1,,65,D,MYDOMAIN
