Example Service Message

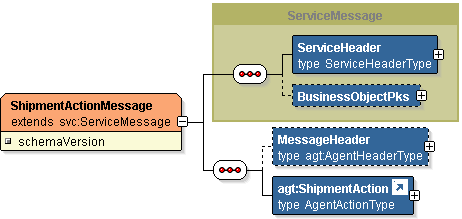

This picture shows an example service message.

All service messages extend the ServiceMessage complexType (defined in the Service.xsd schema).

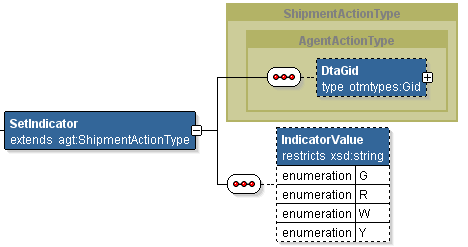

The Agent Action messages then include Agent Header information (MessageHeader) followed by an Agent Action, in this example ShipmentAction. All valid Shipment Actions are defined in the ShipmentAction.xsd schema. The following example shows the Set Indicator Action:This graphic shows an example Set Indicator Action message.

The SetIndicator element is allowed to be substituted for the ShipmentAction element because it is defined as an XSD substitutionGroup and extends the same AgentActionType complexType.
