1Integration with Cloud WMS

Oracle Fusion Cloud Warehouse Management supports integration for the following categories:

Automation and Operations

Parcel Carrier Integration

Setup and Transactional Data

Key Interfaces

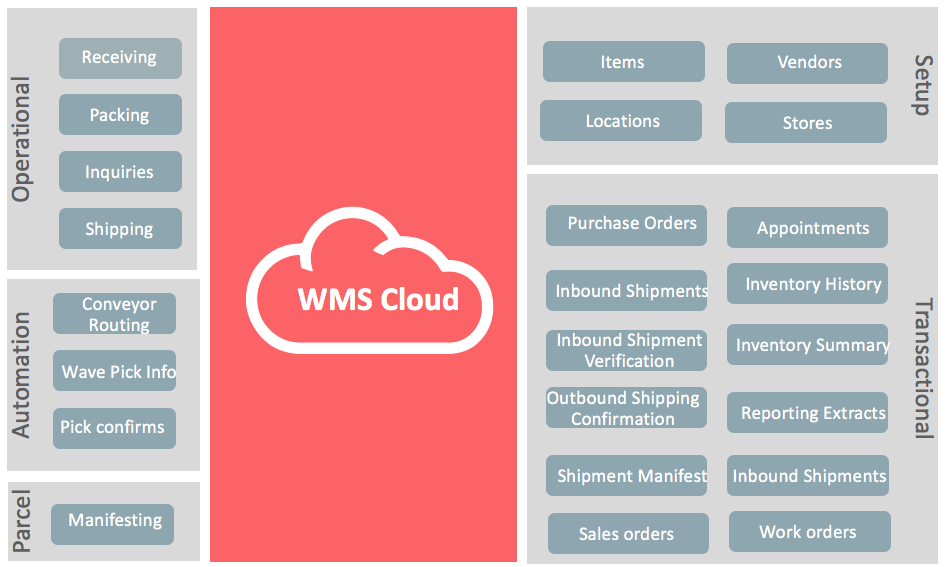

The following flow describes the integration touchpoints:

Integration Touchpoint

Communication and Data

There are two main data formats supported by Oracle Warehouse Management (WMS) Cloud via interfaces and APIs:
  • XML
  • Delimited flat data

There are two main forms of communication protocols supported by Oracle WMS Cloud for integration with external systems:

  • REST Web Service over HTTPS
  • Secure FTP (SFTP) using an external SFTP site

Typically, the delimited flat data format is used over SFTP although it is also supported via certain WebServices. WebServices generally support an XML payload along with the delimited flat data format.

For Parcel integration, connection to external SOAP APIs is supported.

Note: WMS Cloud does not host SFTP sites. They must be hosted externally per the customers choice. WMS Cloud can transfer files to and from the external site.
