WMS Data

User activities performed using WMS RF options are called System Activities. The facility parameter WRITE_WMS_ACTIVITY_RECORDS controls the recording of these activities in WMS. If the facility parameter is to set to “Yes”, all user activities performed using WMS RF options are recorded in WMS. These records contain both the time taken as well as the measure (in terms of UOM, Qty and SKU Line Group) of the activity performed This data is extracted from WMS at regular intervals by the WMS WFM Interface scheduled job. Data is consolidated and moved to WMS Activity Track view in WFM.

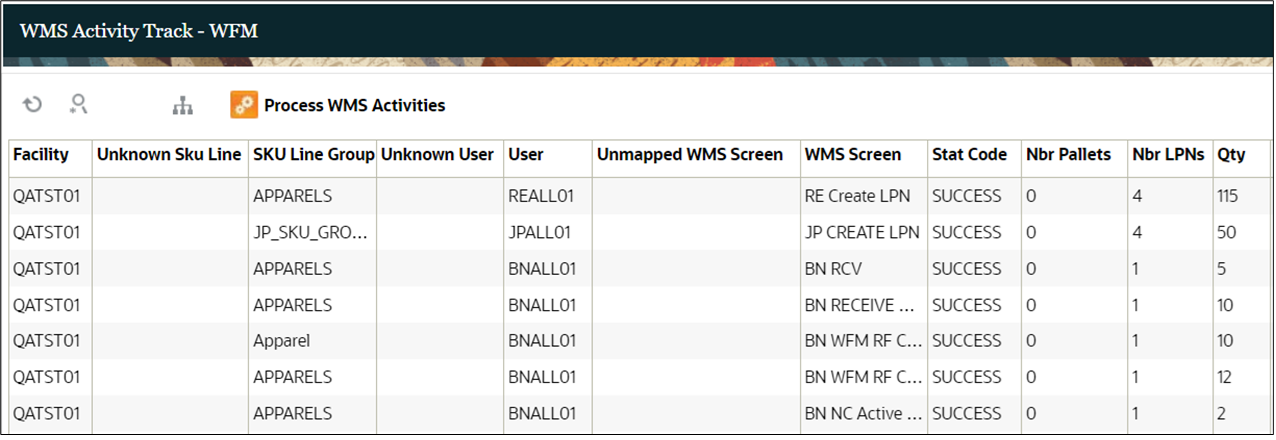

WMS Activity Track

As a first step “WMS WFM interface” validates the SKU line, User , and the WMS Screen Name of each record that is moved from WMS to WFM. If SKU Line and WMS Screen are configured in WFM and the user exists in WMS, the status on the record is marked as “SUCCESS”.

However, if the user has been deleted or SKU Line or WMS Screen is configured in WFM, the record fails, and the appropriate “Unknown” field is populated. For example, if the SKU Line is not configured, the status on the record is marked as “ERROR” and the “Unknown SKU Line” field is populated with the SKU Line that was on the record. The begin and end time stamp capture the total time taken for the user to perform the activity. Nbr Pallets, Nbr LPNs and Qty show the total quantity of Pallets, LPNs or Qty handled during the activity. Additional details such as Pallet Nbr, LPN Nbr, handling UOM and pre-pack can be viewed in the details screen.

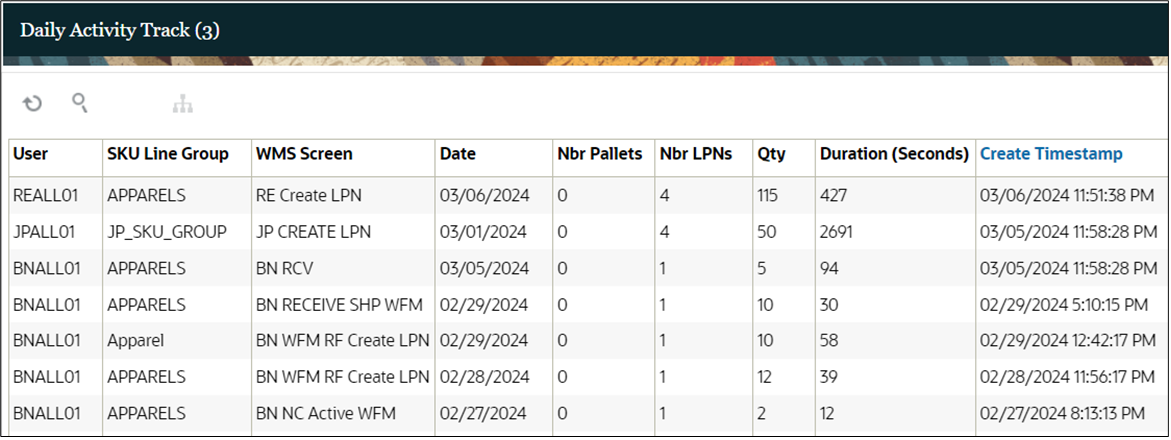

Daily Activity Track

As a second step “WMS WFM Interface”, consolidates all the successful records in WMS Activity Track and moves to Daily Activity Track view in WFM. Similar transactions (for example, same user, same SKU Line Group and same Transaction) over a day are consolidated and written at a Daily level in this view.
