Configuration Service

Starting with Oracle GoldenGate 26ai, a new Configuration Service is available for managing the configuration files of Oracle GoldenGate. The Configuration Service provides an alternate method for storing checkpoint and recovery information. This alternate method uses a database repository instead of the file system. A seperate ConfigService program within the Service Manager deployment, manages this service.

Note:

The Configuration Service is only available with Oracle database. After the ConfigService is installed, it cannot be removed.

Note:

Use of the ConfigService should only be done if using the new HA Cluster functionality that is not yet released. However, this feature has been included as a preview in Oracle GoldenGate.

The ConfigService manages configuration files from all deployments that are managed by this Service Manager. Configuration data includes:

• Microservices configuration data

• Parameter files

• Checkpoint data

• Database and user credentials

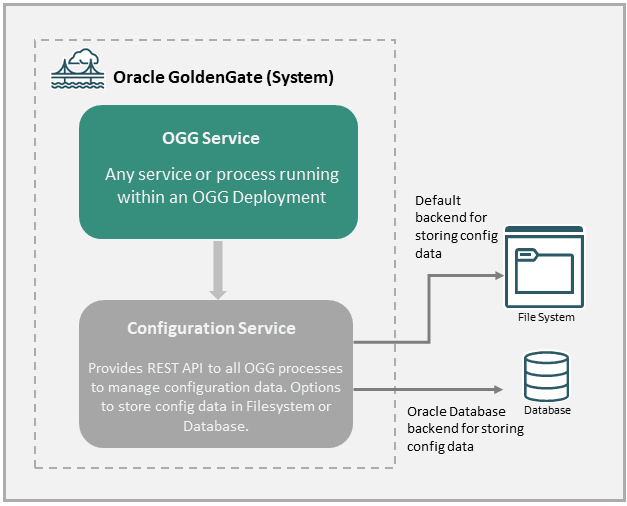

When you enable the ConfigService, this configuration data be stored seperately on another file system or a database as a backend, as shown in the following diagram.

Here are the features of the Configuration Service:

• The Configuration Service provides a REST API to all other processes with an Oracle GoldenGate installation to manage critical configuration data.

• Multiple Oracle GoldenGate installations can use the same Data Store.

  • The Configuration Data Store is managed independently of Oracle GoldenGate.

  • External applications can query configuration data independently of Oracle GoldenGate.

• When you choose to use the Configuration Service, the configuration files are not stored in $OGG_ETC_HOME or $OGG_VAR_HOME directories.
