About Integrated Replicat

In integrated mode, Replicat leverages the apply processing functionality that is available within the target Oracle database. In this mode, Replicat reads the trail, constructs logical change records that represent source DML or DDL transactions, and transmits these records to an inbound server in the Oracle target database. The inbound server applies the data to the target database.

Note: Integrated Replicat is an online process only. Do not use it to perform initial loads.

In integrated mode, the Replicat process leverages the apply processing functionality that is available within the Oracle Database. In this mode, Replicat operates as follows:

• Reads the Oracle GoldenGate trail.

• Performs data filtering, mapping, and conversion.

• Constructs logical change records (LCR) that represent source database DML transactions (in committed order). DDL is applied directly by Replicat.

• Attaches to a background process in the target database known as a database inbound server by means of a lightweight streaming interface.

• Transmits the LCRs to the inbound server, which applies the data to the target database.

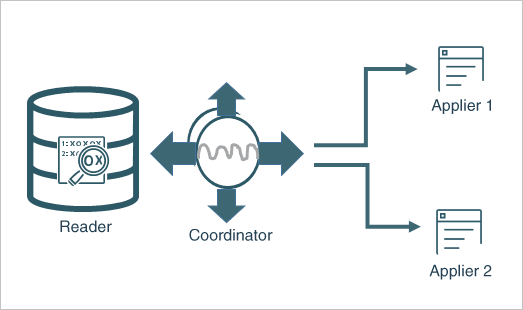

Within a single Replicat configuration, multiple inbound server child processes known as apply servers apply transactions in parallel while preserving the original transaction atomicity. You can increase this parallelism as much as your target system will support when you configure the Replicat process or dynamically as needed. The following diagram illustrates integrated Replicat configured with two parallel apply servers.

In the above diagram, Integrated Replicat applies transactions asynchronously. Transactions that do not have interdependencies can be safely executed and committed out of order to achieve fast throughput. Transactions with dependencies are guaranteed to be applied in the same order as on the source.

A reader process in the inbound server computes the dependencies among the transactions in the workload based on the constraints defined at the target database (primary key, unique, foreign key). Barrier transactions and DDL operations are managed automatically, as well. A coordinator process coordinates multiple transactions and maintains order among the apply servers.

If the inbound server does not support a configured feature or column type, Replicat disengages from the inbound server, waits for the inbound server to complete transactions in its queue, and then applies the transaction to the database in direct apply mode through OCI. Replicat resumes processing in integrated mode after applying the direct transaction.

The following features are applied in direct mode by Replicat:

• DDL operations

• Sequence operations

• SQLEXEC parameter within a TABLE or MAP parameter

• EVENTACTIONS processing

Because transactions are applied serially, heavy use of such operations may reduce the performance of the integrated Replicat mode. Integrated Replicat performs best when most of the apply processing can be performed in integrated mode.

Note: User exits are executed in integrated mode. However, user exit may produce unexpected results, if the exit code depends on data in the replication stream.

Note: Integrated Replicat requires that any foreign key columns are indexed.

Benefits of Integrated Replicat

The following are the benefits of using integrated Replicat versus non-integrated Replicat.

• Integrated Replicat enables heavy workloads to be partitioned automatically among parallel apply processes that apply multiple transactions concurrently, while preserving the integrity and atomicity of the source transaction. Both a minimum and maximum number of apply processes can be configured with the PARALLELISM and MAX_PARALLELISM parameters. Replicat automatically adds additional servers when the workload increases, and then adjusts downward again when the workload lightens.

• Integrated Replicat requires minimal work to configure. All work is configured within one Replicat parameter file, without configuring range partitions.

• High-performance apply streaming is enabled for integrated Replicat by means of a lightweight application programming interface (API) between Replicat and the inbound server.

• Barrier transactions are coordinated by integrated Replicat among multiple server apply processes.

• DDL operations are processed as direct transactions that force a barrier by waiting for server processing to complete before the DDL execution.

• Transient duplicate primary key updates are handled by integrated Replicat in a seamless manner.

Integrated Replicat Requirements

To use integrated Replicat, the following must be true.

• Supplemental logging must be enabled on the source database to support the computation of dependencies among tables and scheduling of concurrent transactions on the target. Instructions for enabling the required logging are in Transaction Log Settings and Requirements. This logging can be enabled at any time up to, but before you start the Oracle GoldenGate processes.

• Parallel Replicat in integrated mode is supported on Oracle Database 12.2.0.1 and greater.
