3.8.2.1 Defining a Local List of Values

To define the available choices for a list-driven page item, you can specify a set of static values or provide a SQL query.

When defining the static list of values, as shown below, you type in the Display Value and Return Value for each entry. Use the buttons next to the entries to delete and reorder them, and switch the Sort at Runtime toggle off if the items should appear exactly as entered. The default is to sort the items alphabetically on Display Name.

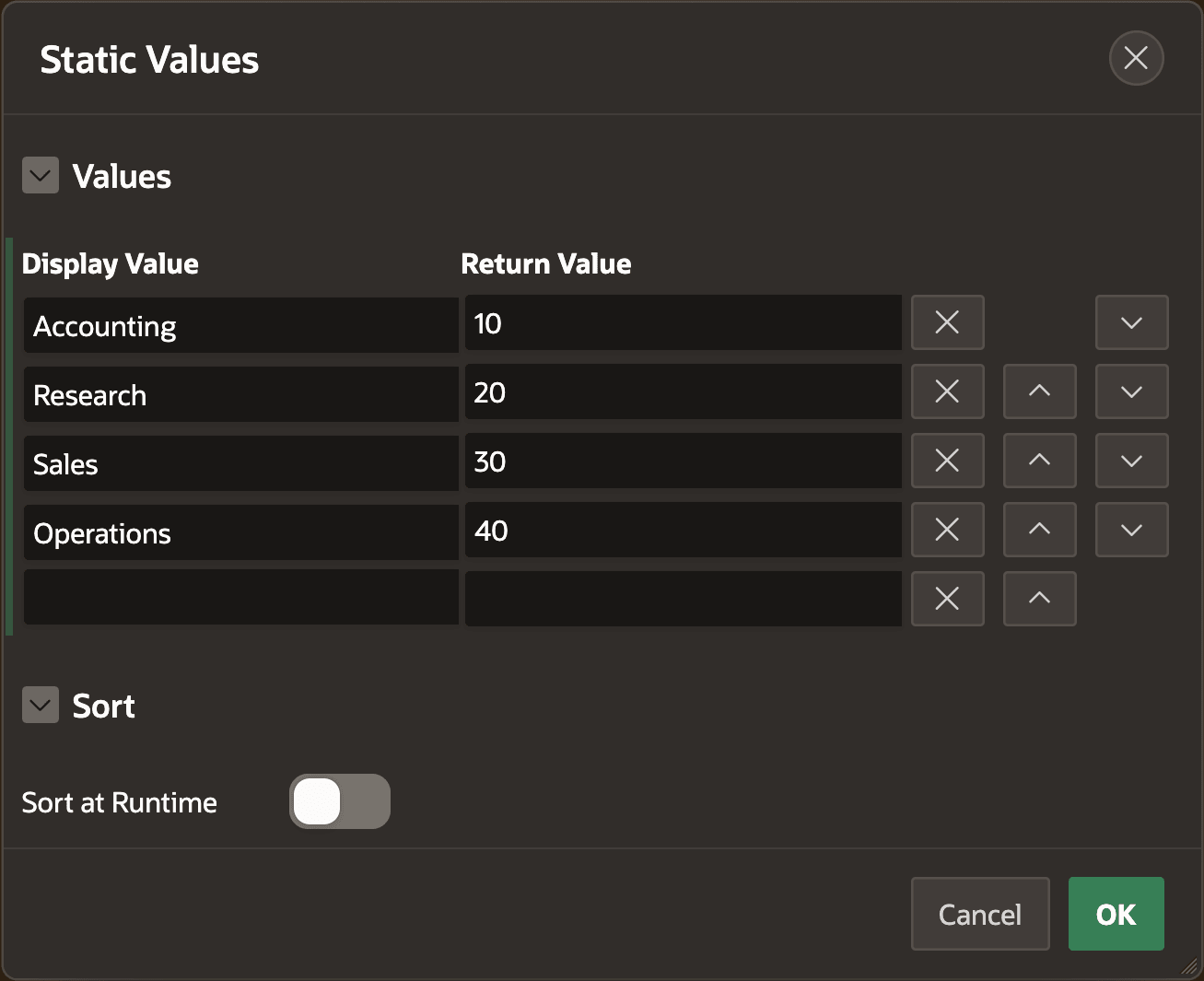

Figure 3-42 Defining a List of Values with Static Values

Description of "Figure 3-42 Defining a List of Values with Static Values"

When the choices for a list-driven item are not static, then use a SQL query to define the list. The query should have two columns in the SELECT list. The first provides the display value and the second is the return value. It's common, although not required, to alias the columns as d and r. For example, you can define an alphabetical list of departments using the DNAME column as the display value and the DEPTNO column as the return value using the query:

select dname as d, deptno as r
  from dept
 order by dname

The list of values query can optionally refer to values of one or more page items as bind variables. For example, if a page has an item named P5_DEPARTMENT containing a department number, then a list of values query for employees in that department can be:

select ename as d, empno as r
  from emp
 where deptno = :P5_DEPARTMENT
 order by ename
