25.1.9.1.8.8 Inspecting Overall Workflow Status
Inspect workflow details to review status, history, parameters, and variables.
From her Initiated Workflows page, Lucy can see all the workflows she created. It's a Workflow Console page with Report Context of "Initiated by Me". Clicking on the Title link, the Workflow Details page opens. As shown below, the workflow details page the wizard generates displays the variable and parameter values as well as visual diagram of the workflow's current status. Scrolling up and down, Lucy can also see the activity steps list and history that are not visible below. She sees the workflow has completed, and notices the Value1 and Value2 of the updatable task parameters were assigned to the workflow values of the same names.

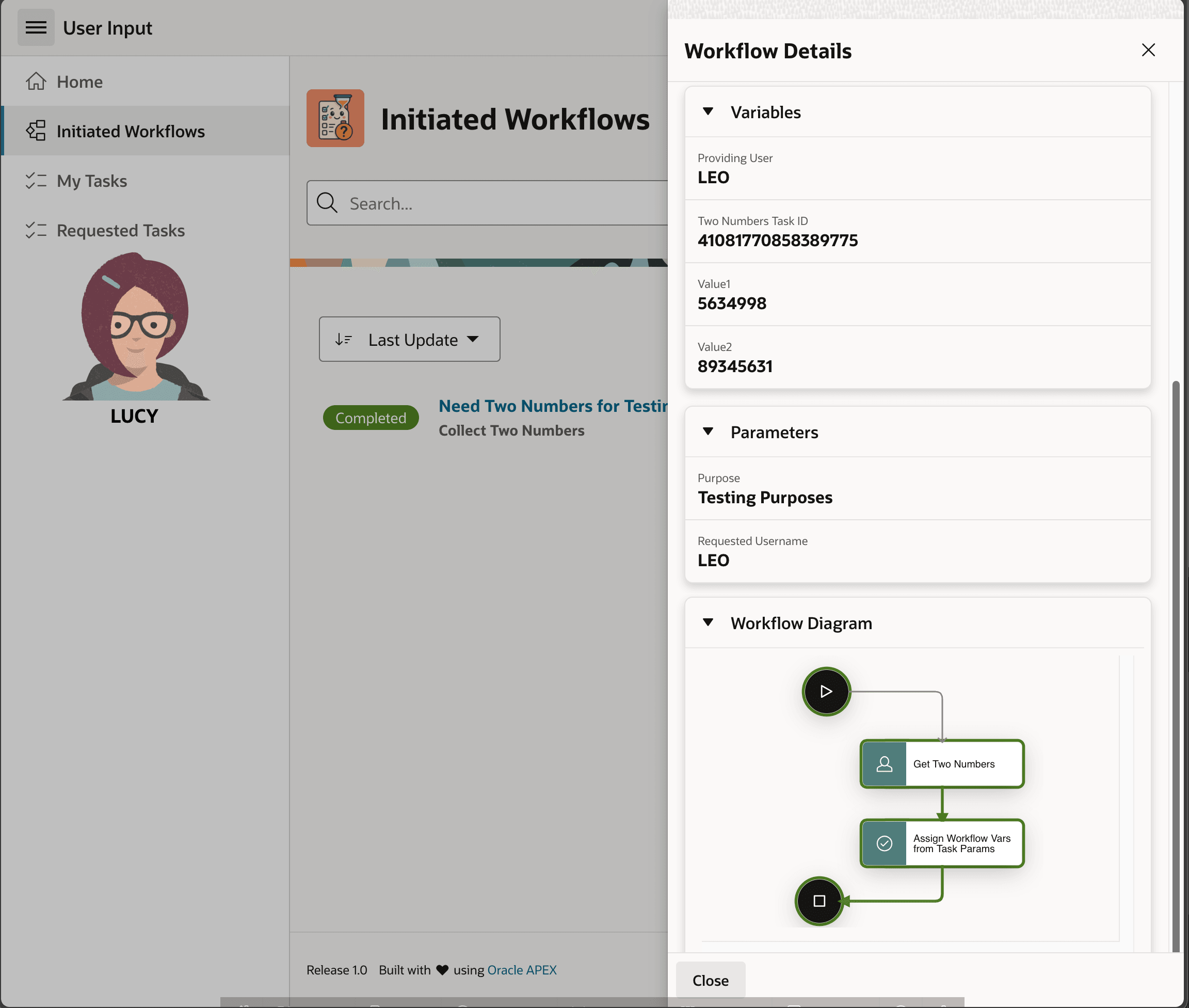

Figure 25-44 Lucy Reviews Completed Workflow in Her "Initiated Workflows" Page
- Reviewing a Completed Task
Review completed task details from the list of work items you requested.
Parent topic: Using and Tuning the Task Details Page
