Showing Background Process Progress Bar
Show background progress as a bar using the Percent Graph report column type.

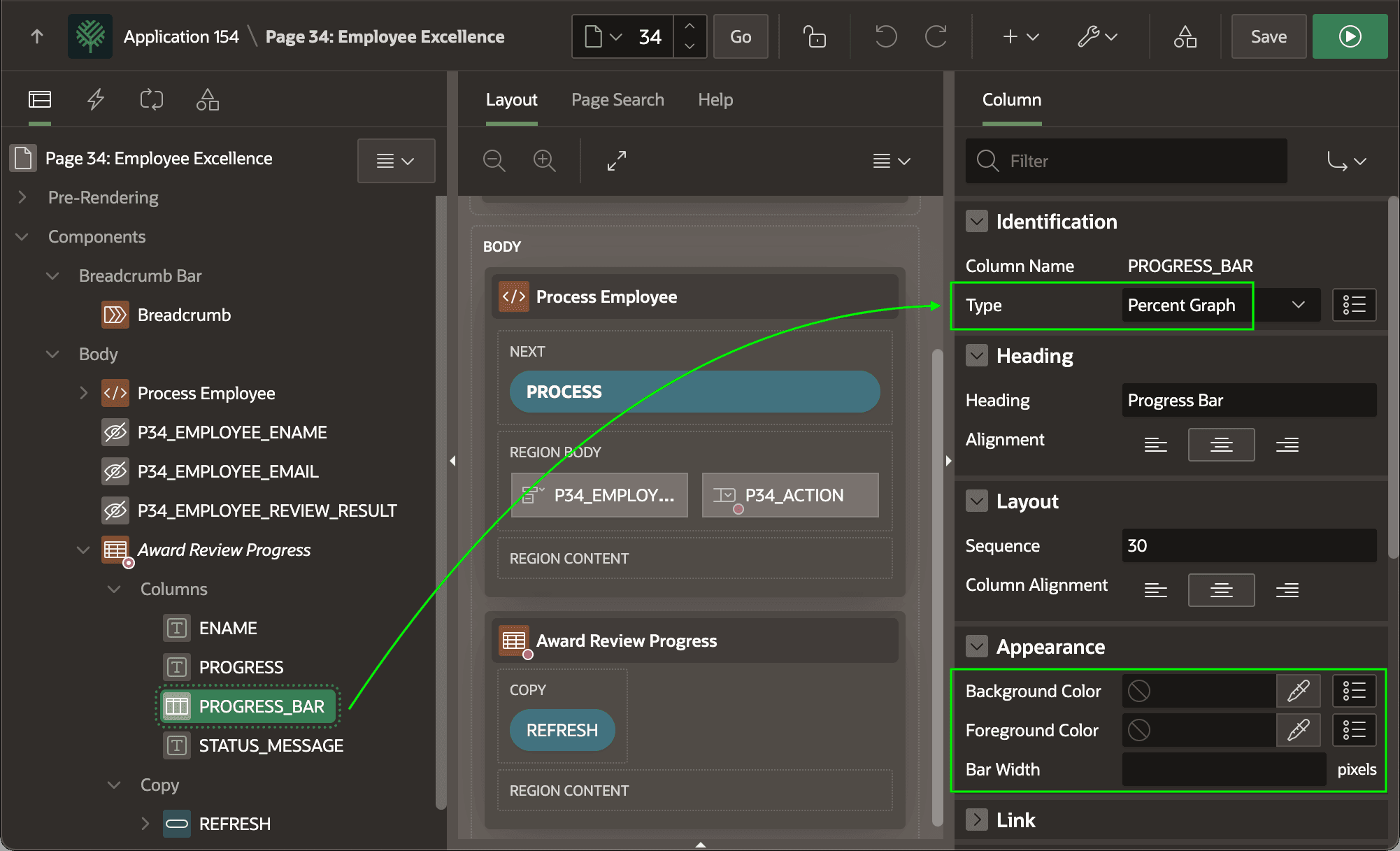

Use the report column type of Percent Graph to show a decimal value between 0 and 1 as a progress bar. If needed, configure custom background and foreground colors and an explicit bar width in the Appearance section. The figure shows the PROGRESS_BAR column of the Award Review Progress region selected in the component tree and highlights the column Type is set to Percent Graph as well as the available Appearance options.
