Oracle by Example brandingOracle Application Express 18: Charts (2 of 3) - Adding a Bar Chart

section 0Before You Begin

This 15-minute tutorial shows you how to edit a chart. This is the second tutorial in the series Oracle Application Express 18: Charts. Read in the tutorials in sequence:

Background

In this tutorial, you will learn how to edit the pie chart Project Tasks that you created in the first tutorial in this series. You will learn how to:

  • Update the data source of the chart
  • Edit the chart attributes
  • Switch chart type from pie chart to a bar chart
  • Change chart orientation

What Do You Need?

To complete this tutorial, you need to:

  • Complete the preceding tutorials in this series.

Accessing your Development Environment

How you sign in and access Oracle Application Express depends upon where Oracle Application Express resides. Oracle Application Express may reside in a local on-premises Oracle Database or in a hosted environment, such as the Oracle Cloud. The sign in credentials you use to sign in differ depending upon the installation type.

  • Free Workspace: Give Oracle Application Express a test run by signing up for a free workspace. To request an evaluation workspace, go to apex.oracle.com, and click Get Started for Free.
  • Oracle Cloud: Develop and deploy applications without worrying about infrastructure, repair, and downtime. Oracle Application Express is available in Exadata Express Cloud Service and Database Cloud Service. However, you need to manually customize your databases to install and enable Oracle Application Express. To learn more, see Oracle Database Cloud Service.
  • Oracle Application Express On-premises: Install Oracle Application Express directly within any Oracle Database and then sign in to your workspace using your sign in credentials. For details on your sign in credentials, contact your administrator or see Oracle Application Express Installation Guide.
  • Oracle Application Express Pre-Built VM: Install a Pre-Built Virtual Machine (VM) which includes an Oracle Database and Oracle Application Express 18.1. To learn more, see Hands-On Lab.
    Once the VM is installed, start the VM:
    • Click the big red circle labeled Start.
    • Click the APEX shortcut, or enter the following URL: http://localhost:8080/ords/f?p=4550:1
    • When prompted to sign in, enter the sign in credentials (unless given other credentials to use):
      • Workspace: obe
      • Username: obe
      • Password: oracle

Note your Application ID may be different when compared to the screenshots in this tutorial. Your Application ID is assigned automatically when you create the application.

section 1Adding a Bar Chart to an Existing Page

In the first tutorial of this series, you created the pie chart Project Tasks. In this tutorial, you will learn how to you add a bar chart to the existing page Project Tasks by using Page Designer.

To add a bar chart:

  1. In the Create App Wizard application, go to the Project Tasks page. In the Developer toolbar of the page, click Edit Page 18. The Project Tasks page opens in Page Designer.
    Developer tool bar
    Description of the illustration dev_tool_in_app.png
  2. In the Rendering tab, click Attributes. On the right pane, specify the following attributes in the Attributes tab:
    • Type: Select Bar
    • Title: Enter Project Tasks Completion/span>
  3. In the Appearance section, specify the following:
    • Orientation: Select Horizontal
    • Stack: Select Yes
  4. In the Layout section, specify the following:
    • Maximum Width: Enter 500
    • Height: Enter 400
  5. In the Data Cursor section, click Yes for Dim On Hover.
    6. attributes
    Description of the illustration attributes_project_tasks_completion.png
  6. In the Rendering tab, click Series1 under Series. On the right pane, in the Identification tab, enter the following:
    • Name: Enter Completed Tasks
    • SQL Query: Enter the following code:

      • select p.id
      , p.name as label
      , select count('x') from sample$project_tasks t
      where p.id = t.project_id
      and nvl(t.is_complete_yn,'N') = 'Y'
      ) value
      , 'Completed Tasks' series
      , p.created
      from sample$projects p

      sql code
      Description of the illustration sql_code_completed_tasks.png
  7.  In the Rendering tab, right click Series and click Create Series.
    create_series
    Description of the illustration create_series.png
    On the right pane, in the Identification tab, enter the following:
    • Name: Enter Incomplete Tasks
    • SQL Query: Enter the following code:
      select p.id
      , p.name as label
      , (select count('x') from sample$project_tasks t
      where p.id = t.project_id
      and nvl(t.is_complete_yn,'N') = 'N'
      ) value
      , 'Incomplete Tasks' series
      , p.created
      from sample$projects p
      order by 5
      • sql_code_incomplete_tasks
      Description of the illustration sql_code_incomplete_tasks.png

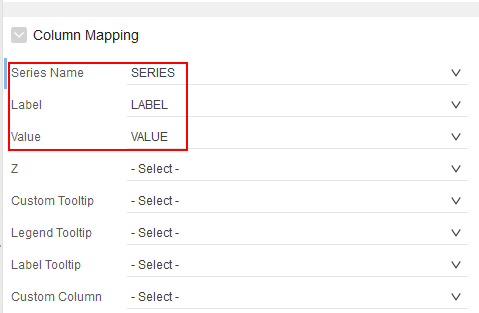

  8. In the Column Mapping section for the series Completed Tasks and Incomplete Tasks, specify the following:
  9. In the Rendering tab, under Axes, define the attributes for x axis and y axis of the bar chart Project Tasks Completion.
  10. Click Save and then click Run. The bar chart Project Tasks is generated, as shown in the screenshot. The projects are plotted along the y axis, and the tasks are plotted along the x axis. Since this is a stacked bar chart, the completed tasks and incomplete tasks are stacked in the same bar chart, and distinguished by green and red colored segments respectively.
    11. Bar chart
    Description of the illustration bar_chart_project_task_completion.png

next stepNext Tutorial

Oracle Application Express 18: Charts (3 of 3) - Changing Chart Appearance with JavaScript
