Data Guard Performance Observations

Data Guard Role Transition Duration

Oracle Data Guard and Oracle MAA Gold reference architectures provide disaster recovery and high availability solutions when the primary database, cluster, or site fails or is inaccessible.

Each Data Guard environment is different and the time to perform role transitions can vary significantly. Variables including, but not limited to, SGA size, number of Oracle RAC instances, number of PDBs, number of data files, number of Oracle services and connections to the database at the time of role transition impact the length of a given role transition.

Generally, Data Guard switchover (planned maintenance) is slightly longer than Data Guard failover (unplanned outages).

Assuming system resources are not a bottleneck, the standby system is symmetric to the primary, and apply lag is near zero, the biggest factors that increase Data Guard role transition timings for Oracle 19c or earlier database releases are the following:

  • Number of Pluggable Databases (PDBs) (for example, more than 25 PDBs)
  • Number of Oracle Clusterware managed services (for example, more than 200 Oracle Services)
  • Number of data files (more than 500 Oracle data files)

If any of the above exceeds the thresholds, Data Guard switchover or failover timings can increase by minutes. For example, a database with 5000 or more data files can increase role transition timings by 5 or more minutes. A database with 500 Oracle services can increase role transition timings by a minute or more. A database with 50 or more PDBs can increase role transition timings by a minute or more.

Because the number of data files is a big factor, MAA recommends using large data file sizes or BigFiles when creating tablespaces and partitions. If some databases that are protected by standby databases are critical, MAA recommends isolating them in their own separate container database (CDB) or keeping the number of PDBs to a minimum.

The following information is meant to educate you about ways to optimize role transitions.

Data Guard Switchover Duration

When attempting to minimize application downtime for planned maintenance:

  • Before planned maintenance windows, avoid or defer batch jobs or long running reports. Peak processing windows should also be avoided.

  • Because Data Guard switchover is graceful, which entails a shutdown of the source primary database, any application drain timeout is respected. See Enabling Continuous Service for Applications for Oracle Clusterware service drain attributes and settings.

  • Data Guard switchover operations on a single instance (non-RAC) can be less than 30 seconds.

  • Data Guard switchover operations on Real Application Cluster vary, but can be from 30 seconds to 7 minutes. The duration may increase with more PDBs (for example, > 25 PDBs), more application services (for example, 200 services), and if the database has a large number of data files (for example, 1000s of data files).

The following graph and table show one example of how much switchover operation duration can decrease when MAA tuning recommendations are implemented. Results will vary.

Figure 17-1 Planned maintenance: DR switch duration in seconds


Description of Figure 17-1 follows
Description of "Figure 17-1 Planned maintenance: DR switch duration in seconds"

Planned DR Switch (Switchover) Initial Configuration Tuned MAA Configuration
Convert Primary to Standby 26 secs 21 sec
Convert Standby to Primary (C2P) 47 secs 7 secs
Open new Primary (OnP) 152 secs 14 secs
Open PDB and Start Service (OPDB) 130 secs 39 secs
Total App Downtime 355 secs or 5 mins 55 secs 81 secs (78% drop)

The Tuned MAA Configuration timings were achieved by implementing the following MAA recommended practices:

Data Guard Failover Duration

When attempting to minimize application downtime for DR scenarios:

  • To limit Recovery Time Objective (RTO or database down time) and Recovery Point Objective (RPO or data loss), automatic detection and fail over is required. See Fast-Start Failover in Oracle Data Guard Broker.

  • The database administrator can determine the appropriate "detection time" before initiating an automatic failover by setting FastStartFailoverThreshold. See Enabling Fast-Start Failover Task 4: Set the FastStartFailoverThreshold Configuration Property in Oracle Data Guard Broker.

    The MAA recommended setting is between 5 seconds and 60 seconds for a reliable network. Oracle RAC restart may also recover from a transient error on the primary. Setting this threshold higher gives the restart a chance to complete and avoid failover, which can be intrusive in some environments. The trade off is that application downtime increases in the event an actual failover is required.

  • Data Guard failover operations on a single instance (non-RAC) can be less than 20 seconds.

  • Data Guard failover operations on a Real Application Cluster vary but can be from 20 seconds to 7 minutes. The duration may increase with more PDBs (for example, > 25 PDBs), more application services (for example, 200 services) and if the database has a large number of data files (for example, 1000s of data files).

The following graph and table show one example how much failover operation duration can decrease when MAA tuning recommendations are implemented. Results will vary.

Figure 17-2 Unplanned DR failover duration in seconds


Description of Figure 17-2 follows
Description of "Figure 17-2 Unplanned DR failover duration in seconds"

Unplanned Outage/DR (Failover) Initial Configuration Tuned MAA Configuration
Close to Mount (C2M) 21 secs 1 sec
Terminal Recovery (TR) 154 secs 2 secs
Convert to Primary (C2P) 114 secs 5 secs
Open new Primary (OnP) 98 secs 28 secs
Open PDB and Start Service (OPDB) 146 secs 16 secs
Total App Downtime 533 secs or 8min 53 secs 52 secs (90% drop)

The Tuned MAA Configuration timings were achieved by implementing the following MAA recommended practices:

Customer Examples

Real-world Data Guard role transition duration observations from Oracle customers are shown in the following table.

Primary and Data Guard Configuration Observed RTO

Single instance database failover in Database Cloud (DBCS) with heavy OLTP workload. Data Guard threshold is 5 seconds.

 20 secs

Large commercial bank POC results on 4 node Oracle RAC with heavy OLTP workload, that consists of only one PDB in a large CDB and less 25 clusterware managed services

51 secs (unplanned DR)

82 secs (planned DR)

ExaDB-D 2-node RAC MAA testing with heavy OLTP workload

 78 secs

ADB-D 2-node RAC MAA testing (25 PDBs, 250 services) with heavy OLTP workload

 104 secs

ADB-D 2-node RAC MAA testing (50 PDBs, 600 services) with heavy OLTP workload

 180 secs

ADB-D 2-node RAC MAA testing (4 CDBs, 100 PDBs total, 500 services) with heavy OLTP workload

 164 secs

Oracle SaaS Fleet (thousands) of 12-node RAC, 400 GB SGA, 4000+ data files

(note: reducing number of data files to hundreds can reduce downtime by minutes)

 < 6 mins
Third Party SaaS Fleet (thousands) of 7-12 node RACs with quarterly site switch < 5 mins

Data Guard Role Transition Optimizations in Oracle Database 23ai

Data Guard role transition timings can be 400% times faster in Oracle Database 23ai because of many Oracle Database 23ai optimizations in various areas, including PDB and CDB open and close operations, recovery, and database checkpoint and clusterware service management. The examples below show role transitions are less than 30 seconds, and you will see faster Data Guard role transition timings after upgrading to Oracle Database 23ai compared to Oracle Database 19c.

There are cases were the Oracle Database 23ai Data Guard role transition timings may exceed 30 seconds. The two main factors are

  • Number of data files (for example, more than 2000 data files) and how much outstanding media recovery needed. This is the significant and most impactful variable. For example, a database on a CDB that has 5000 data files and a heavy workload, resulting in outstanding redo to be applied, may have an RTO greater than 60 seconds or even more than a couple of minutes.
  • Number of PDBs and clusterware managed services. If you have many PDBs (more than 25 PDBs) or hundreds clusterware managed services, you may find an increase in RTO timings.

Data Guard switchover and failover timings are reduced significantly in Oracle Database and Oracle Grid Infrastructure 23ai.

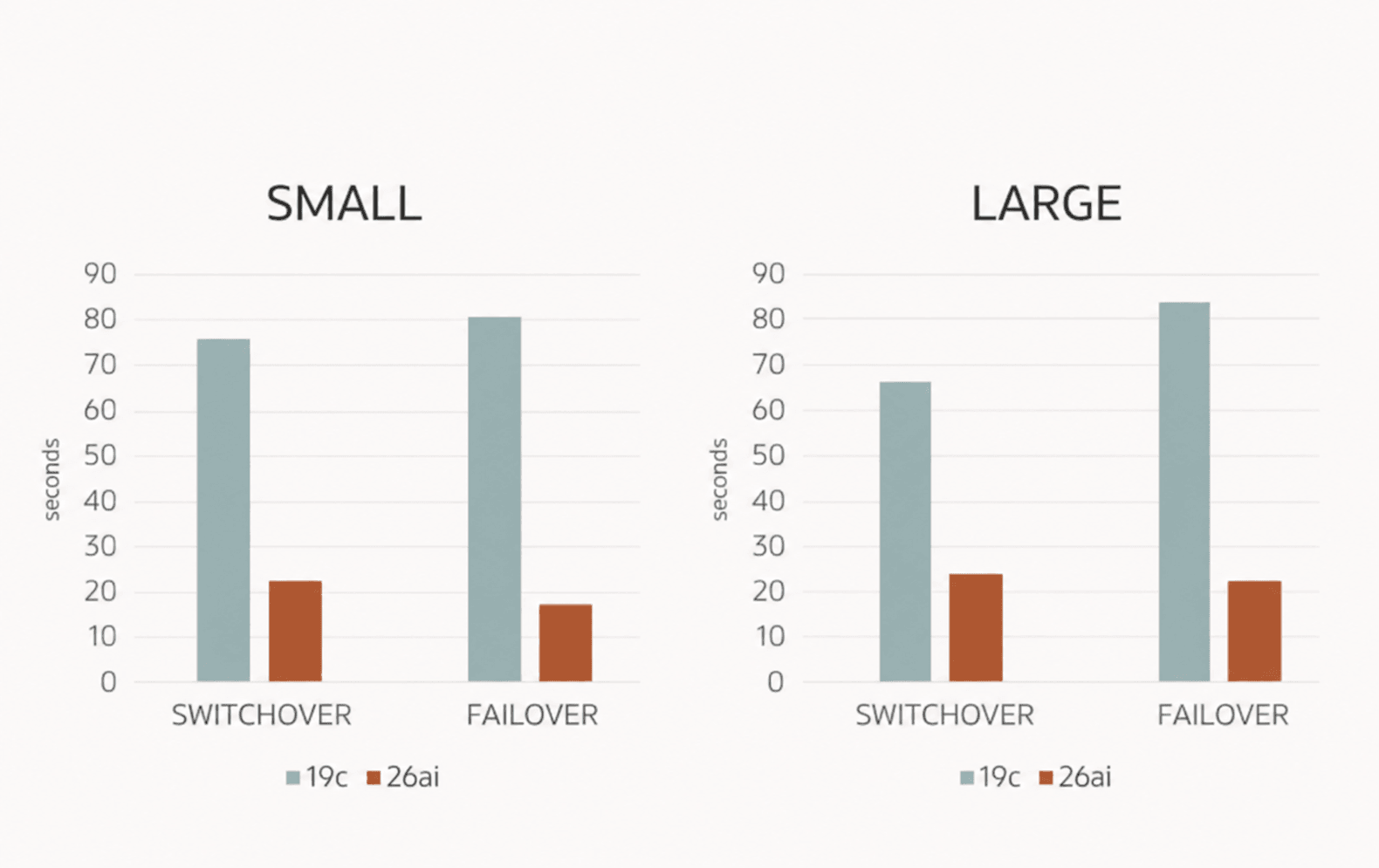

Description of dg-faster-transitions-intwentythreeai.png follows
Description of the illustration dg-faster-transitions-intwentythreeai.png

What Was Measured

Oracle MAA measured the time difference between entering the SWITCHOVER or FAILOVER phase in DGMGRL and starting the services, as seen in the alert log.

For that, three different configurations were used, as shown in the following table.

Configuration System PDBs Data Files Services Redo Rate
SMALL 2-node Exadata RAC 5 50 10 60 MB/s
MEDIUM 4-node Exadata RAC 12 500 12 100 MB/s
LARGE 4-node Exadata RAC 100 10'000 1200 100 MB/s

Redo Apply Performance

Single Instance Redo Apply (SIRA) is the default redo apply mode, and for most cases should be sufficient. Focus on tuning and understanding the bottlenecks of SIRA before even considering Multi-Instance Redo Apply (MIRA). See Redo Apply Troubleshooting and Tuning.

Assuming there is no system resource contention, such as storage bandwidth limitations or non-tuned database wait event due to read-write I/O or checkpoint wait events, Multi-Instance Redo Apply (MIRA) can improve redo apply performance by scaling 30 to 80% for each additional Oracle RAC instance in a MIRA configuration.

There are a number of factors affecting the rate of improvement, such as the type of workload on the primary, additional read-only workload on the standby, and any new top standby wait events.

Figure 17-3 Example apply rates of Swingbench OLTP workloads

Description of Figure 17-3 follows
Description of "Figure 17-3 Example apply rates of Swingbench OLTP workloads"

Figure 17-4 Example apply rates of batch insert workloads

Description of Figure 17-4 follows
Description of "Figure 17-4 Example apply rates of batch insert workloads"

For large redo gaps, you can quickly catch up on the gaps by implementing the method described in Addressing a Very Large Redo Apply Gap.

In very rare case you can temporarily disable some MAA data protection settings if apply performance is more important. Refer to Improving Redo Apply Rates by Sacrificing Data Protection.

Application Throughput and Response Time Impact with Data Guard

Application throughput and response time impact is near zero when you enable Data Guard Max Performance protection mode or ASYNC transport. Throughput and application response time is typically not impacted at all in those cases.

With Data Guard Max Availability or Max Protection mode or SYNC transport, the application performance impact varies, which is why application performance testing is always recommended before you enable SYNC transport. With a tuned network and low round-trip latency (RTT), the impact can also be negligible, even though every log commit has to be acknowledged to every available SYNC standby database in parallel to preserve a zero data loss solution.

Here's an example of the application throughput impact but application impact varies based on workload:

Figure 17-5 Application impact with MTU=9000


Description of Figure 17-5 follows
Description of "Figure 17-5 Application impact with MTU=9000"

Notice the lower network RTT latency (x axis), the application (TPS or y axis) throughput reduces.

Note that in this network environment we observed that increasing MTU from 1500 (default) to 9000 (for example, jumbo frames) helped significantly since log message size increased significantly with SYNC. With the larger MTU size, the number of network packets per redo send request are reduced.

See Assessing and Optimizing Network Performance for details about tuning the network including the socket buffer size and MTU.

Even when throughput decreases significantly with higher RTT latency, you can increase TPS if your application can increase the concurrency. In the above chart, the last 2 columns increased the workload concurrency by adding more users.

Application response time with SYNC transport can also increase, but will vary based on each application workload and network tuning. With SYNC transport, all log writes have to wait for standby SYNC acknowledgment. This additional wait result in more foregrounds waiting for commit acknowledgment. Because commits have to be acknowledged by the standby database and more foregrounds are waiting for commits, the average log write size increases which affects the redo/data transfer time, as shown in the following chart.

Figure 17-6 Database response time (ms) vs latency (ms) for tuned and default MTU


Description of Figure 17-6 follows
Description of "Figure 17-6 Database response time (ms) vs latency (ms) for tuned and default MTU"

In this example, we observed from AWR reports that average redo write size increased significantly, and tuning MTU reduced the response time impact. See Assessing and Optimizing Network Performance on tuning network including the socket buffer size and MTU.

After tuning the network, the response time impact was very predictable and low. Note that response impact varies per application workload.

To get the best application performance with Data Guard, use the following practices:

  • Tune the application without Data Guard first and you should observe similar performance for ASYNC transport

  • Implement Oracle Data Guard Configuration Best Practices

  • Use Redo Transport Troubleshooting and Tuning methods

  • Tune the network to improve application performance with SYNC. See Assessing and Optimizing Network Performance

  • Application workload specific changes that can help increase throughput for SYNC Transport are:

    • Evaluate adding more concurrency or users to increase throughput.

    • For non-critical workloads within certain sessions that do not require zero data loss, evaluate advanced COMMIT_WRITE attribute to NOWAIT.

      In this case, you can commit before receiving the acknowledgment. Redo is still sent to persistent redo logs but is done asynchronously. Recovery is guaranteed for all persistent committed transactions in the redo that is applied. See COMMIT_WRITE in Oracle Database Reference.
