The primary function of Oracle Net is to establish and maintain connections between a client application and an Oracle database server. Oracle Net is comprised of several communication layers that enable clients and database servers to share, modify, and manipulate data.
Introducing Oracle Net Services for an introductory overview of Oracle Net architecture
4.1 Understanding Oracle Net Stack Communication for Client/Server Applications
A database server is the Oracle software managing a database, and a client is an application that requests information from the server. The way the client and server communicate is known as the client/server stack.
Information passed from a client application sent by the client communication stack across a network protocol is received by a similar communication stack on the database server side. The process flow on the database server side is the reverse of the process flow on the client side, with information ascending through the communication layers.

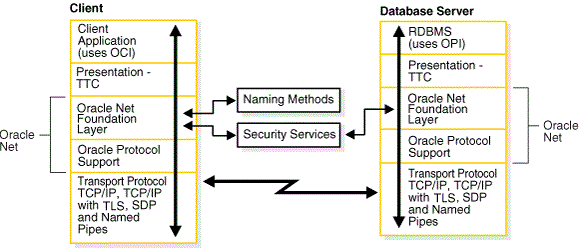

Figure 4-1 illustrates the various layers on the client and on the database server after a connection has been established.
Figure 4-1 Layers Used in a Client/Server Application Connection
Description of "Figure 4-1 Layers Used in a Client/Server Application Connection"
This communication architecture is based on the Open Systems Interconnection (OSI) model. In the OSI model, communication between separate computers occurs in a stack-like fashion with information passing from one node to the other through several layers of code, including:
Data link layer

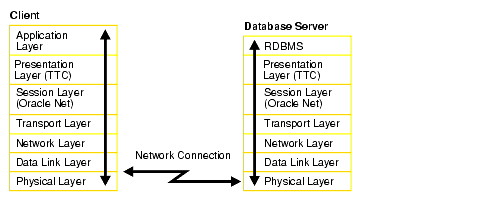

Figure 4-2 shows how Oracle Net software consisting of the Oracle Net foundation layer and Oracle Protocol Support fits into the session layer of the OSI model.
Figure 4-2 OSI Communication Layers
Description of "Figure 4-2 OSI Communication Layers"
For additional information about the OSI stack, go to
This section contains the following topics:
4.1.1 About the Client Communication Stack
The client communication stack includes the following:
188.8.131.52 Client Application Layer
During a session with the database, the client uses Oracle Call Interface (OCI) to interact with the database server. OCI is a software component that provides an interface between the application and SQL.
184.108.40.206 Presentation Layer
Character set differences can occur if the client and database server run on different operating systems. The presentation layer resolves any differences. It is optimized for each connection to perform conversion when required.
The presentation layer used by client/server applications is Two-Task Common (TTC). TTC provides character set and data type conversion between different character sets or formats on the client and database server. At the time of initial connection, TTC is responsible for evaluating differences in internal data and character set representations and determining whether conversions are required for the two computers to communicate.
220.127.116.11 Oracle Net Foundation Layer
The Oracle Net foundation layer is responsible for establishing and maintaining the connection between the client application and database server, as well as exchanging messages between them. The Oracle Net foundation layer can perform these tasks because of Transparent Network Substrate (TNS) technology. TNS provides a single, common interface for all industry-standard OSI transport and network layer protocols. TNS enables peer-to-peer application connectivity, where two or more computers can communicate with each other directly, without the need for any intermediary devices.
On the client side, the Oracle Net foundation layer receives client application requests and resolves all generic computer-level connectivity issues, such as:
The location of the database server or destination
How many protocols are involved in the connection
How to handle interrupts between client and database server based on the capabilities of each
On the server side, the Oracle Net foundation layer performs the same tasks as it does on the client side. It also works with the listener to receive incoming connection requests.
In addition to establishing and maintaining connections, the Oracle Net foundation layer communicates with naming methods to resolve names and uses security services to ensure secure connections.
18.104.22.168 Oracle Protocol Support Layer
Oracle protocol support layer is positioned at the lowest layer of the Oracle Net foundation layer. It is responsible for mapping TNS functionality to industry-standard protocols used in the client/server connection. This layer supports the following network protocols:
TCP/IP with Transport Layer Security (TLS)
Sockets Direct Protocol (SDP)
All Oracle software in the client/server connection process requires an existing network protocol stack to establish the computer-level connection between the two computers for the transport layer. The network protocol is responsible for transporting data from the client computer to the database server computer, at which point the data is passed to the server-side Oracle protocol support layer.
4.1.2 About the Server Communication Stack
The server communication stack uses the same layers as the client stack with the exception that the database uses Oracle Program Interface (OPI). For each statement sent from OCI, OPI provides a response. For example, an OCI request to fetch 25 rows would elicit an OPI response to return the 25 rows after they have been fetched.
4.2 Using Oracle Net Stack Communication for Java Applications
The Oracle Java Database Connectivity (JDBC) Drivers provide Java applications access to an Oracle database. Oracle offers two JDBC drivers.
JDBC OCI Driver is a type 2 JDBC driver which is used by client/server Java applications. The JDBC OCI driver uses a communication stack similar to a standard client/server communication stack. The JDBC OCI driver converts JDBC invocations to calls to OCI which are then sent over Oracle Net to the Oracle database server.
JDBC Thin Driver is a type 4 driver which is used by Java applets. The JDBC Thin Driver establishes a direct connection to the Oracle database server over Java sockets. The JDBC Thin driver uses a Java implementation of the Oracle Net foundation layer called JavaNet and a Java implementation of TTC called JavaTTC to access the database.
The following figure shows the stack communication layers used by JDBC drivers.
Figure 4-3 Layers Used for Java-Client Applications
Description of "Figure 4-3 Layers Used for Java-Client Applications"
4.3 Using Oracle Net Stack Communication for Web Clients
The Oracle database server supports many other implementations for the presentation layer that can be used for web clients accessing features inside the database in addition to TTC. The listener facilitates this by supporting any presentation implementation requested by the database.

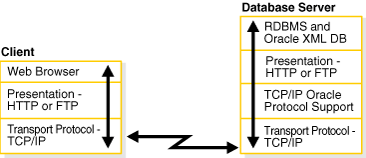

Figure 4-4 shows the stack communication layers used in an HTTP or FTP connection to Oracle XML DB in the Oracle database instance. WebDAV connections use the same stack communication layers as HTTP and FTP.
Figure 4-4 Layers Used in Web Client Connections
Description of "Figure 4-4 Layers Used in Web Client Connections"
4.4 Understanding Oracle Protocol Support Layer
A network protocol is responsible for transporting data from the client computer to the database server computer. This section describes the protocols used by the Oracle Protocol Support layer of the Oracle Net communication stack.
4.4.1 About TCP/IP Protocol
TCP/IP (Transmission Control Protocol/Internet Protocol) is the standard communication protocol suite used for client/server communication over a network. TCP is the transport protocol that manages the exchange of data between hosts. IP is a network layer protocol for packet-switched networks.
Oracle Net supports IP in two versions: IP version 4 (IPv4) and IP version 6 (IPv6). IPv6 addresses the shortcomings of the currently used IPv4. The primary benefit of IPv6 is a large address space derived from the use of 128-bit addresses.
http://tools.ietf.org/html/rfc2460 for the IPv6 specification
22.214.171.124 IPv6 Address Notation
Oracle Database supports the standard IPv6 address notations specified by RFC 2732. A 128-bit IP address is generally represented as 8 groups of 4 hexadecimal digits, with the colon (
:) symbol as the group separator. For example, the following address is in a valid IPv6 format:
Each hexadecimal digit in the address represents 4 bits, so each group in the address represents 16 bits. The following addresses represent the first and last hosts in the
In shorthand notation, consecutive zero fields can be compressed with a double colon (
::) separator, as shown in the following equivalent notations:
2001:0db8:0:0::200C:417A 2001:0db8::200C:417A 2001:DB8::200C:417A
126.96.36.199.1 CIDR Notation
Classless Inter-Domain Routing (CIDR) is a method of grouping IP addresses into subnets that are independent of the value of the addresses. Classless routing was designed to overcome the exhaustion of address space in the IP class system and the unmanageable growth in the size of routing tables.
CIDR denotes a network by the first address in the network and the size in bits of the network prefix in decimal, separated with a slash (
/). For example,
2001:0db8::/32 indicates that the first 32 bits of the address identify the network, whereas the remaining bits identify the hosts in the network.
CIDR uses an analogous notation for IPv4 address. For example, in the notation
192.0.2.0/24 the first 24 bits of the address represent the network prefix. The
DBMS_NETWORK_ACL_ADMIN package, which provides an API to manage access control lists, supports CIDR notation for both IPv6 and IPv4 addresses and subnets.
Oracle Database PL/SQL Packages and Types Reference to learn about
http://tools.ietf.org/html/rfc4632for RFC 4632
188.8.131.52.2 IPv6 Addresses in URLs
In URLs, IPv6 addresses are enclosed by the left bracket (
[) and right bracket (
]) characters. For example, the IPv6 address
[2001:0db8:0:0:8:800:200C:417A] forms part of the following URLs:
184.108.40.206.3 IPv4-Mapped Addresses
IPv4-mapped addresses are a subclass of IPv6 addresses in which the following conditions are true:
The first 80 bits are set to 0 in the standard IPv6 notation
The second 16 bits are set to 1 in the standard IPv6 notation
The last 32 bits are in IPv4 notation
An IPv4-mapped address can represent the addresses of IPv4-only nodes as IPv6 addresses.
Example 4-1 shows the same IP address in different notations. The first address uses standard IPv6 notation. The second address is an IPv4-mapped address in which the last 32 bits use dotted-decimal IPv4 notation. The last address uses a shorthand notation to compress the consecutive zero fields.
Example 4-1 IPv4-Mapped Address
0000:0000:0000:0000:0000:FFFF:C0A8:0226 0000:0000:0000:0000:0000:FFFF:192.0.2.38 ::FFFF:192.0.2.38
http://tools.ietf.org/html/rfc4942 for security consideration relating to the use of IPv4-mapped addresses
220.127.116.11 IPv6 Interface and Address Configurations
A host may have different IPv4 and IPv6 interface configurations. The following configurations are possible for a host:
Only an IPv4 interface, in which case the host is an IPv4-only host.
Only an IPv6 interface, in which case the host is an IPv6-only host.
Both an IPv4 and IPv6 interface, in which case the host is a dual-stack host.
A single host may also use different types of IP address. For example, a domain name server may associate a dual-stack host both by an IPv4 and an IPv6 address or only an IPv6 address. The IP address configurations that are not supported are the following:
An IPv4-only host cannot use an IPv6 address.
An IPv6-only host cannot use an IPv4 address.

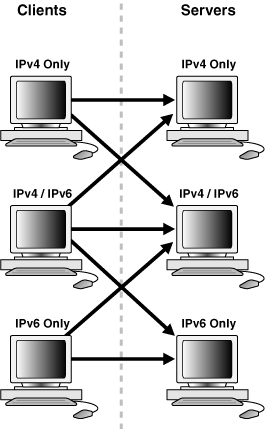

Figure 4-5 shows possible host and interface configurations. The dual-stack host in the center of the diagram can communicate with IPv4 hosts over IPv4 and with IPv6 hosts over IPv6.
Figure 4-5 Supported Host and Interface Configurations
Description of "Figure 4-5 Supported Host and Interface Configurations"
18.104.22.168 IPv6 Network Connectivity
The network connectivity of a host refers to its ability to communicate with another host over a network. For example, if a dual-stack client must communicate with an IPv6-only server, then the network and router must make end-to-end communication between these hosts possible.
A client or server host is IPv6-capable if it meets the following criteria:
It has a configured IPv6 interface.
It can connect to other hosts using the IPv6 protocol.
The IPv6 capability of a host is partially dependent on the network and partially dependent on its interface and address configuration. Figure 4-6 shows the possibilities for connectivity in a client/server network. For example, an IPv4-only host can connect to either an IPv4-only or dual-stack server, but not an IPv6-only server. Both dedicated and shared server modes are supported.
Figure 4-6 Client/Server Connectivity
Description of "Figure 4-6 Client/Server Connectivity"
Table 4-1 summarizes the IP protocols used for client/server connectivity with different host and network configurations.
Table 4-1 Supported Host and Network Configurations
|Client||IPv4-Only Server||Dual-Stack Server||IPv6-Only Server|
Supported (v4, v6)
22.214.171.124 IPv6 Support in Oracle Database 12c
Components in this release of Oracle Database 12c support IPv6 in the configurations described in "IPv6 Network Connectivity", with the following exception:
Oracle Clusterware for private and ASM networks
4.4.2 About TCP/IP with TLS Protocol
The TCP/IP with Transport Layer Security (TLS) protocol enables an Oracle application on a client to communicate with remote databases through TCP/IP and TLS.
Mutual or two-way Transport Layer Security (mTLS) uses encryption data, such as certificates and private keys in Oracle wallets on both nodes to configure the encrypted secure link between the database server and database client. When a client initiates a connection to the database server, mTLS performs a handshake between both the server and client using certificates stored in the wallet.
During the handshake, the following processes occur:
The client and database server negotiate a cipher suite (made up a set of authentication, encryption, and data integrity types) to apply to the messages they exchange.
Depending on its configuration, the database server sends its certificate to the client in a message encrypted with the client's public key. The database server also sends a request for the client's certificate in the same message. The client decrypts this message by using its own private key, and then verifies whether the database server certificate bears the certificate authority's (CA) signature.
The client sends the user's certificate to the database server. The certificate ensures that the user's information is correct and the public key belongs to that user.
The database checks the user certificate to verify that it bears the CA's signature.
If you do not require client authentication, similar to
HTTPS connections that require only the web server to have a certificate, then you can configure one-way TLS (server authentication). In this case, only the database server authenticates to the client by presenting its server certificate and the client verifies whether the database server certificate is valid.
The client recognizes and authenticates the identity of the database server in one of the following ways:
Server Authentication With Client Wallets:
TLS stores authentication data, such as trusted CA certificates and private keys, in an Oracle wallet. When the server sends its trusted root certificate to the client, the client verifies the server certificate using the certificates stored in the wallet.
Server Authentication Without Client Wallets:
An Oracle client wallet with the server certificate is not required if the database server certificate is signed by a trusted common root certificate that is already installed in the local system default certificate store. For example,
/etc/pki/tls/cert.pemon Linux. When the database server sends its certificate to the client, the client verifies the server certificate using the root certificates stored in the default certificate store.
This method simplifies the client configuration and database client-server communication process because clients do not need to configure their own wallets with trusted certificates.
4.4.3 About Named Pipes Protocol
Named Pipes is specifically designed for Microsoft Windows LAN environments. The Named Pipes protocol is a high-level interface providing interprocess communications between clients and database servers using distributed applications. One server-side process creates a named pipe, and the client-side process opens it by name. What one side writes, the other can read.
If a remote Oracle database is running on a host system that supports network communication using Named Pipes, then Oracle Net enables applications on a client to communicate with the Oracle database using Named Pipes.
4.4.4 About Sockets Direct Protocol (SDP)
The Sockets Direct Protocol (SDP) is an industry-standard wire protocol between InfiniBand network peers. When used over an InfiniBand network, SDP reduces TCP/IP overhead by eliminating intermediate replication of data and transferring most of the messaging burden away from the CPU and onto the network hardware.
4.4.5 About Exadirect Protocol
The Exadirect protocol is an innovative protocol for low overhead database access. Use the new transport to improve latency and throughput by leveraging Remote Direct Memory Access (RDMA) in an InfiniBand environment.
Exadirect protocol uses TCP for control communication and IB RC transport for data.
The Exadirect protocol adapter is supported only on Oracle Linux in this release.
4.4.6 About Websocket Protocol
The Database client connection supports secure websocket protocol. The secure web socket connection establishment is designed to work over
HTTPS, to support
HTTPS proxies, and intermediary proxies. This protocol offers a native connection to the database with minimum protocol overhead. Secure websocket protocol is used to negotiate
SQL*Net protocol during connection establishment between the database server and the client. The secure websocket protocol uses
TLS and requires wallet for operation.
The Web server should support web socket tunneling. Web server proxy module (in case of Apache or Oracle HTTP Server (OHS),
mod_proxy_wstunnel)) proxies the secure web socket database connection data between the client and the backend database server. The Database client connects using secure websocket protocol to Web server and the Web server connects to the database using websocket protocol.
