46 DBMS_CLOUD
The DBMS_CLOUD
package provides comprehensive support for working with data in Object
Storage.
46.1 DBMS_CLOUD Overview
Using DBMS_CLOUD
to work with data in Object Storage you can do the
following:
-
Manage your credentials for accessing Object Store.
-
Copy data as-is: External data is loaded into the database in a single one-step operation, without the need to create any objects in the database. The load operation is monitored and tracked inside the database.
-
Manage the information about your load operations.
-
Validate the content of external data prior to consumption. Prior to consumption of external data you verify its content and identify rows that do not conform to the expected external data format.
-
Create an external table. Create the necessary object in the database for flexible and continuous consumption.
-
Work with objects in object stores and directories.
46.2 Installing the DBMS_CLOUD Package
The DBMS_CLOUD
package provides a comprehensive support for
working with data in Object Storage starting with Oracle Database 19c and later releases.
However, this package is not pre-installed with Oracle Database. You need to manually
install the DBMS_CLOUD
package and also configure users or roles to use
this package.
For information on installing the DBMS_CLOUD
package and configuring users/roles, see the MOS-NOTE with Doc ID 2748362.1.
46.3 DBMS_CLOUD Security Model
Security on this package can be controlled by granting
EXECUTE
on this package to selected users or roles.
46.4 DBMS_CLOUD Exceptions
The following table describes exceptions for DBMS_CLOUD
.
Exception | Code | Description |
---|---|---|
reject_limit |
20003 | The reject limit of an external table was reached. |
credential_not_exist |
20004 | A credential object does not exist. |
table_not_exist |
20005 | A table does not exist. |
unsupported_obj_store |
20006 | An unsupported object store URI was provided. |
iden_too_long |
20008 | An identifier is too long. |
invalid_format |
20009 | A format argument is not valid. |
missing_credential |
20010 | Mandatory credential object information was not specified. |
invalid_object_uri |
20011 | An invalid object URI was provided. |
invalid_partitioning_clause |
20012 | An partitioning clause is missing or was not provided. |
unsupported_feature |
20013 | An unsupported feature was used that is not existent in the current database version. |
part_not_exist |
20014 | A partition or subpartition does not exist, or a table is not a partitioned external table or hybrid partitioned table. |
invalid_table_name |
20016 | An invalid table name was used. |
invalid_schema_name |
20017 | An invalid schema name was used. |
invalid_dir_name |
20018 | An invalid directory name was used. |
invalid_file_name |
20019 | An invalid file name was used. |
invalid_cred_attribute |
20020 | Invalid credential attributes were specified. |
table_exist |
20021 | A table already exists. |
credential_exist |
20022 | A credential object already exists. |
invalid_req_method |
20023 | A request method is either too long or invalid. |
invalid_req_header |
20024 | An invalid request header was specified. |
file_not_exist |
20025 | A file does not exist. |
invalid_response |
20026 | An HTTP response was not valid. |
invalid_operation |
20027 | An invalid task class or ID was specified. |
invalid_user_name |
20028 | An invalid username was specified. |
46.5 Summary of DBMS_CLOUD Subprograms
This section covers the DBMS_CLOUD
subprograms provided with Oracle Database.
Subprogram | Description |
---|---|
This procedure loads data into existing Oracle Database tables from files in the Cloud. | |
This procedure with the
format parameter type set to the value avro or
parquet loads data into existing Oracle Database tables from Avro or Parquet files in the Cloud. Similar to
text files, the data is copied from the source Avro or Parquet file into the preexisting internal table.
|
|
This procedure stores cloud service credentials in Oracle Database. | |
This procedure creates an external table on files in the Cloud. This allows you to run queries on external data from Oracle Database. | |
This procedure with the
format parameter type set to the value avro or
parquet creates an external table with either Avro or Parquet format files in the Cloud.
This allows you to run queries on external data from Oracle Database.
|
|
This procedure creates an external partitioned table on files in the Cloud. This allows you to run queries on external data from Oracle Database. | |
This procedure creates a hybrid partitioned table. This allows you to run queries on hybrid partitioned data from Oracle Database. | |
This procedure clears either all data load
operations logged in the
user_load_operations table in
your schema or clears all the data load operations
of the specified type, as indicated with the
type parameter.
|
|
This procedure removes the specified file from the specified directory on Oracle Database | |
This procedure deletes the specified object on object store. | |
This procedure removes an existing credential from Oracle Database. | |
This procedure is overloaded. The procedure
form reads an object from Cloud Object Storage and
copies it to Oracle Database. The function form reads
an object from Cloud Object Storage and returns a
BLOB to Oracle Database.
|
|
This function lists the files in the specified directory. The results include the file names and additional metadata about the files such as file size in bytes, creation timestamp, and the last modification timestamp. | |
This function lists objects in the specified location on object store. The results include the object names and additional metadata about the objects such as size, checksum, creation timestamp, and the last modification timestamp. | |
This procedure is overloaded. In one form
the procedure copies a file from Oracle Database to the Cloud Object Storage. In
another form the procedure copies a
BLOB from Oracle Database to the Cloud Object Storage.
|
|
This procedure updates cloud service credential attributes in Oracle Database. | |
This procedure validates the source files for an external table, generates log information, and stores the rows that do not match the format options specified for the external table in a badfile table on Oracle Database. | |
This procedure validates the source files for an external partitioned table, generates log information, and stores the rows that do not match the format options specified for the external table in a badfile table on Oracle Database. | |
This procedure validates the source files for a hybrid partitioned table, generates log information, and stores the rows that do not match the format options specified for the hybrid table in a badfile table on Oracle Database. |
46.5.1 COPY_DATA Procedure
This
procedure loads data into existing Oracle Database tables from files in the Cloud, or from files in a directory. The
overloaded form enables you to use the operation_id
parameter.
Syntax
DBMS_CLOUD.COPY_DATA
(
table_name IN VARCHAR2,
credential_name IN VARCHAR2 DEFAULT NULL,
file_uri_list IN CLOB,
schema_name IN VARCHAR2,
field_list IN CLOB,
format IN CLOB);
DBMS_CLOUD.COPY_DATA
(
table_name IN VARCHAR2,
credential_name IN VARCHAR2 DEFAULT NULL,
file_uri_list IN CLOB DEFAULT NULL,
schema_name IN VARCHAR2 DEFAULT NULL,
field_list IN CLOB DEFAULT NULL,
format IN CLOB DEFAULT NULL
operation_id OUT NOCOPY NUMBER);
Parameters
Parameter | Description |
---|---|
|
The name of the target table on the database. The target table needs to be created
before you run |
|
The name of the credential to access the Cloud Object Storage. This parameter is not used when you specify a directory with
|
|
This parameter specifies either a comma-delimited list of source file URIs or one or more directories and source files. Cloud source file URIs You can use wildcards in the file names in your URIs. The character "*" can be used as the wildcard for multiple characters, the character "?" can be used as the wildcard for a single character. The format of the URIs depends on the Cloud Object Storage service you are using, for details see DBMS_CLOUD Package File URI Formats. Directory You can specify one directory and one or more file names or
use a comma separated list of directories and file names. The format to specify a
directory is: You can use wildcards to specify file names in a directory.
The character "*" can be used as the wildcard for multiple characters, the character "?"
can be used as the wildcard for a single character. For
example: To specify multiple directories, use a comma separated list of
directories: For example: Use double quotes to specify a case-sensitive directory name.
For example: To include a quote character, use two quotes. For
example: |
|
The name of the schema where the target table resides. The default value is NULL meaning the target table is in the same schema as the user running the procedure. |
|
Identifies the fields in the source files and their data types. The default value is
NULL meaning the fields and their data types are determined by
the target table definition. This argument's syntax is the same
as the For an example using |
|
The options describing the format of the source, log, and bad files. For the list of the options and how to specify the values see DBMS_CLOUD Package Format Options. For Avro or Parquet file format options, see DBMS_CLOUD Package Format Options for Avro or Parquet. |
|
Use this parameter to track the progress and final status of the
load operation as the corresponding ID in the
|
Usage Note
The default record delimiter is
detected newline
. With detected newline
,
DBMS_CLOUD
tries to automatically find the correct newline
character to use as the record delimiter. DBMS_CLOUD
first
searches for the Windows newline character \r\n
. If it finds
the Windows newline character, this is used as the record delimiter for all
files in the procedure. If a Windows newline character is not found,
DBMS_CLOUD
searches for the UNIX/Linux newline character
\n
, and if it finds one it uses \n
as the
record delimiter for all files in the procedure. If the source files use a
combination of different record delimiters, you may encounter an error such as,
"KUP-04020: found record longer than buffer size
supported
". In this case, you need to either modify the source files to
use the same record delimiter or only specify the source files that use the same
record delimiter.
See DBMS_CLOUD Package Format Options for information on the recorddelmiter
format option.
46.5.2 COPY_DATA Procedure for Avro or Parquet Files
format
parameter
type
set to the value avro
or
parquet
loads data into existing
Oracle Database tables from Avro or Parquet files in the Cloud or from files
in a directory.
Similar to text files, the data is copied from the source Avro or Parquet file into the preexisting internal table.
Syntax
DBMS_CLOUD.COPY_DATA
(
table_name IN VARCHAR2,
credential_name IN VARCHAR2 DEFAULT NULL,
file_uri_list IN CLOB,
schema_name IN VARCHAR2 DEFAULT,
field_list IN CLOB DEFAULT,
format IN CLOB DEFAULT);
Parameters
Parameter | Description |
---|---|
|
The name of the target table on the database. The target table needs to be created
before you run |
|
The name of the credential to access the Cloud Object Storage. This parameter is not used when you specify a directory with
|
|
This parameter specifies either a comma-delimited list of source file URIs or one or more directories and source files. Cloud source file URIs You can use wildcards in the file names in your URIs. The character "*" can be used as the wildcard for multiple characters, the character "?" can be used as the wildcard for a single character. The format of the URIs depends on the Cloud Object Storage service you are using, for details see DBMS_CLOUD Package File URI Formats. Directory You can specify one directory and one or more file names or
use a comma separated list of directories and file names. The format to specify a
directory is: You can use wildcards to specify file names in a directory.
The character "*" can be used as the wildcard for multiple characters, the character "?"
can be used as the wildcard for a single character. For
example: To specify multiple directories, use a comma separated list of
directories: For example: Use double quotes to specify a case-sensitive directory name.
For example: To include a quote character, use two quotes. For
example: |
|
The name of the schema where the target table resides. The default value is NULL meaning the target table is in the same schema as the user running the procedure. |
|
Ignored for Avro or Parquet files. The fields in the source match the external table columns by name. Source data types are converted to the external table column data type. For Parquet files, see DBMS_CLOUD Package Parquet to Oracle Data Type Mapping for details on mapping. For Avro files, see DBMS_CLOUD Package Avro to Oracle Data Type Mapping for details on mapping. |
|
The options describing the format of the source files. For Avro or Parquet files, only two options are supported: see DBMS_CLOUD Package Format Options for Avro or Parquet. |
Usage Notes
-
As with other data files, Avro and Parquet data loads generate logs that are viewable in the tables
dba_load_operations
anduser_load_operations
. Each load operation adds a record todba
[user]_load_operations
that indicates the table containing the logs.The log table provides summary information about the load.
-
For Avro or Parquet, when the
format
parametertype
is set to the valueavro
orparquet
, theBADFILE_TABLE
table is always empty.-
For Parquet files,
PRIMARY KEY
constraint errors throw anORA
error. -
If data for a column encounters a conversion error, for example, the target column is not large enough to hold the converted value, the value for the column is set to
NULL
. This does not produce a rejected record.
-
46.5.3 CREATE_CREDENTIAL Procedure
This procedure stores cloud service credentials in Oracle Database.
Use stored cloud service credentials to access the cloud service for data
loading, for querying external data residing in the cloud, or for other cases when
you use DBMS_CLOUD
procedures
with a credential_name
parameter. This procedure is overloaded:
-
Use the Oracle Cloud Infrastructure-related parameters, including:
user_ocid
,tenancy_ocid
,private_key
, andfingerprint
only when you are using Oracle Cloud Infrastructure Signing Keys authentication. -
Use the AWS ARN-related parameter
params
, only when you are using Amazon Resource Names (ARNs) credentials.
Syntax
DBMS_CLOUD.CREATE_CREDENTIAL
(
credential_name IN VARCHAR2,
username IN VARCHAR2,
password IN VARCHAR2 DEFAULT NULL);
DBMS_CLOUD.CREATE_CREDENTIAL
(
credential_name IN VARCHAR2,
user_ocid IN VARCHAR2,
tenancy_ocid IN VARCHAR2,
private_key IN VARCHAR2,
fingerprint IN VARCHAR2);
DBMS_CLOUD.CREATE_CREDENTIAL
(
credential_name IN VARCHAR2,
params IN CLOB DEFAULT);
Parameters
Parameter | Description |
---|---|
|
The name of the credential to be stored. The
|
|
The |
|
The |
|
Specifies the user's OCID. See Where to Get the Tenancy's OCID and User's OCID for details on obtaining the User's OCID. |
|
Specifies the tenancy's OCID. See Where to Get the Tenancy's OCID and User's OCID for details on obtaining the Tenancy's OCID. |
|
Specifies the generated private key. Private keys generated with a passphrase are not supported. You need to generate the private key without a passphrase. See How to Generate an API Signing Key for details on generating a key pair in PEM format. |
|
Specifies a fingerprint. After a generated public key is uploaded to the user's account the fingerprint is displayed in the console. Use the displayed fingerprint for this argument. See How to Get the Key's Fingerprint and How to Generate an API Signing Key for more details. |
|
Specifies credential parameters using Amazon Resource Names (ARNs) credentials. |
Usage Notes
-
This operation stores the credentials in the database in an encrypted format.
-
You can see the credentials in your schema by querying the
user_credentials
table. -
The
ADMIN
user can see all the credentials by querying thedba_credentials
table. -
You only need to create credentials once unless your cloud service credentials change. Once you store the credentials you can then use the same credential name for
DBMS_CLOUD
procedures that require acredential_name
parameter. -
This procedure is overloaded. If you provide one of the key based authentication attributes,
user_ocid
,tenancy_ocid
,private_key
, orfingerprint
, the call is assumed to be an Oracle Cloud Infrastructure Signing Key based credential. -
You can list credentials from the view
ALL_CREDENTIALS
. For example, run the following command to list credentials:SELECT credential_name, username, comments FROM all_credentials;
Oracle Cloud Infrastructure Credentials (Auth Tokens)
For Oracle Cloud
Infrastructure the username
is your Oracle Cloud Infrastructure user name. The
password
is your Oracle Cloud Infrastructure auth token. See
Working with Auth Tokens.
For example:
BEGIN
DBMS_CLOUD.CREATE_CREDENTIAL
(
credential_name => 'DEF_CRED_NAME',
username => 'adwc_user@example.com',
password => 'password' );
END;
/
Oracle Cloud Infrastructure Signing Key Based Credentials
Use the Oracle Cloud
Infrastructure signing key related parameters, including: user_ocid
,
tenancy_ocid
, private_key
, and
fingerprint
with Oracle Cloud
Infrastructure Signing Keys authentication.
For example:
BEGIN
DBMS_CLOUD.CREATE_CREDENTIAL (
credential_name => ‘OCI_KEY_CRED’,
user_ocid => ‘ocid1.user.oc1..aaaaaaaauq54mi7zdyfhw33ozkwuontjceel7fok5nq3bf2vwetkpqsoa’,
tenancy_ocid => ‘ocid1.tenancy.oc1..aabbbbbbaafcue47pqmrf4vigneebgbcmmoy5r7xvoypicjqqge32ewnrcyx2a’,
private_key => ‘MIIEogIBAAKCAQEAtUnxbmrekwgVac6FdWeRzoXvIpA9+0r1.....wtnNpESQQQ0QLGPD8NM//JEBg=’,
fingerprint => ‘f2:db:f9:18:a4:aa:fc:94:f4:f6:6c:39:96:16:aa:27’);
END;
/
Private keys generated with a passphrase are not supported. You need to generate the private key without a passphrase. See How to Generate an API Signing Key for more information.
Oracle Cloud Infrastructure Object Storage Classic Credentials
If your source files reside in Oracle Cloud
Infrastructure Object Storage Classic, the username
is your Oracle Cloud Infrastructure
Classic user name and the password
is your Oracle Cloud Infrastructure
Classic password.
Amazon Web Services (AWS) Credentials
If your source files reside in Amazon S3 or you are calling an AWS API, the username
is your AWS access key ID and the password
is your AWS secret access key. See AWS Identity and Access Management.
Microsoft Azure Credentials
If your source files reside in Azure Blob Storage or you are calling an Azure API, the username
is your Azure storage account name and the password
is an Azure storage account access key. See About Azure storage accounts.
AWS Amazon Resource Names (ARN) Credentials
If your source files reside in Amazon S3 or you are calling an AWS API, use params
to specify the parameters for the Amazon Resource Names (ARN).
Parameter | Value |
---|---|
aws_role_arn |
Specifies the Amazon Resource Name (ARN) that identifies the AWS role. If this parameter is not supplied when creating the credential, |
external_id_type |
Optionally set the If this parameter is not given when creating the credential, the default value is |
For example:
BEGIN DBMS_CLOUD.CREATE_CREDENTIAL
(
credential_name => 'MY_CRED',
params => JSON_OBJECT(
'aws_role_arn' value 'arn:aws:iam::123456:role/AWS_ROLE_ARN',
'external_id_type' value 'database_ocid'));
END;
/
GitHub Personal Access Token
If your source files reside in a GitHub repository or you are calling a GitHub API, the username
is your GitHub email and the password
is your GitHub personal access token. See Creating a personal access token for more information.
For example:
BEGIN
DBMS_CLOUD.CREATE_CREDENTIAL
(
credential_name => 'MY_GITHUB_CRED',
username => 'user@example.com',
password => 'your_personal_access_token' );
END;
/
46.5.4 CREATE_EXTERNAL_TABLE Procedure
This procedure creates an external table on files in the Cloud or from files in a directory. This allows you to run queries on external data from Oracle Database.
Syntax
DBMS_CLOUD.CREATE_EXTERNAL_TABLE
(
table_name IN VARCHAR2,
credential_name IN VARCHAR2 DEFAULT NULL,
file_uri_list IN CLOB,
column_list IN CLOB,
field_list IN CLOB DEFAULT,
format IN CLOB DEFAULT);
Parameters
Parameter | Description |
---|---|
|
The name of the external table. |
|
The name of the credential to access the Cloud Object Storage. This parameter is not used when you specify a directory with
|
|
This parameter specifies either a comma-delimited list of source file URIs or one or more directories and source files. Cloud source file URIs You can use wildcards in the file names in your URIs. The character "*" can be used as the wildcard for multiple characters, the character "?" can be used as the wildcard for a single character. The format of the URIs depends on the Cloud Object Storage service you are using, for details see DBMS_CLOUD Package File URI Formats. Directory You can specify one directory and one or more file names or
use a comma separated list of directories and file names. The format to specify a
directory is: You can use wildcards to specify file names in a directory.
The character "*" can be used as the wildcard for multiple characters, the character "?"
can be used as the wildcard for a single character. For
example: To specify multiple directories, use a comma separated list of
directories: For example: Use double quotes to specify a case-sensitive directory name.
For example: To include a quote character, use two quotes. For
example: |
|
Comma-delimited list of column names and data types for the external table. |
|
Identifies the fields in the source files and their data types. The default value is NULL meaning the fields and their data types are determined by the column_list parameter. This argument's syntax is the same as the |
|
The options describing the format of the source files. For the list of the options and how to specify the values see DBMS_CLOUD Package Format Options. For Avro or Parquet format files, see CREATE_EXTERNAL_TABLE Procedure for Avro or Parquet Files. |
Usage Notes
-
The procedure
DBMS_CLOUD.CREATE_EXTERNAL_TABLE
supports external partitioned files in the supported cloud object storage services, including:-
Oracle Cloud Infrastructure Object Storage
-
Azure Blob Storage
-
Amazon S3
-
GitHub Repository
The credential is a table level property; therefore, the external files must be on the same object store.
See DBMS_CLOUD Package File URI Formats for more information.
-
-
The default record delimiter is
detected newline
. Withdetected newline
,DBMS_CLOUD
tries to automatically find the correct newline character to use as the record delimiter.DBMS_CLOUD
first searches for the Windows newline character\r\n
. If it finds the Windows newline character, this is used as the record delimiter for all files in the procedure. If a Windows newline character is not found,DBMS_CLOUD
searches for the UNIX/Linux newline character\n
, and if it finds one it uses\n
as the record delimiter for all files in the procedure. If the source files use a combination of different record delimiters, you may encounter an error such as, "KUP-04020: found record longer than buffer size supported
". In this case, you need to either modify the source files to use the same record delimiter or only specify the source files that use the same record delimiter.See DBMS_CLOUD Package Format Options for information on the
recorddelmiter
format option.
Example
BEGIN
DBMS_CLOUD.CREATE_EXTERNAL_TABLE
(
table_name =>'WEATHER_REPORT_DOUBLE_DATE',
credential_name =>'OBJ_STORE_CRED',
file_uri_list =>'&base_URL/Charlotte_NC_Weather_History_Double_Dates.csv',
format => json_object('type' value 'csv', 'skipheaders' value '1'),
field_list => 'REPORT_DATE DATE''mm/dd/yy'',
REPORT_DATE_COPY DATE ''yyyy-mm-dd'',
ACTUAL_MEAN_TEMP,
ACTUAL_MIN_TEMP,
ACTUAL_MAX_TEMP,
AVERAGE_MIN_TEMP,
AVERAGE_MAX_TEMP,
AVERAGE_PRECIPITATION',
column_list => 'REPORT_DATE DATE,
REPORT_DATE_COPY DATE,
ACTUAL_MEAN_TEMP NUMBER,
ACTUAL_MIN_TEMP NUMBER,
ACTUAL_MAX_TEMP NUMBER,
AVERAGE_MIN_TEMP NUMBER,
AVERAGE_MAX_TEMP NUMBER,
AVERAGE_PRECIPITATION NUMBER');
END;
/
SELECT * FROM WEATHER_REPORT_DOUBLE_DATE where
actual_mean_temp > 69 and actual_mean_temp < 74
46.5.5 CREATE_EXTERNAL_TABLE Procedure for Avro or Parquet Files
format
parameter
type
set to the value avro
or
parquet
creates an external
table with either Avro or Parquet format files
in the Cloud or from files in a directory.
This allows you to run queries on external data from Oracle Database.
Syntax
DBMS_CLOUD.CREATE_EXTERNAL_TABLE
(
table_name IN VARCHAR2,
credential_name IN VARCHAR2 DEFAULT NULL,
file_uri_list IN CLOB,
column_list IN CLOB,
field_list IN CLOB DEFAULT,
format IN CLOB DEFAULT);
Parameters
Parameter | Description |
---|---|
|
The name of the external table. |
|
The name of the credential to access the Cloud Object Storage. This parameter is not used when you specify a
directory with |
|
This parameter specifies either a comma-delimited list of source file URIs or one or more directories and source files. Cloud source file URIs You can use wildcards in the file names in your URIs. The character "*" can be used as the wildcard for multiple characters, the character "?" can be used as the wildcard for a single character. The format of the URIs depends on the Cloud Object Storage service you are using, for details see DBMS_CLOUD Package File URI Formats. Directory You can specify one directory and one or more file names or
use a comma separated list of directories and file names. The format to specify a
directory is: You can use wildcards to specify file names in a directory.
The character "*" can be used as the wildcard for multiple characters, the character "?"
can be used as the wildcard for a single character. For
example: To specify multiple directories, use a comma separated list of
directories: For example: Use double quotes to specify a case-sensitive directory name.
For example: To include a quote character, use two quotes. For
example: |
|
(Optional) This field, when specified, overrides the
When the For Parquet files, see DBMS_CLOUD Package Parquet to Oracle Data Type Mapping for details. For Avro files, see DBMS_CLOUD Package Avro to Oracle Data Type Mapping for details. |
|
Ignored for Avro or Parquet files. The fields in the source match the external table columns by name. Source data types are converted to the external table column data type. For Parquet files, see DBMS_CLOUD Package Parquet to Oracle Data Type Mapping for details. For Avro files, see DBMS_CLOUD Package Avro to Oracle Data Type Mapping for details. |
|
For Avro or Parquet, there are only two supported parameters. See DBMS_CLOUD Package Format Options for Avro or Parquet for details. |
Examples Avro
format => '{"type":"avro", "schema": "all"}'
format => json_object('type' value 'avro', 'schema' value 'first')
Examples Parquet
format => '{"type":"parquet", "schema": "all"}'
format => json_object('type' value 'parquet', 'schema' value 'first')
Avro or Parquet Column Name Mapping to Oracle Column Names
See DBMS_CLOUD Package Avro and Parquet to Oracle Column Name Mapping for information on column name mapping and column name conversion usage in Oracle SQL.
46.5.6 CREATE_EXTERNAL_PART_TABLE Procedure
This procedure creates an external partitioned table on files in the Cloud. This allows you to run queries on external data from Oracle Database.
Syntax
DBMS_CLOUD.CREATE_EXTERNAL_PART_TABLE
(
table_name IN VARCHAR2,
credential_name IN VARCHAR2,
partitioning_clause IN CLOB,
column_list IN CLOB,
field_list IN CLOB DEFAULT,
format IN CLOB DEFAULT);
DBMS_CLOUD.CREATE_EXTERNAL_PART_TABLE
(
table_name IN VARCHAR2,
credential_name IN VARCHAR2,
file_uri_list IN VARCHAR2,
column_list IN CLOB,
field_list IN CLOB DEFAULT,
format IN CLOB DEFAULT);
Parameters
Parameter | Description |
---|---|
|
The name of the external table. |
|
The name of the credential to access the Cloud Object Storage. |
|
Specifies the complete partitioning clause, including the location information for individual partitions. If you use the |
|
There are two options for the
If you use the parameter The format of the URIs depends on the Cloud Object Storage service. See DBMS_CLOUD Package File URI Formats for more information. |
|
Comma-delimited list of column names and data types for the external table. This
parameter has the following requirements, depending on the type of the
data files specified with the
|
|
Identifies the fields in the source files and their data types. The default value is NULL meaning the fields and their data types are determined by the column_list parameter. This argument's syntax is the same as the |
|
The format option
If the data files are unstructured and the
For object names that are not based on hive format, the
order of the To see all the |
Usage Notes
-
You cannot call this procedure with both
partitioning_clause
andfile_uri_list
parameters. -
Specifying the
column_list
parameter is optional with structured data files, including Avro, Parquet, or ORC data files. Ifcolumn_list
is not specified, theformat
parameterpartition_columns
option must include bothname
andtype
. -
The
column_list
parameter is required with unstructured data files, such as CSV text files. -
The procedure
DBMS_CLOUD.CREATE_EXTERNAL_PART_TABLE
supports external partitioned files in the supported cloud object storage services, including:-
Oracle Cloud Infrastructure Object Storage
-
Azure Blob Storage
-
Amazon S3
-
GitHub Repository
See DBMS_CLOUD Package File URI Formats for more information.
-
-
When you call
DBMS_CLOUD.CREATE_EXTERNAL_PART_TABLE
with thefile_uri_list
parameter, the types for columns specified in the Cloud Object Store file name must be one of the following types:VARCHAR2(n) NUMBER(n) NUMBER(p,s) NUMBER DATE TIMESTAMP(9)
-
The default record delimiter is
detected newline
. Withdetected newline
,DBMS_CLOUD
tries to automatically find the correct newline character to use as the record delimiter.DBMS_CLOUD
first searches for the Windows newline character\r\n
. If it finds the Windows newline character, this is used as the record delimiter for all files in the procedure. If a Windows newline character is not found,DBMS_CLOUD
searches for the UNIX/Linux newline character\n
, and if it finds one it uses\n
as the record delimiter for all files in the procedure. If the source files use a combination of different record delimiters, you may encounter an error such as, "KUP-04020: found record longer than buffer size supported
". In this case, you need to either modify the source files to use the same record delimiter or only specify the source files that use the same record delimiter.See DBMS_CLOUD Package Format Options for information on the
recorddelmiter
format option. -
The external partitioned tables you create with
DBMS_CLOUD.CREATE_EXTERNAL_PART_TABLE
include two invisible columnsfile$path
andfile$name
. These columns help identify which file a record is coming from.-
file$path
: Specifies the file path text up to the beginning of the object name. -
file$name
: Specifies the object name, including all the text that follows the bucket name.
-
Examples
Example using the partitioning_clause
parameter:
BEGIN
DBMS_CLOUD.CREATE_EXTERNAL_PART_TABLE
(
table_name =>'PET1',
credential_name =>'OBJ_STORE_CRED',
format => json_object('delimiter' value ',', 'recorddelimiter' value 'newline', 'characterset' value 'us7ascii'),
column_list => 'col1 number, col2 number, col3 number',
partitioning_clause => 'partition by range (col1)
(partition p1 values less than (1000) location
( ''&base_URL//file_11.txt'')
,
partition p2 values less than (2000) location
( ''&base_URL/file_21.txt'')
,
partition p3 values less than (3000) location
( ''&base_URL/file_31.txt'')
)'
);
END;
/
Example using the file_uri_list
and column_list
parameters with unstructured data files:
BEGIN
DBMS_CLOUD.CREATE_EXTERNAL_PART_TABLE
(
table_name => 'MYSALES',
credential_name => 'DEF_CRED_NAME',
file_uri_list => 'https://objectstorage.us-phoenix-1.oraclecloud.com/n/namespace-string/b/bucketname/o/*.csv',
column_list => 'product varchar2(100), units number, country varchar2(100), year number, month varchar2(2)',
field_list => 'product, units', --[Because country, year and month are not in the file, they are not listed in the field list]
format => '{"type":"csv", "partition_columns":["country","year","month"]}');
END;
/
Example using the file_uri_list
without the
column_list
parameter with structured data files:
BEGIN
DBMS_CLOUD.CREATE_EXTERNAL_PART_TABLE
(
table_name => 'MYSALES',
credential_name => 'DEF_CRED_NAME',
DBMS_CLOUD.CREATE_EXTERNAL_PART_TABLE
(
table_name => 'MYSALES',
credential_name => 'DEF_CRED_NAME',
file_uri_list => 'https://objectstorage.us-phoenix-1.oraclecloud.com/n/namespace-string/b/bucketname/o/*.parquet',
format =>
json_object('type' value 'parquet', 'schema' value 'first',
'partition_columns' value
json_array(
json_object('name' value 'country', 'type' value 'varchar2(100)'),
json_object('name' value 'year', 'type' value 'number'),
json_object('name' value 'month', 'type' value 'varchar2(2)')
)
)
);
END;
/
46.5.7 CREATE_HYBRID_PART_TABLE Procedure
This procedure creates a hybrid partitioned table. This allows you to run queries on hybrid partitioned data from Oracle Database.
Syntax
DBMS_CLOUD.CREATE_HYBRID_PART_TABLE
(
table_name IN VARCHAR2,
credential_name IN VARCHAR2,
partitioning_clause IN CLOB,
column_list IN CLOB,
field_list IN CLOB DEFAULT,
format IN CLOB DEFAULT);
Parameters
Parameter | Description |
---|---|
|
The name of the external table. |
|
The name of the credential to access the Cloud Object Storage. |
|
Specifies the complete partitioning clause, including the location information for individual partitions. |
|
Comma-delimited list of column names and data types for the external table. |
|
Identifies the fields in the source files and their data types. The default value is NULL meaning the fields and their data types are determined by the column_list parameter. This argument's syntax is the same as the |
|
The options describing the format of the source files. For the list of the options and how to specify the values see DBMS_CLOUD Package Format Options. |
Usage Note
-
The procedure
DBMS_CLOUD.CREATE_HYBRID_PART_TABLE
supports external partitioned files in the supported cloud object storage services, including:-
Oracle Cloud Infrastructure Object Storage
-
Azure Blob Storage
-
Amazon S3
-
GitHub Repository
The credential is a table level property; therefore, the external files must be on the same object store.
See DBMS_CLOUD Package File URI Formats for more information.
-
-
The external partitioned tables you create with
DBMS_CLOUD.CREATE_HYBRID_PART_TABLE
include two invisible columnsfile$path
andfile$name
. These columns help identify which file a record is coming from.-
file$path
: Specifies the file path text up to the beginning of the object name. -
file$name
: Specifies the object name, including all the text that follows the bucket name.
-
Example
BEGIN
DBMS_CLOUD.CREATE_HYBRID_PART_TABLE
(
table_name =>'HPT1',
credential_name =>'OBJ_STORE_CRED',
format => json_object('delimiter' value ',', 'recorddelimiter' value 'newline', 'characterset' value 'us7ascii'),
column_list => 'col1 number, col2 number, col3 number',
partitioning_clause => 'partition by range (col1)
(partition p1 values less than (1000) external location
( ''&base_URL/file_11.txt'')
,
partition p2 values less than (2000) external location
( ''&base_URL/file_21.txt'')
,
partition p3 values less than (3000)
)'
);
END;
/
46.5.8 DELETE_ALL_OPERATIONS Procedure
This procedure clears either all data load operations logged in the
user_load_operations
table in your schema or clears all the data
load operations of the specified type, as indicated with the type
parameter.
Syntax
DBMS_CLOUD.DELETE_ALL_OPERATIONS
(
type IN VARCHAR DEFAULT NULL);
Parameters
Parameter | Description |
---|---|
|
Specifies the type of operation to delete. Type values can be found in the
If no |
Usage Note
-
DBMS_CLOUD.DELETE_ALL_OPERATIONS
does not delete currently running operations (operations in a "Running" status).
46.5.9 DELETE_FILE Procedure
This procedure removes the specified file from the specified directory on Oracle Database.
Syntax
DBMS_CLOUD.DELETE_FILE (
directory_name IN VARCHAR2,
file_name IN VARCHAR2);
Parameters
Parameter | Description |
---|---|
|
The name of the directory on the Oracle Database instance. |
|
The name of the file to be removed. |
Note:
To runDBMS_CLOUD.DELETE_FILE
, you need to grant write privileges on the directory that contains the file to the user. For example, run the following command as ADMIN to grant write privileges to db_user
:GRANT WRITE ON DIRECTORY data_pump_dir TO db_user;
Example
BEGIN
DBMS_CLOUD.DELETE_FILE
(
directory_name => 'DATA_PUMP_DIR',
file_name => 'exp1.dmp' );
END;
/
46.5.10 DELETE_OBJECT Procedure
This procedure deletes the specified object on object store.
Syntax
DBMS_CLOUD.DELETE_OBJECT
(
credential_name IN VARCHAR2,
object_uri IN VARCHAR2,
force IN BOOLEAN DEFAULT FALSE);
Parameters
Parameter | Description |
---|---|
|
The name of the credential to access the Cloud Object Storage. |
object_uri |
Object or file URI for the object to delete. The format of the URI depends on the Cloud Object Storage service you are using, for details see DBMS_CLOUD Package File URI Formats. |
force |
Ignore and do not report errors if object does not exist. Valid
values are: |
Example
BEGIN
DBMS_CLOUD.DELETE_OBJECT
(
credential_name => 'DEF_CRED_NAME',
object_uri => 'https://objectstorage.us-ashburn-1.oraclecloud.com/n/namespace-string/b/bucketname/o/exp1.dmp' );
END;
/
46.5.11 DROP_CREDENTIAL Procedure
This procedure removes an existing credential from Oracle Database.
Syntax
DBMS_CLOUD.DROP_CREDENTIAL
(
credential_name IN VARCHAR2);
Parameters
Parameter | Description |
---|---|
|
The name of the credential to be removed. |
46.5.12 GET_OBJECT Procedure and Function
This procedure is overloaded. The procedure form reads an object from
Cloud Object Storage and copies it to Oracle Database. The function form reads an object from Cloud Object Storage and returns a
BLOB
to Oracle Database.
Syntax
DBMS_CLOUD.GET_OBJECT
(
credential_name IN VARCHAR2,
object_uri IN VARCHAR2,
directory_name IN VARCHAR2,
file_name IN VARCHAR2 DEFAULT NULL,
startoffset IN NUMBER DEFAULT 0,
endoffset IN NUMBER DEFAULT 0,
compression IN VARCHAR2 DEFAULT NULL);
DBMS_CLOUD.GET_OBJECT
(
credential_name IN VARCHAR2 DEFAULT NULL,
object_uri IN VARCHAR2,
startoffset IN NUMBER DEFAULT 0,
endoffset IN NUMBER DEFAULT 0,
compression IN VARCHAR2 DEFAULT NULL)
RETURN BLOB;
Parameters
Parameter | Description |
---|---|
|
The name of the credential to access the Cloud Object Storage. |
|
Object or file URI. The format of the URI depends on the Cloud Object Storage service you are using, for details see DBMS_CLOUD Package File URI Formats. |
|
The name of the directory on the database. Foot 1 |
|
Specifies the name of the file to create. If file name is not specified, the file
name is taken from after the last slash in the
|
startoffset |
The offset, in bytes, from where the procedure starts reading. |
endoffset |
The offset, in bytes, until where the procedure stops reading. |
|
Specifies the compression used to store the object. When
|
Footnote 1
Note:
To run DBMS_CLOUD.GET_OBJECT
, you need to grant WRITE
privileges on the directory to the user. For example, run the following command as ADMIN to grant write privileges to db_user
:
GRANT WRITE ON DIRECTORY data_pump_dir TO db_user;
Return Values
The function form reads from Object Store and DBMS_CLOUD.GET_OBJECT
returns a
BLOB
.
Examples
BEGIN
DBMS_CLOUD.GET_OBJECT
(
credential_name => 'OBJ_STORE_CRED',
object_uri => 'https://objectstorage.us-phoenix-1.oraclecloud.com/n/namespace-string/b/bucketname/o/file.txt',
directory_name => 'DATA_PUMP_DIR');
END;
/
To read character data from a file in Object Store:
SELECT to_clob(
DBMS_CLOUD.GET_OBJECT
(
credential_name => 'OBJ_STORE_CRED',
object_uri => 'https://objectstorage.us-phoenix-1.oraclecloud.com/n/namespace-string/b/bucketname/o/file.txt'))
FROM DUAL;
To add an image stored on Object Store in a BLOB
in the
database:
DECLARE
l_blob BLOB := NULL;
BEGIN
l_blob := DBMS_CLOUD.GET_OBJECT
(
credential_name => 'OBJ_STORE_CRED',
object_uri => 'https://objectstorage.us-phoenix-1.oraclecloud.com/n/namespace-string/b/bucketname/o/MyImage.gif' );
END;
/
In this example, namespace-string
is the Oracle
Cloud Infrastructure object storage namespace and
bucketname
is the bucket
name. See Understanding
Object Storage Namespaces for more
information.
46.5.13 LIST_FILES Function
This function lists the files in the specified directory. The results include the file names and additional metadata about the files such as file size in bytes, creation timestamp, and the last modification timestamp.
Syntax
DBMS_CLOUD.LIST_FILES
(
directory_name IN VARCHAR2)
RETURN TABLE;
Parameters
Parameter | Description |
---|---|
|
The name of the directory on the database. |
Usage Notes
-
DBMS_CLOUD.LIST_FILES
is only supported for directory objects mapping to Oracle File System (OFS) or Database File System (DBFS) file systems. -
To run
DBMS_CLOUD.LIST_FILES
, you need to grant read privileges on the directory to the user. For example, run the following command as ADMIN to grant read privileges todb_user
:GRANT READ ON DIRECTORY data_pump_dir TO db_user;
-
This is a pipelined table function with return type as
DBMS_CLOUD_TYPES.list_object_ret_t
. -
DBMS_CLOUD.LIST_FILES
does not obtain the checksum value and returnsNULL
for this field.
Example
This is a pipelined function that returns a row for each file. For example, use the following query to use this function:
SELECT * FROM DBMS_CLOUD.LIST_FILES
('DATA_PUMP_DIR');
OBJECT_NAME BYTES CHECKSUM CREATED LAST_MODIFIED
------------ ---------- ---------- --------------------- ---------------------
cwallet.sso 2965 2018-12-12T18:10:47Z 2019-11-23T06:36:54Z
46.5.14 LIST_OBJECTS Function
This function lists objects in the specified location on object store. The results include the object names and additional metadata about the objects such as size, checksum, creation timestamp, and the last modification timestamp.
Syntax
DBMS_CLOUD.LIST_OBJECTS
(
credential_name IN VARCHAR2,
location_uri IN VARCHAR2)
RETURN TABLE;
Parameters
Parameter | Description |
---|---|
|
The name of the credential to access the Cloud Object Storage. |
location_uri |
Object or file URI. The format of the URI depends on the Cloud Object Storage service you are using, for details see DBMS_CLOUD Package File URI Formats. |
Usage Notes
-
Depending on the capabilities of the object store,
DBMS_CLOUD.LIST_OBJECTS
does not return values for certain attributes and the return value for the field isNULL
in this case.All supported Object Stores return values for the
OBJECT_NAME
,BYTES
, andCHECKSUM
fields.The following table shows support for the fields
CREATED
andLAST_MODIFIED
by Object Store:Object Store CREATED
LAST_MODIFIED
Oracle Cloud Infrastructure Native Returns timestamp Returns timestamp Oracle Cloud Infrastructure Swift Returns NULL
Returns timestamp Oracle Cloud Infrastructure Classic Returns NULL
Returns timestamp Amazon S3 Returns NULL
Returns timestamp Azure Returns timestamp Returns timestamp GitHub Repository -
The checksum value is the MD5 checksum. This is a 32-character hexadecimal number that is computed on the object contents. It is expected to have a different checksum value if
OCI$RESOURCE_PRINCIPAL
credential is used. -
This is a pipelined table function with return type as
DBMS_CLOUD_TYPES.list_object_ret_t
.
Example
This is a pipelined function that returns a row for each object. For example, use the following query to use this function:
SELECT * FROM DBMS_CLOUD.LIST_OBJECTS
('OBJ_STORE_CRED',
'https://objectstorage.us-phoenix-1.oraclecloud.com/n/namespace-string/b/bucketname/o/');
OBJECT_NAME BYTES CHECKSUM CREATED LAST_MODIFIED
------------ ---------- -------------------------------- --------------------- --------------------
cwallet.sso 2965 2339a2731ba24a837b26d344d643dc07 2019-11-23T06:36:54Z
In this example, namespace-string
is the Oracle
Cloud Infrastructure object storage namespace and
bucketname
is the bucket
name. See Understanding
Object Storage Namespaces for more
information.
46.5.15 PUT_OBJECT Procedure
This procedure is overloaded. In one form the procedure copies a file from
Oracle Database to the Cloud Object
Storage. In another form the procedure copies a BLOB
from Oracle Database to the Cloud Object
Storage.
Syntax
DBMS_CLOUD.PUT_OBJECT
(
credential_name IN VARCHAR2,
object_uri IN VARCHAR2,
directory_name IN VARCHAR2,
file_name IN VARCHAR2);
DBMS_CLOUD.PUT_OBJECT
(
credential_name IN VARCHAR2,
object_uri IN VARCHAR2,
contents IN BLOB,
file_name IN VARCHAR2);
Parameters
Parameter | Description |
---|---|
|
The name of the credential to access the Cloud Object Storage. |
|
Object or file URI. The format of the URI depends on the Cloud Object Storage service you are using, for details see DBMS_CLOUD Package File URI Formats. |
|
The name of the directory on the Oracle Database. Foot 2 |
|
The name of the file in the specified directory. |
Footnote 2
Note:
To run DBMS_CLOUD.PUT_OBJECT
, you need to grant read privileges on the directory to the user. For example, run the following command as ADMIN to grant read privileges to db_user
:
GRANT READ ON DIRECTORY data_pump_dir TO db_user;
Example
To handle BLOB
data after in-database processing and then store the
data directly into a file in the object store:
DECLARE
my_blob_data BLOB;
BEGIN
/* Some processing producing BLOB data and populating my_blob_data */
DBMS_CLOUD.PUT_OBJECT
(
credential_name => 'OBJ_STORE_CRED',
object_uri => 'https://objectstorage.us-phoenix-1.oraclecloud.com/n/namespace-string/b/bucketname/o/my_new_file',
contents => my_blob_data));
END;
/
Usage Notes
Depending on your Cloud Object Storage, the size of the object you transfer is limited as follows:
Cloud Object Storage Service | Object Transfer Size Limit |
---|---|
Oracle Cloud Infrastructure Object Storage |
50 GB |
Amazon S3 |
5 GB |
Azure Blob Storage |
256 MB |
Oracle Cloud
Infrastructure object store does not allow writing files into a public bucket without supplying
credentials (Oracle Cloud
Infrastructure allows users to download objects from public buckets). Thus, you must supply a
credential name with valid credentials to store an object in an Oracle Cloud
Infrastructure public bucket using PUT_OBJECT
.
See DBMS_CLOUD Package File URI Formats for more information.
46.5.16 UPDATE_CREDENTIAL Procedure
This procedure updates cloud service credential attributes in Oracle Database.
Use stored credentials for data loading, for querying external data residing in the
Cloud, or wherever you use DBMS_CLOUD
procedures with a
credential_name
parameter. This procedure lets you update an
attribute with a new value for a specified credential_name
.
Syntax
DBMS_CLOUD.UPDATE_CREDENTIAL
(
credential_name IN VARCHAR2,
attribute IN VARCHAR2,
value IN VARCHAR2);
Parameters
Parameter | Description |
---|---|
|
The name of the credential to be stored. |
|
Name of attribute to update: |
|
New value for the selected attribute. |
Usage Notes
-
The user name is case sensitive. It cannot contain double quotes or spaces.
-
You only need to create credentials once unless your cloud service credentials change. Once you store the credentials you can then use the same credential name for
DBMS_CLOUD
procedures that require acredential_name
parameter.
Example
BEGIN
DBMS_CLOUD.UPDATE_CREDENTIAL
(
credential_name => 'OBJ_STORE_CRED',
attribute => 'PASSWORD',
value => 'password');
END;
/
46.5.17 VALIDATE_EXTERNAL_TABLE Procedure
This procedure validates the source files for an external table,
generates log information, and stores the rows that do not match the format options
specified for the external table in a badfile table on Oracle Database. The overloaded form enables
you to use the operation_id
parameter.
Syntax
DBMS_CLOUD.VALIDATE_EXTERNAL_TABLE
(
table_name IN VARCHAR2,
schema_name IN VARCHAR2 DEFAULT,
rowcount IN NUMBER DEFAULT,
stop_on_error IN BOOLEAN DEFAULT);
DBMS_CLOUD.VALIDATE_EXTERNAL_TABLE
(
table_name IN VARCHAR2,
operation_id OUT NOCOPY NUMBER,
schema_name IN VARCHAR2 DEFAULT NULL,
rowcount IN NUMBER DEFAULT 0,
stop_on_error IN BOOLEAN DEFAULT TRUE);
Parameters
Parameter | Description |
---|---|
|
The name of the external table. |
|
Use this parameter to track the progress and final status of the
load operation as the corresponding ID in the
|
|
The name of the schema where the external table resides. The default value is NULL meaning the external table is in the same schema as the user running the procedure. |
|
Number of rows to be scanned. The default value is NULL meaning all the rows in the source files are scanned. |
|
Determines if the validate should stop when a row is rejected. The default value is If the external table refers to Avro or Parquet files then the validate stops at the first rejected row. When the external table specifies the |
Usage Notes
-
DBMS_CLOUD.VALIDATE_EXTERNAL_TABLE
works with both partitioned external tables and hybrid partitioned tables. This potentially reads data from all external partitions untilrowcount
is reached orstop_on_error
applies. You do not have control over which partition, or parts of a partition, is read in which order.
46.5.18 VALIDATE_EXTERNAL_PART_TABLE Procedure
This procedure validates the source files for an external partitioned
table, generates log information, and stores the rows that do not match the format options
specified for the external table in a badfile table on Oracle Database. The overloaded form enables
you to use the operation_id
parameter.
Syntax
DBMS_CLOUD.VALIDATE_EXTERNAL_PART_TABLE
(
table_name IN VARCHAR2,
partition_name IN CLOB DEFAULT,
schema_name IN VARCHAR2 DEFAULT,
rowcount IN NUMBER DEFAULT,
partition_key_validation IN BOOLEAN DEFAULT,
stop_on_error IN BOOLEAN DEFAULT);
DBMS_CLOUD.VALIDATE_EXTERNAL_PART_TABLE
(
table_name IN VARCHAR2,
operation_id OUT NUMBER,
partition_name IN CLOB DEFAULT,
schema_name IN VARCHAR2 DEFAULT,
rowcount IN NUMBER DEFAULT,
partition_key_validation IN BOOLEAN DEFAULT,
stop_on_error IN BOOLEAN DEFAULT);
Parameters
Parameter | Description |
---|---|
|
The name of the external table. |
|
Use this parameter to track the progress and final
status of the load operation as the corresponding ID in the
|
|
If defined, then only a specific partition is validated. If not
specified then read all partitions sequentially until
rowcount is reached.
|
|
The name of the schema where the external table resides. The default value is NULL meaning the external table is in the same schema as the user running the procedure. |
|
Number of rows to be scanned. The default value is NULL meaning all the rows in the source files are scanned. |
|
For internal use only. Do not use this parameter. |
|
Determines if the validate should stop when a row is rejected. The default value is If the external table refers to Avro or Parquet files then the validate stops at the first rejected row. When the external table specifies the |
46.5.19 VALIDATE_HYBRID_PART_TABLE Procedure
This procedure validates the source files for a hybrid partitioned
table, generates log information, and stores the rows that do not match the format options
specified for the hybrid table in a badfile table on Oracle Database. The overloaded form enables
you to use the operation_id
parameter.
Syntax
DBMS_CLOUD.VALIDATE_HYBRID_PART_TABLE
(
table_name IN VARCHAR2,
partition_name IN CLOB DEFAULT,
schema_name IN VARCHAR2 DEFAULT,
rowcount IN NUMBER DEFAULT,
partition_key_validation IN BOOLEAN DEFAULT,
stop_on_error IN BOOLEAN DEFAULT);
DBMS_CLOUD.VALIDATE_HYBRID_PART_TABLE
(
table_name IN VARCHAR2,
operation_id OUT NUMBER,
partition_name IN CLOB DEFAULT,
schema_name IN VARCHAR2 DEFAULT,
rowcount IN NUMBER DEFAULT,
partition_key_validation IN BOOLEAN DEFAULT,
stop_on_error IN BOOLEAN DEFAULT);
Parameters
Parameter | Description |
---|---|
|
The name of the external table. |
|
Use this parameter to track the progress and final
status of the load operation as the corresponding ID in the
|
|
If defined, then only a specific partition is validated. If not specified
then read from all external partitions sequentially until
rowcount is reached.
|
|
The name of the schema where the external table resides. The default value is NULL meaning the external table is in the same schema as the user running the procedure. |
|
Number of rows to be scanned. The default value is NULL meaning all the rows in the source files are scanned. |
|
For internal use only. Do not use this parameter. |
|
Determines if the validate should stop when a row is rejected. The default value is If the external table refers to Avro or Parquet files then the validate stops at the first rejected row. When the external table specifies the |
46.6 DBMS_CLOUD Package File URI Formats
Describes the format of the
source file URIs in operations with DBMS_CLOUD
. The format depends on the object storage service you are
using.
DBMS_CLOUD
guarantees
secure communication and any URI that you specify must use HTTPS, with
https://
as the prefix for the URI.
46.6.1 Oracle Cloud Infrastructure Object Storage Native URI Format
If your source files reside on the Oracle Cloud Infrastructure Object Storage you can use Oracle Cloud Infrastructure native URIs, with the format:
https://objectstorage.region.oraclecloud.com/n/namespace-string/b/bucket/o/filename
For example, the Native URI for the file channels.txt
in
the bucketname
bucket in the
Phoenix
data center is:
https://objectstorage.us-phoenix-1.oraclecloud.com/n/namespace-string/b/bucketname/o/channels.txt
In this example, namespace-string
is the Oracle
Cloud Infrastructure object storage namespace and
bucketname
is the bucket
name. See Understanding
Object Storage Namespaces for more
information.
You can find the URI from the Oracle Cloud Infrastructure Object Storage "Object Details" in the right hand side ellipsis menu in the Object Store:
- Open the Oracle Cloud Infrastructure Console by clicking the next to Oracle Cloud.
- From the Oracle Cloud Infrastructure left navigation menu click Core Infrastructure. Under Object Storage, click Object Storage.
- Under List Scope, select a Compartment.
- From the Name column, select a bucket.

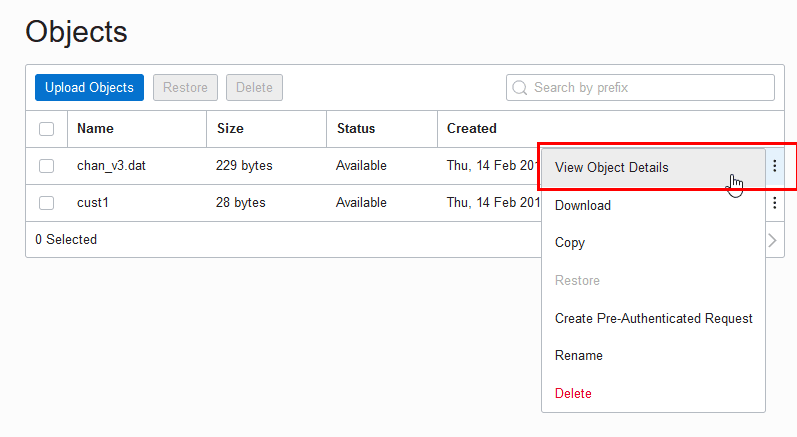

- In the Objects area, click View Object Details.
- On the Object Details page, the URL Path (URI) field shows the URI to access the object.
Note:
The source files need to be stored in an Object Storage tier bucket. Oracle Database does not support buckets in the Archive Storage tier. See Overview of Object Storage for more information.
46.6.2 Oracle Cloud Infrastructure Object Storage Swift URI Format
If your source files reside on the Oracle Cloud Infrastructure Object Storage you can use Oracle Cloud Infrastructure Swift URIs with the format:
https://swiftobjectstorage.region.oraclecloud.com/v1/namespace-string/bucket/filename
For example, the Swift URI for the file channels.txt
in
the bucketname
bucket in the
Phoenix
data center is:
https://swiftobjectstorage.us-phoenix-1.oraclecloud.com/v1/namespace-string/bucketname/channels.txt
In this example, namespace-string
is the Oracle
Cloud Infrastructure object storage namespace and
bucketname
is the bucket
name. See Understanding
Object Storage Namespaces for more
information.
Note:
The source files need to be stored in an Object Storage tier bucket. Oracle Database does not support buckets in the Archive Storage tier. See Overview of Object Storage for more information.
46.6.3 Oracle Cloud Infrastructure Object Storage URI Format Using Pre-Authenticated Request URL
If your source files reside on the Oracle Cloud Infrastructure Object Storage you can use Oracle Cloud Infrastructure pre-authenticated URIs. When you create a pre-authenticated request, a unique URL is generated. You can then provide the unique URL to users in your organization, partners, or third parties to access the Object Storage resource target identified in the pre-authenticated request.
Note:
Carefully assess the business requirement for and the security ramifications of pre‑authenticated access. When you create the pre-authenticated request URL, note the Expiration and the Access Type to make sure they are appropriate for your use.A pre-authenticated request URL gives anyone who has the URL access to the targets identified in the request for as long as the request is active. In addition to considering the operational needs of pre-authenticated access, it is equally important to manage its distribution.
The format for pre-authenticated request URLs is:
https://objectstorage.region.oraclecloud.com/p/encrypted_string/n/namespace-string/b/bucket/o/filename
For example, a sample pre-authenticated URI for the file
channels.txt
in the bucketname bucket in the Phoenix
data center is:
https://objectstorage.us-phoenix-1.oraclecloud.com/p/2xN-uDtWJNsiD910UCYGue/n/namespace-string/b/bucketname/o/channels.txt
In this example, namespace-string
is the Oracle
Cloud Infrastructure object storage namespace and
bucketname
is the bucket
name. See Understanding
Object Storage Namespaces for more
information.
You can use a pre-authenticated URL in any DBMS_CLOUD
procedure that takes a URL to access files in Oracle Cloud
Infrastructure object store, without the need to create a credential. You need to either specify the
credential_name
parameter as NULL
or not supply a
credential_name
parameter.
For example:
BEGIN
DBMS_CLOUD.COPY_DATA
(
table_name =>'CHANNELS',
file_uri_list =>'https://objectstorage.us-phoenix-1.oraclecloud.com/p/unique-pre-authenticated-string/n/namespace-string/b/bucketname/o/channels.txt',
format => json_object('delimiter' value ',') );
END;
/
Note:
A list of mixed URLs is valid. If the URL list contains both pre-authenticated URLs and URLs that require authentication,DBMS_CLOUD
uses the specified credential_name
to
access the URLs that require authentication and for the pre-authenticated URLs the
specified credential_name
is ignored.
See Using Pre-Authenticated Requests for more information.
46.6.4 URI Format Using Public URL
If your source files reside on an Object Store that provides public URLs,
you can use public URLs with DBMS_CLOUD
procedures. Public means the
Object Storage service supports anonymous, unauthenticated access to the Object Store
files. See your Cloud Object Storage service for details on how to make an object public
in a supported Object Store.
Note:
Carefully assess the business requirement for and the security ramifications of using public URLs. When you use public URLs, due to the file content not being authenticated, make sure this is appropriate for your use.You can use a public URL in any DBMS_CLOUD
procedure that
takes a URL to access files in your object store, without the need to create a
credential. You need to either specify the credential_name
parameter as
NULL
or not supply a credential_name
parameter.
For example the following uses DBMS_CLOUD.COPY_DATA
without a
credential_name
:
BEGIN
DBMS_CLOUD.COPY_DATA
(
table_name =>'CHANNELS',
file_uri_list =>'https://objectstorage.us-ashburn-1.oraclecloud.com/n/namespace-string/b/bucketname/o/chan_v3.dat',
format => json_object('delimiter' value ',') );
END;
/
In this example, namespace-string
is the Oracle
Cloud Infrastructure object storage namespace and
bucketname
is the bucket
name. See Understanding
Object Storage Namespaces for more
information.
Note:
A list of mixed URLs is valid. If the URL list contains both public URLs and URLs that require authentication,DBMS_CLOUD
uses the specified credential_name
to
access the URLs that require authentication and for the public URLs the specified
credential_name
is ignored.
See Public Buckets for information on using Oracle Cloud Infrastructure public buckets.
46.6.5 Oracle Cloud Infrastructure Object Storage Classic URI Format
If your source files reside in Oracle Cloud Infrastructure Object Storage Classic, see the REST page for a description of the URI format for accessing your files: About REST URLs for Oracle Cloud Infrastructure Object Storage Classic Resources.
46.6.6 Amazon S3 URI Format
If your source files reside in Amazon S3, see the following for a description of the URI format for accessing your files: Accessing a Bucket.
For example the following refers to the file
channels.txt
in the adb
bucket in the us-west-2
region.
https://s3-us-west-2.amazonaws.com/adb/channels.txt
Note:
DBMS_CLOUD
only supports native S3 storage, and no S3-compliant APIs or storage devices.
46.6.7 Azure Blob Storage URI Format
If your source files reside in Azure Blob Storage, see the following for a description of the URI format for accessing your files: Resource URI Syntax.
For example the following refers to the file
channels.txt
in the adb
container in the storage account db_user
:
https://db_user.blob.core.windows.net/adb/channels.txt
Note:
You can use Shared Access Signatures (SAS) URL in anyDBMS_CLOUD
procedure that takes
a URL to access files in Azure Blob Storage,
without the need to create a credential. To use a Shared Access Signature
(SAS) URL, either specify the credential_name
parameter as
NULL
, or do not supply a
credential_name
parameter.
See Grant Limited Access to Azure Storage Resources Using Shared Access Signatures (SAS) for more information.
46.7 DBMS_CLOUD Package Format Options
The format
argument in DBMS_CLOUD
specifies the
format of source files.
The two ways to specify the format argument are:
format => '{"format_option" : “format_value” }'
And:
format => json_object('format_option' value 'format_value'))
Examples:
format => json_object('type' VALUE 'CSV')
To specify multiple format options, separate the values with a ",
".
For example:
format => json_object('ignoremissingcolumns' value 'true', 'removequotes' value 'true', 'dateformat' value 'YYYY-MM-DD-HH24-MI-SS', 'blankasnull' value 'true', 'logretention' value 7)
Format Option | Description | Syntax |
---|---|---|
|
When set to |
Default value: |
Valid with
|
Specifies the characterset of source files |
Default value: Database characterset |
Only use with |
Array of JSON path expressions that correspond to the fields that need to be extracted from the JSON records. Each of the JSON path expressions in the array should follow the rules described in SQL/JSON Path Expressions . Only use with format JSON and |
JSON Array of json path expressions expressed in string
format. For example: 'columnpath' value |
|
Specifies the compression type of the source file. ZIP archiving format is not supported. Specifying the value |
Default value: Null value meaning no compression. |
|
If a row is rejected because of data type conversion errors, the related columns are stored as null or the row is rejected. |
Default value: |
|
Specifies the date format in the source file. The format
option J MM-DD-YYYYBC MM-DD-YYYY YYYYMMDD HHMISS YYMMDD HHMISS YYYY.DDD YYYY-MM-DD |
Default value: Database date format |
|
Specifies the field delimiter. To use a special character as the delimiter, specify the HEX value of the ASCII code of the character. For example, the following specifies the TAB character as the delimiter:
|
Default value |
|
Specifies a boolean value, when set to The value for For example: format => JSON_OBJECT('enablelogs' value 'FALSE') |
Default value: |
|
Data can be enclosed between two delimiters, specified with
For example: format => JSON_OBJECT(‘quote’ value ‘(’,
‘endquote’ value ‘)’) |
Default value: Null, meaning no |
|
The character "\" is used as the escape character when specified. |
Default value: |
|
Blank lines are ignored when set to true. |
Default value: |
|
If there are more columns in the
|
Default value |
|
Specifies a language name (for example, FRENCH), from which locale-sensitive information can be derived. |
Default value: Null See Locale Data in Oracle Database Globalization Support Guide for a listing of Oracle-supported languages. |
|
Specifies a string value that determines the directory object name where the By default, the For example:
The
The |
Default value: |
|
Specifies a string value that determines the prefix for the The log table name format is: logprefix By default, the logprefix is in upper case, but the case is reserved when the specified value is enclosed in double-quotes. For example: format => JSON_OBJECT ('logprefix' value 'TEST') Log files then use the |
Default value: |
|
Specifies a positive integer duration, in days, for which the
Valid values: For example: format => JSON_OBJECT ('logretention' value
7) |
Default value: |
|
Specifies the characters to use as the group separator and decimal character. decimal_character: The decimal separates the integer portion of a number from the decimal portion. group_separator: The group separator separates integer groups (that is, thousands, millions, billions, and so on). |
Default value: See NLS_NUMERIC_CHARACTERS in Oracle Database Globalization Support Guide for more information. |
|
Specifies the number format model. Number format models cause the number to be rounded to the specified number of significant digits. A number format model is composed of one or more number format elements. This is used in combination with
|
Default value: is derived from the setting of the
See Number Format Models in SQL Language Reference for more information. |
|
The format option
If the data files are unstructured and the
For object names that are not based on hive format, the
order of the |
|
|
Specifies the quote character for the fields, the
|
Default value: Null meaning no quote |
|
Specifies the record delimiter. By default, Specify this argument explicitly if you want to override the default behavior, for example:
To indicate that there is no record delimiter you can
specify a
The |
Default value: detected newline |
|
The operation will error out after specified number of rows are rejected. |
Default value: |
|
Removes any quotes that are around any field in the source file. |
Default value: |
|
Specifies how many rows should be skipped from the start of the file. |
Default value: 0 if not specified, 1 if specified without a value |
|
Specifies a territory name to further determine input data characteristics. |
Default value: Null See Locale Data in Oracle Database Globalization Support Guide for a listing of Oracle-supported territories. |
|
Specifies the timestamp format in the source file. The
format option YYYY-MM-DD HH:MI:SS.FF YYYY-MM-DD HH:MI:SS.FF3 YYYY-MM-DD HH24:MI:SS.FF3 MM/DD/YYYY HH:MI:SS.FF3 |
Default value: Database timestamp format The string can contain wildcard characters such as "$". |
|
Specifies the timestamp with local timezone format in the
source file. The format option DD Mon YYYY HH:MI:SS.FF TZR MM/DD/YYYY HH:MI:SS.FF TZR YYYY-MM-DD HH:MI:SS+/-TZR YYYY-MM-DD HH:MI:SS.FF3 DD.MM.YYYY HH:MI:SS TZR |
Default value: Database timestamp with local timezone format |
|
Specifies the timestamp with timezone format in the
source file. The format option DD Mon YYYY HH:MI:SS.FF TZR MM/DD/YYYY HH:MI:SS.FF TZR YYYY-MM-DD HH:MI:SS+/-TZR YYYY-MM-DD HH:MI:SS.FF3 DD.MM.YYYY HH:MI:SS TZR |
Default value: Database timestamp with timezone format |
|
Specifies how the leading and trailing spaces of the fields are trimmed. See the description of trim_spec. |
Default value: |
|
If the data in the file is too long for a field, then this option will truncate the value of the field rather than reject the row. |
Default value: |
|
Specifies the source file type. See the description of See DBMS_CLOUD Package Format Options for Avro or Parquet for |
Default value: Null |
46.8 DBMS_CLOUD Avro and Parquet Support
This section
covers the DBMS_CLOUD
Avro and Parquet support provided with Oracle Database.
46.8.1 DBMS_CLOUD Package Format Options for Avro or Parquet
The format argument in DBMS_CLOUD
specifies the format of source files.
The two ways to specify the format argument are:
format => '{"format_option" : “format_value” }'
And:
format => json_object('format_option' value 'format_value'))
Examples:
format => json_object('type' VALUE 'CSV')
To specify multiple format options, separate the values with a ",
".
For example:
format => json_object('ignoremissingcolumns' value 'true', 'removequotes' value 'true', 'dateformat' value 'YYYY-MM-DD-HH24-MI-SS', 'blankasnull' value 'true')
Format Option | Description | Syntax |
---|---|---|
|
Specifies the file type. |
|
|
When schema is set to The column names will match those found in Avro or Parquet. The data types are converted from Avro or Parquet data types to Oracle data types. All columns are added to the table. The value The value Default: If Note: For Avro or Parquet format files the
|
|
46.8.2 DBMS_CLOUD Package Avro to Oracle Data Type Mapping
Describes the mapping of Avro data types to Oracle data types.
Note:
Complex types, such as maps, arrays, and structs are supported starting with Oracle Database 19c. See DBMS_CLOUD Package Avro and Parquet Complex Types for information on using Avro complex types.Avro Type | Oracle Type |
---|---|
INT | NUMBER(10) |
LONG | NUMBER(19) |
BOOL | NUMBER(1) |
UTF8 BYTE_ARRAY | RAW(2000) |
FLT | BINARY_FLOAT |
DBL | BINARY_DOUBLE |
DECIMAL(p) | NUMBER(p) |
DECIMAL(p,s) | NUMBER(p,s) |
DATE | DATE |
STRING | VARCHAR2 |
TIME_MILLIS | VARCHAR2(20 BYTE) |
TIME_MICROS | VARCHAR2(20 BYTE) |
TIMESTAMP_MILLIS | TIMESTAMP(3) |
TIMESTAMP_MICROS | TIMESTAMP(6) |
ENUM | VARCHAR2(n) Where: "n" is the actual maximum length of the AVRO ENUM's possible values |
DURATION | RAW(2000) |
FIXED | RAW(2000) |
NULL | VARCHAR2(1) BYTE |
See DBMS_CLOUD Package Avro and Parquet Complex Types for information on using Avro complex types.
46.8.3 DBMS_CLOUD Package Parquet to Oracle Data Type Mapping
Describes the mapping of Parquet data types to Oracle data types.
Note:
Complex types, such as maps, arrays, and structs are supported starting with Oracle Database 19c. See DBMS_CLOUD Package Avro and Parquet Complex Types for information on using Parquet complex types.Parquet Type | Oracle Type |
---|---|
UINT_64 | NUMBER(20) |
INT_64 | NUMBER(19) |
UINT_32 | NUMBER(10) |
INT_32 | NUMBER(10) |
UINT_16 | NUMBER(5) |
INT_16 | NUMBER(5) |
UINT_8 | NUMBER(3) |
INT_8 | NUMBER(3) |
BOOL | NUMBER(1) |
UTF8 BYTE_ARRAY | VARCHAR2(4000 BYTE) |
FLT | BINARY_FLOAT |
DBL | BINARY_DOUBLE |
DECIMAL(p) | NUMBER(p) |
DECIMAL(p,s) | NUMBER(p,s) |
DATE | DATE |
STRING | VARCHAR2(4000) |
TIME_MILLIS | VARCHAR2(20 BYTE) |
TIME_MILLIS_UTC | VARCHAR2(20 BYTE) |
TIME_MICROS | VARCHAR2(20 BYTE) |
TIME_MICROS_UTC | VARCHAR2(20 BYTE) |
TIMESTAMP_MILLIS | TIMESTAMP(3) |
TIMESTAMP_MILLIS_UTC | TIMESTAMP(3) |
TIMESTAMP_MICROS | TIMESTAMP(6) |
TIMESTAMP_MICROS_UTC | TIMESTAMP(6) |
TIMESTAMP_NANOS | TIMESTAMP(9) |
See DBMS_CLOUD Package Avro and Parquet Complex Types for information on using Parquet complex types.
46.8.4 DBMS_CLOUD Package Avro and Parquet Complex Types
Describes the mapping of Avro and Parquet complex data types to Oracle data types.
Oracle Database supports complex data types, including the following complex types:
-
struct
-
list
-
map
-
union
-
array
When you specify a source file type of Avro or Parquet and the source file includes complex columns, Oracle Database queries return JSON for the complex columns. This simplifies processing of query results; you can use Oracle's powerful JSON parsing features consistently across the file types and data types. The following table shows the format for the complex types in Oracle Database:
Note:
The complex fields map toVARCHAR2
columns and
VARCHAR2
size limits apply.
Type | Parquet | Avro | Oracle |
---|---|---|---|
List: sequence of values | List | Array | VARCHAR2 (JSON format)
|
Map: list of objects with single key | Map | Map | VARCHAR2 (JSON format)
|
Union: values of different type | Not Available | Union | VARCHAR2 (JSON format)
|
Object: zero or more key-value pairs | Struct | Record | VARCHAR2 (JSON format)
|
46.8.5 DBMS_CLOUD Package Avro and Parquet to Oracle Column Name Mapping
Describes rules for how Avro and Parquet column names are converted to Oracle column names.
The following are supported for Avro and Parquet column names, but may require use of double quotes for Oracle SQL references in external tables. Thus, for ease of use and to avoid having to use double quotes when referencing column names, if possible do not use the following in Avro and Parquet column names:
-
Embedded blanks
-
Leading numbers
-
Leading underscores
-
Oracle SQL reserved words
The following table shows various types of Avro and Parquet column names, and rules for using the column names in Oracle column names in external tables.
Avro or Parquet Name | CREATE TABLE Name | Oracle CATALOG | Valid SQL | Notes |
---|---|---|---|---|
part, Part, or PART | part, Part, PART | PART |
|
Oracle implicitly uppercases unquoted column names |
Ord No | "Ord No" | Ord No | select "Ord
No" |
Double quotes are required when there are embedded blanks, which also preserves the character case |
__index_key__ | "__index_key__" | __index_key__ | select
"__index_key__" |
Double quotes are required when there is a leading underscore, which also preserves the character case |
6Way | "6Way" | 6Way | select
"6Way" |
Double quotes are required when there is a leading numeric digit, which also preserves the character case |
create, Create, or CREATE, and so on. (any case variation) partition, Partition, PARTITION, and so on (for an Oracle Reserved word) | "CREATE" "PARTITION" | CREATE PARTITION |
|
Double quotes are required around Oracle SQL Reserved words. These are forced to uppercase, but must always be double-quoted when used anywhere in SQL |
rowid, Rowid, ROWid, and so on (for ROWID see notes) | rowid |
|
For ROWID, any mixed or lower-case variation of ROWID preserves the case and must always be double-quoted and use the original case variations. Due to the inherent conflict with Oracle ROWID for the table, if you specify upper-case ROWID, it is automatically stored as lower-case "rowid" and must always be double-quoted when referenced. |
Notes:
-
In general a column name in an external table can be referenced without double quotes.
-
Unless there is an embedded blank, a leading underscore ("_") or leading numeric digit ("0" through "9") in the column name, the original case of the column name is preserved, and it must always be referenced with double quotes and using the original case (upper, lower or mixed-case) of the Avro or Parquet column name.
-
After using
DBMS_CLOUD.CREATE_EXTERNAL_TABLE
to create an external table with the format specified asavro
orparquet
, use theDESCRIBE
command in SQL*Plus to view the table's column names. -
When Oracle SQL Reserved Words are used in Avro or Parquet column names, they must always be double-quoted when referenced anywhere in SQL. See Oracle SQL Reserved Words for more information.
