2 Introduction to Transparent Data Encryption
Transparent data encryption enables you to encrypt database data files or selected columns of data. This helps you protect sensitive data contained in your database, such as credit card numbers or Social Security numbers.
- What Is Transparent Data Encryption?
Transparent Data Encryption (TDE) enables you to encrypt sensitive data that you store in tables and tablespaces. It also enables you to encrypt database backups. - How Configuring Transparent Data Encryption Works
To configure Transparent Data Encryption, you must perform a one-time setup before you create keystores and encrypt data. - Benefits of Using Transparent Data Encryption
Transparent Data Encryption (TDE) ensures that sensitive data is encrypted, helps address compliance requirements, and provides functionality that streamlines encryption operations. - Who Can Configure Transparent Data Encryption?
To configure Transparent Data Encryption (TDE), you must be granted either theSYSKM
administrative privilege or theADMINISTER KEY MANAGEMENT
system privilege. - Types and Components of Transparent Data Encryption
Transparent Data Encryption can be applied to individual columns or entire tablespaces. - Transparent Data Encryption in a Multitenant Environment
In a multitenant environment, you can configure keystores for either the entire container database (CDB) or for individual pluggable databases (PDBs). - Transparent Data Encryption Keystore Search Order
The search order for the TDE keystore depends on how you have set either the instance initialization parameters, thesqlnet.ora
parameters, or the environment variables.
2.1 What Is Transparent Data Encryption?
Transparent Data Encryption (TDE) enables you to encrypt sensitive data that you store in tables and tablespaces. It also enables you to encrypt database backups.
After the data is encrypted, this data is transparently decrypted for authorized users or applications when they access this data. TDE helps protect data stored on media (also called data at rest) in the event that the storage media or data file is stolen.
Oracle Database uses authentication, authorization, and auditing mechanisms to secure data in the database, but not in the operating system data files where data is stored. To protect these data files, Oracle Database provides Transparent Data Encryption (TDE). TDE encrypts sensitive data stored in data files. To prevent unauthorized decryption, TDE stores the encryption keys in a security module that is external to the database. This security module can be referred to as follows:
- TDE wallets are wallets used for TDE. They cannot contain other security artifacts such as certificates. In previous releases, they were called software keystores or just wallets.
- External keystores refer to Oracle Key Vault or Oracle Cloud Infrastructure (OCI) Key Management Service (KMS).
- Keystores is a generic term for both TDE wallets and external keystores.
You can configure Oracle Key Vault as part of the TDE implementation. This enables you to centrally manage keystores in your enterprise. For example, you can upload a TDE wallet to Oracle Key Vault, migrate the database to use Oracle Key Vault as the default keystore, and then share the contents of this keystore with other primary and standby Oracle Real Application Clusters (Oracle RAC) nodes of that database to streamline daily database administrative operations with encrypted databases.
Note:
Tranparent Data Encryption (TDE) public key infrastructure (PKI) keys are desupported with Oracle Database 23ai.
Related Topics
Parent topic: Introduction to Transparent Data Encryption
2.2 How Configuring Transparent Data Encryption Works
To configure Transparent Data Encryption, you must perform a one-time setup before you create keystores and encrypt data.
Before you can begin to encrypt data, you must perform a one-time configuration using
the static WALLET_ROOT
parameter and the dynamic
TDE_CONFIGURATION
parameter to designate the location and type of
keystores that you plan to use. See Oracle Database
Reference for details about the WALLET_ROOT
and TDE-CONFIGURATION
parameters.
The WALLET_ROOT
parameter specifies the keystore directory location. Before you set WALLET_ROOT
, ensure that you have an existing directory that you can use to store keystores (for example, WALLET_ROOT
can be set to the existing directory /etc/ORACLE/KEYSTORES/${ORACLE_SID}
).
The TDE_CONFIGURATION
parameter specifies the type of keystore (TDE wallet or Oracle Key Vault). After you set the type of keystore using TDE_CONFIGURATION
, when you create the keystore, Oracle Database creates a directory within the WALLET_ROOT
location for the keystore type. For example, if you set TDE_CONFIGURATION
to FILE
, then Oracle Database creates a TDE wallet in WALLET_ROOT/tde
. To use Oracle Key Vault, install the Oracle Key Vault client software into WALLET_ROOT/okv
and set TDE_CONFIGURATION
to OKV
. An auto-open connection helps with automatically restarting databases (for example, primary and standby databases that switch roles (planned or unplanned)). Oracle Real Application Clusters (Oracle RAC) databases should also have an auto-open connection into Oracle Key Vault to not interfere with an automated Oracle RAC instance restart. To establish an auto-open Oracle Key Vault configuration, add the Oracle Key Vault password as a secret into a (local) auto-open wallet in WALLET_ROOT/tde
. The Oracle Key Vault password is the password that you created when you installed the Oracle Key Vault endpoint software. If you want to migrate from one keystore type to another, then you must first set TDE_CONFIGURATION
parameter to the keystore type that you want to use, and then use the ADMINISTER KEY MANAGEMENT
statement to perform the migration. For example, you can migrate from a TDE wallet to Oracle Key Vault.
The KEYSTORE_MODE
column of the V$ENCRYPTION_WALLET
dynamic view shows whether united mode or isolated mode has been configured. For example, from a PDB:
SELECT KEYSTORE_MODE FROM V@ENCRYPTION_WALLET;
KEYSTORE
–-------
UNITED
From the root, you can find how all containers are configured:
SELECT KEYSTORE_MODE, CON_ID FROM V@ENCRYPTION_WALLET;
KEYSTORE CON_ID
–------- –-----
NONE 1
UNITED 2
UNITED 3
Note:
The configuration of TDE using thesqlnet.ora
file is desupported. Upgrades of Oracle Database 19c and 21c databases to release 23ai will fail if the source databases do not have the WALLET_ROOT
and TDE_CONFIGURATION
parameters set.
Related Topics
Parent topic: Introduction to Transparent Data Encryption
2.3 Benefits of Using Transparent Data Encryption
Transparent Data Encryption (TDE) ensures that sensitive data is encrypted, helps address compliance requirements, and provides functionality that streamlines encryption operations.
Benefits are as follows:
-
As a security administrator, you can be sure that sensitive data is encrypted and therefore safe in the event that the storage media or data file is stolen, or when an intruder tries to access the data files from the operating system, bypassing the access controls of the database.
-
Using TDE helps you address security-related regulatory compliance issues.
-
You do not need to create auxiliary tables, triggers, or views to decrypt data for the authorized user or application. Data from tables is transparently decrypted for the database user and application. An application that processes sensitive data can use TDE to provide strong data encryption with little or no change to the application.
-
Data is transparently decrypted for database users and applications that access this data. Database users and applications do not need to be aware that the data they are accessing is stored in encrypted form.
-
Using online or offline encryption of existing un-encrypted tablespaces enables you to implement Transparent Data Encryption with little or no downtime.
-
You do not need to modify your applications to handle the encrypted data. The database manages the data encryption and decryption.
-
Oracle Database automates TDE master encryption key and keystore management operations. The user or application does not need to manage TDE master encryption keys.
Parent topic: Introduction to Transparent Data Encryption
2.4 Who Can Configure Transparent Data Encryption?
To configure Transparent Data Encryption (TDE), you must be granted either the SYSKM
administrative privilege or the ADMINISTER KEY MANAGEMENT
system privilege.
A user can authenticate as a security administrator in two ways, which are quite different, and both authentication approaches allow the security administrator to issue the ADMINISTER KEY MANAGEMENT
statement. To check if a user is allowed to perform a TDE operation, Oracle Database checks whether the user has the ADMINISTER KEY MANAGEMENT
privilege or was authenticated using the SYSKM
administrative privilege. Any ADMINISTER KEY MANAGEMENT
statement will be allowed for the following users:
- A user who is granted the
SYSKM
administrative privilege (this grant is recorded in the password file) and issues theADMINISTER KEY MANAGEMENT
statement from a session that connected to the database using theAS SYSKM
clause. For example:sqlplus c##sec_admin AS SYSKM Enter password: password
The reason for this is that
ADMINISTER KEY MANAGEMENT
statements need to be supported when the Oracle data dictionary is not available. The only way to do the necessary privilege check in that situation is to check for theSYSKM
administrative privilege in the password file. Note that the system needs to be configured with a password file in order to be able to grant theSYSKM
administrative privilege to a user. If the user needs to performADMINISTER KEY MANAGEMENT
operations such as opening the TDE keystore when the Oracle database is in theMOUNTED
state, then the user must be granted theSYSKM
administrative privilege. - A user who has been granted the
ADMINISTER KEY MANAGEMENT
system privilege, and logs in to the database without theAS SYSKM
clause. For example:sqlplus c##sec_officer Enter password: password
To use TDE, you do not need the SYSKM
or ADMINISTER KEY MANAGEMENT
privileges. You must have the following privileges to encrypt table columns and tablespaces:
-
CREATE TABLE
-
ALTER TABLE
-
CREATE TABLESPACE
-
ALTER TABLESPACE
(for online and offline tablespace encryption) -
ALTER DATABASE
(for offline tablespace encryption)
Parent topic: Introduction to Transparent Data Encryption
2.5 Types and Components of Transparent Data Encryption
Transparent Data Encryption can be applied to individual columns or entire tablespaces.
- About Transparent Data Encryption Types and Components
You can encrypt sensitive data at the column level or the tablespace level. - How Transparent Data Encryption Tablespace Encryption Works
Transparent Data Encryption (TDE) tablespace encryption enables you to encrypt an entire tablespace. - How Transparent Data Encryption Column Encryption Works
Transparent Data Encryption (TDE) column encryption protects confidential data, such as credit card and Social Security numbers, that is stored in table columns. - How the Keystore for the Storage of TDE Master Encryption Keys Works
To control the encryption, you use a keystore and a TDE master encryption key. - Supported Encryption and Integrity Algorithms
Oracle supports the AES, ARIA and DES algorithms.
Parent topic: Introduction to Transparent Data Encryption
2.5.1 About Transparent Data Encryption Types and Components
You can encrypt sensitive data at the column level or the tablespace level.
At the column level, you can encrypt sensitive data in application table columns. TDE tablespace encryption enables you to encrypt all of the data that is stored in a tablespace.
Both TDE column encryption and TDE tablespace encryption use a two-tiered key-based architecture. Unauthorized users, such as intruders who are attempting security attacks, cannot read the data from storage and back up media unless they have the TDE master encryption key to decrypt it.
Parent topic: Types and Components of Transparent Data Encryption
2.5.2 How Transparent Data Encryption Tablespace Encryption Works
Transparent Data Encryption (TDE) tablespace encryption enables you to encrypt an entire tablespace.
All of the objects that are created in the encrypted tablespace are automatically encrypted. TDE tablespace encryption is useful if your tables contain sensitive data in multiple columns, or if you want to protect the entire table and not just individual columns. You do not need to perform a granular analysis of each table column to determine the columns that need encryption.
In addition, TDE tablespace encryption takes advantage of bulk encryption and caching to provide enhanced performance. The actual performance impact on applications can vary.
TDE tablespace encryption encrypts all of the data stored in an encrypted tablespace including its redo data. TDE tablespace encryption does not encrypt data that is stored outside of the tablespace. For example, BFILE
data is not encrypted because it is stored outside the database. If you create a table with a BFILE
column in an encrypted tablespace, then this particular column will not be encrypted.
All of the data in an encrypted tablespace is stored in encrypted format on the disk. Data is transparently decrypted for an authorized user having the necessary privileges to view or modify the data. A database user or application does not need to know if the data in a particular table is encrypted on the disk. In the event that the data files on a disk or backup media is stolen, the data remains protected.
TDE tablespace encryption uses the two-tiered, key-based architecture to transparently encrypt (and decrypt) tablespaces. The TDE master encryption key is stored in a security module (Oracle wallet, Oracle Key Vault, or Oracle Cloud Infrastructure (OCI) key management service (KMS)). This TDE master encryption key is used to encrypt the TDE tablespace encryption key, which in turn is used to encrypt and decrypt data in the tablespace.

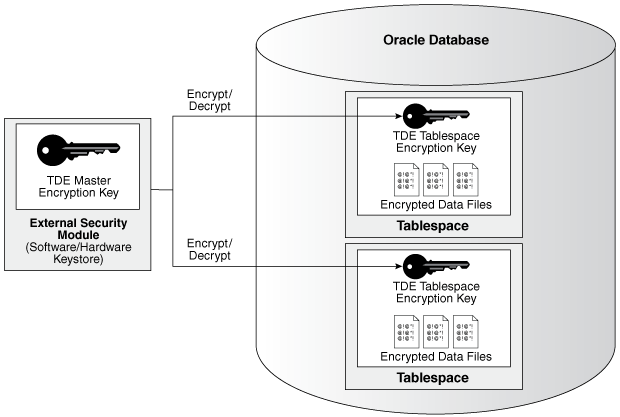

Figure 2-1 shows an overview of the TDE tablespace encryption process.
Note:
The encrypted data is protected during operations such as JOIN
and SORT
. This means that the data is safe when it is moved to temporary tablespaces. Data in undo and redo logs is also protected.
TDE tablespace encryption also allows index range scans on data in encrypted tablespaces. It does not interfere with Exadata Hybrid Columnar Compression (EHCC), Oracle Advanced Compression, or Oracle Recovery Manager (Oracle RMAN) compression. This is not possible with TDE column encryption.
Parent topic: Types and Components of Transparent Data Encryption
2.5.3 How Transparent Data Encryption Column Encryption Works
Transparent Data Encryption (TDE) column encryption protects confidential data, such as credit card and Social Security numbers, that is stored in table columns.
TDE column encryption uses the two-tiered key-based architecture to transparently encrypt and decrypt sensitive table columns. The TDE master encryption key is stored in an external keystore, which can be an Oracle wallet or in Oracle Key Vault. The Oracle wallet is a PKCS#12 container for certificates and encryption keys. It is encrypted with an AES256 key that is derived from the TDE wallet password. This TDE master encryption key encrypts and decrypts the TDE table key, which in turn encrypts and decrypts data in the table column.

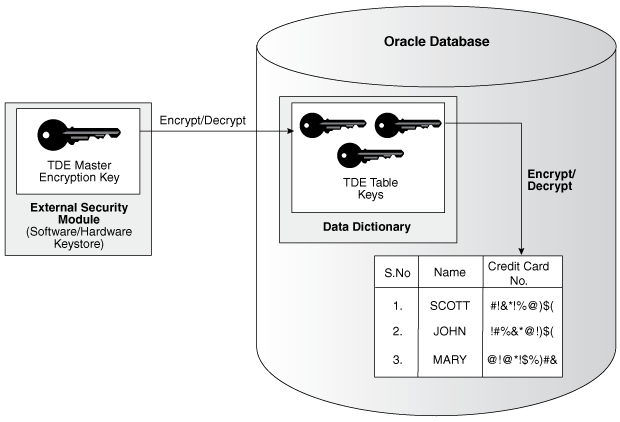

Figure 2-2 shows an overview of the TDE column encryption process.
As shown in Figure 2-2, the TDE master encryption key is stored in an external security module that is outside of the database and accessible only to a user who was granted the appropriate privileges. For this external security module, Oracle Database uses an Oracle TDE wallet (TDE wallet, in previous releases) or Oracle Key Vault. Storing the TDE master encryption key in this way prevents its unauthorized use.
Using an external security module separates ordinary program functions from encryption operations, making it possible to assign separate, distinct duties to database administrators and security administrators. Security is enhanced because the keystore password can be unknown to the database administrator, requiring the security administrator to provide the password.
When a table contains encrypted columns, TDE uses a single TDE table key regardless of the number of encrypted columns. Each TDE table key is individually encrypted with the TDE master encryption key.
Parent topic: Types and Components of Transparent Data Encryption
2.5.4 How the Keystore for the Storage of TDE Master Encryption Keys Works
To control the encryption, you use a keystore and a TDE master encryption key.
- About the Keystore Storage of TDE Master Encryption Keys
Oracle Database provides a key management framework for Transparent Data Encryption (TDE) that stores and manages keys and credentials. - Benefits of the Keystore Storage Framework
The key management framework provides several benefits for Transparent Data Encryption. - Types of Keystores
Oracle Database supports TDE wallets, Oracle Key Vault, and Oracle Cloud Infrastructure (OCI) key management systems (KMS).
Parent topic: Types and Components of Transparent Data Encryption
2.5.4.1 About the Keystore Storage of TDE Master Encryption Keys
Oracle Database provides a key management framework for Transparent Data Encryption (TDE) that stores and manages keys and credentials.
The key management framework includes the keystore to securely store the TDE master encryption keys and the management framework to securely and efficiently manage keystore and key operations for various database components.
The Oracle keystore stores a history of retired TDE master encryption keys, which enables you to rotate the TDE master encryption key, and still be able to decrypt data (for example, for incoming Oracle Recovery Manager (Oracle RMAN) backups) that was encrypted under an earlier TDE master encryption key.
2.5.4.2 Benefits of the Keystore Storage Framework
The key management framework provides several benefits for Transparent Data Encryption.
-
Enables separation of duty between the database administrator and the security administrator who manages the keys. You can grant the
ADMINISTER KEY MANAGEMENT
orSYSKM
privilege to users who are responsible for managing the keystore and key operations. -
Facilitates compliance, because it helps you to track encryption keys and implement requirements such as keystore password rotation and TDE master encryption key re-key operations. Both wallet password rotations and TDE master key re-key operation do not require database or application downtime.
-
Facilitates and helps enforce keystore backup requirements. A backup is a copy of the password-protected TDE wallet that is created for all of the critical keystore operations.
The mandatory
WITH BACKUP
clause of theADMINISTER KEY MANAGEMENT
statement creates a backup of the password-protected wallet before the changes are applied to the original password-protected wallet. -
Enables the keystore to be stored on an Oracle Automatic Storage Management (Oracle ASM) file system. This is particularly useful for Oracle Real Application Clusters (Oracle RAC) environments where database instances share a unified file system view. In Oracle RAC, you must store the Oracle wallet in a shared location (Oracle ASM or Oracle Advanced Cluster File System (ACFS)), to which all Oracle RAC instances that belong to one database, have access to. Individual TDE wallets for each Oracle RAC instances are not supported.
-
Enables reverse migration from an external keystore to a file system-based TDE wallet. This option is useful if you must migrate back to a TDE wallet.
2.5.4.3 Types of Keystores
Oracle Database supports TDE wallets, Oracle Key Vault, and Oracle Cloud Infrastructure (OCI) key management systems (KMS).

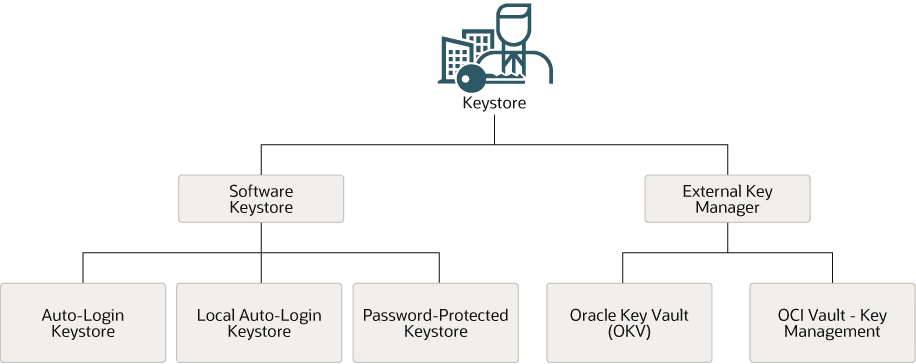

Figure 2-3 Oracle Database Supported Keystores
Description of "Figure 2-3 Oracle Database Supported Keystores"
These keystores are as follows:
-
Auto-login TDE wallets: Auto-login TDE wallets are protected by a system-generated password, and do not need to be explicitly opened by a security administrator. Auto-login TDE wallets are automatically opened when accessed at database startup. Auto-login TDE wallets can be used across different systems. If your environment does not require the extra security provided by a keystore that must be explicitly opened for use, then you can use an auto-login TDE wallet. Auto-login TDE wallets are ideal for unattended scenarios (for example, Oracle Data Guard standby databases).
-
Local auto-login TDE wallets: Local auto-login TDE wallets are auto-login TDE wallets that are local to the computer on which they are created. Local auto-login TDE wallets cannot be opened on any computer other than the one on which they are created. This type of keystore is typically used for scenarios where additional security is required (that is, to limit the use of the auto-login for that computer) while supporting an unattended operation. You cannot use local auto-open wallets in Oracle RAC-enabled databases, because only shared wallets (in ACFS or ASM) are supported.
-
Password-protected TDE wallets: Password-protected TDE wallets are protected by using a password that you create. You must open this type of wallet before the keys can be retrieved or used, and use a password to open this type of keystore..
TDE wallets can be stored in Oracle Automatic Storage Management (Oracle ASM), Oracle Advanced Cluster File System (Oracle ACFS), or regular file systems.
Under External Keystore Manager are the following categories:
-
Oracle Key Vault (OKV): Oracle Key Vault is a software appliance that provides continuous key availability and scalable key management through clustering with up to 16 Oracle Key Vault nodes, potentially deployed across geographically distributed data centers. It is purpose-built for Oracle Database and its many deployment models (Oracle RAC, Oracle Data Guard, Exadata, multitenant environments). In addition, Oracle Key Vault provides online key management for Oracle GoldenGate encrypted trail files and encrypted ACFS. It is also certified for ExaDB-C@C and Autonomous Database (dedicated) (ADB-C@C). Oracle Key Vault is distributed as a full-stack software appliance for installation on dedicated hardware. It is also available in the OCI Marketplace and can be deployed in your OCI tenancy quickly and easily. See the video Deploying Oracle Key Vault in OCI.
- OCI Vault - Key Management: The Oracle Cloud Infrastructure (OCI) Key Management Service (KMS) is a cloud-based service that provides centralized management and control of encryption keys for data stored in OCI. It enables integration of encryption with other OCI services such as storage, database, and Fusion Applications for protecting data stored in these services.
Related Topics
2.5.5 Supported Encryption and Integrity Algorithms
Oracle supports the AES, ARIA and DES algorithms.
Note:
Starting with Oracle Database 23ai, the following updates are in place:- The Transparent Data Encryption (TDE) decryption libraries for the GOST and SEED algorithms are deprecated.
- The Transparent Data Encryption (TDE) encryption libraries for the GOST and SEED algorithms are desupported and removed.
- The GOST decryption libraries are desupported on HP Itanium platforms.
The default encryption algorithm for TDE column encryption and TDE tablespace encryption is AES256
.
For TDE column encryption, salt is added by default to plaintext before encryption unless specified otherwise. You cannot add salt to indexed columns that you want to encrypt. For indexed columns, choose the NO SALT
parameter for the SQL ENCRYPT
clause.
You can change encryption algorithms and encryption keys on existing encrypted columns by setting a different algorithm with the SQL ENCRYPT
clause.
Table 2-1 lists the supported encryption algorithms.
Table 2-1 Supported Encryption Algorithms for Transparent Data Encryption
Algorithm | Key Size | Parameter Name |
---|---|---|
Advanced Encryption Standard (AES) |
|
|
ARIA |
|
|
Triple Encryption Standard (DES) |
168 bits |
|
For integrity protection of TDE column encryption, the SHA-1
hashing algorithm is used.
3DES168
is maintained for backward compatibility and should
not be used in new deployments; data encrypted with 3DES168
, as well as
with AES128
and AES192
, should be re-keyed to
AES256
for its stronger post-quantum crypto resilience. Also,
3DES168
does not benefit from hardware crypto acceleration
available in modern hardware.
Related Topics
Parent topic: Types and Components of Transparent Data Encryption
2.6 Transparent Data Encryption in a Multitenant Environment
In a multitenant environment, you can configure keystores for either the entire container database (CDB) or for individual pluggable databases (PDBs).
Oracle Database supports the following multitenant modes for the management of keystores:
-
United mode enables you to configure one keystore for the CDB root and any associated united mode PDBs. United mode operates much the same as how TDE was managed in an multitenant environment in previous releases.
-
Isolated mode enables you to create and manage both keystores and TDE master encryption keys in an individual PDB. Different isolated mode PDBs can have different keystore types.
Oracle Database supports isolated PDBs with TDE wallets (wallets) and Oracle Key Vault. The cloud tooling in Oracle Cloud Infrastructure (OCI) and the Oracle Key Management Cloud Service (KMS), do not support isolated PDBs. This includes Oracle Database Exadata Cloud at Customer, Oracle Autonomous Database on Dedicated Exadata Infrastructure, Oracle Exadata Database Service on Cloud@Customer, and Oracle Database@Azure - Oracle Exadata Database Service on Dedicated Infrastructure.
Depending on your site’s needs, you can use a mixture of both united mode and isolated mode. For example, if you want most of the PDBs to use one type of a keystore, then you can configure the keystore type in the CDB root (united mode). For the PDBs in this CDB that must use a different type of keystore, then you can configure the PDB itself to use the keystore it needs (isolated mode). The isolated mode setting for the PDB will override the united mode setting for the CDB.
Before you can configure keystores for use in united or isolated mode, you must perform a one-time configuration by using initialization parameters. To configure keystores for united mode and isolated mode, you use the ADMINISTER KEY MANAGEMENT
statement.
Related Topics
Parent topic: Introduction to Transparent Data Encryption
2.7 Transparent Data Encryption Keystore Search Order
The search order for the TDE keystore depends on how you have set either the instance initialization parameters, the sqlnet.ora
parameters, or the environment variables.
Oracle Database retrieves the keystore by searching in these locations, in the following order:
-
The location set by the
WALLET_ROOT
instance initialization parameter, when theKEYSTORE_CONFIGURATION
attribute of theTDE_CONFIGURATION
initialization parameter is set. Oracle recommends that you use this parameter to configure the keystore location. -
If the
Starting with Oracle Database 23ai, the parameterKEYSTORE_CONFIGURATION
attribute of theTDE_CONFIGURATION
initialization parameter is not set orWALLET_ROOT
is not set, then the location specified by theENCRYPTION_WALLET_LOCATION
setting in thesqlnet.ora
file.ENCRYPTION_WALLET_LOCATION
is desupported. -
If none of these parameters are set, and if the
ORACLE_BASE
environment variable is set, then the$ORACLE_BASE/admin/db_unique_name/wallet
directory. IfORACLE_BASE
is not set, then$ORACLE_HOME/admin/db_unique_name/wallet
.
Parent topic: Introduction to Transparent Data Encryption
