B.1 GeoRaster REST API Architecture

The GeoRaster REST API is logically integrated in the application tier (mid-tier) of a three-tier architecture.

The following figure shows the GeoRaster REST API architecture:

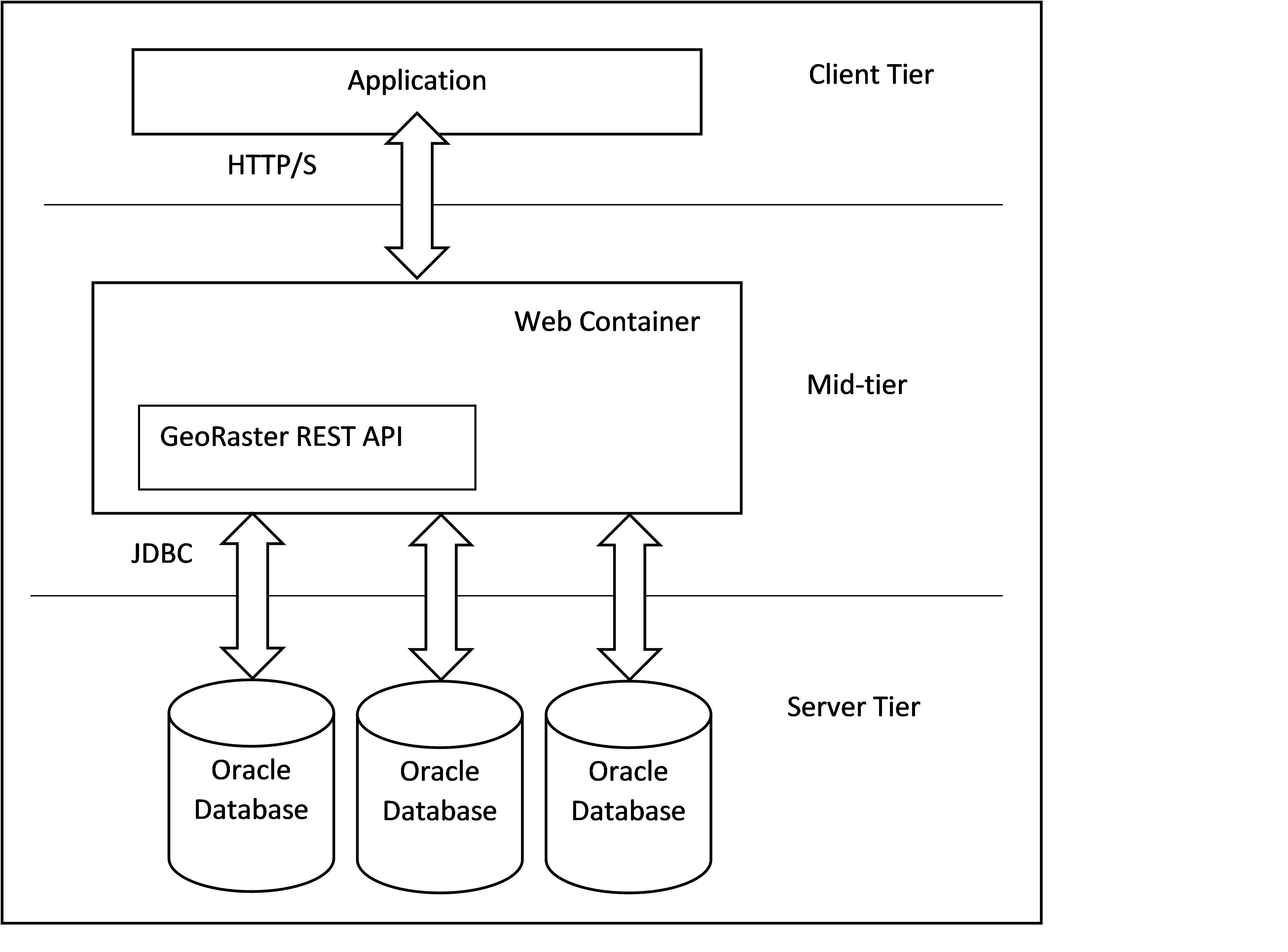

Figure B-1 GeoRaster REST API Architecture

Description of "Figure B-1 GeoRaster REST API Architecture"

The preceding figure describes a three-tier architecture as follows:

• Client Tier: The GeoRaster REST Client acts as the client layer.
• Mid-Tier: The GeoRaster REST API is deployed at the mid-tier server layer.
• Server Tier: The data layer where the GeoRaster data is stored in the Oracle Database server.

The GeoRaster REST API workflow is explained as follows:

• The GeoRaster REST client communicates with the server through the REST API requests in order to access the GeoRaster data and functionalities in the Oracle Database.
• The GeoRaster REST API is deployed into a Java Web Container such as Oracle WebLogic Server.
• For all other requests from the GeoRaster REST Client, GeoRaster REST API uses Oracle JDBC to access the GeoRaster data and invoke the GeoRaster functionalities in the Oracle Database.
