SQL For JSON Conditions

SQL for JSON conditions allow you to test JavaScript Object Notation (JSON) data as follows:

IS JSON Condition lets you test whether an expression is syntactically correct JSON data.
JSON_EQUAL Condition tests whether two JSON values are the same.
JSON_EXISTS Condition lets you test whether a specified JSON value exists in JSON data.
JSON_TEXTCONTAINS Condition lets you test whether a specified character string exists in JSON property values.

JSON_condition::=

Description of the illustration json_condition.eps

IS JSON Condition

Use this SQL JSON condition to test whether an expression is syntactically correct, well-formed, JSON data.

If the data tested is syntactically correct and keyword VALIDATE is not present, then IS JSON returns true, and IS NOT JSON returns false.
If keyword VALIDATE is present, then the data is tested to ensure that it is both well-formed and valid with respect to the specified JSON schema. Keyword VALIDATE (optionally followed by keyword USING) must be followed by a SQL string literal that is the JSON schema to validate against.
If an error occurs during parsing or validating, and the data is considered to not be well-formed or not valid, then IS JSON returns false and IS NOT JSON returns true. Parsing and validation errors are handled by the condition itself returning true or false. Other errors that are neither from parsing or validation, these errors are raised.
You can use IS JSON and IS NOT JSON in a CASE expression or the WHERE clause of a SELECT statement. You can use IS JSON in a check constraint.

is_JSON_condition::=

Description of the illustration is_json_condition.eps

is_json_args::=

Description of the illustration is_json_args.eps

JSON_modifier_list::=

Description of the illustration json_modifier_list.eps

JSON_column_modifier::=

Description of the illustration json_column_modifier.eps

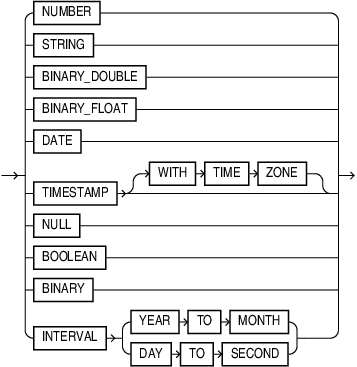

JSON_scalar_modifier::=

Description of the illustration json_scalar_modifier.eps

Use expr to specify the JSON data to be evaluated. Specify an expression that evaluates to a text literal. If expr is a column, then the column must be of data type VARCHAR2, CLOB, or BLOB. If expr evaluates to null or a text literal of length zero, then this condition returns UNKNOWN.
You must specify FORMAT JSON if expr is a column of data type BLOB.
If you specify STRICT, then this condition considers only strict JSON syntax to be well-formed JSON data. If you specify LAX, then this condition also considers lax JSON syntax to be well-formed JSON data. The default is LAX. Refer to Oracle Database JSON Developer’s Guide for more information on strict and lax JSON syntax.
If you specify WITH UNIQUE KEYS, then this condition considers JSON data to be well-formed only if key names are unique within each object. If you specify WITHOUT UNIQUE KEYS, then this condition considers JSON data to be well-formed even if duplicate key names occur within an object. A WITHOUT UNIQUE KEYS test performs faster than a WITH UNIQUE KEYS test. The default is WITHOUT UNIQUE KEYS.
Specify the optional keyword VALIDATE to test that the data is also valid with respect to a given JSON schema.
To enforce that a JSON type value is a certain type, you can use JSON type modifiers. See SQL/JSON Conditions IS JSON and IS NOT JSON of the JSON Developer's Guide.

JSON Schema Validation

A JSON schema typically specifies the allowed structure and data typing of other JSON documents. You can therefore use a JSON schema to validate JSON data. You can validate JSON data against a JSON schema in the following ways:

Use condition IS JSON (or IS NOT JSON) with keyword VALIDATE and the name of a JSON schema, to test whether targeted data is valid (or invalid) against that schema. The schema can be provided as a literal string or a usage domain. (Keyword VALIDATE can optionally be followed by keyword USING.)

You can use VALIDATE with condition is json anywhere you can use that condition. This includes use in a WHERE clause, or as a check constraint to ensure that only valid data is inserted in a column.

When used as a check constraint for a JSON-type column, you can alternatively omit is json, and just use keyword VALIDATE directly. These two table creations are equivalent, for a JSON-type column:
```
CREATE TABLE tab (jcol JSON VALIDATE '{"type" : "object"}’);
```
```
CREATE TABLE tab (jcol JSON CONSTRAINT jchk
  CHECK (jcol IS JSON VALIDATE '{"type" : "object"}’));
```
Use a usage domain as a check constraint for JSON type data. For example:
```
CREATE DOMAIN jd AS JSON CONSTRAINT jchkd CHECK (jd IS JSON VALIDATE '{"type" : "object"});
```
```
CREATE TABLE jtab(jcol JSON DOMAIN jd);
```
When creating a domain from a schema, you can alternatively omit the constraint and is json, and just use keyword VALIDATE directly. This domain creation is equivalent to the previous one:
```
CREATE DOMAIN jd AS JSON VALIDATE '{"type" : "object"};
```
For databases that support a binary JSON format, data can be encoded on the client. In such cases, the database does not have to convert textual JSON to its binary representation and hence validation using an extended data type can be performed.

If textual JSON is sent to the database, it is followed by an encoding process to a binary representation (server-side encoding). In such circumstances, the schema validator can operate in CAST mode. That is, the binary encoder can use the value specified for the extended data type keyword in the JSON schema and encode the scalar field to its binary representation. Only scaler types are eligible for casting.
```
CREATE TABLE jtab (
  id    NUMBER(9) PRIMARY KEY,
  jcol  JSON CHECK(jcol IS JSON VALIDATE CAST USING '{
                  "type": "object",
                  "properties": {
                       "firstName": {
                        "extendedType": "string",
                        "maxLength": 50
                      },
                      "birthDate" : {
                        "extendedType": "date"
                      }
                    },
                    "required": ["firstName", "birthDate"]
                  }'
  )
);
```
The following textual JSON is a valid document per the above schema:
```
{
  "firstName": "Scott",
  "birthDate": "1990-04-02"
}
```
Use PL/SQL functions explained fully in JSON Schema of the JSON Developer's Guide.

Static dictionary views DBA_JSON_SCHEMA_COLUMNS, ALL_JSON_SCHEMA_COLUMNS, and USER_JSON_SCHEMA_COLUMNS describe a JSON schema that you is used as a check constraint.

Each row of these views contains the name of the table, the JSON column, and the constraint defined by the JSON schema, as well as the JSON schema itself and an indication of whether the cast mode is specified for the JSON schema. Views DBA_JSON_SCHEMA_COLUMNS and ALL_JSON_SCHEMA_COLUMNS also contain the name of the table owner.

Examples

IS JSON VALIDATE

The following exampe creates a schema jsontab1 with a JSON constraint jtlisj that has a JSON validate check:

CREATE TABLE jsontab1(
    id NUMBER(4),
    j  JSON CONSTRAINT jt1isj CHECK (j IS JSON VALIDATE USING
     '{
       "type":"object",
       "minProperties": 2
      }')
    );

The following example shows the error when you try to insert values other than a JSON object:

INSERT INTO jsontab1(j) VALUES ('["a", "b"]');
INSERT INTO jsontab1(j) VALUES ('["a", "b"]')
*
ERROR at line 1:
ORA-02290: check constraint (SYS.JT1ISJ) violated

The following two examples shows a row added with valid input :

INSERT INTO jsontab1(j) VALUES ('{"a": "a", "b": "b"}');

   1 row created.

INSERT INTO jsontab1(jschd) VALUES (json('"a json string"'));

1 row created.

The following example adds another constraint jschdsv to table jsontab1:

ALTER TABLE jsontab1
ADD jschd JSON CONSTRAINT jschdsv
                   CHECK (jschd IS JSON VALIDATE USING '{"type":"string"}');

Table altered.

SQL> INSERT INTO jsontab1(jschd) VALUES (json('3.1415'));
INSERT INTO jsontab1(jschd) VALUES (json('3.1415'))
*
ERROR at line 1:
ORA-02290: check constraint (SYS.JSCHDSV) violated

IS JSON VALIDATE in WHERE Clause

SELECT COUNT(1) FROM jsontab1 WHERE j IS JSON
VALIDATE
         '{"type" : "object",
              "properties" : {
                  "id" : {
                      "type" : "number"
                   }
               }
           }';

Testing for STRICT or LAX JSON Syntax: Example

The following statement creates table t with column col1:

CREATE TABLE t (col1 VARCHAR2(100));

The following statements insert values into column col1 of table t:

INSERT INTO t VALUES ( '[ "LIT192", "CS141", "HIS160" ]' );
INSERT INTO t VALUES ( '{ "Name": "John" }' );
INSERT INTO t VALUES ( '{ "Grade Values" : { A : 4.0, B : 3.0, C : 2.0 } }');
INSERT INTO t VALUES ( '{ "isEnrolled" : true }' );
INSERT INTO t VALUES ( '{ "isMatriculated" : False }' );
INSERT INTO t VALUES (NULL);
INSERT INTO t VALUES ('This is not well-formed JSON data');

The following statement queries table t and returns col1 values that are well-formed JSON data. Because neither the STRICT nor LAX keyword is specified, this example uses the default LAX setting. Therefore, this query returns values that use strict or lax JSON syntax.

SELECT col1
  FROM t
  WHERE col1 IS JSON;

COL1
--------------------------------------------------
[ "LIT192", "CS141", "HIS160" ]
{ "Name": "John" }
{ "Grade Values" : { A : 4.0, B : 3.0, C : 2.0 } }
{ "isEnrolled" : true }
{ "isMatriculated" : False }

The following statement queries table t and returns col1 values that are well-formed JSON data. This example specifies the STRICT setting. Therefore, this query returns only values that use strict JSON syntax.

SELECT col1
  FROM t
  WHERE col1 IS JSON STRICT;

COL1
--------------------------------------------------
[ "LIT192", "CS141", "HIS160" ]
{ "Name": "John" }
{ "isEnrolled" : true }

The following statement queries table t and returns col1 values that use lax JSON syntax, but omits col1 values that use strict JSON syntax. Therefore, this query returns only values that contain the exceptions allowed in lax JSON syntax.

SELECT col1
  FROM t
  WHERE col1 IS NOT JSON STRICT AND col1 IS JSON LAX;

COL1
--------------------------------------------------
{ "Grade Values" : { A : 4.0, B : 3.0, C : 2.0 } }
{ "isMatriculated" : False }

Testing for Unique Keys: Example

The following statement creates table t with column col1:

CREATE TABLE t (col1 VARCHAR2(100));

The following statements insert values into column col1 of table t:

INSERT INTO t VALUES ('{a:100, b:200, c:300}');
INSERT INTO t VALUES ('{a:100, a:200, b:300}');
INSERT INTO t VALUES ('{a:100, b : {a:100, c:300}}');

The following statement queries table t and returns col1 values that are well-formed JSON data with unique key names within each object:

SELECT col1 FROM t
  WHERE col1 IS JSON WITH UNIQUE KEYS;

COL1
---------------------------
{a:100, b:200, c:300}
{a:100, b : {a:100, c:300}}

The second row is returned because, while the key name a appears twice, it is in two different objects.

The following statement queries table t and returns col1 values that are well-formed JSON data, regardless of whether there are unique key names within each object:

SELECT col1 FROM t
  WHERE col1 IS JSON WITHOUT UNIQUE KEYS;

COL1
---------------------------
{a:100, b:200, c:300}
{a:100, a:200, b:300}
{a:100, b : {a:100, c:300}}

Using IS JSON as a Check Constraint: Example

The following statement creates table j_purchaseorder, which will store JSON data in column po_document. The statement uses the IS JSON condition as a check constraint to ensure that only well-formed JSON is stored in column po_document.

CREATE TABLE j_purchaseorder
  (id RAW (16) NOT NULL,
   date_loaded TIMESTAMP(6) WITH TIME ZONE,
   po_document CLOB CONSTRAINT ensure_json CHECK (po_document IS JSON));

See Also:

Conditions IS JSON and IS NOT JSON of the JSON Developer's Guide.

JSON_EQUAL Condition

Syntax

Description of the illustration json_equal_condition.eps

Purpose

The Oracle SQL condition JSON_EQUAL compares two JSON values and returns true if they are equal. It returns false if the two values are not equal. The input values must be valid JSON data.

The comparison ignores insignificant whitespace and insignificant object member order. For example, JSON objects are equal, if they have the same members, regardless of their order.

If either of the two compared inputs has one or more duplicate fields, then the value returned by JSON_EQUAL is unspecified.

JSON_EQUAL supports ERROR ON ERROR, FALSE ON ERROR, and TRUE ON ERROR. The default is FALSE ON ERROR. A typical example of an error is when the input expression is not valid JSON.

Examples

The following statements return TRUE:

JSON_EQUAL('{}', '{ }')

JSON_EQUAL('{a:1, b:2}', '{b:2 , a:1 }')

The following statement return FALSE:

JSON_EQUAL('{a:"1"}', '{a:1 }') -> FALSE

The following statement results in a ORA-40441 JSON syntax error

JSON_EQUAL('[1]', '[}' ERROR ON ERROR)

See Also:

Oracle Database JSON Developer’s Guide for more information.

JSON_EXISTS Condition

Use the SQL/JSON condition JSON_EXISTS to test whether a specified JSON value exists in JSON data. This condition returns TRUE if the JSON value exists and FALSE if the JSON value does not exist.

JSON_exists_condition::=

Description of the illustration json_exists_condition.eps

(JSON_basic_path_expression: See Oracle Database JSON Developer’s Guide)

JSON_passing_clause::=

Description of the illustration json_passing_clause.eps

JSON_exists_on_error_clause::=

Description of the illustration json_exists_on_error_clause.eps

JSON_exists_on_empty_clause::=

Description of the illustration json_exists_on_empty_clause.eps

expr

Use this clause to specify the JSON data to be evaluated. For expr, specify an expression that evaluates to a text literal. If expr is a column, then the column must be of data type VARCHAR2, CLOB, or BLOB. If expr evaluates to null or a text literal of length zero, then the condition returns UNKNOWN.

If expr is not a text literal of well-formed JSON data using strict or lax syntax, then the condition returns FALSE by default. You can use the JSON_exists_on_error_clause to override this default behavior. Refer to the JSON_exists_on_error_clause.

FORMAT JSON

You must specify FORMAT JSON if expr is a column of data type BLOB.

JSON_basic_path_expression

Use this clause to specify a SQL/JSON path expression. The condition uses the path expression to evaluate expr and determine if a JSON value that matches, or satisfies, the path expression exists. The path expression must be a text literal, but it can contain variables whose values are passed to the path expression by the JSON_passing_clause. See Oracle Database JSON Developer’s Guide for the full semantics of JSON_basic_path_expression.

JSON_passing_clause

Use this clause to pass values to the path expression. For expr, specify a value of data type VARCHAR2, NUMBER, BINARY_DOUBLE, DATE, TIMESTAMP, or TIMESTAMP WITH TIME ZONE. The result of evaluating expr is bound to the corresponding identifier in the JSON_basic_path_expression.

JSON_exists_on_error_clause

Use this clause to specify the value returned by this condition when expr is not well-formed JSON data.

You can specify the following clauses:

ERROR ON ERROR - Returns the appropriate Oracle error when expr is not well-formed JSON data.
TRUE ON ERROR - Returns TRUE when expr is not well-formed JSON data.
FALSE ON ERROR - Returns FALSE when expr is not well-formed JSON data. This is the default.

JSON_exists_on_empty_clause

Use this clause to specify the value returned by this function if no match is found when the JSON data is evaluated using the SQL/JSON path expression.

You can specify the following clauses:

ERROR ON EMPTY - Returns the appropriate Oracle error when expr is not well-formed JSON data.
TRUE ON EMPTY - Returns TRUE when expr is not well-formed JSON data.
FALSE ON EMPTY - Returns FALSE when expr is not well-formed JSON data. This is the default.

Examples

The following statement creates table t with column name:

CREATE TABLE t (name VARCHAR2(100));

The following statements insert values into column name of table t:

INSERT INTO t VALUES ('[{first:"John"}, {middle:"Mark"}, {last:"Smith"}]');
INSERT INTO t VALUES ('[{first:"Mary"}, {last:"Jones"}]');
INSERT INTO t VALUES ('[{first:"Jeff"}, {last:"Williams"}]');
INSERT INTO t VALUES ('[{first:"Jean"}, {middle:"Anne"}, {last:"Brown"}]');
INSERT INTO t VALUES (NULL);
INSERT INTO t VALUES ('This is not well-formed JSON data');

The following statement queries column name in table t and returns JSON data that consists of an array whose first element is an object with property name first. The ON ERROR clause is not specified. Therefore, the JSON_EXISTS condition returns FALSE for values that are not well-formed JSON data.

SELECT name FROM t
  WHERE JSON_EXISTS(name, '$[0].first');

NAME
--------------------------------------------------
[{first:"John"}, {middle:"Mark"}, {last:"Smith"}]
[{first:"Mary"}, {last:"Jones"}]
[{first:"Jeff"}, {last:"Williams"}]
[{first:"Jean"}, {middle:"Anne"}, {last:"Brown"}]

The following statement queries column name in table t and returns JSON data that consists of an array whose second element is an object with property name middle. The ON ERROR clause is not specified. Therefore, the JSON_EXISTS condition returns FALSE for values that are not well-formed JSON data.

SELECT name FROM t
  WHERE JSON_EXISTS(name, '$[1].middle');

NAME
--------------------------------------------------------------------------------
[{first:"John"}, {middle:"Mark"}, {last:"Smith"}]
[{first:"Jean"}, {middle:"Anne"}, {last:"Brown"}]

The following statement is similar to the previous statement, except that the TRUE ON ERROR clause is specified. Therefore, the JSON_EXISTS condition returns TRUE for values that are not well-formed JSON data.

SELECT name FROM t
  WHERE JSON_EXISTS(name, '$[1].middle' TRUE ON ERROR);

NAME
--------------------------------------------------------------------------------
[{first:"John"}, {middle:"Mark"}, {last:"Smith"}]
[{first:"Jean"}, {middle:"Anne"}, {last:"Brown"}]
This is not well-formed JSON data

The following statement queries column name in table t and returns JSON data that consists of an array that contains an element that is an object with property name last. The wildcard symbol (*) is specified for the array index. Therefore, the query returns arrays that contain such an object, regardless of its index number in the array.

SELECT name FROM t
  WHERE JSON_EXISTS(name, '$[*].last');

NAME
--------------------------------------------------
[{first:"John"}, {middle:"Mark"}, {last:"Smith"}]
[{first:"Mary"}, {last:"Jones"}]
[{first:"Jeff"}, {last:"Williams"}]
[{first:"Jean"}, {middle:"Anne"}, {last:"Brown"}]

The following statement performs a filter expression using the passing clause. The SQL/JSON variable $var1 in the comparison predicate (@.middle == $var1) gets its value from the bind variable var1 of the PASSING clause.

Using bind variables for value comparisons avoids query re-compilation.

SELECT name FROM t

  WHERE JSON_EXISTS(name, '$[1]?(@.middle == $var1)' PASSING 'Anne' as "var1");

NAME

--------------------------------------------------------------------------------

[{first:"Jean"}, {middle:"Anne"}, {last:"Brown"}]

See Also:

Condition JSON_Exists

JSON_TEXTCONTAINS Condition

Use the SQL/JSON condition JSON_TEXTCONTAINS to test whether a specified character string exists in JSON property values. You can use this condition to filter JSON data on a specific word or number.

This condition takes the following arguments:

A table or view column that contains JSON data. A JSON search index, which is an Oracle Text index designed specifically for use with JSON data, must be defined on the column. Each row of JSON data in the column is referred to as a JSON document.
A SQL/JSON path expression. The path expression is applied to each JSON document in an attempt to match a specific JSON object within the document. The path expression can contain only JSON object steps; it cannot contain JSON array steps.
A character string. The condition searches for the character string in all of the string and numeric property values in the matched JSON object, including array values. The string must exist as a separate word in the property value. For example, if you search for 'beth', then a match will be found for string property value "beth smith", but not for "elizabeth smith". If you search for '10', then a match will be found for numeric property value 10 or string property value "10 main street", but a match will not be found for numeric property value 110 or string property value "102 main street".

This condition returns TRUE if a match is found, and FALSE if a match is not found.

See Also:

JSON Full text search queries

JSON_textcontains_condition::=

Description of the illustration json_textcontains_condition.eps

(JSON_basic_path_expression: See Oracle Database JSON Developer’s Guide)

column

Specify the name of the table or view column containing the JSON data to be tested. The column must be of data type VARCHAR2, CLOB, or BLOB. A JSON search index, which is an Oracle Text index designed specifically for use with JSON data, must be defined on the column. If a column value is a null or a text literal of length zero, then the condition returns UNKNOWN.

If a column value is not a text literal of well-formed JSON data using strict or lax syntax, then the condition returns FALSE.

JSON_basic_path_expression

Use this clause to specify a SQL/JSON path expression. The condition uses the path expression to evaluate column and determine if a JSON value that matches, or satisfies, the path expression exists. The path expression must be a text literal. See Oracle Database JSON Developer’s Guide for the full semantics of JSON_basic_path_expression.

string

The condition searches for the character string specified by string. The string must be enclosed in single quotation marks.

Examples

The following statement creates table families with column family_doc:

CREATE TABLE families (family_doc VARCHAR2(200));

The following statement creates a JSON search index on column family_doc:

CREATE INDEX ix
  ON families(family_doc)
  INDEXTYPE IS CTXSYS.CONTEXT
  PARAMETERS ('SECTION GROUP CTXSYS.JSON_SECTION_GROUP SYNC (ON COMMIT)');

The following statements insert JSON documents that describe families into column family_doc:

INSERT INTO families
VALUES ('{family : {id:10, ages:[40,38,12], address : {street : "10 Main Street"}}}');

INSERT INTO families
VALUES ('{family : {id:11, ages:[42,40,10,5], address : {street : "200 East Street", apt : 20}}}');

INSERT INTO families
VALUES ('{family : {id:12, ages:[25,23], address : {street : "300 Oak Street", apt : 10}}}');

The following statement commits the transaction:

COMMIT;

The following query returns the JSON documents that contain 10 in any property value in the document:

SELECT family_doc FROM families
  WHERE JSON_TEXTCONTAINS(family_doc, '$', '10');

FAMILY_DOC
--------------------------------------------------------------------------------
{family : {id:10, ages:[40,38,12], address : {street : "10 Main Street"}}}
{family : {id:11, ages:[42,40,10,5], address : {street : "200 East Street", apt : 20}}}
{family : {id:12, ages:[25,23], address : {street : "300 Oak Street", apt : 10}}}

The following query returns the JSON documents that contain 10 in the id property value:

SELECT family_doc FROM families
  where json_textcontains(family_doc, '$.family.id', '10');

FAMILY_DOC
--------------------------------------------------------------------------------
{family : {id:10, ages:[40,38,12], address : {street : "10 Main Street"}}}

The following query returns the JSON documents that have a 10 in the array of values for the ages property:

SELECT family_doc FROM families
  WHERE JSON_TEXTCONTAINS(family_doc, '$.family.ages', '10');

FAMILY_DOC
--------------------------------------------------------------------------------
{family : {id:11, ages:[42,40,10,5], address : {street : "200 East Street", apt : 20}}}

The following query returns the JSON documents that have a 10 in the address property value:

SELECT family_doc FROM families
  WHERE JSON_TEXTCONTAINS(family_doc, '$.family.address', '10');

FAMILY_DOC
--------------------------------------------------------------------------------
{family : {id:10, ages:[40,38,12], address : {street : "10 Main Street"}}}
{family : {id:12, ages:[25,23], address : {street : "300 Oak Street", apt : 10}}}

The following query returns the JSON documents that have a 10 in the apt property value:

SELECT family_doc FROM families
  WHERE JSON_TEXTCONTAINS(family_doc, '$.family.address.apt', '10');

FAMILY_DOC
--------------------------------------------------------------------------------
{family : {id:12, ages:[25,23], address : {street : "300 Oak Street", apt : 10}}}
