18 Analyzing Statistics Using Optimizer Statistics Advisor

Optimizer Statistics Advisor analyzes how optimizer statistics are gathered, and then makes recommendations.

About Optimizer Statistics Advisor

Optimizer Statistics Advisor is built-in diagnostic software that analyzes the quality of statistics and statistics-related tasks.

The advisor task runs automatically in the maintenance window, but you can also run it on demand. You can then view the advisor report. If the advisor makes recommendations, then in some cases you can run system-generated scripts to implement them.

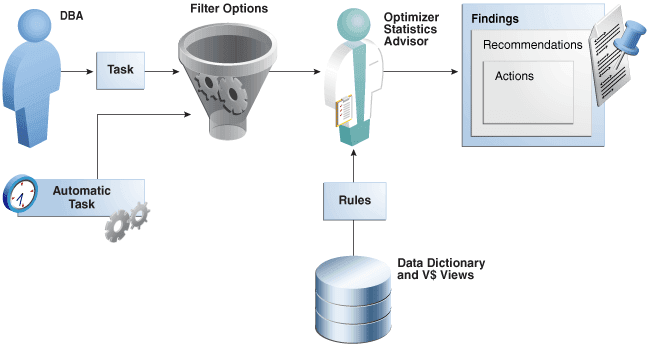

The following figure provides a conceptual overview of Optimizer Statistics Advisor.

Figure 18-1 Optimizer Statistics Advisor

Description of Figure 18-1 follows
Description of "Figure 18-1 Optimizer Statistics Advisor"

Purpose of Optimizer Statistics Advisor

Optimizer Statistics Advisor inspects how optimizer statistics are gathered.

The advisor automatically diagnoses problems in the existing practices for gathering statistics. The advisor does not gather a new or alternative set of optimizer statistics. The output of the advisor is a report of findings and recommendations, which helps you follow best practices for gathering statistics.

Optimizer statistics play a significant part in determining the execution plan for queries. Therefore, it is critical for the optimizer to gather and maintain accurate and up-to-date statistics. The optimizer provides the DBMS_STATS package, which evolves from release to release, for this purpose. Typically, users develop their own strategies for gathering statistics based on specific workloads, and then use homegrown scripts to implement these strategies.

Problems with a Traditional Script-Based Approach

The advantage of the scripted approach is that the scripts are typically tested and reviewed. However, the owner of suboptimal legacy scripts may not change them for fear of causing plan changes.

The traditional approach has the following problems:

  • Legacy scripts may not keep pace with new best practices, which can change from release to release.

    Frequently, successive releases add enhancements to histograms, sampling, workload monitoring, concurrency, and other optimizer-related features. For example, starting in Oracle Database 12c, Oracle recommends setting AUTO_SAMPLE_SIZE instead of a percentage. However, legacy scripts typically specify a sampling percentage, which may lead to suboptimal execution plans.

  • Resources are wasted on unnecessary statistics gathering.

    A script may gather statistics multiple times each day on the same table.

  • Automatic statistics gathering jobs do not guarantee accurate and up-to-date statistics.

    For example, sometimes the automatic statistics gathering job is not running because an initialization parameter combination disables it, or the job is terminated. Moreover, sometimes the automatic job maintenance window is insufficient because of resource constraints, or because too many objects require statistics collection. Jobs that stop running before gathering all statistics cause either no statistics or stale statistics for some objects, which can in turn cause suboptimal plans.

  • Statistics can sometimes be missing, stale, or incorrect.

    For example, statistics may be inconsistent between a table and its index, or between tables with a primary key-foreign key relationship. Alternatively, a statistics gathering job may have been disabled by accident, or you may be unaware that a script has failed.

  • Lack of knowledge of the problem can be time-consuming and resource-intensive.

    For example, a service request might seek a resolution to a problem, unaware that the problem is caused by suboptimal statistics. The diagnosis might require a great deal of time emailing scripts of the problematic queries, enabling traces, and investigating traces.

  • Recommended fixes may not be feasible.

    Performance engineers may recommend changing the application code that maintains statistics. In some organizations, this requirement may be difficult or impossible to satisfy.

Advantages of Optimizer Statistics Advisor

An advisor-based approach offers better scalability and maintainability than the traditional approach.

If best practices change in a new release, then Optimizer Statistics Advisor encodes these practices in its rules. In this way, the advisor always provides the most up-to-date recommendations.

The advisor analyzes how you are currently gathering statistics (using manual scripts, explicitly setting parameters, and so on), the effectiveness of existing statistics gathering jobs, and the quality of the gathered statistics. Optimizer Statistics Advisor does not gather a new or alternative set of optimizer statistics, and so does not affect the workload. Rather, Optimizer Statistics Advisor analyzes information stored in the data dictionary, and then stores the findings and recommendations in the database.

Optimizer Statistics Advisor provides the following advantages over the traditional approach:

  • Provides easy-to-understand reports

    The advisor applies rules to generate findings, recommendations, and actions.

  • Supplies scripts to implement necessary fixes without requiring changes to application code

    When you implement a recommended action, benefit accrues to every execution of the improved statements. For example, if you set a global preference so that the sample size is AUTO_SAMPLE_SIZE rather than a suboptimal percentage, then every plan based on the improved statistics can benefit from this change.

  • Runs a predefined task named AUTO_STATS_ADVISOR_TASK once every day in the maintenance window

    For the automated job to run, the STATISTICS_LEVEL initialization parameter must be set to TYPICAL or ALL.

  • Supplies an API in the DBMS_STATS package that enables you to create and run tasks manually, store findings and recommendations in data dictionary views, generate reports for the tasks, and implement corrections when necessary

  • Integrates with existing tools

    The advisor integrates with SQL Tuning Advisor and AWR, which summarize the Optimizer Statistics Advisor results.

Optimizer Statistics Advisor Concepts

Optimizer Statistics Advisor uses the same advisor framework as Automatic Database Diagnostic Monitor (ADDM), SQL Performance Analyzer, and other advisors.

Components of Optimizer Statistics Advisor

The Optimizer Statistics Optimizer framework stores its metadata in data dictionary and dynamic performance views.

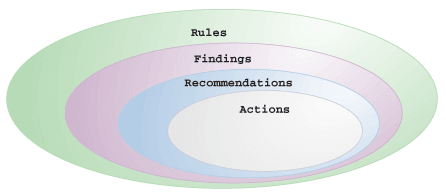

The following Venn diagram shows the relationships among rules, findings, recommendations, and actions for Optimizer Statistics Advisor. For example, all findings are derived from rules, but not all rules generate findings.

Figure 18-2 Optimizer Statistics Advisor Components

Description of Figure 18-2 follows
Description of "Figure 18-2 Optimizer Statistics Advisor Components"
Rules for Optimizer Statistics Advisor

An Optimizer Statistics Advisor rule is an Oracle-supplied standard by which Optimizer Statistics Advisor performs its checks.

The rules embody Oracle best practices based on the current feature set. If the best practices change from release to release, then the Optimizer Statistics Advisor rules also change.

The advisor organizes rules into the following classes:

  • System

    This class checks the preferences for statistics collection, status of the automated statistics gathering job, use of SQL plan directives, and so on. Rules in this class have the value SYSTEM in V$STATS_ADVISOR_RULES.RULE_TYPE.

  • Operation

    This class checks whether statistics collection uses the defaults, test statistics are created using the SET_*_STATS procedures, and so on. Rules in this class have the value OPERATION in V$STATS_ADVISOR_RULES.RULE_TYPE.

  • Object

    This class checks for the quality of the statistics, staleness of statistics, unnecessary collection of statistics, and so on. Rules in this class have the value OBJECT in V$STATS_ADVISOR_RULES.RULE_TYPE.

The rules check for the following problems:

  • How to gather statistics

    For example, one rule might specify the recommended setting for an initialization parameter. Another rule might specify that statistics should be gathered at the schema level.

  • When to gather statistics

    For example, the advisor may recommend that the maintenance window for the automatic statistics gathering job should be enabled, or that the window should be extended.

  • How to improve the efficiency of statistics gathering

    For example, a rule might specify that default parameters should be used in DBMS_STATS, or that statistics should not be set manually.

In V$STATS_ADVISOR_RULES, each rule has a unique string ID that is usable in the DBMS_STATS procedures and reports. You can use a rule filter to specify rules that Optimizer Statistics Advisor should check. However, you cannot write new rules.

Example 18-1 Listing Rules in V$STATS_ADVISOR_RULES

The following query, with sample output, lists a subset of the rules in V$STATS_ADVISOR_RULES. The rules may change from release to release.

SET LINESIZE 208
SET PAGESIZE 100
COL ID FORMAT 99
COL NAME FORMAT a33
COL DESCRIPTION FORMAT a62

SELECT RULE_ID AS ID, NAME, RULE_TYPE, DESCRIPTION
FROM   V$STATS_ADVISOR_RULES
WHERE  RULE_ID BETWEEN 1 AND 12
ORDER BY RULE_ID;

ID NAME                            RULE_TYPE DESCRIPTION
-- ------------------------------- --------- ------------------------------------------
 1 UseAutoJob                      SYSTEM    Use Auto Job for Statistics Collection
 2 CompleteAutoJob                 SYSTEM    Auto Statistics Gather Job should complete
                                             successfully
 3 MaintainStatsHistory            SYSTEM    Maintain Statistics History
 4 UseConcurrent                   SYSTEM    Use Concurrent preference for Statistics
                                             Collection
 5 UseDefaultPreference            SYSTEM    Use Default Preference for Stats Collection
 6 TurnOnSQLPlanDirective          SYSTEM    SQL Plan Directives should not be disabled
 7 AvoidSetProcedures              OPERATION Avoid Set Statistics Procedures
 8 UseDefaultParams                OPERATION Use Default Parameters in Statistics
                                             Collection Proc.
 9 UseGatherSchemaStats            OPERATION Use gather_schema_stats procedure
10 AvoidInefficientStatsOprSeq     OPERATION Avoid inefficient statistics operation
                                             sequences
11 AvoidUnnecessaryStatsCollection OBJECT    Avoid unnecessary statistics collection
12 AvoidStaleStats                 OBJECT    Avoid objects with stale or no statistics

12 rows selected.

See Also:

Oracle Database Reference to learn more about V$STATS_ADVISOR_RULES

Findings for Optimizer Statistics Advisor

A finding results when Optimizer Statistics Advisor examines the evidence stored in the database and concludes that the rules were not followed.

To generate findings, Optimizer Statistics Advisor executes a task, which is invoked either automatically or manually. This task analyzes the statistics history stored in the data dictionary, the statistics operation log, and the current statistics footprint that exists in SYSAUX. For example, the advisor queries DBA_TAB_STATISTICS and DBA_IND_STATISTICS to determine whether statistics are stale, or whether a discrepancy exists between the numbers of rows.

Typically, Optimizer Statistics Advisor generates a finding when a specific rule is not followed or is violated, although some findings—such as object staleness—provide only information. For example, a finding may show that DBMS_STATS.GATHER_TABLE_STATS has used ESTIMATE_PERCENT=>0.01, which violates the ESTIMATE_PERCENT=>AUTO_SAMPLE_SIZE rule.

A finding corresponds to exactly one rule. However, a rule can generate many findings.

See Also:

Recommendations for Optimizer Statistics Advisor

Based on each finding, Optimizer Statistics Advisor makes recommendations on how to achieve better statistics.

For example, the advisor might discover a violation to the rule of not using sampling when gathering statistics, and recommend specifying AUTO_SAMPLE_SIZE instead. The advisor stores the recommendations in DBA_ADVISOR_RECOMMENDATIONS.

Multiple recommendations may exist for a single finding. In this case, you must investigate to determine which recommendation to follow. Each recommendation includes one or more rationales that explain why Optimizer Statistics Advisor makes its recommendation. In some cases, findings may not generate recommendations.

See Also:

Actions for Optimizer Statistics Advisor

An Optimizer Statistics Advisor action is a SQL or PL/SQL script that implements recommendations. When feasible, recommendations have corresponding actions. The advisor stores actions in DBA_ADVISOR_ACTIONS.

For example, Optimizer Statistics Advisor executes a task that performs the following steps:

  1. Checks rules

    The advisor checks conformity to the rule that stale statistics should be avoided.

  2. Generates finding

    The advisor discovers that a number of objects have no statistics.

  3. Generates recommendation

    The advisor recommends gathering statistics on the objects with no statistics.

  4. Generates action

    The advisor generates a PL/SQL script that executes DBMS_STATS.GATHER_DATABASE_STATS, supplying a list of objects that need to have statistics gathered.

See Also:

Operational Modes for Optimizer Statistics Advisor

Optimizer Statistics Advisor supports both an automated and manual mode.

  • Automated

    The predefined task AUTO_STATS_ADVISOR_TASK runs automatically in the maintenance window once per day. The task runs as part of the automatic optimizer statistics collection client. The automated task generates findings and recommendations, but does not implement actions automatically.

    As for any other task, you can configure the automated task, and generate reports. If the report recommends actions, then you can implement the actions manually.

  • Manual

    You can create your own task using the DBMS_STATS.CREATE_ADVISOR_TASK function, and then run it at any time using the EXECUTE_ADVISOR_TASK procedure.

    Unlike the automated task, the manual task can implement actions automatically. Alternatively, you can configure the task to generate a PL/SQL script, which you can then run manually.

Command-Line Interface to Optimizer Statistics Advisor

Perform Optimizer Statistics Advisor tasks using the DBMS_STATS PL/SQL package.

Table 18-1 DBMS_STATS APIs for Task Creation and Deletion

PL/SQL Procedure or Function Description

CREATE_ADVISOR_TASK

Creates an advisor task for Optimizer Statistics Advisor. If the task name is already specified, then the advisor uses the specified task name; otherwise, the advisor automatically generates a new task name.

DROP_ADVISOR_TASK

Deletes an Optimizer Statistics Advisor task and all its result data.

Table 18-2 DBMS_STATS APIs for Task Execution

PL/SQL Procedure or Function Description

EXECUTE_ADVISOR_TASK

Executes a previously created Optimizer Statistics Advisor task.

INTERRUPT_ADVISOR_TASK

Interrupts a currently executing Optimizer Statistics Advisor task. The task ends its operations as it would in a normal exit, enabling you to access intermediate results. You can resume the task later.

CANCEL_ADVISOR_TASK

Cancels an Optimizer Statistics Advisor task execution, and removes all intermediate results of the current execution.

RESET_ADVISOR_TASK

Resets an Optimizer Statistics Advisor task execution to its initial state. Call this procedure on a task that is not currently executing.

RESUME_ADVISOR_TASK

Resumes the Optimizer Statistics Advisor task execution that was most recently interrupted.

Table 18-3 DBMS_STATS APIs for Advisor Reports

PL/SQL Procedure or Function Description

REPORT_STATS_ADVISOR_TASK

Reports the results of an Optimizer Statistics Advisor task.

GET_ADVISOR_RECS

Generates a recommendation report on the given item.

Table 18-4 DBMS_STATS APIs for Task and Filter Configuration

PL/SQL Procedure or Function Description

CONFIGURE_ADVISOR_TASK

Configures the Optimizer Statistics Advisor lists for the execution, reporting, script generation, and implementation of an advisor task.

GET_ADVISOR_OPR_FILTER

Creates an operation filter for a statistics operation.

CONFIGURE_ADVISOR_RULE_FILTER

Configures the rule filter for an Optimizer Statistics Advisor task.

CONFIGURE_ADVISOR_OPR_FILTER

Configures the operation filter for an Optimizer Statistics Advisor task.

CONFIGURE_ADVISOR_OBJ_FILTER

Configures the object filter for an Optimizer Statistics Advisor task.

SET_ADVISOR_TASK_PARAMETER

Updates the value of an Optimizer Statistics Advisor task parameter. Valid parameters are TIME_LIMIT and OP_START_TIME.

Table 18-5 DBMS_STATS APIs for Implementation of Recommended Actions

PL/SQL Procedure or Function Description

SCRIPT_ADVISOR_TASK

Gets the script that implements the recommended actions for the problems found by the advisor. You can check this script, and then choose which actions to execute.

IMPLEMENT_ADVISOR_TASK

Implements the actions recommended by the advisor based on results from a specified Optimizer Statistics Advisor execution.

See Also:

Oracle Database PL/SQL Packages and Types Reference to learn about the DBMS_STATS package

Basic Tasks for Optimizer Statistics Advisor

This section explains the basic workflow for using Optimizer Statistics Advisor. All procedures and functions are in the DBMS_STATS package.

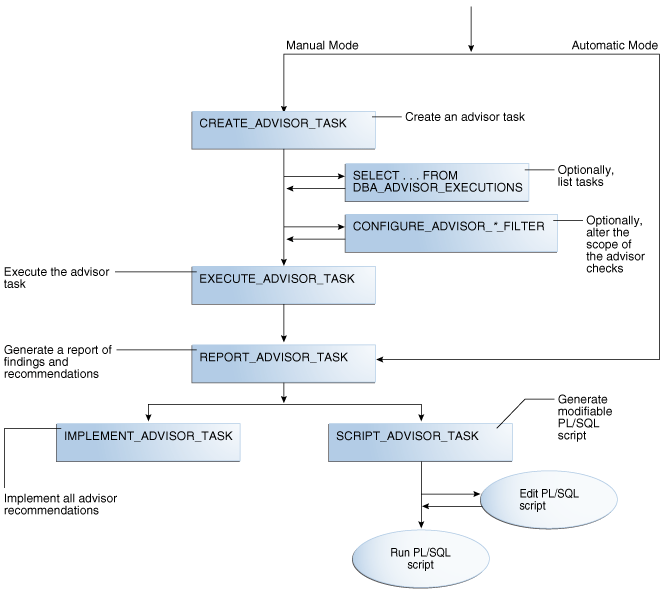

The following figure shows the automatic and manual paths in the workflow. If AUTO_STATS_ADVISOR_TASK runs automatically in the maintenance window, then your workflow begins by querying the report. In the manual workflow, you must use PL/SQL to create and execute the tasks.

Figure 18-3 Basic Tasks for Optimizer Statistics Advisor

Description of Figure 18-3 follows
Description of "Figure 18-3 Basic Tasks for Optimizer Statistics Advisor"

Typically, you perform Optimizer Statistics Advisor steps in the sequence shown in the following table.

Table 18-6 Optimizer Statistics Advisor Workflow

Step Description To Learn More
1

Create an Optimizer Advisor task using DBMS_STATS.CREATE_ADVISOR_TASK (manual workflow only).

"Creating an Optimizer Statistics Advisor Task"

2

Optionally, list executions of advisor tasks by querying DBA_ADVISOR_EXECUTIONS.

"Listing Optimizer Statistics Advisor Tasks"

3

Optionally, configure a filter for the task using the DBMS_STATS.CONFIGURE_ADVISOR_*_FILTER procedures.

"Creating Filters for an Optimizer Advisor Task"

4

Execute the advisor task using DBMS_STATS.EXECUTE_ADVISOR_TASK (manual workflow only).

"Executing an Optimizer Statistics Advisor Task"

5

Generate an advisor report.

"Generating a Report for an Optimizer Statistics Advisor Task"

6

Implement the recommendations in either of following ways:

  • Implement all recommendations automatically using DBMS_STATS.IMPLEMENT_ADVISOR_TASK.

  • Generate a PL/SQL script that implements recommendations using DBMS_STATS.SCRIPT_ADVISOR_TASK, edit this script, and then run it manually.

"Implementing Actions Recommended by Optimizer Statistics Advisor" and "Generating a Script Using Optimizer Statistics Advisor"

Example 18-2 Basic Script for Optimizer Statistics Advisor in Manual Workflow

This script illustrates a basic Optimizer Statistics Advisor session. It creates a task, executes it, generates a report, and then implements the recommendations.

DECLARE
  v_tname   VARCHAR2(128) := 'my_task';
  v_ename   VARCHAR2(128) := NULL;
  v_report  CLOB := null;
  v_script  CLOB := null;
  v_implementation_result CLOB;
BEGIN
  -- create a task
  v_tname := DBMS_STATS.CREATE_ADVISOR_TASK(v_tname);

  -- execute the task
  v_ename := DBMS_STATS.EXECUTE_ADVISOR_TASK(v_tname);

  -- view the task report
  v_report := DBMS_STATS.REPORT_ADVISOR_TASK(v_tname);
  DBMS_OUTPUT.PUT_LINE(v_report);

  -- implement all recommendations
  v_implementation_result := DBMS_STATS.IMPLEMENT_ADVISOR_TASK(v_tname);
END;

See Also:

Oracle Database PL/SQL Packages and Types Reference to learn about the DBMS_STATS package

Creating an Optimizer Statistics Advisor Task

The DBMS_STATS.CREATE_ADVISOR_TASK function creates a task for Optimizer Statistics Advisor. If you do not specify a task name, then Optimizer Statistics Advisor generates one automatically.

Prerequisites

To execute this subprogram, you must have the ADVISOR privilege.

Note:

This subprogram executes using invoker's rights.

To create an Optimizer Statistics Advisor task:

  1. In SQL*Plus, log in to the database as a user with the necessary privileges.

  2. Execute the DBMS_STATS.CREATE_ADVISOR_TASK function in the following form, where tname is the name of the task and ret is the variable that contains the returned output:

    EXECUTE ret := DBMS_STATS.CREATE_ADVISOR_TASK('tname');

    For example, to create the task opt_adv_task1, use the following code:

    DECLARE
      v_tname VARCHAR2(32767);
      v_ret   VARCHAR2(32767);
    BEGIN
      v_tname := 'opt_adv_task1';
      v_ret := DBMS_STATS.CREATE_ADVISOR_TASK(v_tname);
    END;
    /

  3. Optionally, query USER_ADVISOR_TASKS:

    SELECT TASK_NAME, ADVISOR_NAME, CREATED, STATUS FROM USER_ADVISOR_TASKS;

    Sample output appears below:

    TASK_NAME       ADVISOR_NAME         CREATED   STATUS
    --------------- -------------------- --------- -----------
    OPT_ADV_TASK1   Statistics Advisor   05-SEP-16 INITIAL


See Also:

Oracle Database PL/SQL Packages and Types Reference to learn more about CREATE_ADVISOR_TASK

Listing Optimizer Statistics Advisor Tasks

The DBA_ADVISOR_EXECUTIONS view lists executions of Optimizer Statistics Advisor tasks.

To list Optimizer Statistics Advisor tasks:

  1. In SQL*Plus, log in to the database as a user with administrator privileges.

  2. Query DBA_ADVISOR_EXECUTIONS as follows:

    COL EXECUTION_NAME FORMAT a14

    SELECT EXECUTION_NAME, EXECUTION_END, STATUS
    FROM   DBA_ADVISOR_EXECUTIONS
    WHERE  TASK_NAME = 'AUTO_STATS_ADVISOR_TASK'
    ORDER BY 2;

    The following sample output shows 8 executions:

    EXECUTION_NAME EXECUTION STATUS
    -------------- --------- -----------
    EXEC_1         27-AUG-16 COMPLETED
    EXEC_17        28-AUG-16 COMPLETED
    EXEC_42        29-AUG-16 COMPLETED
    EXEC_67        30-AUG-16 COMPLETED
    EXEC_92        01-SEP-16 COMPLETED
    EXEC_117       02-SEP-16 COMPLETED
    EXEC_142       03-SEP-16 COMPLETED
    EXEC_167       04-SEP-16 COMPLETED

    8 rows selected.


See Also:

Oracle Database Reference to learn more about DBA_ADVISOR_EXECUTIONS

Creating Filters for an Optimizer Advisor Task

Filters enable you to include or exclude objects, rules, and operations from Optimizer Statistics Advisor tasks.

About Filters for Optimizer Statistics Advisor

A filter is the use of DBMS_STATS to restrict an Optimizer Statistics Advisor task to a user-specified set of rules, schemas, or operations.

Filters are useful for including or excluding a specific set of results. For example, you can configure an advisor task to include only recommendations for the sh schema. Also, you can exclude all violations of the rule for stale statistics. The primary advantage of filters is the ability to ignore recommendations that you are not interested in, and reduce the overhead of the advisor task.

The simplest way to create filters is to use the following DBMS_STATS procedures either individually or in combination:

  • CONFIGURE_ADVISOR_OBJ_FILTER

    Use this procedure to include or exclude the specified database schemas or objects. The object filter takes in an owner name and an object name, with wildcards (%) supported.

  • CONFIGURE_ADVISOR_RULE_FILTER

    Use this procedure to include or exclude the specified rules. Obtain the names of rules by querying V$STATS_ADVISOR_RULES.

  • CONFIGURE_ADVISOR_OPR_FILTER

    Use this procedure to include or exclude the specified DBMS_STATS operations. Obtain the IDs and names for operations by querying DBA_OPTSTAT_OPERATIONS.

For the preceding functions, you can specify the type of operation to which the filter applies: EXECUTE, REPORT, SCRIPT, and IMPLEMENT. You can also combine types, as in EXECUTE + REPORT. Null indicates that the filter applies to all types of advisor operations.

See Also:

Creating an Object Filter for an Optimizer Advisor Task

The DBMS_STATS.CONFIGURE_ADVISOR_OBJ_FILTER function creates a rule filter for a specified Optimizer Statistics Advisor task. The function returns a CLOB that contains the updated values of the filter.

You can use either of the following basic strategies:

  • Include findings for all objects (by default, all objects are considered), and then exclude findings for specified objects.

  • Exclude findings for all objects, and then include findings only for specified objects.

Prerequisites

To use the DBMS_STATS.CONFIGURE_ADVISOR_OBJ_FILTER function, you must meet the following prerequisites:

  • To execute this subprogram, you must have the ADVISOR privilege.

  • You must be the owner of the task.

Note:

This subprogram executes using invoker's rights.

To create an object filter:

  1. In SQL*Plus or SQL Developer, log in to the database as a user with the necessary privileges.

  2. Either exclude or include objects for a specified task using the DBMS_STATS.CONFIGURE_ADVISOR_OBJ_FILTER function.

    Invoke the function in the following form, where the placeholders are defined as follows:

    • report is the CLOB variable that contains the returned XML.

    • tname is the name of the task.

    • opr_type is the type of operation to perform.

    • rule is the name of the rule.

    • owner is the schema for the objects.

    • table is the name of the table.

    • action is the name of the action: ENABLE, DISABLE, DELETE, or SHOW.

    BEGIN
      report := DBMS_STATS.CONFIGURE_ADVISOR_OBJ_FILTER(
        task_name          => 'tname'
      , stats_adv_opr_type => 'opr_type'
      , rule_name          => 'rule'
      , ownname            => 'owner'
      , tabname            => 'table'
      , action             => 'action' );
    END;

Example 18-3 Including Only Objects in a Single Schema

In this example, for the task named opt_adv_task1, your goal is to disable recommendations for all objects except those in the sh schema. User account sh has been granted ADVISOR and READ ANY TABLE privileges. You perform the following steps:

  1. Log in to the database as sh.

  2. Drop any existing task named opt_adv_task1.

    DECLARE
      v_tname VARCHAR2(32767);
    BEGIN
      v_tname := 'opt_adv_task1';
      DBMS_STATS.DROP_ADVISOR_TASK(v_tname);
    END;
    /

  3. Create a procedure named sh_obj_filter that restricts a specified task to objects in the sh schema.

    CREATE OR REPLACE PROCEDURE sh_obj_filter(p_tname IN VARCHAR2) IS
       v_retc CLOB;
    BEGIN
       -- Filter out all objects that are not in the sh schema
       v_retc := DBMS_STATS.CONFIGURE_ADVISOR_OBJ_FILTER(
                   task_name          => p_tname
                 , stats_adv_opr_type => 'EXECUTE'
                 , rule_name          => NULL
                 , ownname            => NULL
                 , tabname            => NULL
                 , action             => 'DISABLE' );

       v_retc := DBMS_STATS.CONFIGURE_ADVISOR_OBJ_FILTER(
                   task_name          => p_tname
                 , stats_adv_opr_type => 'EXECUTE'
                 , rule_name          => NULL
                 , ownname            => 'SH'
                 , tabname            => NULL
                 , action             => 'ENABLE' );
    END;
    /
    SHOW ERRORS
  4. Create a task named opt_adv_task1, and then execute the sh_obj_filter procedure for this task.

    DECLARE
      v_tname VARCHAR2(32767);
      v_ret VARCHAR2(32767);
    BEGIN
      v_tname := 'opt_adv_task1';
      v_ret   := DBMS_STATS.CREATE_ADVISOR_TASK(v_tname);
      sh_obj_filter(v_tname);
    END;
    /
  5. Execute the task opt_adv_task1.

    DECLARE
      v_tname VARCHAR2(32767);
      v_ret   VARCHAR2(32767);
    begin
      v_tname := 'opt_adv_task1';
      v_ret   := DBMS_STATS.EXECUTE_ADVISOR_TASK(v_tname);
    END;
    /

See Also:

Oracle Database PL/SQL Packages and Types Reference to learn more about DBMS_STATS.CONFIGURE_ADVISOR_OBJ_FILTER

Creating a Rule Filter for an Optimizer Advisor Task

The DBMS_STATS.CONFIGURE_ADVISOR_RULE_FILTER function creates a rule filter for a specified Optimizer Statistics Advisor task. The function returns a CLOB that contains the updated values of the filter.

You can use either of the following basic strategies:

  • Enable all rules (by default, all rules are enabled), and then disable specified rules.

  • Disable all rules, and then enable only specified rules.

Prerequisites

To use the DBMS_STATS.CONFIGURE_ADVISOR_RULE_FILTER function, you must meet the following prerequisites:

  • To execute this subprogram, you must have the ADVISOR privilege.

  • You must be the owner of the task.

Note:

This subprogram executes using invoker's rights.

To create a rule filter:

  1. In SQL*Plus or SQL Developer, log in to the database as a user with the necessary privileges.

  2. Obtain the names of the advisor rules by querying V$STATS_ADVISOR_RULES.

    For example, query the view as follows (partial sample output included):

    SET LINESIZE 200
    SET PAGESIZE 100
    COL ID FORMAT 99
    COL NAME FORMAT a27
    COL DESCRIPTION FORMAT a54

    SELECT RULE_ID AS ID, NAME, RULE_TYPE, DESCRIPTION
    FROM   V$STATS_ADVISOR_RULES
    ORDER BY RULE_ID;

    ID NAME                        RULE_TYPE DESCRIPTION
    -- --------------------------- --------- ------------------------------------------
     1 UseAutoJob                  SYSTEM    Use Auto Job for Statistics Collection
     2 CompleteAutoJob             SYSTEM    Auto Statistics Gather Job should complete
                                             successfully
     3 MaintainStatsHistory        SYSTEM    Maintain Statistics History
     4 UseConcurrent               SYSTEM    Use Concurrent preference for Statistics
                                             Collection
    ...
  3. Either exclude or include rules for a specified task using the DBMS_STATS.CONFIGURE_ADVISOR_RULE_FILTER function.

    Invoke the function in the following form, where the placeholders are defined as follows:

    • tname is the name of the task.

    • report is the CLOB variable that contains the returned XML.

    • opr_type is the type of operation to perform.

    • rule is the name of the rule.

    • action is the name of the action: ENABLE, DISABLE, DELETE, or SHOW.

    BEGIN
      report := DBMS_STATS.DBMS_STATS.CONFIGURE_ADVISOR_RULE_FILTER(
        task_name          => 'tname'
      , stats_adv_opr_type => 'opr_type'
      , rule_name          => 'rule'
      , action             => 'action' );
    END;

Example 18-4 Excluding the Rule for Stale Statistics

In this example, you know that statistics are stale because the automated statistics job did not run. You want to generate a report for the task named opt_adv_task1, but do not want to clutter it with recommendations about stale statistics.

  1. You query V$STATS_ADVISOR_RULES for rules that deal with stale statistics (sample output included):

    COL NAME FORMAT a15
    SELECT RULE_ID AS ID, NAME, RULE_TYPE, DESCRIPTION
    FROM   V$STATS_ADVISOR_RULES
    WHERE  DESCRIPTION LIKE '%tale%'
    ORDER BY RULE_ID;

     ID NAME            RULE_TYPE DESCRIPTION
    --- --------------- --------- -----------------------------------------
     12 AvoidStaleStats OBJECT    Avoid objects with stale or no statistics
  2. You configure a filter using CONFIGURE_ADVISOR_RULE_FILTER, specifying that task execution should exclude the rule AvoidStaleStats, but honor all other rules:

    VARIABLE b_ret CLOB
    BEGIN
       :b_ret := DBMS_STATS.CONFIGURE_ADVISOR_RULE_FILTER(
         task_name          => 'opt_adv_task1'
    ,    stats_adv_opr_type => 'EXECUTE'
    ,    rule_name          => 'AvoidStaleStats'
    ,    action             => 'DISABLE' );
    END;
    /


Example 18-5 Including Only the Rule for Avoiding Stale Statistics

This example is the inverse of the preceding example. You want to generate a report for the task named opt_adv_task1, but want to see only recommendations about stale statistics.

  1. Query V$STATS_ADVISOR_RULES for rules that deal with stale statistics (sample output included):

    COL NAME FORMAT a15

    SELECT RULE_ID AS ID, NAME, RULE_TYPE, DESCRIPTION
    FROM   V$STATS_ADVISOR_RULES
    WHERE  DESCRIPTION LIKE '%tale%'
    ORDER BY RULE_ID;

     ID NAME            RULE_TYPE DESCRIPTION
    --- --------------- --------- -----------------------------------------
     12 AvoidStaleStats OBJECT    Avoid objects with stale or no statistics
  2. Configure a filter using CONFIGURE_ADVISOR_RULE_FILTER, specifying that task execution should exclude all rules:

    VARIABLE b_ret CLOB
    BEGIN
       :b_ret := DBMS_STATS.CONFIGURE_ADVISOR_RULE_FILTER(
         task_name          => 'opt_adv_task1'
    ,    stats_adv_opr_type => 'EXECUTE'
    ,    rule_name          => null
    ,    action             => 'DISABLE' );
    END;
    /

  3. Configure a filter that enables only the AvoidStaleStats rule:

    BEGIN
       :b_ret := DBMS_STATS.CONFIGURE_ADVISOR_RULE_FILTER(
         task_name          => 'opt_adv_task1'
    ,    stats_adv_opr_type => 'EXECUTE'
    ,    rule_name          => 'AvoidStaleStats'
    ,    action             => 'ENABLE' );
    END;
    /


See Also:

Creating an Operation Filter for an Optimizer Advisor Task

The DBMS_STATS.CONFIGURE_ADVISOR_OPR_FILTER function creates an operation filter for a specified Optimizer Statistics Advisor task. The function returns a CLOB that contains the updated values of the filter.

You can use either of the following basic strategies:

  • Disable all operations, and then enable only specified operations.

  • Enable all operations (by default, all operations are enabled), and then disable specified operations.

The DBA_OPTSTAT_OPERATIONS view contains the IDs of statistics-related operations.

Prerequisites

To use DBMS_STATS.CONFIGURE_ADVISOR_OPR_FILTER function, you must meet the following prerequisites:

  • To execute this subprogram, you must have the ADVISOR privilege.

    Note:

    This subprogram executes using invoker's rights.

  • You must be the owner of the task.

  • To query the DBA_OPTSTAT_OPERATIONS view, you must have the SELECT ANY TABLE privilege.

To create an operation filter:

  1. In SQL*Plus or SQL Developer, log in to the database as a user with the necessary privileges.

  2. Query the types of operations.

    For example, list all distinct operations in DBA_OPTSTAT_OPERATIONS (sample output included):

    SQL> SELECT DISTINCT(OPERATION) FROM DBA_OPTSTAT_OPERATIONS ORDER BY OPERATION;

    OPERATION
    -----------------------
    gather_dictionary_stats
    gather_index_stats
    gather_schema_stats
    gather_table_stats
    purge_stats
    set_system_stats

  3. Obtain the IDs of the operations to be filtered by querying DBA_OPTSTAT_OPERATIONS.

    For example, to obtain IDs for all statistics gathering operations for tables and indexes in the SYS and sh schemas, use the following query:

    SELECT ID
    FROM   DBA_OPTSTAT_OPERATIONS
    WHERE  (  OPERATION = 'gather_table_stats'
              OR OPERATION = 'gather_index_stats')
    AND    (  TARGET LIKE 'SH.%'
              OR TARGET LIKE 'SYS.%');
  4. Exclude or include rules for a specified task using the DBMS_STATS.CONFIGURE_ADVISOR_OPR_FILTER function, specifying the IDs obtained in the previous step.

    Invoke the function in the following form, where the placeholders are defined as follows:

    • report is the CLOB variable that contains the returned XML.

    • tname is the name of the task.

    • opr_type is the type of operation to perform. This value cannot be null.

    • rule is the name of the rule.

    • opr_id is the ID (from DBA_OPTSTAT_OPERATIONS.ID) of the operation to perform. This value cannot be null.

    • action is the name of the action: ENABLE, DISABLE, DELETE, or SHOW.

    BEGIN
      report := DBMS_STATS.CONFIGURE_ADVISOR_OPR_FILTER(
        task_name          => 'tname'
      , stats_adv_opr_type => 'opr_type'
      , rule_name          => 'rule'
      , operation_id       => 'op_id'
      , action             => 'action' );
    END;

Example 18-6 Excluding Operations for Gathering Table Statistics

In this example, your goal is to exclude operations that gather table statistics in the hr schema. User account stats has been granted the DBA role, ADVISOR privilege, and SELECT ON DBA_OPTSTAT_OPERATIONS privilege. You perform the following steps:

  1. Log in to the database as stats.

  2. Drop any existing task named opt_adv_task1.

    DECLARE
      v_tname VARCHAR2(32767);
    BEGIN
      v_tname := 'opt_adv_task1';
      DBMS_STATS.DROP_ADVISOR_TASK(v_tname);
    END;
    /

  3. Create a procedure named opr_filter that configures a task to advise on all operations except those that gather statistics for tables in the hr schema.

    CREATE OR REPLACE PROCEDURE opr_filter(p_tname IN VARCHAR2) IS
       v_retc CLOB;
    BEGIN
       -- For all rules, prevent the advisor from operating
       -- on the operations selected in the following query
       FOR rec IN
         (SELECT ID FROM DBA_OPTSTAT_OPERATIONS WHERE OPERATION = 'gather_table_stats' AND TARGET LIKE 'HR.%')
       LOOP
         v_retc := DBMS_STATS.CONFIGURE_ADVISOR_OPR_FILTER(
                     task_name          => p_tname
                   , stats_adv_opr_type => NULL
                   , rule_name          => NULL
                   , operation_id       => rec.id
                   , action             => 'DISABLE');
       END LOOP;
    END;
    /
    SHOW ERRORS

  4. Create a task named opt_adv_task1, and then execute the opr_filter procedure for this task.

    DECLARE
      v_tname VARCHAR2(32767);
      v_ret VARCHAR2(32767);
    BEGIN
      v_tname := 'opt_adv_task1';
      v_ret   := DBMS_STATS.CREATE_ADVISOR_TASK(v_tname);
      opr_filter(v_tname);
    END;
    /
  5. Execute the task opt_adv_task1.

    DECLARE
      v_tname VARCHAR2(32767);
      v_ret   VARCHAR2(32767);
    begin
      v_tname := 'opt_adv_task1';
      v_ret   := DBMS_STATS.EXECUTE_ADVISOR_TASK(v_tname);
    END;
    /
  6. Print the report.

    SPOOL /tmp/rep.txt
    SET LONG 1000000
    COLUMN report FORMAT A200
    SET LINESIZE 250
    SET PAGESIZE 1000

    SELECT DBMS_STATS.REPORT_ADVISOR_TASK(
             task_name      => 'opt_adv_task1'
           , execution_name => NULL
           , type           => 'TEXT'
           , section        => 'ALL'
           ) AS report
    FROM   DUAL;
    SPOOL OFF

See Also:

Executing an Optimizer Statistics Advisor Task

The DBMS_STATS.EXECUTE_ADVISOR_TASK function executes a task for Optimizer Statistics Advisor. If you do not specify an execution name, then Optimizer Statistics Advisor generates one automatically.

The results of performing this task depend on the privileges of the executing user:

  • SYSTEM level

    Only users with both the ANALYZE ANY and ANALYZE ANY DICTIONARY privileges can perform this task on system-level rules.

  • Operation level

    The results depend on the following privileges:

    • Users with both the ANALYZE ANY and ANALYZE ANY DICTIONARY privileges can perform this task for all statistics operations.

    • Users with the ANALYZE ANY privilege but not the ANALYZE ANY DICTIONARY privilege can perform this task for statistics operations related to any schema except SYS.

    • Users with the ANALYZE ANY DICTIONARY privilege but not the ANALYZE ANY privilege can perform this task for statistics operations related to their own schema and the SYS schema.

    • Users with neither the ANALYZE ANY nor the ANALYZE ANY DICTIONARY privilege can only perform this operation for statistics operations relating to their own schema.

  • Object level

    Users can perform this task for any object for which they have statistics collection privileges.

Prerequisites

This task has the following prerequisites:

  • To execute this subprogram, you must have the ADVISOR privilege.

  • You must be the owner of the task.

  • If you specify an execution name, then this name must not conflict with an existing execution.

Note:

This subprogram executes using invoker's rights.

To execute an Optimizer Statistics Advisor task:

  1. In SQL*Plus or SQL Developer, log in to the database as a user with the necessary privileges.

  2. Execute the DBMS_STATS.EXECUTE_ADVISOR_TASK function in the following form, where tname is the name of the task, execname is the optional name of the execution, and ret is the variable that contains the returned output:

    EXECUTE ret := DBMS_STATS.EXECUTE_ADVISOR_TASK('tname','execname');

    For example, to execute the task opt_adv_task1, use the following code:

    DECLARE
      v_tname VARCHAR2(32767);
      v_ret   VARCHAR2(32767);
    BEGIN
      v_tname := 'opt_adv_task1';
      v_ret := DBMS_STATS.EXECUTE_ADVISOR_TASK(v_tname);
    END;
    /

  3. Optionally, obtain details about the execution by querying USER_ADVISOR_EXECUTIONS:

    SELECT TASK_NAME, EXECUTION_NAME,
           EXECUTION_END, EXECUTION_TYPE AS TYPE, STATUS
    FROM   USER_ADVISOR_EXECUTIONS;

    Sample output appears below:

    TASK_NAME       EXECUTION_NAME       EXECUTION TYPE       STATUS
    --------------- -------------------- --------- ---------- -----------
    OPT_ADV_TASK1   EXEC_136             23-NOV-15 STATISTICS COMPLETED


See Also:

Oracle Database PL/SQL Packages and Types Reference to learn more about EXECUTE_ADVISOR_TASK

Generating a Report for an Optimizer Statistics Advisor Task

The DBMS_STATS.REPORT_ADVISOR_TASK function generates a report for an Optimizer Statistics Advisor task.

The report contains the following sections:
  • General information

    This section describes the task name, execution name, creation date, and modification date.

  • Summary

    This section summarizes the findings and rules violated by the findings.

  • Findings

    Each finding section lists the relevant rule and findings. If the advisor has a recommendation, then the recommendation is described. In some cases, a recommendation also has a rationale.

The name of the automated Optimizer Statistics Advisor task is AUTO_STATS_ADVISOR_TASK. If you follow the automated workflow, then you only need to query the automatically generated report.

Prerequisites

To generate a report with the DBMS_STATS.REPORT_ADVISOR_TASK function, you must meet the following prerequisites:

  • To execute this subprogram, you must have the ADVISOR privilege.

  • You must be the owner of the task.

Note:

This subprogram executes using invoker's rights.

The results of performing this task depend on the privileges of the executing user:

  • SYSTEM level

    Only users with both the ANALYZE ANY and ANALYZE ANY DICTIONARY privileges can perform this task on system-level rules.

  • Operation level

    The results depend on the following privileges:

    • Users with both the ANALYZE ANY and ANALYZE ANY DICTIONARY privileges can perform this task for all statistics operations.

    • Users with the ANALYZE ANY privilege but not the ANALYZE ANY DICTIONARY privilege can perform this task for statistics operations related to any schema except SYS.

    • Users with the ANALYZE ANY DICTIONARY privilege but not the ANALYZE ANY privilege can perform this task for statistics operations related to their own schema and the SYS schema.

    • Users with neither the ANALYZE ANY nor the ANALYZE ANY DICTIONARY privilege can only perform this operation for statistics operations relating to their own schema.

  • Object level

    Users can perform this task for any object for which they have statistics collection privileges.

To generate an Optimizer Statistics Advisor report:

  1. In SQL*Plus, log in to the database as a user with ADVISOR privileges.

  2. Query the DBMS_STATS.REPORT_ADVISOR_TASK function output.

    Use the following query, where the placeholders have the following definitions:

    • tname is the name of the task.

    • exec is the name of the execution.

    • type is the type of output: TEXT, HTML, or XML.

    • sect is the section of the report: SUMMARY, FINDINGS, ERRORS, and ALL.

    • lvl is the format of the report: BASIC, TYPICAL, ALL, or SHOW_HIDDEN.

    In the example below, note that FROM DUAL is still supported but is no longer a requirement for queries that do not access tables.

    SET LINESIZE 3000
    SET LONG 500000
    SET PAGESIZE 0
    SET LONGCHUNKSIZE 100000

    SELECT DBMS_STATS.REPORT_ADVISOR_TASK('tname', 'exec', 'type',
           'sect', 'lvl') AS REPORT
    FROM   DUAL;

    For example, to print a report for AUTO_STATS_ADVISOR_TASK, use the following query:

    SELECT DBMS_STATS.REPORT_ADVISOR_TASK('AUTO_STATS_ADVISOR_TASK', NULL,
           'TEXT', 'ALL', 'ALL') AS REPORT
    FROM   DUAL;

    The following sample report shows four findings:

    GENERAL INFORMATION
    -------------------------------------------------------------------------------
     Task Name        : AUTO_STATS_ADVISOR_TASK
     Execution Name   : EXEC_136
     Created          : 09-05-16 02:52:34
     Last Modified    : 09-05-16 12:31:24
    -------------------------------------------------------------------------------
    SUMMARY
    -------------------------------------------------------------------------------
     For execution EXEC_136 of task AUTO_STATS_ADVISOR_TASK, the Statistics Advisor
     has 4 findings. The findings are related to the following rules:
     AVOIDSETPROCEDURES, USEDEFAULTPARAMS, USEGATHERSCHEMASTATS, NOTUSEINCREMENTAL.
    Please refer to the finding section for detailed information.

    -------------------------------------------------------------------------------
    FINDINGS
    -------------------------------------------------------------------------------
     Rule Name:	    AvoidSetProcedures
     Rule Description:  Avoid Set Statistics Procedures
     Finding:  There are 5 SET_[COLUMN|INDEX|TABLE|SYSTEM]_STATS procedures being
               used for statistics gathering.
     Recommendation:  Do not use SET_[COLUMN|INDEX|TABLE|SYSTEM]_STATS procedures.
                      Gather statistics instead of setting them.
     Rationale:  SET_[COLUMN|INDEX|TABLE|SYSTEM]_STATS will cause bad plans due to
                 wrong or inconsistent statistics.
    ----------------------------------------------------
     Rule Name:	    UseDefaultParams
     Rule Description:  Use Default Parameters in Statistics Collection Procedures
     Finding:  There are 367 statistics operations using nondefault parameters.
     Recommendation:  Use default parameters for statistics operations.
     Example:

     -- Gathering statistics for 'SH' schema using all default parameter values:
     BEGIN dbms_stats.gather_schema_stats('SH'); END;
     Rationale:  Using default parameter values for statistics gathering operations
                 is more efficient.
    ----------------------------------------------------
     Rule Name:	    UseGatherSchemaStats
     Rule Description:  Use gather_schema_stats procedure
     Finding:  There are 318 uses of GATHER_TABLE_STATS.
     Recommendation:  Use GATHER_SCHEMA_STATS instead of GATHER_TABLE_STATS.
     Example:

     -- Gather statistics for 'SH' schema:
     BEGIN dbms_stats.gather_schema_stats('SH'); END;
     Rationale:  GATHER_SCHEMA_STATS has more options available, including checking
                 for staleness and gathering statistics concurrently. Also it is
                 more maintainable for new tables added to the schema. If you only
                 want to gather statistics for certain tables in the schema, specify
                 them in the obj_filter_list parameter of GATHER_SCHEMA_STATS.
    ----------------------------------------------------
     Rule Name:	    NotUseIncremental

     Rule Description:  Statistics should not be maintained incrementally when it is not
     Finding:  Incremental option has been turned on for 10 tables, which will not benefit
               from using the incremental option.
     Schema:
     SH
     Objects:
     CAL_MONTH_SALES_MV
     CAL_MONTH_SALES_MV
     CHANNELS
     COUNTRIES
     CUSTOMERS
     DIMENSION_EXCEPTIONS
     FWEEK_PSCAT_SALES_MV
     FWEEK_PSCAT_SALES_MV
     PRODUCTS
     PROMOTIONS
     SUPPLEMENTARY_DEMOGRAPHICS
     TIMES

     Recommendation:  Do not use the incremental option for statistics gathering on these
                      objects.
     Example:
     --
     Turn off the incremental option for 'SH.SALES':
     dbms_stats.set_table_prefs('SH', 'SALES', 'INCREMENTAL', 'FALSE');
     Rationale:  The overhead of using the incremental option on these tables
                 outweighs the benefit of using the incremental option.


See Also:

Oracle Database PL/SQL Packages and Types Reference to learn more about REPORT_ADVISOR_TASK

Implementing Optimizer Statistics Advisor Recommendations

You can either implement all recommendations automatically using DBMS_STATS.IMPLEMENT_ADVISOR_TASK, or generate an editable script using DBMS_STATS.SCRIPT_ADVISOR_TASK.

Implementing Actions Recommended by Optimizer Statistics Advisor

The DBMS_STATS.IMPLEMENT_ADVISOR_TASK function implements the recommendations for a specified Optimizer Statistics Advisor task. If you do not specify an execution name, then Optimizer Statistics Advisor uses the most recent execution.

The simplest means of implementing recommendations is using DBMS_STATS.IMPLEMENT_ADVISOR_TASK. In this case, no generation of a script is necessary. You can specify that the advisor ignore the existing filters (level=>'ALL') or use the default, which honors the existing filters (level=>'TYPICAL').

Prerequisites

To use DBMS_STATS.IMPLEMENT_ADVISOR_TASK, you must meet the following prerequisites:

  • To execute this subprogram, you must have the ADVISOR privilege.

  • You must be the owner of the task.

Note:

This subprogram executes using invoker's rights.

The results of performing this task depend on the privileges of the executing user:

  • SYSTEM level

    Only users with both the ANALYZE ANY and ANALYZE ANY DICTIONARY privileges can perform this task on system-level rules.

  • Operation level

    The results depend on the following privileges:

    • Users with both the ANALYZE ANY and ANALYZE ANY DICTIONARY privileges can perform this task for all statistics operations.

    • Users with the ANALYZE ANY privilege but not the ANALYZE ANY DICTIONARY privilege can perform this task for statistics operations related to any schema except SYS.

    • Users with the ANALYZE ANY DICTIONARY privilege but not the ANALYZE ANY privilege can perform this task for statistics operations related to their own schema and the SYS schema.

    • Users with neither the ANALYZE ANY nor the ANALYZE ANY DICTIONARY privilege can only perform this operation for statistics operations relating to their own schema.

  • Object level

    Users can perform this task for any object for which they have statistics collection privileges.

To implement advisor actions:

  1. In SQL*Plus, log in to the database as a user with the necessary privileges.

  2. Execute the DBMS_STATS.IMPLEMENT_ADVISOR_TASK function in the following form, where the placeholders have the following definitions:

    • tname is the name of the task.

    • result is the CLOB variable that contains a list of the recommendations that have been successfully implemented.

    • fltr_lvl is the level of implementation: TYPICAL (existing filters honored) or ALL (filters ignored).

    BEGIN
      result := DBMS_STATS.IMPLEMENT_ADVISOR_TASK('tname', level => fltr_lvl);
    END;

    For example, to implement all recommendations for the task opt_adv_task1, use the following code:

    VARIABLE b_ret CLOB
    DECLARE
      v_tname VARCHAR2(32767);
    BEGIN
      v_tname := 'opt_adv_task1';
      :b_ret := DBMS_STATS.IMPLEMENT_ADVISOR_TASK(v_tname);
    END;
    /
  3. Optionally, print the XML output to confirm the implemented actions.

    For example, to print the XML returned in the previous step, use the following code (sample output included):

    SET LONG 10000
    SELECT XMLType(:b_ret) AS imp_results FROM DUAL;
    IMP_RESULTS
    ------------------------------------
    <implementation_results>
      <rule NAME="AVOIDSETPROCEDURES">
        <implemented>yes</implemented>
      </rule>
      <rule NAME="USEGATHERSCHEMASTATS">
        <implemented>yes</implemented>
      </rule>
      <rule NAME="AVOIDSETPROCEDURES">
        <implemented>yes</implemented>
      </rule>
      <rule NAME="USEGATHERSCHEMASTATS">
        <implemented>yes</implemented>
      </rule>
      <rule NAME="USEDEFAULTPARAMS">
        <implemented>no</implemented>
      </rule>
      <rule NAME="USEDEFAULTPARAMS">
        <implemented>yes</implemented>
      </rule>
      <rule NAME="NOTUSEINCREMENTAL">
        <implemented>yes</implemented>
      </rule>
    </implementation_results>

See Also:

Oracle Database PL/SQL Packages and Types Reference to learn more about DBMS_STATS.IMPLEMENT_ADVISOR_TASK

Generating a Script Using Optimizer Statistics Advisor

The DBMS_STATS.SCRIPT_ADVISOR_TASK function generates an editable script with recommendations for a specified Optimizer Statistics Advisor task.

Unlike IMPLEMENT_ADVISOR_TASK, the SCRIPT_ADVISOR_TASK generates a script that you can edit before execution. The output script contains both comments and executable code. As with IMPLEMENT_ADVISOR_TASK, you can specify that the advisor ignore the existing filters (level=>'ALL') or use the default, which honors the existing filters (level=>'TYPICAL'). You can specify that the function returns the script as a CLOB and file, or only a CLOB.

Prerequisites

To use the DBMS_STATS.SCRIPT_ADVISOR_TASK function, you must meet the following prerequisites:

  • To execute this subprogram, you must have the ADVISOR privilege.

  • You must be the owner of the task.

Note:

This subprogram executes using invoker's rights.

The results of performing this task depend on the privileges of the executing user:

  • SYSTEM level

    Only users with both the ANALYZE ANY and ANALYZE ANY DICTIONARY privileges can perform this task on system-level rules.

  • Operation level

    The results depend on the following privileges:

    • Users with both the ANALYZE ANY and ANALYZE ANY DICTIONARY privileges can perform this task for all statistics operations.

    • Users with the ANALYZE ANY privilege but not the ANALYZE ANY DICTIONARY privilege can perform this task for statistics operations related to any schema except SYS.

    • Users with the ANALYZE ANY DICTIONARY privilege but not the ANALYZE ANY privilege can perform this task for statistics operations related to their own schema and the SYS schema.

    • Users with neither the ANALYZE ANY nor the ANALYZE ANY DICTIONARY privilege can only perform this operation for statistics operations relating to their own schema.

  • Object level

    Users can perform this task for any object for which they have statistics collection privileges.

To generate an advisor script:

  1. In SQL*Plus, log in to the database as a user with ADVISOR privileges.

  2. Execute the DBMS_STATS.SCRIPT_ADVISOR_TASK function in the following form, where the placeholders have the following definitions:

    • tname is the name of the task.

    • exec is the name of the execution (default is null).

    • dir is the name of the directory (default is null).

    • result is the CLOB variable that contains a list of the recommendations that have been successfully implemented.

    • filter_lvl is the level of implementation: TYPICAL (existing filters honored) or ALL (filters ignored).

    BEGIN
      result := DBMS_STATS.SCRIPT_ADVISOR_TASK('tname',
                execution_name => 'exec', dir_name => 'dir',
                level => 'filter_lvl');
    END;

    For example, to generate a script that contains recommendations for the task opt_adv_task1, use the following code:

    VARIABLE b_script CLOB
    DECLARE
      v_tname VARCHAR2(32767);
    BEGIN
      v_tname := 'opt_adv_task1';
      :b_script := DBMS_STATS.SCRIPT_ADVISOR_TASK(v_tname);
    END;
    /

    Note:

    If you do not specify an execution name, then Optimizer Statistics Advisor uses the most recent execution.

  3. Print the script.

    For example, to print the script returned in the previous step, use the following code (sample output included):

    DECLARE
      v_len    NUMBER(10);
      v_offset NUMBER(10) :=1;
      v_amount NUMBER(10) :=10000;
    BEGIN
      v_len := DBMS_LOB.getlength(:b_script);
      WHILE (v_offset < v_len)
      LOOP
        DBMS_OUTPUT.PUT_LINE(DBMS_LOB.SUBSTR(:b_script,v_amount,v_offset));
        v_offset := v_offset + v_amount;
      END LOOP;
    END;
    /

    The following example shows a sample script:

    -- Script generated for the recommendations from execution EXEC_23
    -- in the statistics advisor task OPT_ADV_TASK1
    -- Script version 12.2

    -- No scripts will be provided for the rule AVOIDSETPROCEDURES.  Please check the
    -- report for more details.
    -- No scripts will be provided for the rule USEGATHERSCHEMASTATS. Please check the
    -- report for more details.
    -- No scripts will be provided for the rule AVOIDINEFFICIENTSTATSOPRSEQ. Please check
    -- the report for more details.
    -- No scripts will be provided for the rule AVOIDUNNECESSARYSTATSCOLLECTION. Please
    -- check the report for more details.
    -- No scripts will be provided for the rule GATHERSTATSAFTERBULKDML. Please check the
    -- report for more details.
    -- No scripts will be provided for the rule AVOIDDROPRECREATE. Please check the report
    -- for more details.
    -- No scripts will be provided for the rule AVOIDOUTOFRANGE. Please check the report
    -- for more details.
    -- No scripts will be provided for the rule AVOIDANALYZETABLE. Please check the report
    -- for more details.
    -- No scripts will be provided for the rule AVOIDSETPROCEDURES. Please check the
    -- report for more details.
    -- No scripts will be provided for the rule USEGATHERSCHEMASTATS. Please check the
    -- report for more details.
    -- No scripts will be provided for the rule AVOIDINEFFICIENTSTATSOPRSEQ. Please
    -- check the report for more details.
    -- No scripts will be provided for the rule AVOIDUNNECESSARYSTATSCOLLECTION. Please check
    -- the report for more details.
    -- No scripts will be provided for the rule GATHERSTATSAFTERBULKDML. Please check the
    -- report for more details.
    -- No scripts will be provided for the rule AVOIDDROPRECREATE. Please check the report
    -- for more details.
    -- No scripts will be provided for the rule AVOIDOUTOFRANGE. Please check the report
    -- for more details.
    -- No scripts will be provided for the rule AVOIDANALYZETABLE. Please check the report
    -- for more details.

    -- Scripts for rule USEDEFAULTPARAMS
    -- Rule Description: Use Default Parameters in Statistics Collection Procedures
    -- Use the default preference value for parameters

    begin dbms_stats.set_global_prefs('PREFERENCE_OVERRIDES_PARAMETER', 'TRUE'); end;
    /

    -- Scripts for rule USEDEFAULTOBJECTPREFERENCE
    -- Rule Description: Use Default Object Preference for statistics collection
    -- Setting object-level preferences to default values
    -- setting CASCADE to default value for object level preference
    -- setting ESTIMATE_PERCENT to default value for object level preference
    -- setting METHOD_OPT to default value for object level preference
    -- setting GRANULARITY to default value for object level preference
    -- setting NO_INVALIDATE to default value for object levelpreference

    -- Scripts for rule USEINCREMENTAL
    -- Rule Description: Statistics should be maintained incrementally when it is
    -- beneficial.
    -- Turn on the incremental option for those objects for which using incremental is
    -- helpful.

    -- Scripts for rule UNLOCKNONVOLATILETABLE
    -- Rule Description: Statistics for objects with non-volatile should not be locked
    -- Unlock statistics for objects that are not volatile.

    -- Scripts for rule LOCKVOLATILETABLE
    -- Rule Description: Statistics for objects with volatile data should be locked
    -- Lock statistics for volatile objects.

    -- Scripts for rule NOTUSEINCREMENTAL
    -- Rule Description: Statistics should not be maintained incrementally when it is not
       beneficial
    -- Turn off incremental option for those objects for which using incremental is not
    -- helpful.

    begin dbms_stats.set_table_prefs('SH', 'CAL_MONTH_SALES_MV', 'INCREMENTAL', 'FALSE'); end;
    /
    begin dbms_stats.set_table_prefs('SH', 'CHANNELS', 'INCREMENTAL', 'FALSE'); end;
    /
    begin dbms_stats.set_table_prefs('SH', 'COUNTRIES', 'INCREMENTAL', 'FALSE'); end;
    /
    begin dbms_stats.set_table_prefs('SH', 'CUSTOMERS', 'INCREMENTAL', 'FALSE'); end;
    /
    begin dbms_stats.set_table_prefs('SH', 'DIMENSION_EXCEPTIONS', 'INCREMENTAL', 'FALSE'); end;
    /
    begin dbms_stats.set_table_prefs('SH', 'FWEEK_PSCAT_SALES_MV', 'INCREMENTAL', 'FALSE'); end;
    /
    begin dbms_stats.set_table_prefs('SH', 'PRODUCTS', 'INCREMENTAL', 'FALSE'); end;
    /
    begin dbms_stats.set_table_prefs('SH', 'PROMOTIONS', 'INCREMENTAL', 'FALSE'); end;
    /
    begin dbms_stats.set_table_prefs('SH', 'SUPPLEMENTARY_DEMOGRAPHICS', 'INCREMENTAL', 'FALSE'); end;
    /
    begin dbms_stats.set_table_prefs('SH', 'TIMES', 'INCREMENTAL', 'FALSE'); end;
    /

    -- Scripts for rule USEAUTODEGREE
    -- Rule Description: Use Auto Degree for statistics collection
    -- Turn on auto degree for those objects for which using auto degree is helpful.

    -- Scripts for rule AVOIDSTALESTATS
    -- Rule Description: Avoid objects with stale or no statistics
    -- Gather statistics for those objcts that are missing or have no statistics.

    -- Scripts for rule MAINTAINSTATSCONSISTENCY
    -- Rule Description: Statistics of dependent objects should be consistent
    -- Gather statistics for those objcts that are missing or have no statistics.


See Also:

Oracle Database PL/SQL Packages and Types Reference to learn more about DBMS_STATS.SCRIPT_ADVISOR_TASK
